Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

475hp / 401 tq @ 22psi T04z half bridge

Old 04-06-13, 09:09 PM
  #1
547hp at the flywheel
5 Year Member
Thread Starter
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
IL 475hp / 401 tq @ 22psi T04z half bridge

T04z garrett, half bridge port, pre turbo meth/water injection (wannaspeed), blitz FMIC, 6x1000 ev14 injectors, greddy titanium 4" exhaust, aeromotive 340lph stealth pump

All pulls done on a dynojet. Intake temps were around 40 but the pipes were all easy to touch by hand. injector duty was 75-78%, 11.3afrs. pulls strong. probably had room to keep going to 500 but I tend to be heavy on the skinny pedal so we stopped at 22psi. Steve Kan tune.

Ill get the log files from the dyno and post them.
boosted414 is offline
Old 04-06-13, 11:03 PM
  #2
547hp at the flywheel
5 Year Member
Thread Starter
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
Forgot to mention 8.5:1 t2 compression rotors
boosted414 is offline
Old 04-07-13, 08:35 PM
  #3
Junior Member

Join Date: Sep 2012
Location: ct
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
wow thats some serious power. im working on a build similar to yours and ihope to be pushing same amount of power. weather is delaying me a bit because its too cold still but im getting there...
r.alv1992 is offline
Old 04-07-13, 11:56 PM
  #4
rotary sensei
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,312
Likes: 0
Received 0 Likes on 0 Posts
What octane ???
Mr rx-7 tt is offline
Old 04-08-13, 03:21 AM
  #5
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,444
Received 33 Likes on 29 Posts
Most likely 93.
ZE Power MX6 is offline
Old 04-08-13, 12:03 PM
  #6
547hp at the flywheel
5 Year Member
Thread Starter
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
93 octane
boosted414 is offline
Old 04-08-13, 10:20 PM
  #7
547hp at the flywheel
5 Year Member
Thread Starter
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts

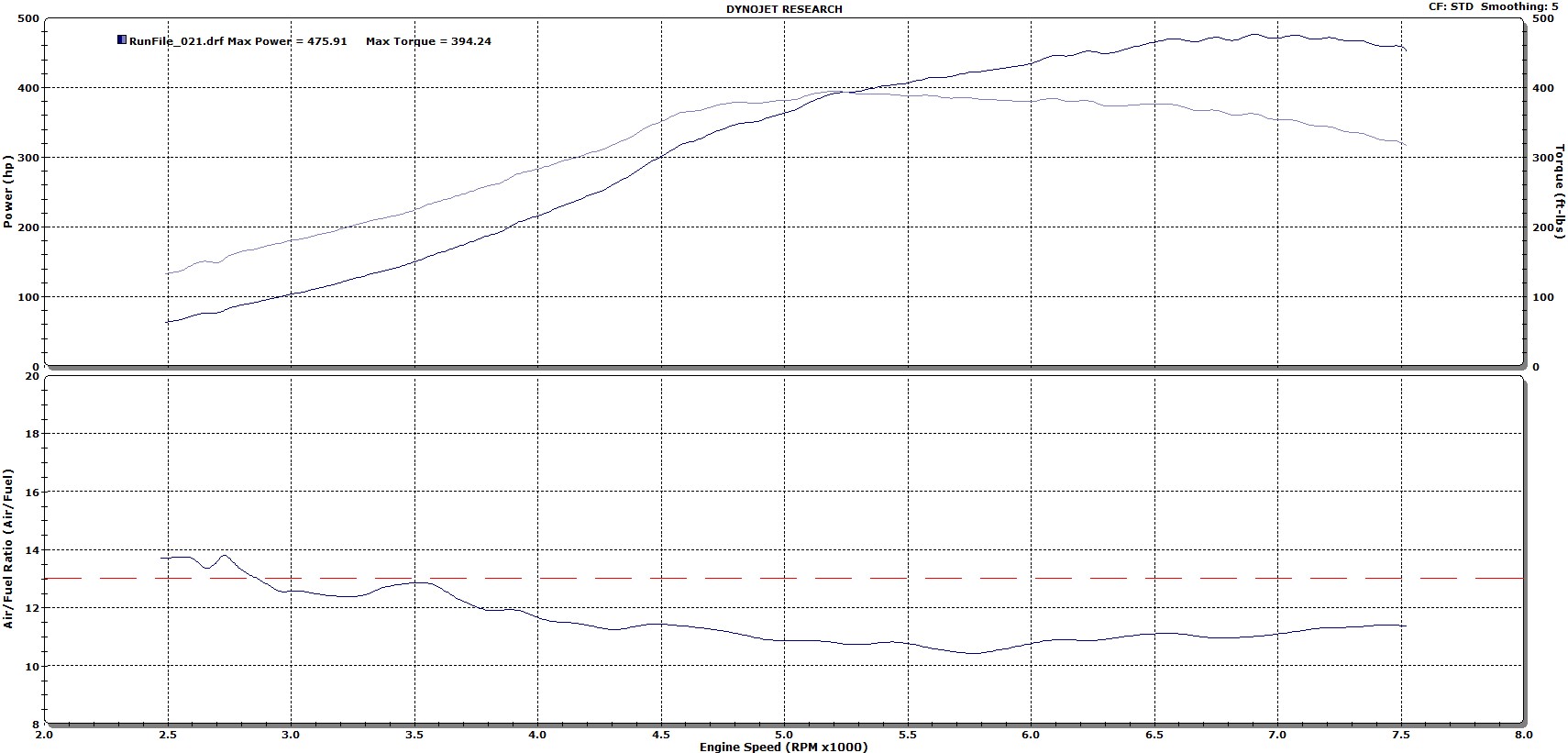

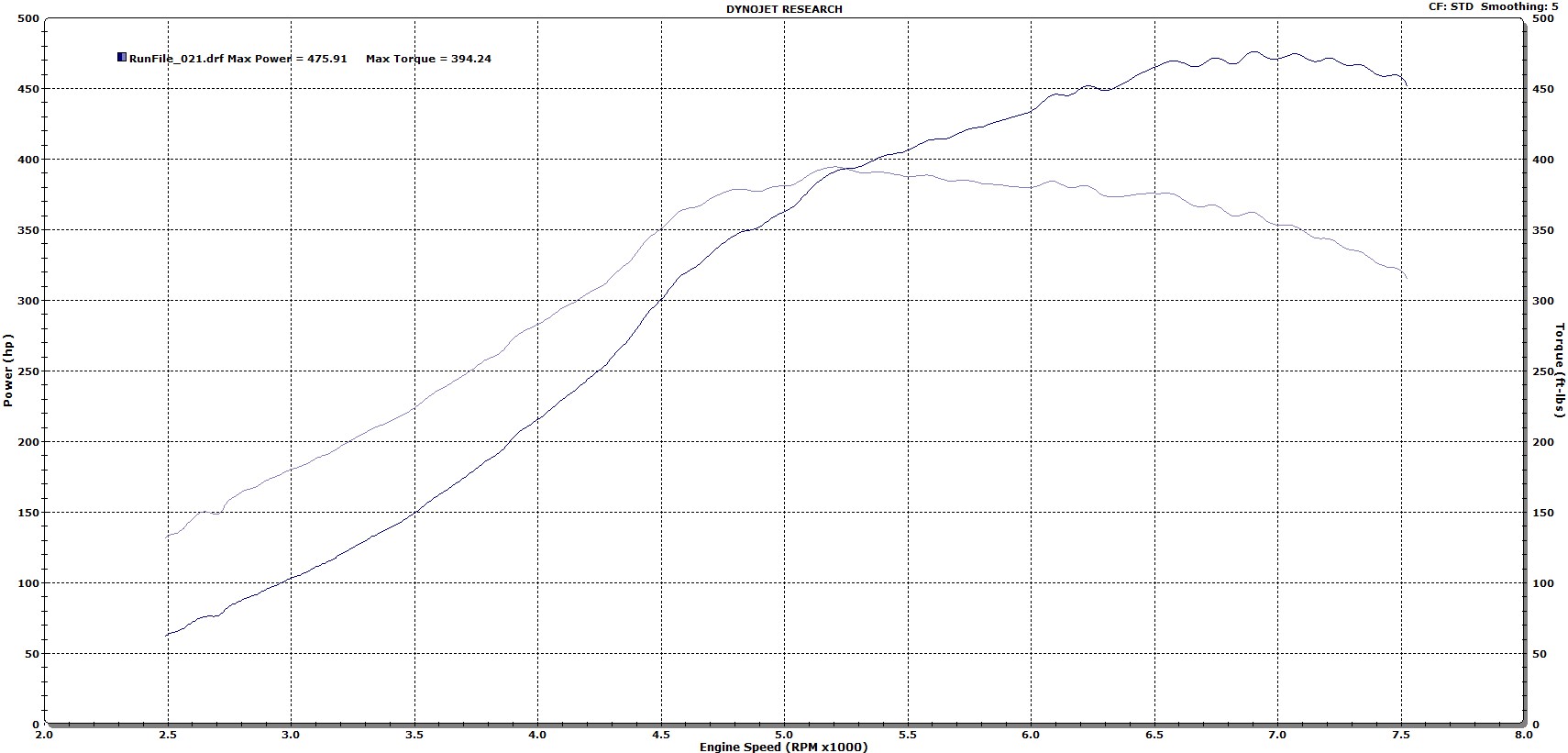

Here are the sheets. first one is just the dyno (the 401 torque is from the run after this). Second one is same run but with AFR as a second map
Attached Thumbnails 475hp / 401 tq @ 22psi T04z half bridge-475hp.jpg   475hp / 401 tq @ 22psi T04z half bridge-475hpafr.jpg
boosted414 is offline
Old 04-12-13, 04:18 PM
  #8
Turbo Lover
10 Year Member
iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
There isn't anyway you could post the map is there?
Ball joint is offline
Old 04-12-13, 04:30 PM
  #9
547hp at the flywheel
5 Year Member
Thread Starter
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
sorry, not going to share the map
boosted414 is offline
