I'm currently using 18x8 Front and 18x9 Rear. Now I have order a new Tein Super Tech Spring Kit on Ebay that drop 1.4 Front and 1.3 Rear. At the same time I will change my Privat Fahren to go with Axis Hiro 19'' I fall in love with those wheels.The best setup I saw look like this :


STAGGERED PACKAGE # 3
2,100US with Hankook K104
2-19x8.5 MOUNTED WITH 235/35R19
2-19x9.5 MOUNTED WITH 265/30R19


What do you think about that setup!! Problem or not ? I dont know exactly the offset of those wheels. If somebody know the answer write it on this thread.

Thanks , Kevin

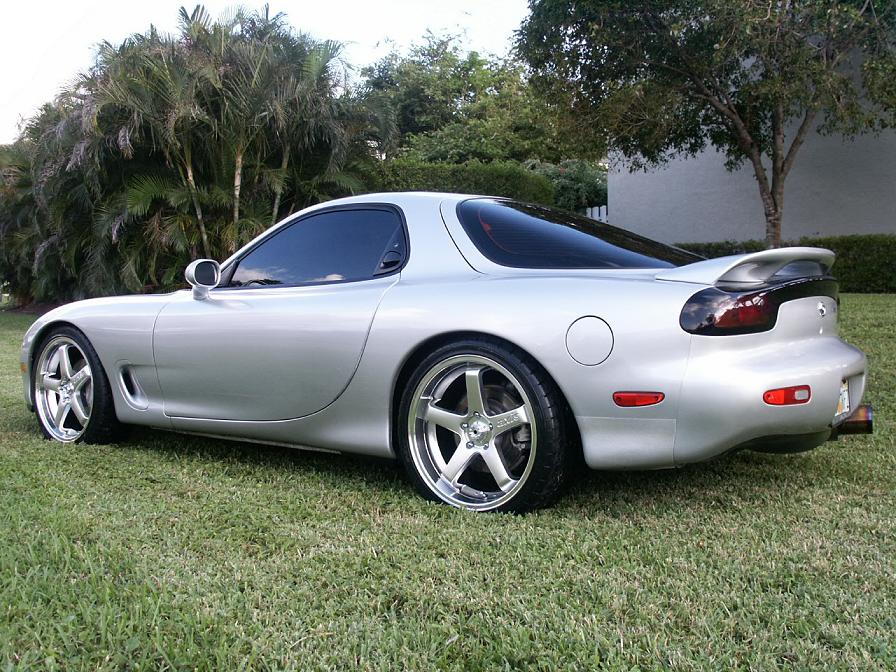

Here is the picture that make me sick to change my wheels for those Axis Hiros!



....dont sell your wheels for a while so i can buy them off of you cheap!



hahahah I'm selling them if everything goes well to a rx7 owner from Montréal for only 2000$ CAN=1650$US with my Falken Tires with 50-60% thread left...


Make me an offer Satoacs!!! hahahah



REAR
Specification Sidewall Radius Diameter Circumference Revs/Mile Difference
225/50-16 4.4in 12.4in 24.9in 78.1in 811 0.0%
265/30-19 3.1in 12.6in 25.3in 79.4in 798 1.6%



FRONT
Specification Sidewall Radius Diameter Circumference Revs/Mile Difference
225/50-16 4.4in 12.4in 24.9in 78.1in 811 0.0%
235/35-19 3.2in 12.7in 25.5in 80.0in 792 2.5%

Doest it fit or not ? I'm not sure...



The fronts will need to be +45 to +50 offset to be streetable if you are lowering the car that much and running 19s.

19s are too big a diameter wheel. The SSR GT-2 looks nearly identical to that wheel, is probably lighter, and you can get it in the same sizes with good offsets.



What about this setup Rynberg ?

Front 18x8.5 offset +40 or +45 with 235/40-18 Diameter=25,4 Circ=79,8



I am currently running a 235/40 18 on an 18x8.5 +45 up front. My car is lowered pretty far -- I do not have issues with catching the fender lip but do hit the fender liner on harder dips. I will be running a 245/35 tire instead the next time I get new tires. I can dial out the height difference between the 245/35 fronts and 265/35 rears as I will be running coilovers.

The tire sidewall with 19s would be just too short for anything but glass smooth surfaces/shows, IMO. Other people have different opinions...



I run a stock sized wheel and tire combo at stock ride height and I still rub the lip and liner on occasion. I have also managed to scrape the R1 lip on level surfaces by doing nothing but slowing down



Damon, Now that's what I call low-ridin'. I've seen bagged-out impala's with dubs that aren't tuckin' as much as your front wheels. Sweet!

-Rob

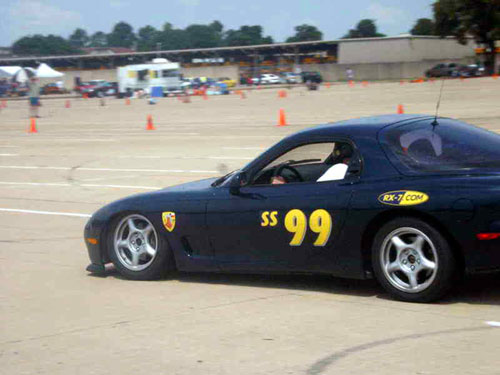

That pic was taken during hard braking on race tires, that's why the nose is tucked so far down.



I think the differences are: 1) I'm still running street tires and 2) my springs are 50% stiffer than yours... I do compress enough on street tires to hit the liners on bumpier sections of the track. One of the reasons I wanted to go with coilovers was to get the stiffer spring rates I wanted while being able to raise the car back up a little bit from the normal lowering spring height drop.

That's quite a pic under braking though, holy nose dive batman!



I'll bet that Rynberg has a little stiffer springs than you do.



Yeah, I know. I was just giving you a hard time

The bottom corners of my lip are scraped up for exactly the same reason. I've just never gotten a pic of my car under hard-braking, so I've never really seen what the FD looks like under full load.

-Rob

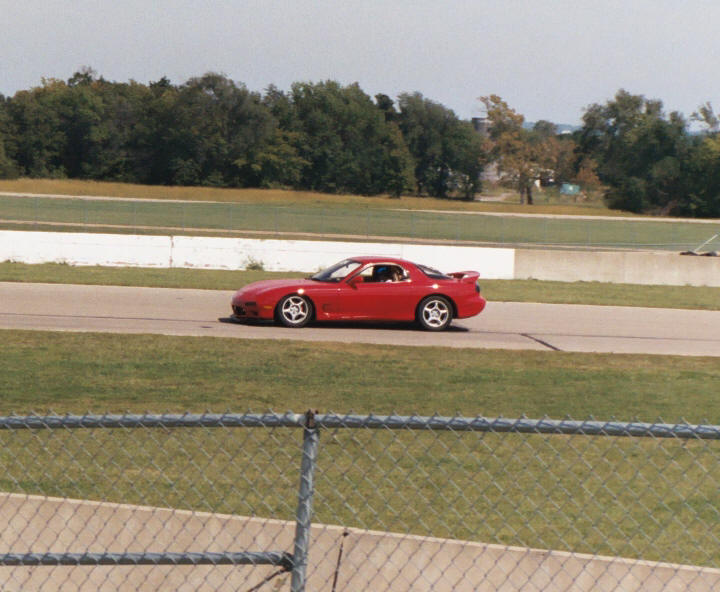

Here's my "under braking" pic.... I do scrape on the track, but my front in only about 3 or so inches off the ground anyways.



oki here is probably the best solution if I want to run those Axis Wheels with my Tein Spring :

18x8.5 + 45 offset - $275 each ($550 total)
19x9.5 +45 offset - $410 each ($820 total)
235/40/18 k104 - $146 each ($292 total)
265/30/19 k104 - $231 each ($462 total)
shipping charges - $120

Total package price including shipping, mounting and balancing is $2,244 to your front door.


What do you think about it rotorhead ?
