Post Pics of your FD Wheel Fitment!!

Reply




Old 10-28-17, 04:56 AM
  #2376
Full Member
iTrader: (1)

Join Date: Jan 2013
Location: australia
Posts: 100
Thanked 2 Times in 2 Posts

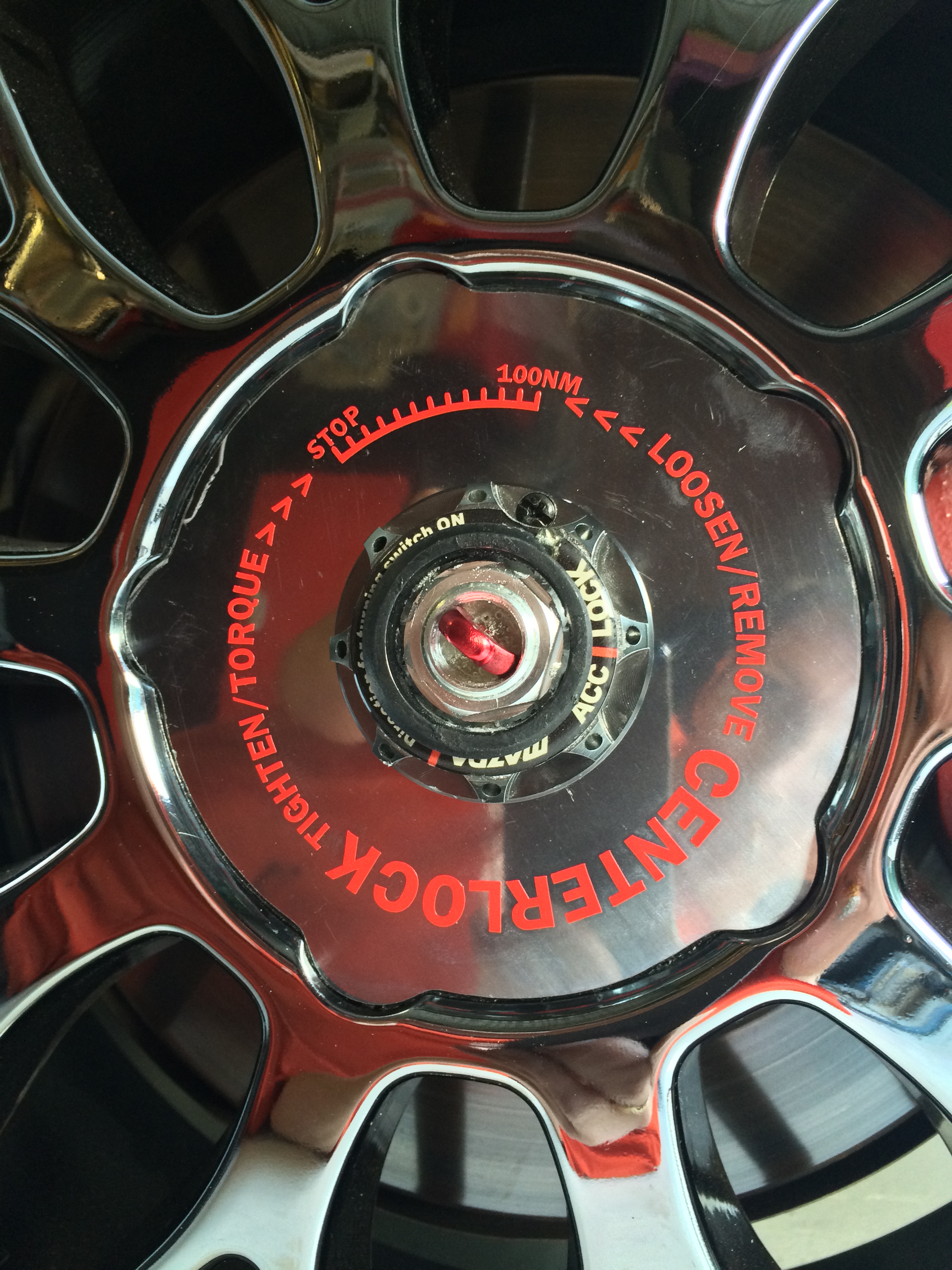

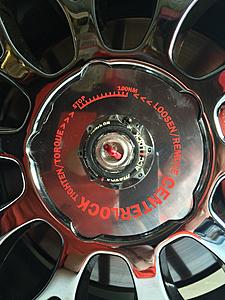

center lock wheels

center lock wheels
Attached Thumbnails Post Pics of your FD Wheel Fitment!!-centerlock-035.jpg
mr rxeven is offline
Reply With Quote
Old 10-28-17, 02:43 PM
  #2377
Senior Member
iTrader: (2)

Join Date: Oct 2008
Location: los angeles
Posts: 665
Thanked 2 Times in 2 Posts
Originally Posted by supraman View Post
I think 19's work nicely!!












it looks very good! , what tires size are you running in the front and back ?
MILOS7 is offline
Reply With Quote
Old 11-12-17, 10:08 PM
  #2378
Senior Member
iTrader: (25)

JP's 93 fd's Avatar

Join Date: Sep 2005
Location: Bay Area, CA
Posts: 413
Thanked 2 Times in 2 Posts
Originally Posted by 7_rocket View Post
^^ Grand mighty's old rims? You need some camber for the rear, it's sticking out too much. Love the rims man. LOVE!
Yes they are! Hopefully getting an alignment soon.
JP's 93 fd is offline
Reply With Quote
Old 11-12-17, 11:16 PM
  #2379
half ass 2 or whole ass 1
iTrader: (108)

cr-rex's Avatar

Join Date: Nov 2011
Location: okinawa to tampa
Posts: 1,619
Thanked 28 Times in 25 Posts
17x9+30
17x9.5+15
square 255/45
slight roll in the front and rear



17x9.5+15 255/40
17x10+20 275/40
feed front and rear fenders

Last edited by cr-rex; 11-12-17 at 11:27 PM.
cr-rex is offline
Reply With Quote
Old 11-13-17, 04:41 PM
  #2380
Make an assessment...
iTrader: (2)

speedjunkie's Avatar

Join Date: Aug 2004
Location: Colorado Springs, CO
Posts: 4,114
Thanked 6 Times in 6 Posts
Originally Posted by cr-rex View Post
17x9.5+15 255/40
17x10+20 275/40
feed front and rear fenders
What wheels are these?
speedjunkie is offline
Reply With Quote
Old 11-13-17, 08:53 PM
  #2381
half ass 2 or whole ass 1
iTrader: (108)

cr-rex's Avatar

Join Date: Nov 2011
Location: okinawa to tampa
Posts: 1,619
Thanked 28 Times in 25 Posts
Te37v
cr-rex is offline
Reply With Quote
Old 12-07-17, 10:43 AM
  #2382
Full Member

Join Date: Oct 2010
Location: Miami
Posts: 54
Thanked 2 Times in 2 Posts
Need some input/help if you all have any

I have seen multiple setups on here and had some questions of my own. I am looking into the 2 following specs for a set of te37. Car will be on ohlins coils for reference. How big of a difference do the two have in making it work on a stock body FD?
18x10 +39
18x10.5 +15

I have seen a lot of input on the 18x10.5 +15 fit, but not more than a pull and roll. I also am not interested in doing much of a tire stretch.
Javi.NES is offline
Reply With Quote
Old 12-07-17, 10:54 AM
  #2383
Junior Member
iTrader: (1)

Join Date: Dec 2016
Location: Phoenix, Arizona
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Javi.NES View Post
Need some input/help if you all have any

I have seen multiple setups on here and had some questions of my own. I am looking into the 2 following specs for a set of te37. Car will be on ohlins coils for reference. How big of a difference do the two have in making it work on a stock body FD?
18x10 +39
18x10.5 +15

I have seen a lot of input on the 18x10.5 +15 fit, but not more than a pull and roll. I also am not interested in doing much of a tire stretch.
Is that your front and rear specs you want to run or are you trying to run a square set up?

I run 18x10.5 +22 with a 285/30/18 rear. I'm lowered on Teins with an aggressive roll and in the rear I'm still rubbing a little during hard cornering. Front's I have 18x9.5+22 no issues really

I think you would need roll/pull if you don't want a stretched w/ a +15 on 10.5 wide (depending on how low you go)... I could be wrong...
amustafa32 is offline
Reply With Quote
Old 12-07-17, 12:28 PM
  #2384
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,736
Thanked 83 Times in 73 Posts
Javi.NES
Need some input/help if you all have any

I have seen multiple setups on here and had some questions of my own. I am looking into the 2 following specs for a set of te37. Car will be on ohlins coils for reference. How big of a difference do the two have in making it work on a stock body FD?
18x10 +39
18x10.5 +15


I have seen a lot of input on the 18x10.5 +15 fit, but not more than a pull and roll. I also am not interested in doing much of a tire stretch.


I am going to assume you mean stock body FD but with rolled front and rear fenders and some camber.

By the sizes/offset listed it looks like you are considering a couple different styles of TE37 looking at what is currently available.

18x10 +39 is available in the "TE37SL Black EditionII"

18x10.5 +15 is available in the "TE37SL"

Though 18x10.5 +14 is available in the "TE37SL Black EditionII" which is pretty much the same for fitment.

The 18x10 +39 will fit a stock body FD with rolled front fenders, 2.5deg front negative camber and stock rear fenders with -1.3deg rear camber and a 265/35-18. Only issue I had with similar set-up is 265/35-18 is a bit too tall of a tire up front and will rub the plastic fender liners when turning. 255/35-18 would fix that issue.

On the 18x10.5 +15 a 215/40-18 would fit the same for the tire as the above and the wheel lip would stick out 30mm away from the body of the car.

Online Wheel and Tyre Fitment Calculator. Offset, Tyre Stretch and Speedo Error | Will They Fit

I would NOT do the 18x10.5 +15 with 215/40-18.

The 18x12 +26 "TE37SAGA" with a 255/35-18 fits only 8mm further out than that so could be done with a roll with some pull front and rear...

Online Wheel and Tyre Fitment Calculator. Offset, Tyre Stretch and Speedo Error | Will They Fit

Not sure why you don't list the 18x10.5 +22 "TE37SL" or the 18x10.5 +21 "TE37SL Black EditionII"

Which would fit allow a 235/35-18 and the wheel lip would stick out 24mm from the 18x10 +39.

Online Wheel and Tyre Fitment Calculator. Offset, Tyre Stretch and Speedo Error | Will They Fit

Even better would be the new "TE37SAGA" which is available in 18x10.5 +24 which would fit 245/35-18 and the wheel would stick out 21mm from the 18x10 +39.
Bonus, it has the aggressive Face 4 available.


http://www.willtheyfit.com/index.php?width=265&aspect=35&diameter=18&wheelwid th=10&offset=39&width2=245&aspect2=35&wheel_size=1 8&wheel_width=10-5&offset2=24

https://www.rayswheels.co.jp/product...wheel=TE37SAGA

Volk doesn't make a wide wheel (over 10" wide) with an offset that fits the stock body FD well, but they do make 18x11 +55 "TE37RT" for Porsche. With a 20mm 5x114.3 to 5x130 adapter spacer that makes it 18x11 +35 so you could fit 255/35-18 with the tire tucking the same as 18x10 +39 and the wheel sticking out just 17mm (so better fitment with the 18x11 than all the 18x10.5 offered).

Online Wheel and Tyre Fitment Calculator. Offset, Tyre Stretch and Speedo Error | Will They Fit

I wish Rays Engineering would at least make the TE37 fitments they do for Porsche machined for 5x114.3mm bolt pattern...




Last edited by BLUE TII; 12-07-17 at 12:30 PM.
BLUE TII is offline
Reply With Quote
Old 12-07-17, 08:13 PM
  #2385
Full Member

Join Date: Oct 2010
Location: Miami
Posts: 54
Thanked 2 Times in 2 Posts
This guy!

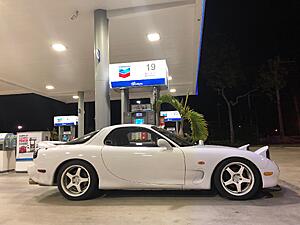

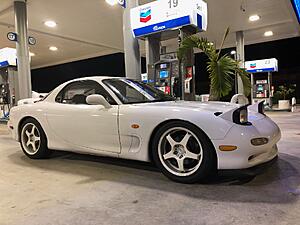

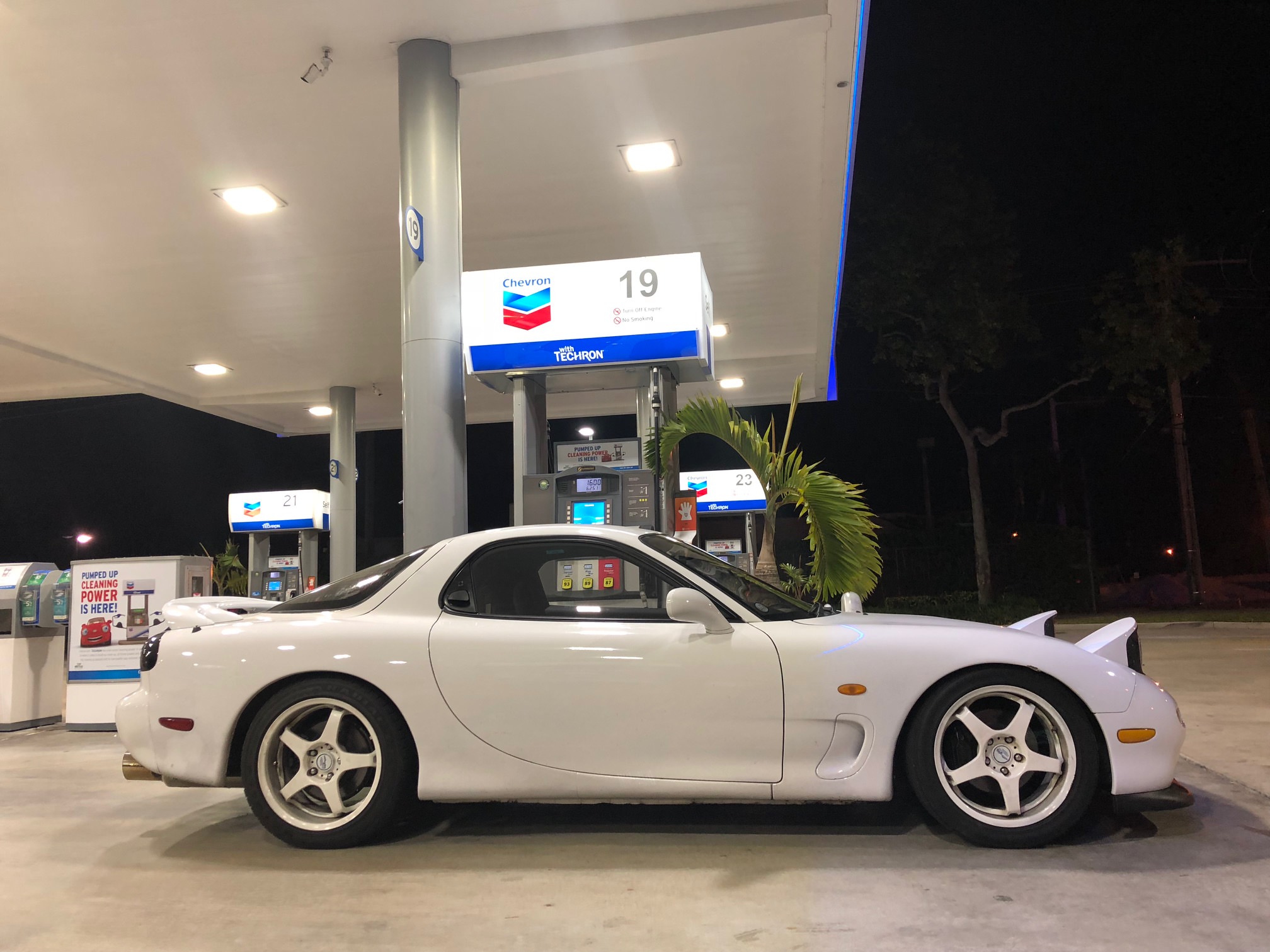

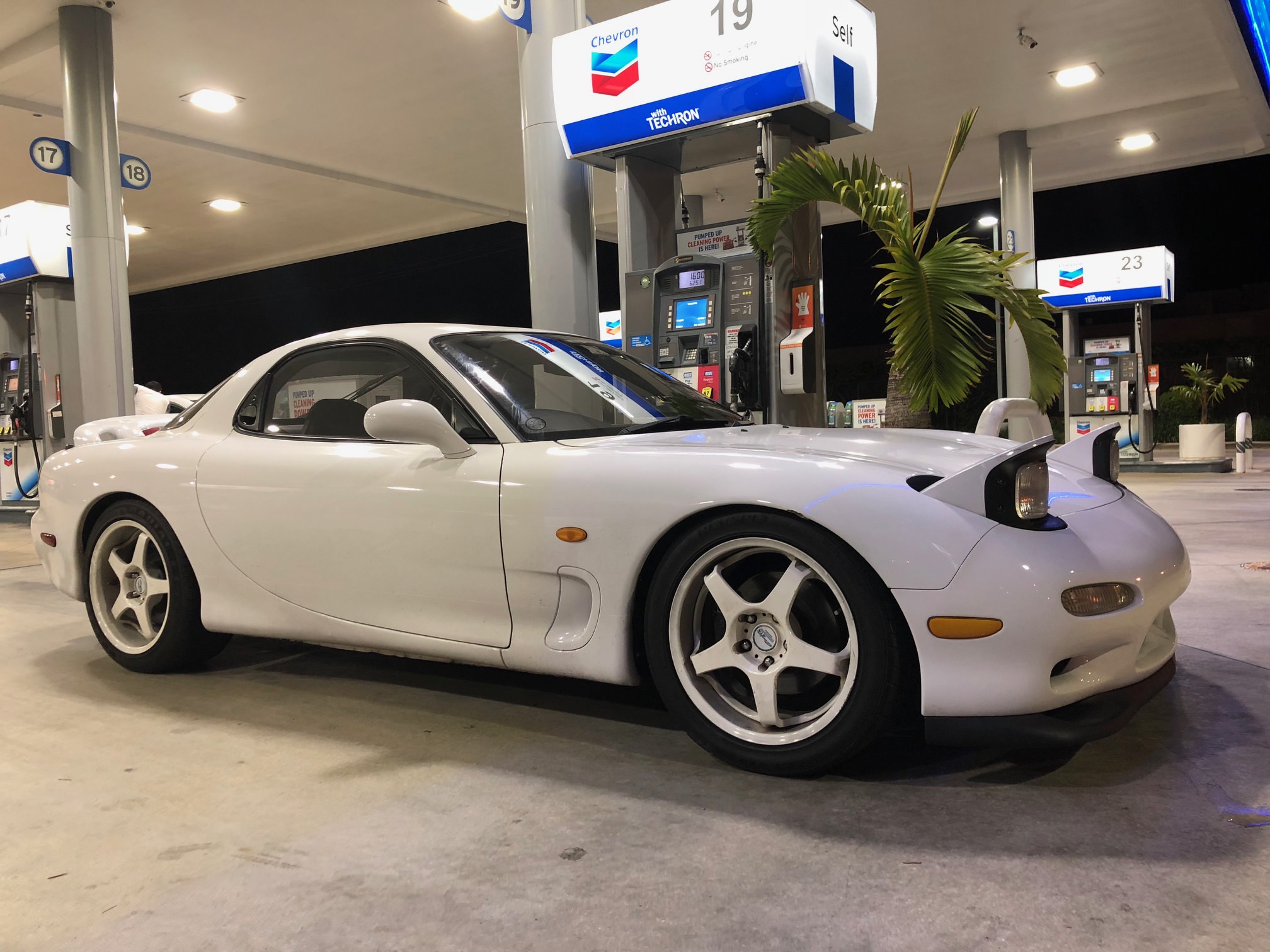

Yes, I was looking into several options. I was looking into doing a squared "mildly aggressive" setup.

The wheel setup I am looking at is the 18x10 +39 it is a te37 OG setup, not the SL. "Real" forging vs flow form forging. I understand there will be some mild fender work, rolling, and some camber which I am not opposed to. I am just not interested in doing the crazy stretch style. Id also like to add that I am not a fan of spacers either, but if theyre needed at a small degree then sure. I see you were running a 265/35 tire and stated the inner liner would rub, how bad? What tire were you running, and how low?

Last edited by Javi.NES; 12-07-17 at 09:42 PM.
Javi.NES is offline
Reply With Quote
Old 12-08-17, 11:38 AM
  #2386
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,736
Thanked 83 Times in 73 Posts
When I ran the 18x10.5 +38 with Federal 595-RS 265/35-18 the front tire rubbed lightly on the inside of the fender liner just below where you see the plastic in the engine bay when I turned the steering wheel because the tires were too tall. The tires would also rub the factory mud flap on the back of the fender arch slightly and much more than slightly as any debris would build up there between the fender sheet metal and the mud flap.

When I went to 18x11 +45 with the shorter 295/30-18 the rubbing went away.

Ride height

profile


When I switched to 18x11 +45 with 295s
BLUE TII is offline
Reply With Quote
Old 12-08-17, 01:51 PM
  #2387
Full Member

Join Date: Oct 2010
Location: Miami
Posts: 54
Thanked 2 Times in 2 Posts
Thats just crazy to think lol

So the thought process is to run a +22 in the rear and a +35 in the front, making a requirement of spacers. 5mm in the front and 17mm in the rear. This SHOULD make a 265/35 tire fit all around with minor work.

I believe "Farkel" was running this setup on set of Advan GT but with A048, making the thread width 10.3 and Diameter 25.2. I will be running a 265 with 9.4 thread width and 25.3 Diameter. Does this make sense to you Blue??

Edit: Just found the link to the advans.
https://www.rx7club.com/wheels-tires...comps-1106783/
Javi.NES is offline
Reply With Quote
Old 12-09-17, 12:37 AM
  #2388
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,736
Thanked 83 Times in 73 Posts
No, a 1/2" stagger with the wrong offsets and spacers doesn't make sense to me but plenty of other people do it...
BLUE TII is offline
Reply With Quote
Old 12-09-17, 12:50 PM
  #2389
Full Member

Join Date: Oct 2010
Location: Miami
Posts: 54
Thanked 2 Times in 2 Posts
Fitment was more of the question.

I decided against the square setup. It just doesnt make sense for what I want, and I am not a big fan of running spacers and not even sure why I considered running that much to begin with. The searching continues.

Thanks for the help Blue!
Javi.NES is offline
Reply With Quote
Old 12-11-17, 11:39 PM
  #2390
Junior Member

DigitalRX7's Avatar

Join Date: Aug 2017
Location: Colorado
Posts: 8
Thanked 0 Times in 0 Posts
Work VS-XX 18x9 +26 & 18x10 +20

DigitalRX7 is offline
Reply With Quote
Old 12-19-17, 11:13 AM
  #2391
Junior Member

Join Date: Nov 2010
Location: oklahoma
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Do you guys think 18x11.5 + 25 rubbing 265/35 will work in the rear with just a roll?
w4kj4k is offline
Reply With Quote
Old 12-19-17, 11:28 AM
  #2392
Junior Member

DigitalRX7's Avatar

Join Date: Aug 2017
Location: Colorado
Posts: 8
Thanked 0 Times in 0 Posts
Originally Posted by w4kj4k View Post
Do you guys think 18x11.5 + 25 rubbing 265/35 will work in the rear with just a roll?
I really doubt that will fit unless you run a crazy stretch. 265 with that wheel setup would poke a lot. I had a hard time fitting 18x10 +20 with a 255.
DigitalRX7 is offline
Reply With Quote
Old 12-26-17, 08:25 AM
  #2393
FD + 2JZGTE = WIN! **D
iTrader: (19)

YoshiFD3S's Avatar

Join Date: Mar 2004
Location: King George, VA USA
Posts: 1,670
Thanks: 0
Thanked 0 Times in 0 Posts
OEM pulled and rolled fenders.

Volk RE-30's....19x10 +25 and 19x11 +25......235/35 & 275/35 tires.

YoshiFD3S is offline
Reply With Quote
Old 12-27-17, 12:59 AM
  #2394
Make an assessment...
iTrader: (2)

speedjunkie's Avatar

Join Date: Aug 2004
Location: Colorado Springs, CO
Posts: 4,114
Thanked 6 Times in 6 Posts
Originally Posted by w4kj4k View Post
Do you guys think 18x11.5 + 25 rubbing 265/35 will work in the rear with just a roll?
I'm gonna go with absolutely not. I have 18x11.5 +12 with 285/30 but I also have my fenders pulled about 2". MAYBE if you ran a retarded amount of stretch and negative camber, MAYBE. But it would be (and look) absolutely idiotic, along with not being functional in the least. Sorry man. lol

However, pull those fenders or get some over fenders and you'll be set.
speedjunkie is offline
Reply With Quote
Old 12-27-17, 10:23 AM
  #2395
Junior Member

Join Date: Nov 2010
Location: oklahoma
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Ah! Itís not loading on photobucket
Originally Posted by YoshiFD3S View Post
OEM pulled and rolled fenders.

Volk RE-30's....19x10 +25 and 19x11 +25......235/35 & 275/35 tires.

w4kj4k is offline
Reply With Quote
Old 12-27-17, 10:25 AM
  #2396
Junior Member

Join Date: Nov 2010
Location: oklahoma
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by speedjunkie View Post
I'm gonna go with absolutely not. I have 18x11.5 +12 with 285/30 but I also have my fenders pulled about 2". MAYBE if you ran a retarded amount of stretch and negative camber, MAYBE. But it would be (and look) absolutely idiotic, along with not being functional in the least. Sorry man. lol

However, pull those fenders or get some over fenders and you'll be set.
Gotcha! Thank you for the reply!
w4kj4k is offline
Reply With Quote
Old 01-01-18, 11:35 PM
  #2397
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,207
Thanks: 0
Thanked 7 Times in 7 Posts
18" Enkie GTC01RR
F: 9.5 et22
R: 10.5 et15

mannykiller is offline
Reply With Quote
Old 01-08-18, 12:40 AM
  #2398
Rexxy
iTrader: (40)

Jose A.'s Avatar

Join Date: Mar 2009
Location: Glendale, AZ
Posts: 1,157
Thanks: 0
Thanked 0 Times in 0 Posts
nice
Jose A. is offline
Reply With Quote
Old 01-28-18, 11:36 AM
  #2399
LO7
Full Member
iTrader: (2)

LO7's Avatar

Join Date: Aug 2012
Location: Quantum Superposition ▲▼ Instagram: Reuleaux7
Posts: 212
Thanked 9 Times in 7 Posts


LO7 is offline
Reply With Quote
Old 03-06-18, 10:55 AM
  #2400
Full Member

Join Date: Oct 2010
Location: Miami
Posts: 54
Thanked 2 Times in 2 Posts

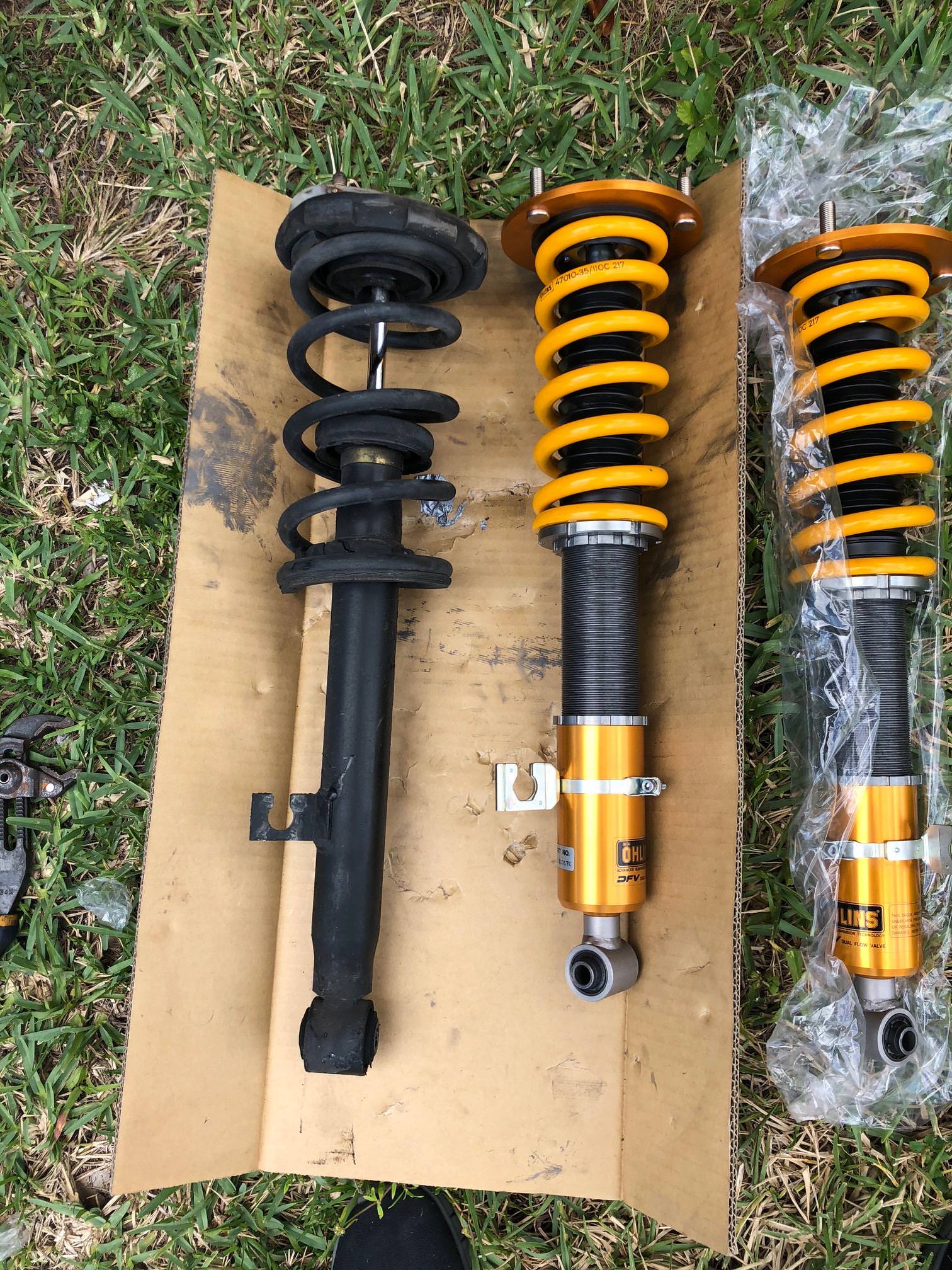

Went ahead and installed the Ohlins coilovers this past weekend as wheels are expected to arrive this week.
Waiting for everything to settle to make adjustments, getting fenders rolled tomorrow as my driver side fender has rubbed with current wheels as you can see.
First alignment prior to wheels will be done this Friday. Love how they ride compare to stock, a lot smoother than expected.



Javi.NES is offline
Reply With Quote
