Post Pics of your FD Wheel Fitment!!

Old 02-22-19, 12:09 PM
  #2476
Junior Member

Join Date: Dec 2016
Location: Los Angeles
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by BLUE TII View Post


If you are at a performance ride height of ~25 1/2" to the top of the fender arch (about an inch lower than stock?) then the most you can get is around -2.4 deg camber up front.

If you are slammed to a good looking ride height you can get over -3 degrees camber up front static because of the camber gain in the suspension.
Thanks! Yeah, I really like the slammed look with some camber but not crazy camber. So, I ended up going with some Konig SSM 18x9 +22 wheels. Now for tire sizing. My buddy told me to get a 35 or 45 sidewall tire or else I would rub really bad. Any advice on tire sizing for good fitment?
MiniRotary is offline
Old 02-22-19, 05:02 PM
  #2477
GregS

Join Date: Aug 2010
Location: Clearwater
Posts: 115
Received 8 Likes on 6 Posts



1993 base R1 upgrade ....TSW Valencia wheels (painted gunmetal) 18x9.5 +40 rear 275x35x18 tire. 18x8 +40 front 255x35x18 tire. Eibach springs lowered 1". rolled front fenders. After looking at all the other FD's mine looks high....even lowered an inch!

Last edited by Greg Sabol; 02-22-19 at 05:09 PM. Reason: add info
Greg Sabol is offline
Old 02-22-19, 06:42 PM
  #2478
Senior Member
iTrader: (1)

Join Date: Jul 2016
Location: fl
Posts: 322
Likes: 0
Received 12 Likes on 11 Posts

18 enkie rpf1 9.5/45
18 enkie 10/38
spintriangles is offline
Old 02-25-19, 07:29 AM
  #2479
Senior Member

fd3sY8S's Avatar

Join Date: Jan 2016
Location: Texas
Posts: 274
Received 8 Likes on 8 Posts

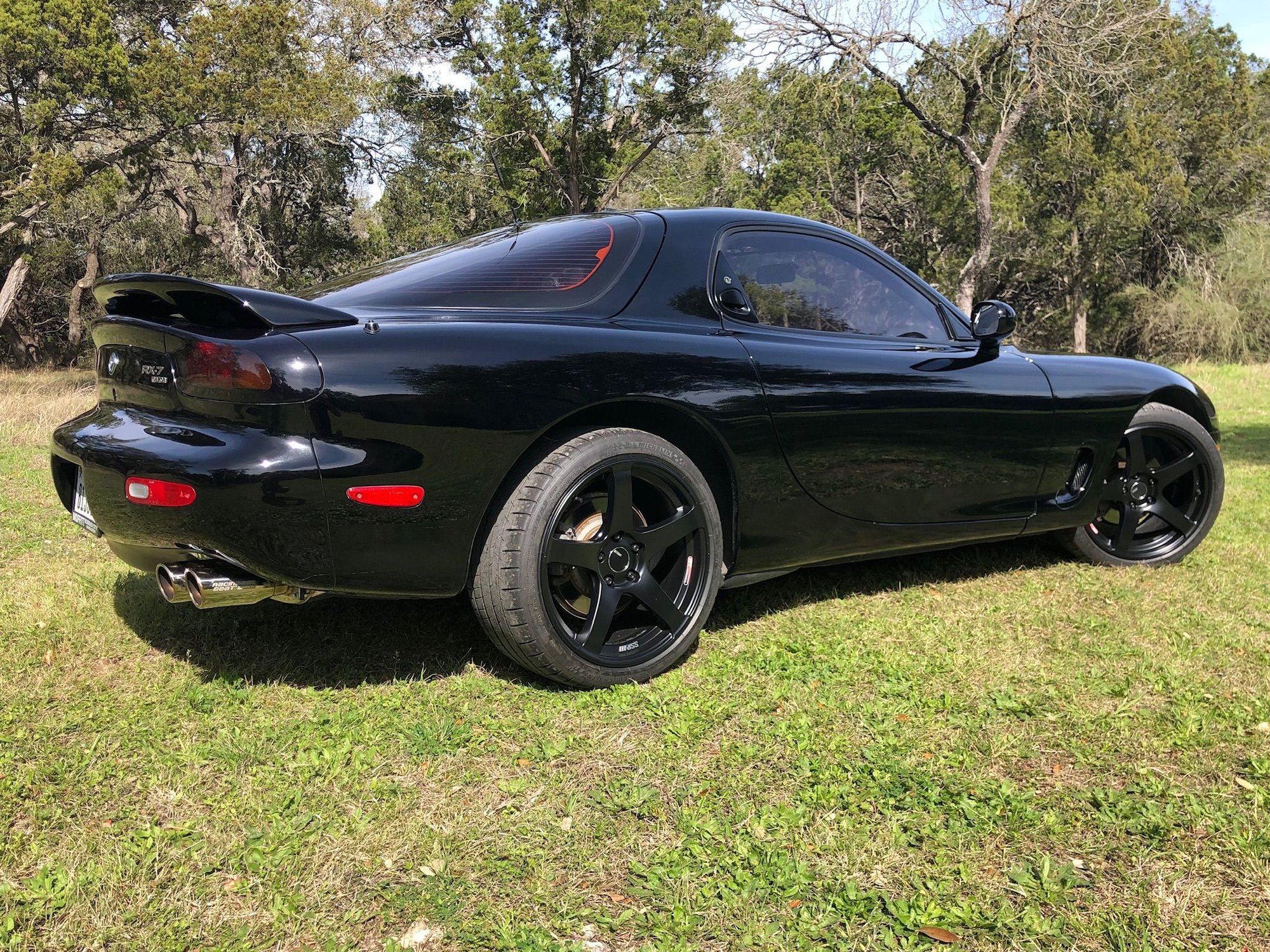

Here is my square set up in 18x9.5 255/35 ZR18 Michelin Pilots all the way around. SSR GTV01 wheels.






fd3sY8S is offline
Old 03-10-19, 08:37 AM
  #2480
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by Battle Cat View Post
i guess i might as well post..

17x9.5 +12 235/45/17 front and back
<snip>

<snip>
then i added a 7mm spacer on the back so it went from +12 to +5 on the 9.5
<snip>

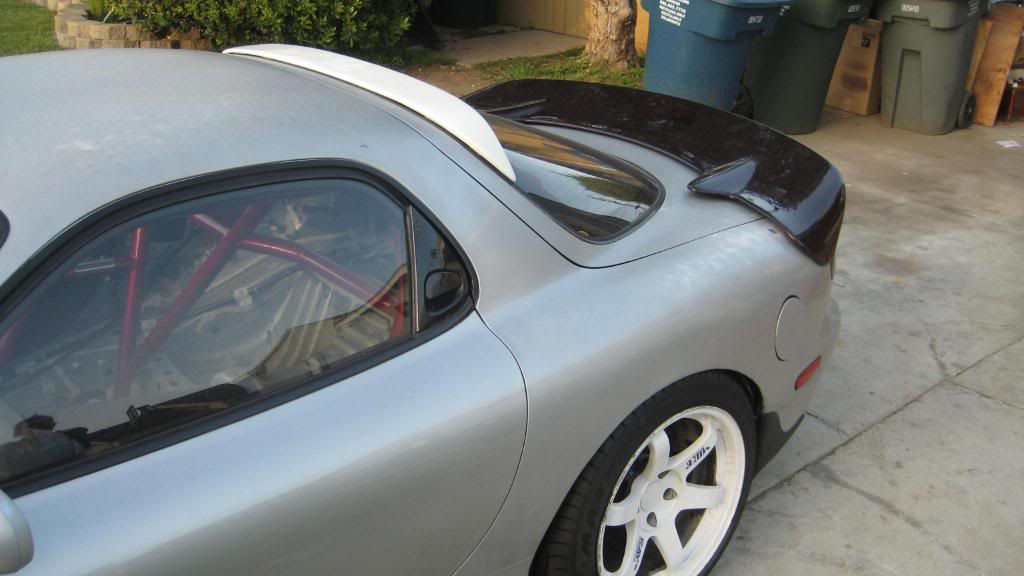

Attachment 711578
"subtle" by today's standards -- I like this.
How much did you roll your fenders? Are the inner fender lips completely flat ("l" profile), or do they still have a bit of "v" profile?
I assume (since I see none) that there was no pull of either front or rear fenders?
Thanks! Trying to figure out what I can fit within stock fenders, both rolled and un-rolled...
adey is offline
Old 03-10-19, 09:24 AM
  #2481
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by amustafa32 View Post
Not pulled but rolled pretty well. Rear tires are 285/30/18 and front are 255/35/18
What about fronts? Rolled but not pulled, too?
adey is offline
Old 03-10-19, 09:37 AM
  #2482
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by jonahau View Post
Can't edit my previous post so I wil update that like narfle and the forum guide said, 18x9.5 offset +38 wrapped in 255-35-18 WILL rub in the front, looks like after some miles my suspesion settle and now in really big bumps it will rub just a little but definitely will rub and the height from ground to the top of my wheel arch is 25.6" front.

Thanks, I appreciate the follow-up!
Where on the fender is it rubbing? Any photos? Is it just the fender liner, or the metal portion of the fender?

Have you since rolled the fenders, and what do you plan to do to mitigate the rubbing?

Are the rears OK so far?

Sorry for the vomit of questions... I'm still in sponge-mode for the FD!
hanks in advance!!
adey is offline
Old 03-10-19, 11:40 AM
  #2483
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by BLUE TII View Post
When I ran the 18x10.5 +38 with Federal 595-RS 265/35-18 the front tire rubbed lightly on the inside of the fender liner just below where you see the plastic in the engine bay when I turned the steering wheel because the tires were too tall. </snip>
Have you (or anyone) considered taking out the plastic, or is that out of the question?

Can anyone say (roughly) how much space there is between the fender liner and the sheet metal of the fender and inner fender?
i.e. if one were to remove the fender liner, how much travel would we be gaining (before the tire is scraping the metal)?

TIA!
adey is offline
Old 03-10-19, 11:57 AM
  #2484
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by latinFD View Post
Work Meisters M1 3 piece, 18x10, 255/35/18 all 4. +38 front, +26 rear offsets, O-disks all 4, burning black center, polished lips. Still need to lower the rear a bit...maybe. Fenders were slightly rolled.
I'm (pleasantly) surprised that Work's O-disks cleared the front calipers... how much clearance do you have? Any close-ups? Thanks!!
adey is offline
Old 03-13-19, 09:13 AM
  #2485
Full Member

Metan's Avatar

Join Date: Apr 2010
Location: Czech republic
Posts: 156
Likes: 0
Received 0 Likes on 0 Posts

hello,
i need help with wheelspacers for my front and rear. actually have no spacers. wheels are 17x8" 44ET with 225x45

iam thinking about 15mm for front and 25mm for rear. will be ok? i have stock suspension with lower TEIN springs. I allready have longer stud from ARP for front. I dont like big camber or rolled fenders. so what you think? will be ok?
thanks
Metan is offline
Old 03-13-19, 11:43 AM
  #2486
half ass 2 or whole ass 1
iTrader: (110)

cr-rex's Avatar

Join Date: Nov 2011
Location: okinawa to tampa
Posts: 1,942
Received 57 Likes on 53 Posts
You would need a 25mm spacer in the front and a 35mm in the rear to be anywhere near flush. Your wheel specs just aren't good for the chassis
cr-rex is offline
Old 03-14-19, 12:06 AM
  #2487
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,071
Received 145 Likes on 128 Posts
wheels are 17x8" 44ET with 225x45

iam thinking about 15mm for front and 25mm for rear. will be ok? i have stock suspension with lower TEIN springs. I allready have longer stud from ARP for front. I dont like big camber or rolled fenders. so what you think? will be ok?
You could probably run a 15mm spacer in back with stock fenders and stock camber.
Not much you can do up front without rolling the fender lip under- its just likely to catch and pull a crease in the fender if you try to flush it up with a spacer.
If you roll the fender lip under you could probably run a 15mm spacer with stock camber.
BLUE TII is offline
Old 03-15-19, 12:03 PM
  #2488
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by BLUE TII View Post
You could probably run a 15mm spacer in back with stock fenders and stock camber.
Not much you can do up front without rolling the fender lip under- its just likely to catch and pull a crease in the fender if you try to flush it up with a spacer.
If you roll the fender lip under you could probably run a 15mm spacer with stock camber.
Emphasis added above... this has happened to me multiple times (don't ask) in my 180sx... I suggest you heed his advice!!
adey is offline
Old 03-29-19, 02:22 PM
  #2489
Full Member

Metan's Avatar

Join Date: Apr 2010
Location: Czech republic
Posts: 156
Likes: 0
Received 0 Likes on 0 Posts
Iam done, CE28N 17x8 ET 44 with 15mm front and 17x8 ET44 with 25mm on back. stock 94 suspension with Tein lowering spring kit. fits nice, no rubing. no fender rolling. I was try some hard cornering in high speed with no problem. This teins springs are great. front is 63,5cm high and rear 65,5.




i just need set proper alligment left to right and it will be done. i like the pettit one. -0,9 front and -0,5back. maybe a little bit more.
Metan is offline
Old 03-29-19, 02:42 PM
  #2490
Junior Member

Join Date: Jul 2016
Location: CA
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Advan RZF2 18x10 +35mm FR 18x10 +25mm RR on 255/35/18 Pilot Super Sports

Finally got them on.
Advan RZF2 18x10 +35mm FR 18x10 +25mm RR on 255/35/18 Pilot Super Sports





310RX7 is offline
Old 03-29-19, 04:18 PM
  #2491
Boilermaker!
iTrader: (113)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,414
Received 23 Likes on 22 Posts
^ Nice wheels, I think the car needs to lower another inch with that setup.
ZE Power MX6 is online now
Old 03-29-19, 04:39 PM
  #2492
Rotary Enthusiast
iTrader: (2)

Rocketeerbandit's Avatar

Join Date: Aug 2014
Location: Rockledge, FL
Posts: 775
Received 16 Likes on 13 Posts
by Gerald Mugar, on Flickr

[/url] by Gerald Mugar, on Flickr


[/url] by Gerald Mugar, on Flickr

Last edited by Rocketeerbandit; 03-29-19 at 04:47 PM.
Rocketeerbandit is offline
Old 03-29-19, 07:43 PM
  #2493
Junior Member

Join Date: Aug 2018
Location: CA
Posts: 29
Received 2 Likes on 2 Posts
Rocketeerbandit, how much camber are you running?
marksae is offline
Old 03-29-19, 09:02 PM
  #2494
Rotary Enthusiast
iTrader: (2)

Rocketeerbandit's Avatar

Join Date: Aug 2014
Location: Rockledge, FL
Posts: 775
Received 16 Likes on 13 Posts
Originally Posted by marksae View Post
Rocketeerbandit, how much camber are you running?
-.07 in the rear. I'm going to tighten it up closer to -.04
Rocketeerbandit is offline
Old 03-31-19, 07:55 AM
  #2495
Full Member

Join Date: Mar 2016
Location: Hong Kong
Posts: 64
Received 2 Likes on 2 Posts
Originally Posted by Rocketeerbandit View Post

What wheel/tire specs are these?
adey is offline
Old 04-01-19, 07:25 PM
  #2496
Rotary Enthusiast
iTrader: (2)

Rocketeerbandit's Avatar

Join Date: Aug 2014
Location: Rockledge, FL
Posts: 775
Received 16 Likes on 13 Posts
18x9.5+40 255/35
18x10+40 265/35
Rocketeerbandit is offline
Old 04-01-19, 10:46 PM
  #2497
Junior Member

Join Date: Aug 2018
Location: CA
Posts: 29
Received 2 Likes on 2 Posts
Originally Posted by Rocketeerbandit View Post
18x9.5+40 255/35
18x10+40 265/35
Is there a reason you didn't just go with an 18x10+40 and 265 square setup?

I currently have a set of 18x10+41 TE37's on order and am trying to figure out what size tires to get.
marksae is offline
Old 04-02-19, 08:57 AM
  #2498
Lousy Crew Chief
iTrader: (8)

Join Date: Feb 2010
Location: Surprise, AZ
Posts: 960
Likes: 0
Received 40 Likes on 29 Posts
Originally Posted by marksae View Post
Is there a reason you didn't just go with an 18x10+40 and 265 square setup?

I currently have a set of 18x10+41 TE37's on order and am trying to figure out what size tires to get.
Either 255/35r18 or 285/30r18

With your offsets, the 255’s will be less likely to hit your fender lips. But if you’re at monster truck height then the 285’s can potentially be ok. 265/35 is too tall of a tire for the fronts.

Matt
Mrmatt3465 is offline
The following users liked this post:
Rocketeerbandit (04-03-19)
Old 04-02-19, 12:03 PM
  #2499
Junior Member

Join Date: Aug 2018
Location: CA
Posts: 29
Received 2 Likes on 2 Posts
Originally Posted by Mrmatt3465 View Post
Either 255/35r18 or 285/30r18

With your offsets, the 255s will be less likely to hit your fender lips. But if youre at monster truck height then the 285s can potentially be ok. 265/35 is too tall of a tire for the fronts.

Matt
Ah ok. Good to know. Thanks for the info.
marksae is offline
Old 04-08-19, 07:33 PM
  #2500
Full Member
iTrader: (3)

Ricebox's Avatar

Join Date: Nov 2016
Location: Texas
Posts: 200
Likes: 0
Received 15 Likes on 13 Posts

Ricebox is offline
The following users liked this post:
AE_Racer (04-09-19)
