The Official FC Wheel Fitment Thread

Old 03-04-17, 12:38 PM
  #6126
Rotary Enthusiast

Join Date: Sep 2009
Location: Simpsonville,SC
Posts: 880
Thanks: 0
Thanked 0 Times in 0 Posts
Recommended tire size for the wheels listed above. 17x9 +38. Lowered on Bc racing coilovers. May possibly do spacers if needed once i get the wheels mounted. Thanks
florotory is offline
Old 03-04-17, 11:43 PM
  #6127
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
235/40/17 all around will make it easy. 245/40 17 can work, you will likely need a spacer and a front fender roll. 255/40/17 can work, you will need front spacers, a fender roll and over -2 degrees of camber in front, which may be a challenge to get.
LargeOrangeFont is offline
Old 03-27-17, 07:24 PM
  #6128
Rotary Enthusiast

Join Date: Sep 2009
Location: Simpsonville,SC
Posts: 880
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by LargeOrangeFont View Post
235/40/17 all around will make it easy. 245/40 17 can work, you will likely need a spacer and a front fender roll. 255/40/17 can work, you will need front spacers, a fender roll and over -2 degrees of camber in front, which may be a challenge to get.
Thanks again. I think Im going with he Bridgestone Potenza RE760. 245/40/17. I had the Potenza RE070 on my STI and loved them. Id get those but the closest size they make is 225/45/17

Last edited by florotory; 03-27-17 at 07:31 PM.
florotory is offline
Old 03-28-17, 11:34 PM
  #6129
Senior Member
iTrader: (4)

Rotary_Knight's Avatar

Join Date: Jun 2004
Location: California
Posts: 731
Thanks: 0
Thanked 2 Times in 2 Posts
Konig Hypergrams

Hey Everyone,

I posted this in the non-technical section and realized there's another thread here, but I wanted to share just in case anyone is interested in these wheels.

I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel considering the size and offset (~17.5lbs/wheel).

FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders

RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders

This setup could be run on a stock body with a fender pull front and rear (without the huge rear spacer of course, that's only there to match the over fenders I have). I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.

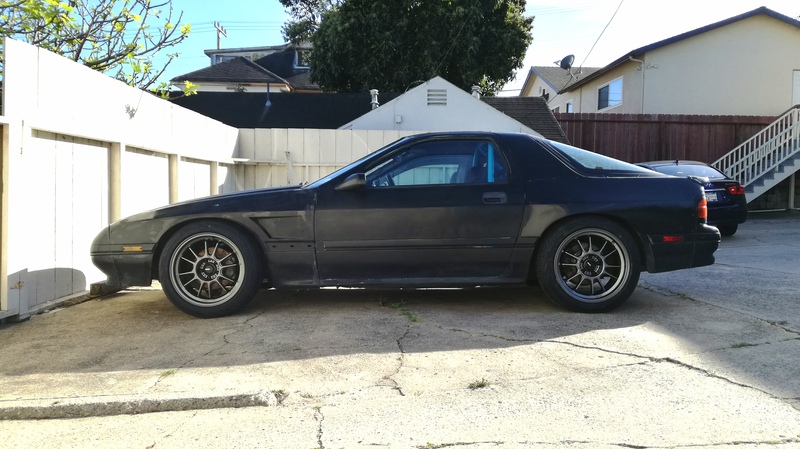

Name:  IMG_20170326_213647_zpsqfc4trwf.jpg
Views: 1107
Size:  166.1 KB

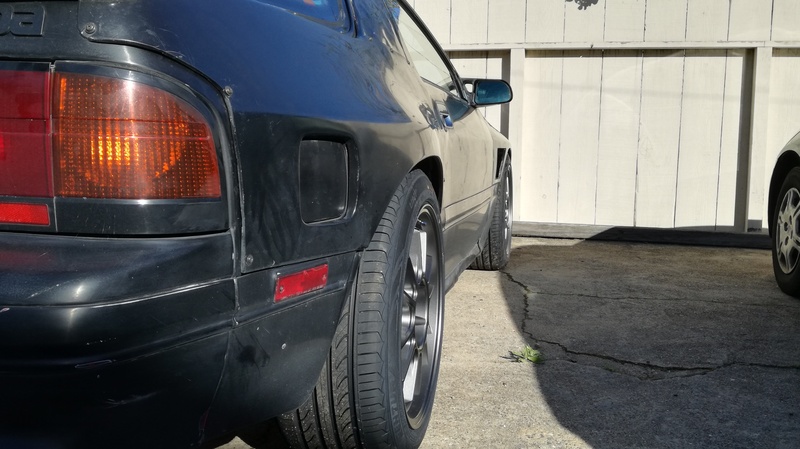

Name:  IMG_20170325_170536_zpsr0ikmh2h.jpg
Views: 1038
Size:  157.4 KB
Rotary_Knight is offline
Old 04-02-17, 07:33 PM
  #6130
Rotary Enthusiast

Join Date: Sep 2009
Location: Simpsonville,SC
Posts: 880
Thanks: 0
Thanked 0 Times in 0 Posts

UpDATE: I went to pull the rx7 out of the Garage today to check out the wheels in the sun. Well yup, I need spacers. Im thinking that 10-12mm spacer will work (I hope). That was with the 245 series tires.

Cat wait to get the wheels sorted out so I can finally get paint done.
florotory is offline
Old 04-03-17, 08:36 PM
  #6131
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Originally Posted by Rotary_Knight View Post
Hey Everyone,

I posted this in the non-technical section and realized there's another thread here, but I wanted to share just in case anyone is interested in these wheels.

I wanted a lightweight, but affordable wheel and this was a great option: The new Konig Hypergram. Got them from discount tire direct for $176/wheel. However, I think they're sold out right now because I double checked the site and they're gone. Great deal for a lightweight wheel considering the size and offset (~17.5lbs/wheel).

FR:
17x9, +25mm offset, 235/45/17 tire, +20mm wide front fenders

RR:
17x9, -5mm effective offset (installed 30mm spacer on +25mm wheel), 235/45/17 tire, +30mm wide rear over fenders

This setup could be run on a stock body with a fender pull front and rear (without the huge rear spacer of course, that's only there to match the over fenders I have). I have Fortune Auto coilovers so I can't confirm clearance to any other suspension types.


That 17x9 +25 is an excellent size for FCs. You don't even need wide fenders.
LargeOrangeFont is offline
Old 12-17-17, 08:26 PM
  #6132
10AE FC - For Sale

BenRX's Avatar

Join Date: Jun 2008
Location: Chicago, IL
Posts: 248
Thanked 3 Times in 3 Posts
Anyone tried fitting 8" wheels with a +20 offset?

I know FC3SPro says +25 is max on 8" but wondered if anyone had any hands on experience with it.

And yes I've searched this whole thread.

Thanks!
BenRX is offline
Old 12-18-17, 02:16 PM
  #6133
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
8 inch wheel with a +20 will fit fine.
LargeOrangeFont is offline
Old 12-19-17, 01:08 PM
  #6134
10AE FC - For Sale

BenRX's Avatar

Join Date: Jun 2008
Location: Chicago, IL
Posts: 248
Thanked 3 Times in 3 Posts
Also, anyone running 16" up front and "17 at the rear?

Thanks!
BenRX is offline
Old 04-04-18, 04:17 PM
  #6135
Junior Member

Join Date: Jan 2018
Location: Illinois
Posts: 10
Thanked 0 Times in 0 Posts
Hey guys! Got most of the aspects of my fitment squared away. May go just a hair lower and out in the front. The front is 17x9 + 22 on a 205/40/17 and the rear is a 17x9.5 + 18 on a 215/40/17. No spacers required and did a pretty aggressive roll. No rubbing issues at all. Dropped on PBM coils. The wheel is rpf1, of course

SloVertLifestyle is offline
Old 04-27-18, 01:01 PM
  #6136
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post
Hi guys,

I'm currently using Tokico blues with Eibach springs with my T2 rims. I'm looking to upgrade my wheels to RPF1s 17x9 +22. Would this clear the front fenders or would I need a 10mm spacer and a fender role? Also what tire size would clear the front fender 225? I'm currently debating upgrading to RB Springs and KYB AGX shocks or jumping on a deal my friend is giving me on some Stance GR+ Pro coilovers.
Gabriel82 is offline
Old 04-27-18, 04:37 PM
  #6137
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Originally Posted by Gabriel82 View Post
Hi guys,

I'm currently using Tokico blues with Eibach springs with my T2 rims. I'm looking to upgrade my wheels to RPF1s 17x9 +22. Would this clear the front fenders or would I need a 10mm spacer and a fender role? Also what tire size would clear the front fender 225? I'm currently debating upgrading to RB Springs and KYB AGX shocks or jumping on a deal my friend is giving me on some Stance GR+ Pro coilovers.
No you don't need any spacers. You will need to add some negative camber to get the front tires under the front fenders. You will need a front fender roll and 225/40/17s will work. 225/45/17 is going to be cutting it close up front without the ability to get close to -2 degrees of camber, because of the height, but it depends on how low you are. 235/40/17 can work as well, but again the front camber is gonna be your challenge right now. I would go for the coilovers, they will give you the options of adding the negative camber you need, and more clearance to the strut.
LargeOrangeFont is offline
Old 04-27-18, 06:57 PM
  #6138
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post
Originally Posted by LargeOrangeFont View Post
No you don't need any spacers. You will need to add some negative camber to get the front tires under the front fenders. You will need a front fender roll and 225/40/17s will work. 225/45/17 is going to be cutting it close up front without the ability to get close to -2 degrees of camber, because of the height, but it depends on how low you are. 235/40/17 can work as well, but again the front camber is gonna be your challenge right now. I would go for the coilovers, they will give you the options of adding the negative camber you need, and more clearance to the strut.

I appreciate the insight! I'll go with the coilovers. Any different between the GR+Pros and the XR1 now on the stance website? Am I gaining/losing anything by buying their previous model?
Gabriel82 is offline
Old 04-27-18, 08:04 PM
  #6139
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
If they are in good shape and cheaper, Id go with the GR+ Pros.

If buying new, Id recommend Fortune. Stance is fine too, but Fortune has a very nice setup and will build you whatever you want.
LargeOrangeFont is offline
Old 05-03-18, 04:47 PM
  #6140
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post
Originally Posted by LargeOrangeFont View Post
If they are in good shape and cheaper, Id go with the GR+ Pros.

If buying new, Id recommend Fortune. Stance is fine too, but Fortune has a very nice setup and will build you whatever you want.
With fortune giving you the option to choose your spring rate. Is there a certain spring rate that would allow me to keep the Racing Beat rear sway bar. I've read that many people remove the rear sway bar when running Front 9k+ rear 7k+. I really don't want to remove a piece of the suspension due to the spring rates.
Gabriel82 is offline
Old 05-04-18, 11:19 AM
  #6141
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
If you have the RB front bar and up the spring rates you dont need the rear bar. It will likely handle better without it. Big tires on a non turbo car is the only situation Id say you might be able to keep it and see decent handling with the rear spring rate increase.

8/6 or 9/7 are good places to start with spring rates. If you are not going to track the car or value a bit better ride over handling, the 8/6 is good.
LargeOrangeFont is offline
Old 05-17-18, 12:32 PM
  #6142
Junior Member
iTrader: (1)

Join Date: Aug 2007
Location: Mandeville, La
Posts: 43
Thanked 0 Times in 0 Posts
1990 GXL wheel fitment question

I have read this thread and don't see anyone running this set up. The drag thread shows some guys with my tires on stock wheels. Please let me know if this set up will work for me. I'm not looking to roll fenders.
I have a 1990 GXL Stock suspension
I would like to run
Rear 250/50/16 Toyo Proxe TQ on 16x8 +20 wheels. They have some guys running these tires on factory 16x7 +40 wheels.
Front 225/50/16 Toyo Proxes T1R on 16x8 +20 wheels
Troymrtn is offline
Old 08-24-18, 05:03 AM
  #6143
Junior Member

Join Date: Jan 2018
Location: Vancouver, WA
Posts: 31
Thanks: 0
Thanked 1 Time in 1 Post
Im running on 17x9.5 +15 on 215/40 all around. The front fenders need to be rolled more and the rear is maxed out low, sadly. Im planning on getting pbm coilovers to solve that gap problem. I know not alot of guys run mb battles on their fc (at least picture evidence). Battles are a cost effective way of getting good fitment/wheel spec without riding around on xxr's🤢

Nopistongang is offline
Old 08-31-18, 11:33 PM
  #6144
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts

I just got these for the car to drive around on the street and store the car on.

17x9.5 + 15 on 255/40/17 all around.


LargeOrangeFont is offline
Old 09-03-18, 03:37 PM
  #6145
This turbo?
iTrader: (10)

sLiCk WiLlIe's Avatar

Join Date: Dec 2004
Location: your girlfriends panties...MN
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
Hey guys looking at tossing the factory suspension for some eibach/tokico blues and was wonder if these rims will fit, what tire size will work and will I need to roll the fenders?
ESR SR05 IN17x8.5 17x9.5 STAGGERED
SIZE: 17X8.5 FRONT 17X9.5REAR

OFFSET: +30 FRONT +20 REAR
sLiCk WiLlIe is offline
Old 10-02-18, 12:26 AM
  #6146
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post
Originally Posted by LargeOrangeFont View Post
If you have the RB front bar and up the spring rates you dont need the rear bar. It will likely handle better without it. Big tires on a non turbo car is the only situation Id say you might be able to keep it and see decent handling with the rear spring rate increase.

8/6 or 9/7 are good places to start with spring rates. If you are not going to track the car or value a bit better ride over handling, the 8/6 is good.
Thanks for the recommendation on the Fortune Auto coilovers. I've been enjoying them so far. Wheels are next along with Shineauto 30mm front fenders. Will I have any issues with the 17x9 +22 in the front? Thinking of 235/40/17 all around or is it best to run a bigger tire in the rear?
Gabriel82 is offline
Old 10-07-18, 06:40 PM
  #6147
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Originally Posted by Gabriel82 View Post
Thanks for the recommendation on the Fortune Auto coilovers. I've been enjoying them so far. Wheels are next along with Shineauto 30mm front fenders. Will I have any issues with the 17x9 +22 in the front? Thinking of 235/40/17 all around or is it best to run a bigger tire in the rear?

No problem. You dont need Shine fenders to fit 235/40/17s up front on a 17x9+ 22. Id run the 235s all around. You will need a front fender roll and -1.75 or more front camber. That is about the limit of offset you can run with the stock front fenders though. FWIW you can run a 17x9.5 in the +35-38 range with up to 255s all around with the Fortune Coilovers and stock fenders. The 9.5 +38 actually fits better, you may need a small spacer with it. I this on my car before I went 275 all around.

Last edited by LargeOrangeFont; 10-07-18 at 06:44 PM.
LargeOrangeFont is offline
Old 10-08-18, 12:34 PM
  #6148
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post
Originally Posted by LargeOrangeFont View Post



No problem. You don’t need Shine fenders to fit 235/40/17s up front on a 17x9+ 22. I’d run the 235s all around. You will need a front fender roll and -1.75 or more front camber. That is about the limit of offset you can run with the stock front fenders though. FWIW you can run a 17x9.5 in the +35-38 range with up to 255s all around with the Fortune Coilovers and stock fenders. The 9.5 +38 actually fits better, you may need a small spacer with it. I this on my car before I went 275 all around.

With that said is it possible to go 255/40 all around with 17x9 +35 stock fenders up front? and is it also possible to do the 17x9+22 (255/40) all around with the shineauto front fenders?

Are there any particular valve stems worth investing in and some that I should stay away from?

Last edited by Gabriel82; 10-08-18 at 12:41 PM.
Gabriel82 is offline
Old 10-09-18, 01:10 AM
  #6149
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Yes and yes. I think you could make both of those work with stock fenders to be honest.

As for valve stems, I cant think of any that are bad.
LargeOrangeFont is offline
Old 01-08-19, 04:46 PM
  #6150
xXxFC3SxXx
iTrader: (6)

Gabriel82's Avatar

Join Date: Apr 2007
Location: Pomona CA
Posts: 567
Thanked 1 Time in 1 Post



17x9+22 (255/40/R17 Federal 595s) Front & Rear (Fortune Auto 500 Coilovers)
*Front sticks out but nothing the Shine Auto Fenders can't fix*


Gabriel82 is offline
