Custom FD rear sway bar end links (how to)

Reply Subscribe

Thread Tools

Search this Thread

05-18-11, 01:26 AM

#26

CrispyRX7

Polishing Fiend

iTrader: (139)

Join Date: Apr 2001

Location: MD

Posts: 3,393

Likes: 18

Received 42 Likes on 22 Posts

Pete, I'll see if I can post a pic of what I have installed on my rear bar tomorrow.
Crispy

Reply Like

05-18-11, 02:35 AM

#27

PandazRx-7

Fast + Reliable = $$$$$

iTrader: (18)

Join Date: Nov 2003

Location: SoCal

Posts: 1,223

Likes: 0

Received 1 Like on 1 Post

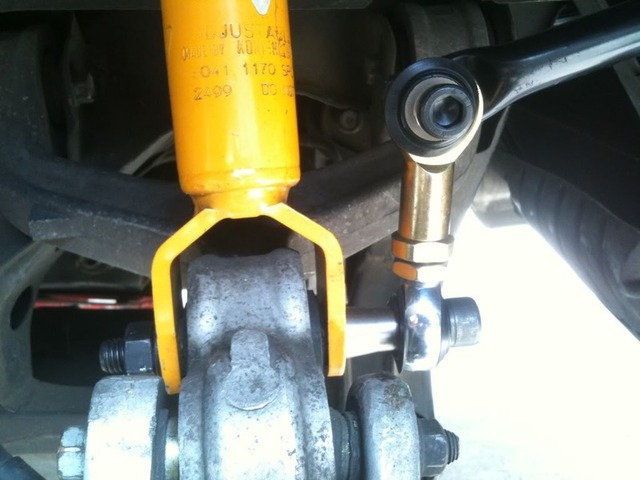

I just installed the Improved Racing links front and back a few months back... here's a shot of the rears. You guys think I'll have issues with this? I was planning on getting them adjusted when I get corner balanced...

Name: MhersIphonePics130.jpg
Views: 1828
Size: 64.6 KB

Name: MhersIphonePics130.jpg
Views: 1828
Size: 64.6 KB

Reply Like

05-18-11, 08:05 AM

#28

ptrhahn

Lives on the Forum

iTrader: (9)

Join Date: Feb 2002

Location: Arlington, VA

Posts: 9,022

Likes: 308

Received 498 Likes on 272 Posts

^^^^

That looks remarkably similar, but for what looks like a custom AL spacer at the rear, instead of the steel spacer/cone washer I'm using.

Reply Like

05-18-11, 08:16 PM

#29

prrex4ever

Now What?

iTrader: (3)

Join Date: Oct 2004

Location: Texas

Posts: 2,394

Likes: 1

Received 0 Likes on 0 Posts

Will do, plan to get a new camera this weekend.

Quote:

Originally Posted by ptrhahn

^^^

Post a pic? I called improved about a kit, and they said they were discontinued.

Reply Like

05-23-11, 03:53 PM

#30

ptrhahn

Lives on the Forum

iTrader: (9)

Join Date: Feb 2002

Location: Arlington, VA

Posts: 9,022

Likes: 308

Received 498 Likes on 272 Posts

Update. I tried these at the track this weekend, and either the long bolt flexes too much, or the arms are too long and reduces leverage on the bar. Made for a saggy rear end. I went back to the stockers, with a jam nut and split washer.

Reply Like

08-12-11, 01:19 PM

#31

M104-AMG

Rotary Freak

iTrader: (8)

Join Date: Oct 2004

Location: FL

Posts: 2,857

Likes: 5

Received 5 Likes on 5 Posts

Quote:

Originally Posted by ptrhahn

Which did you try, the "improved racing" version ?

With the stock links I assume you cannot adjust for a lowered car ? That is, neutral (no pre-load) at rest ?

What to do ?

BTW: Looking at some of the end, it seems there are "high mis-alignment" rod-ends. Perhaps that's the ticket ?

Thanks,
:-) neil

Reply Like

08-12-11, 01:46 PM

#32

M104-AMG

Rotary Freak

iTrader: (8)

Join Date: Oct 2004

Location: FL

Posts: 2,857

Likes: 5

Received 5 Likes on 5 Posts

Quote:

Originally Posted by CrispyRX7

Pete, I'll see if I can post a pic of what I have installed on my rear bar tomorrow.
Crispy

Crispy,

can you show us what you have installed / tell us more ?

Thanks,
:-) neil

Reply Like

08-12-11, 04:08 PM

#33

M104-AMG

Rotary Freak

iTrader: (8)

Join Date: Oct 2004

Location: FL

Posts: 2,857

Likes: 5

Received 5 Likes on 5 Posts

Quote:

Originally Posted by ptrhahn

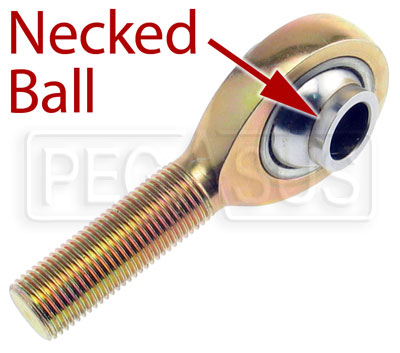

I have a feeling that the long spacer acts adds a delay in action due to it's length and range of motion it must travel before acting, than a regular high-misalignment (necked-ball) rod-end (see pic).

Perhaps adax's design with either a necked-ball or 1/4-spacer would be best.

:-) neil

I found a design note that shows that with the Aurora 3066-M12 rod-ends that Adax used, and with a bolt through it, the degree of misalignment is a whopping 49-degrees vs. just 17-degrees clevis-mounted (sandwiched).

Attached Thumbnails

Custom FD rear sway bar end links (how to)-high-misalignment-necked-ball.jpg

Reply Like

08-13-11, 05:08 PM

#34

CrispyRX7

Polishing Fiend

iTrader: (139)

Join Date: Apr 2001

Location: MD

Posts: 3,393

Likes: 18

Received 42 Likes on 22 Posts

Quote:

Originally Posted by M104-AMG

Crispy,

can you show us what you have installed / tell us more ?

Thanks,
:-) neil

Neil,
Alas my car is with Ray at PFS currently so I don't have access to it. As soon as I get it back I'll try and remember to take a picture. If I forget please remind me!!

Regards,
Crispy

Reply Like

10-09-11, 08:10 PM

#35

alanharris13

Junior Member

Join Date: Oct 2011

Location: colchester

Posts: 19

Likes: 0

Received 0 Likes on 0 Posts

any one know where i can get front sway bar links from for a fd

Reply Like

10-10-11, 08:22 PM

#36

prrex4ever

Now What?

iTrader: (3)

Join Date: Oct 2004

Location: Texas

Posts: 2,394

Likes: 1

Received 0 Likes on 0 Posts

^ Improved Racing.com

Reply Like

10-10-11, 08:24 PM

#37

prrex4ever

Now What?

iTrader: (3)

Join Date: Oct 2004

Location: Texas

Posts: 2,394

Likes: 1

Received 0 Likes on 0 Posts

^Improved Racing.com or Mazdatrix. Improved Racing are much stronger. Sorry double post, lol!

Reply Like

10-11-11, 01:12 AM

#38

PandazRx-7

Fast + Reliable = $$$$$

iTrader: (18)

Join Date: Nov 2003

Location: SoCal

Posts: 1,223

Likes: 0

Received 1 Like on 1 Post

Update: Improved Racing just sent me redesigned rear links... I'll be testing these out in a month.

http://www.improvedracing.com/produc...dcfda798f5a966

Reply Like

05-05-12, 02:58 PM

#39

metros

Full Member

iTrader: (1)

Join Date: Oct 2011

Location: NoVA

Posts: 51

Likes: 0

Received 0 Likes on 0 Posts

Bumping ancient thread.

How did the improved racing rear endlinks work out for you?

I'm in the same situation with installing coilovers and not comfortable with the amount of thread available for the rear endlink bolt.

Reply Like

05-07-12, 09:22 PM

#40

prrex4ever

Now What?

iTrader: (3)

Join Date: Oct 2004

Location: Texas

Posts: 2,394

Likes: 1

Received 0 Likes on 0 Posts

I have had these endlinks on my FD for a couple of years now, no issues plus their warranty service is great.

Quote:

Originally Posted by metros

Reply Like

07-09-12, 11:32 AM

#41

perf0rmance

Senior Member

iTrader: (49)

Join Date: May 2011

Location: Bay Area -> California

Posts: 338

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by PandazRx-7

Update: Improved Racing just sent me redesigned rear links... I'll be testing these out in a month.

Improved Racing | Oil Pan Baffles, GM LS Parts, Performance Oiling & Suspension

So how did this workout for you?

Reply Like

05-24-14, 03:49 PM

#42

jkstill

Searching for 10th's

iTrader: (11)

Join Date: May 2002

Location: Portland OR

Posts: 2,247

Likes: 66

Received 29 Likes on 18 Posts

Quote:

Originally Posted by kukri

Sorry to bring up the old thread, but it looks like there's a bit more clearance for the wheel from these pictures.

My stock links hitting the wheel:

The problem shown in this picture is why I am looking at this thread, as my FD is having the same issue.

Has anyone tried swapping the stock links left to right?

Then the links would be further inboard.

Just eyeballing it, it looks like it would clear, but I haven't actually tried it yet.

Reply Like

08-23-14, 09:13 PM

#43

jkstill

Searching for 10th's

iTrader: (11)

Join Date: May 2002

Location: Portland OR

Posts: 2,247

Likes: 66

Received 29 Likes on 18 Posts

Quote:

Originally Posted by jkstill

To answer my own question, no, swapping them left to right will not work.

I swapped them, and then started jacking up the right side wheel.

The joint reached maximum angle at least an inch before getting to ride height.

Putting the car on the ground would have broken the sway bar links if left in the swapped positions.

Reply Like

08-24-14, 01:35 AM

#44

RaceDriver7

Group Buy Vendor

iTrader: (9)

Join Date: Dec 2005

Location: Orlando, FL

Posts: 750

Likes: 0

Received 13 Likes on 6 Posts

the Improved Racing rear links should have a little more clearance because the rod ends have a lower profile than the stock links. Plus, you can make them shorter so they tuck inside the rim.

Reply Like

08-25-14, 12:22 PM

#45

jkstill

Searching for 10th's

iTrader: (11)

Join Date: May 2002

Location: Portland OR

Posts: 2,247

Likes: 66

Received 29 Likes on 18 Posts

Thanks for the Improved Racing pic. I have their (now discontinued) trailing arms, guess it is time to get their sway bar links.

Reply Like

04-18-17, 09:51 AM

#46

mpk490p

Senior Member

Join Date: Sep 2007

Location: UK

Posts: 419

Likes: 6

Received 3 Likes on 3 Posts

How do you set these up? (looking at the Improved racing ones front and rear)
the end goal its to get no preload when the car is sitting on all fours right?

Reply Like

04-18-17, 10:04 AM

#47

RaceDriver7

Group Buy Vendor

iTrader: (9)

Join Date: Dec 2005

Location: Orlando, FL

Posts: 750

Likes: 0

Received 13 Likes on 6 Posts

Quote:

Originally Posted by mpk490p

How do you set these up? (looking at the Improved racing ones front and rear)
the end goal its to get no preload when the car is sitting on all fours right?

Here's a link to the instruction manual: http://www.improvedracing.com/manuals/SMA-111.pdf

And the product page: Adjustable Sway Bar Links for Mazda Rx-7 (FD3S), Rear SMA-111
