alignment issuse 91 fc
list of mods:
DGR coilovers
Energy Suspension bushing
new front brakes
my problem is the alignment on the driver side is maxed out for camber and still not stright up and down. i have no adjustability. before i put the suspension bushing in it wasnt maxed out. i have a new control arm and spindle that im going to try and see if that fixes the problem. the coilover are not even a year old yet. im just wondering what else could be bent or if i did something wrong install the brushing. maybe someone here has had the same problem
DGR coilovers
Energy Suspension bushing
new front brakes
my problem is the alignment on the driver side is maxed out for camber and still not stright up and down. i have no adjustability. before i put the suspension bushing in it wasnt maxed out. i have a new control arm and spindle that im going to try and see if that fixes the problem. the coilover are not even a year old yet. im just wondering what else could be bent or if i did something wrong install the brushing. maybe someone here has had the same problem
02-12-13, 07:09 PM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,606 Likes
on
1,849 Posts

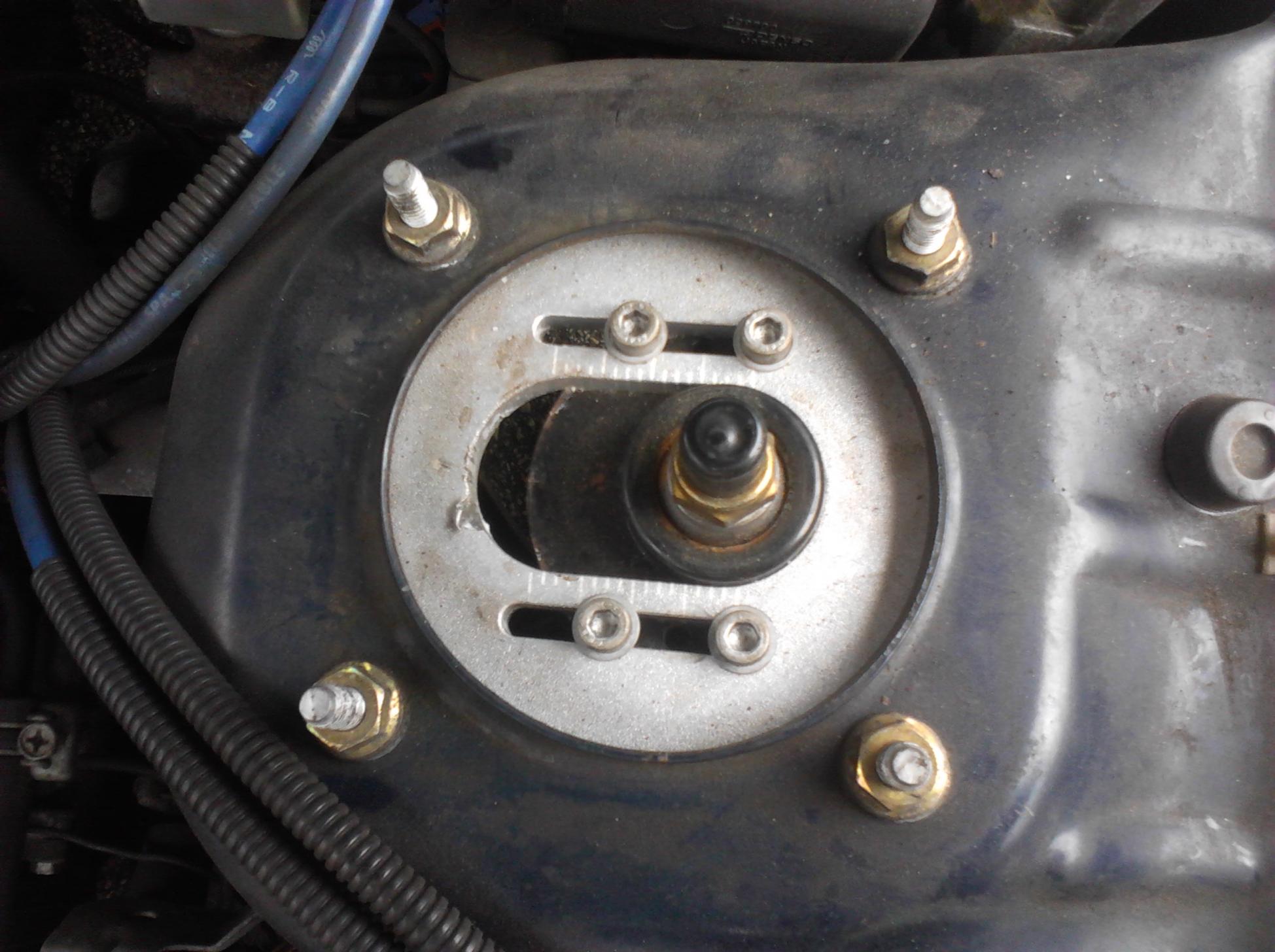

front or rear? if its the front i have seen people put the camber plates on backwards...
02-13-13, 04:21 PM
#5
so you're trying to get 0* of camber?
that's a bad idea... the car needs at least -1* of camber for street use.... I run -3.5* on my car for racing... it'll handle very poorly with 0* of camber.
it you really want more camber, it looks like if you unbolt and spin your camber plate 180* it'll have slightly more adjustment towards positive....
that's a bad idea... the car needs at least -1* of camber for street use.... I run -3.5* on my car for racing... it'll handle very poorly with 0* of camber.
it you really want more camber, it looks like if you unbolt and spin your camber plate 180* it'll have slightly more adjustment towards positive....
02-13-13, 08:05 PM
#7
Senior Member
Forget factory spec. As far as I'm concerned, 1 to 2 degrees negative is a totally reasonable range for most street-only cars. It is totally worth the slight reduction in tire life to get significantly greater cornering grip. Keep toe minimized and tire life will be fine, maybe 10-15% less but totally worth it, *especially* for a sports car! Going to track or autoX as well as street? 2 - 3 degrees negative is, to me, a good compromise range.
Trending Topics
02-15-13, 06:35 PM
#8
Junior Member
Thread Starter
Join Date: Apr 2011
Location: baltimore md
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
when i got my alignment done the guy told me factory was -0.5. the thing is my alignment is more the -3 from the print out they gave me but i got it wet and cant read the numbers right or i would post it on here. im trying to get the car to stop pulling to the left. i want to get whatever the problem is fixed so that i can have some adjustment for track use.
