Welding wastegate to turbo exhaust housing

Old 04-04-12, 08:32 AM
  #1
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
Welding wastegate to turbo exhaust housing

Hy there,

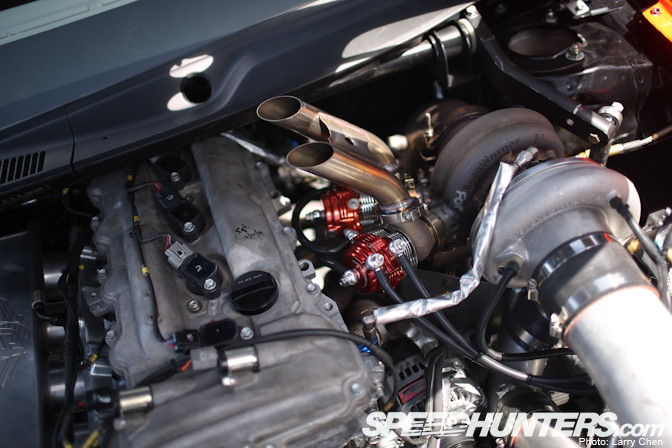

I was browsing through Speedhunters' website and found the article on Frederik Aasbro's new car. A picture of the engine bay shows that (or so it seems) dual wastegates welded on the turbo exhaust housing.

in theory it's possible to weld it, apart from the fact that the housing is cast and unless you really know how the get the welding tension out, it will crack.


any opinions?
Attached Thumbnails Welding wastegate to turbo exhaust housing-6.jpg
Speedworks is offline
Old 04-04-12, 09:30 AM
  #2
Rotary Enthusiast
10 Year Member
iTrader: (3)

to_slow's Avatar

Join Date: Nov 2001
Location: michigan
Posts: 1,018
Likes: 0
Received 0 Likes on 0 Posts
There is a 20b swap on the forum that has his wastegate on the EX housing. Its pretty common.

Its also not that hard to weld over cast, you have to slowly bring down the temperature on the welds with a torch and stuff. Hope that helps
to_slow is offline
Old 04-04-12, 09:35 AM
  #3
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the info. It was interesting as my custom manifold doesn't leave much space for the wastegate so this migh be an option.

Just a bit afraid that the housing would crack (costly)
Speedworks is offline
Old 04-04-12, 09:44 AM
  #4
Who Shot the Sheriff?
5 Year Member
iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,860
Likes: 0
Received 0 Likes on 0 Posts
That's a BW turbo with a stainless exhaust housing right? Probably holds up better than cast steel.
Turbo II Rotor is offline
Old 04-04-12, 09:48 AM
  #5
Senior Member
iTrader: (9)

socks's Avatar

Join Date: Nov 2009
Location: Greenville, SC
Posts: 359
Likes: 0
Received 3 Likes on 3 Posts
as long as you preheat the housing, and bring the temp down slowly once the weld is completed, you shouldnt have any cracking. same thing you have to do when welding an internal wastegate closed.

ATP actually makes turbine housings with wastegate flanges cast in. You may consider checking it out. They are for vehicle specific applications now, but they may be interested to know people are interested for normal housings.
socks is offline
Old 04-05-12, 04:52 PM
  #6
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
me lickeeee.... gonna run this idea by my fab guy
mannykiller is offline
Old 04-05-12, 07:20 PM
  #7
B O R I C U A
iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,374
Received 9 Likes on 9 Posts
Seztep had it done, Enzo 250 did the welding for him. Seztep's manifold had a horrible wastegate placement, and after moving the wastegate to the turbine housing, he had solid boost, wherever he set it up.

I also want to say that Elliot at Turboblown had done one for Node, on a stock T2 turbo.

Unfortunately, I can't find the posts for either one lol
KNONFS is offline
Old 04-05-12, 07:42 PM
  #8
F-IT
10 Year Member
iTrader: (5)

rxspeed7's Avatar

Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes on 0 Posts
This is truly the best place for a wastegate, Too many people think that the wastegate needs to have some magical angle and be close the motor. When in fact right at the turbo is by far the best place for a wastegate, having it where it has good flow is stupid and only done by people who do not understand how they actually function. The wastegate is venting the backpressure in the manifold to control the boost not the exh gases. This is why right at the turbo is the best placement for them because that is where you will have the highest emap in the system. This is also why having a dumptube re-routed through the downpipe will make a wg more efficient due to the scavenging effect it has.

If you dont beleive me place some pressure transducers in your manifold at the block flange and then at the turbo flange..
rxspeed7 is offline
Old 04-06-12, 01:56 AM
  #9
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Received 2 Likes on 2 Posts
^You are only half right and I think you are misconstruing some ideas and Principles.
RENESISFD is offline
Old 04-06-12, 09:43 AM
  #10
Senior Member
iTrader: (1)

John Huijben's Avatar

Join Date: Oct 2010
Location: The Netherlands
Posts: 586
Likes: 0
Received 3 Likes on 2 Posts
A wastegate can only make the exhaust pressure drop if there is a volume flow going through it. When it's opened, it is part of a performance exhaust system. Wastegate flow not important? Why do huge 60mm wastegates exist?
Not saying that welding a wastegate to the turbo is a bad idea, I like the idea of it, should work fine and be nice and compact, but volume flow though a wastegate does matter.
John Huijben is online now
Old 04-06-12, 03:11 PM
  #11
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Received 2 Likes on 2 Posts
^ Exactly. You want the wastegate in the path of exhaust flow so it can vent the exhaust gas. Wastegate placement is a very important part of a turbo manifold design. And from what I have read about wastegate placement.... Having the wastegate on the exhaust housing is the best place for it.


BTW, rxspeed7, can you explain to me what causes back pressure in a manifold......Oh wait, It is exhaust gas. So how can you say that there needs to be no consideration for exhaust flow out of the wastegate.... Hint: You cant.
RENESISFD is offline
Old 04-06-12, 03:24 PM
  #12
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Received 8 Likes on 8 Posts
^ i've been reading up on this for the past 3-4 hours on different forums. I'm no expert but there seems to be a reoccuring problem with slightly higher hp cars. When I say that I'm talking about inline 6's, honda's etc around 6-700whp. Some people are experiencing turbulence caused by the angle of the wastegates on the turbine exhaust housing. This is due to the angle at which the wastegate vent is placed. It seems like angle of the placement on this application is VERY important. You want about 50/50 flow to the wast-gate and to the actual turbo. If you get this wrong.. either or will suffer..(spool or the ability to hold boost/regulate boost) My eyes hurt from reading. it may or may not be more beneficial to get the gates as close to the manifold/turbo flange as possible in the long run. A well placed wastegate on a manifold can function just as well as one on a turbo exhaust housing. But if you need to alter the set up..you may be looking at replacing the exhaust housing on the turbo, and the v-bands for the wastegates. definitely a rad idea...still looking into this for my un finished long-runner top mount =-)
mannykiller is offline
Old 04-07-12, 12:29 AM
  #13
F-IT
10 Year Member
iTrader: (5)

rxspeed7's Avatar

Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes on 0 Posts
I'm just going off what we have seen with all of our race cars and manifolds we have built. Everytime we have tried to have "good" wastegate placement we have had horrible boost control after 30psi.

After having this problem more than a few times we started logging emap to see what was going on and decided to start building the wastegate runners as close to the turbo as possible because that's were we saw the highest emap. After doing this haven't had a single issue.

Not trying to stir **** up but I speak from experience not Internet readings or theories. May sound good on paper but don't always work as good as they sound.
rxspeed7 is offline
Old 04-07-12, 05:11 AM
  #14
Senior Member
5 Year Member

Liborek's Avatar

Join Date: Nov 2008
Location: Czech republic
Posts: 356
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rxspeed7 View Post
I'm just going off what we have seen with all of our race cars and manifolds we have built. Everytime we have tried to have "good" wastegate placement we have had horrible boost control after 30psi.

After having this problem more than a few times we started logging emap to see what was going on and decided to start building the wastegate runners as close to the turbo as possible because that's were we saw the highest emap. After doing this haven't had a single issue.

Not trying to stir **** up but I speak from experience not Internet readings or theories. May sound good on paper but don't always work as good as they sound.
No one is denying your experience but it seems that you have certain misunderstanding in what you have experienced.

You can't have pressure drop without flow drop or temperature drop and unless the wastegate is some extremely efficient cooling device that would control manifold pressure via temperature it is what it is - flow device.

Reason why you experienced best boost control in the place where is highest EMAP could be pretty simple, highest pressure delta, best flow towards the wastegate.

There are too many variables, wastegate is venting up to 50% of total mass flow through the system in some applications, and exhaust gasses, despite under pressure, have its own inertia and they don't like to change direction.

It seems that it goes down to application, for example Turbo F1's had wastegate runners at right angle from the collector, on the other hand some low boost race cars have manifold design which prefers wastegate flow.
Liborek is offline
Old 06-21-18, 11:54 PM
  #15
Full Member

Join Date: Feb 2011
Location: Sydney
Posts: 169
Likes: 0
Received 0 Likes on 0 Posts
Is anyone currently running this style of wastegate setup? What were the results like?
mikey13b is offline
Old 06-22-18, 01:46 AM
  #16
www.AusRotary.com

KYPREO's Avatar

Join Date: Apr 2003
Location: Melbourne, Australia
Posts: 556
Received 31 Likes on 27 Posts
Originally Posted by mikey13b View Post
Is anyone currently running this style of wastegate setup? What were the results like?
I see you're in Sydney. You'll find heaps of examples people running this style setup on hybrid/hiflow Hitachi turbo setups in Australia with great success. On AusRotary.com there are examples hitting 350rwhp+. (Dyno Dynamics figures, which usually translates to 380-400rwhp in terms of Dynojet dynos typically used in the US)

see eg

Series 5 Hi Flow turbo - AusRotary
Hi Flow Turbos - AusRotary
KYPREO is offline
Old 06-22-18, 07:01 PM
  #17
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,462
Received 41 Likes on 38 Posts
Originally Posted by mikey13b View Post
Is anyone currently running this style of wastegate setup? What were the results like?
Actually, Aaron who did a few posts on this thread back 6yrs ago (you Necro-bumper!) ended up with dual EWG on his turbine housing. You can see it in this video here:

RGHTBrainDesign is offline
Old 07-02-18, 11:21 AM
  #18
Hi

rotaryfreak3's Avatar

Join Date: Aug 2004
Location: Rochester, MN
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
Pretty common in the v8 world these days. Seems to work well as long as you heat up the housing before welding. Saw someone on Youtube heat the housing with the burner from a turkey fryer haha.
rotaryfreak3 is offline
Old 07-05-18, 01:53 PM
  #19
Waiting

Join Date: Jun 2010
Location: Toronto
Posts: 195
Likes: 0
Received 10 Likes on 10 Posts
Works great on my custom hybrid.

P trim wheel in the stock housing, wastegate spring is at 9 psi and it holds it there no problem. Itís a 46mm WG though.


_NGL is offline
Old 07-06-18, 06:23 AM
  #20
Full Member

PatrickT's Avatar

Join Date: Nov 2006
Location: Germany Southwest
Posts: 96
Likes: 0
Received 0 Likes on 0 Posts
The EFRs are like mentioned before stainless steel cast, which IMO should be able to weld just like other stainless steel
Cast iron on the other side needs to be welded with MME carbon shielded electrodes, otherwise the iron will loose to much carbon and get brittle.

Dont actually know if the Garrett housings are cast steel or iron, maybe steel but just not stainless steel like the EFRs

https://en.wikipedia.org/wiki/Steel_casting
PatrickT is offline
Old 07-13-18, 04:49 PM
  #21
Rotary Enthusiast
iTrader: (5)

Join Date: Apr 2006
Location: sb
Posts: 881
Likes: 0
Received 32 Likes on 29 Posts
Just remember to make sure you're running a high nickel content rod (though your welder should know this if he's confident he can weld cast)
dguy is offline
Old 07-29-18, 04:32 PM
  #22
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
Well, if the downside to an external wastegate on a rotary is failure due to heat on track (and it is), I can't imaging plopping it directly on the turbine housing is going to do it much good.
ptrhahn is offline
Old 07-30-18, 03:50 PM
  #23
Rotary Enthusiast

Join Date: Jun 2005
Location: sydney
Posts: 966
Received 26 Likes on 24 Posts
Originally Posted by mikey13b View Post
Is anyone currently running this style of wastegate setup? What were the results like?
Short of the local dragcars, there was a guy in Tassie running this set-up on his FD a few years ago. Local specialist who had all the proper heat treat ovens to ensure a long life weld on something like a street car, passed away a few years back. There's supposedly someone down in Minto/Ingleburn area who might be ok for this work, but no personal experience using him.
billyboy is offline
