Water to Air intercooler for street/drift use

Thread Tools

Search this Thread

Old 10-20-09, 02:30 AM
  #101
4th string e-armchair QB

iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
really, it will build 15 psi? at what temp is the water at that point?
Trots*88TII-AE* is offline
Reply Like
Old 10-20-09, 02:37 AM
  #102
7s before paint!!!

iTrader: (2)

13B-RX3's Avatar

Join Date: Aug 2003
Location: Philly/Texas
Posts: 3,814
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Trots*88TII-AE*
really, it will build 15 psi? at what temp is the water at that point?
After i got all the air bled out of my old system without even boosting it i would get about a half a shot glass of water out just bringing it up to operating temps. I ran a little overflow bottle to keep air out of the system.
13B-RX3 is offline
Reply Like
Old 10-20-09, 08:32 AM
  #103
Rotary Enthusiast


ChrisRX8PR's Avatar

Join Date: Oct 2007
Location: Plymouth, MN
Posts: 799
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by 13B-RX3
After i got all the air bled out of my old system without even boosting it i would get about a half a shot glass of water out just bringing it up to operating temps. I ran a little overflow bottle to keep air out of the system.
It could be that you were pushing the system for its size and it wasn't able to keep up. My system has been beat to hell at the track and on the street and it is working so efficiently the water temp only gets warm to the touch, and only on the hose going down to the heat exchanger from the intercooler, the other one coming up from the heat exchanger is at ambient temperature. And if you think about it, the water should only be slightly above ambient temp or the system is not doing its job like a FMIC does bringing the air close to ambient temps. The water is what cools the pressurized air so if its hot, your system is not working properly.

Mine has never built pressure, not even once, even after beating on it repeatedly. Then again, it was built for a little more than I am pushing through it. Just like Viking War Hammer's setup which has the same core (4.5" thick) and heat exchanger(big), which is sold as their 600-1200hp kit.

Chris
ChrisRX8PR is offline
Reply Like
Old 10-21-09, 07:45 PM
  #104
Rotary Enthusiast


ronbros3's Avatar

Join Date: Jun 2004
Location: Austin TX.
Posts: 862
Received 0 Likes on 0 Posts
I did my water to air back in 1999,, 10yrs noprobs. 14+14 + 4" core, bilge pump , and radiator 1975 Cadillac evap core with welded fittings.
will start to get hot on short ,tight autocross, or 3-4 street drag runs, but a 5min light cruise it comes back down, 10-20* above ambient, in Texas.

one thing i did find out about it was on long cruises, at no boost ,65-70, gets better MPG with pump shut off, GO figure!! course you gotta remember to turn on if someone wants to play!
ronbros3 is offline
Reply Like
Old 10-22-09, 06:51 AM
  #105
*** Bless The USA

iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes on 0 Posts
Originally Posted by 10thaniv
Pics please. I'm about to order my kit.






Viking War Hammer is offline
Reply Like
Old 10-22-09, 11:31 AM
  #106
Turbo vert

iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
MAN!!! some of you people post some pics of your setup. were a community here
just startn is offline
Reply Like
Old 10-22-09, 01:00 PM
  #107
Life Project.

iTrader: (1)

10thaniv's Avatar

Join Date: Jan 2005
Location: BEDFORD, TX
Posts: 605
Likes: 0
Received 1 Like on 1 Post
Wow VWH, nice setup. I'm in the process of making the mounting hardware. Hopefully I will be done in a couple of weeks.
10thaniv is offline
Reply Like
Old 10-22-09, 07:31 PM
  #108
*** Bless The USA

iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes on 0 Posts
If anyone needs a heat exchanger, I have a extra one (brand new) one for sale. $120

12x12x2 with a fill cap
Viking War Hammer is offline
Reply Like
Old 10-22-09, 08:18 PM
  #109
silver ghost

iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,061
Likes: 0
Received 5 Likes on 5 Posts
^
For fuc?'s sake that is going to be nasty!
G's 3rd Gen is offline
Reply Like
Old 10-24-09, 07:04 AM
  #110
www.lms-efi.com

iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,235
Received 128 Likes on 84 Posts
Originally Posted by Viking War Hammer
Chris, where did you get the coil for your hose? The one that keeps it from kinking around corners..

Found some of this stuff here. It's Unicoil. They only have it up to 1" sizes though.

http://boostcontroller.com/index.php?category=218
C. Ludwig is offline
Reply Like
Old 11-16-09, 01:41 PM
  #111
Life Project.

iTrader: (1)

10thaniv's Avatar

Join Date: Jan 2005
Location: BEDFORD, TX
Posts: 605
Likes: 0
Received 1 Like on 1 Post
I found the 3/4" hose coil for making tight bends at PepBoys.
10thaniv is offline
Reply Like
Old 12-05-09, 05:06 PM
  #112
Life Project.

iTrader: (1)

10thaniv's Avatar

Join Date: Jan 2005
Location: BEDFORD, TX
Posts: 605
Likes: 0
Received 1 Like on 1 Post

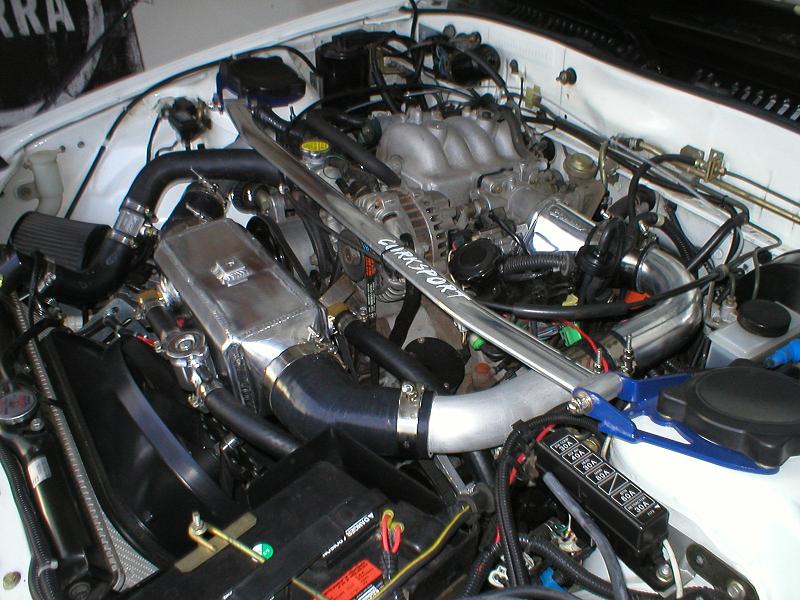

A2w
Finished.
Attached Thumbnails Water to Air intercooler for street/drift use-allan-014_1.jpg   Water to Air intercooler for street/drift use-allan-015_1.jpg
10thaniv is offline
Reply Like
Old 12-05-09, 08:16 PM
  #113
Turbo vert

iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Viking War Hammer
If anyone needs a heat exchanger, I have a extra one (brand new) one for sale. $120

12x12x2 with a fill cap
what heat exchanger is it?
just startn is offline
Reply Like
Old 12-05-09, 09:38 PM
  #114
4th string e-armchair QB

iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
http://www.frozenboost.com/product_i...ef6a5387f0e681

That one
Trots*88TII-AE* is offline
Reply Like
Old 12-06-09, 04:06 PM
  #115
*** Bless The USA

iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes on 0 Posts
still have mine for sale,100 shipped, its crampin my style

brand new in box
Viking War Hammer is offline
Reply Like
Old 12-10-09, 07:20 PM
  #116
*** Bless The USA

iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes on 0 Posts
Anyone needs a brand new heat exchanger for $75 shipped. PM me, need this out of my house.
Viking War Hammer is offline
Reply Like
Old 12-10-09, 08:09 PM
  #117
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
Originally Posted by 10thaniv
Finished.
Did the AIT dropped with the H2O intercooler?
KNONFS is offline
Reply Like
Old 12-10-09, 10:28 PM
  #118
Turbo vert

iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Viking War Hammer
Anyone needs a brand new heat exchanger for $75 shipped. PM me, need this out of my house.
What exchanger are you running on your car right now? i though tit was this 12x12x2 but i looke at it and it looks like a 12x20somehtingx2
just startn is offline
Reply Like
Old 12-10-09, 10:43 PM
  #119
*** Bless The USA

iTrader: (8)

Viking War Hammer's Avatar

Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes on 0 Posts
I'm running the long skinny one...
Viking War Hammer is offline
Reply Like
Old 12-11-09, 12:07 PM
  #120
Banned. I got OWNED!!!

Chaotic_FC's Avatar

Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by KNONFS
Did the AIT dropped with the H2O intercooler?
+1!

2 people have finished their kits and i still don't know what the results are.
Chaotic_FC is offline
Reply Like
Old 12-16-09, 09:25 AM
  #121
HamfistRacing.com

iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,197
Likes: 0
Received 4 Likes on 3 Posts
ait???????
s1mpsons is offline
Reply Like
Old 12-16-09, 08:25 PM
  #122
Rotary Enthusiast


ronbros3's Avatar

Join Date: Jun 2004
Location: Austin TX.
Posts: 862
Received 0 Likes on 0 Posts
ait ,, air intake temp, or, iat, intake air temp, could be the same, somethin to do with the English language..
ronbros3 is offline
Reply Like
Old 12-17-09, 08:03 AM
  #123
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
Originally Posted by ronbros3
ait ,, air intake temp, or, iat, intake air temp, could be the same, somethin to do with the English language..

Yup, thinking in spanish, and writing in english
KNONFS is offline
Reply Like
Old 12-17-09, 03:50 PM
  #124
Full Member
iTrader: (3)

dreed7235's Avatar

Join Date: Aug 2009
Location: Abilene TX
Posts: 208
Likes: 0
Received 0 Likes on 0 Posts
why not use methanol inj? problem solved....
dreed7235 is offline
Reply Like
Old 12-17-09, 05:19 PM
  #125
4th string e-armchair QB

iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
most racing bodies won't allow straight meth as an auxillary injectant
Trots*88TII-AE* is offline
Reply Like
