Single Turbo RX-7's Questions about all aspects of single turbo setups.

Manifold question

Thread Tools

Search this Thread

Old 01-23-07, 08:10 PM
  #1
High on RXtasy

Thread Starter
iTrader: (2)

94Rx-7's Avatar

Join Date: Jul 2002
Location: Kissimmee
Posts: 421
Likes: 0
Received 0 Likes on 0 Posts
Manifold question
Will divided manifold work with a non divided turbo?
94Rx-7 is offline
Reply Like
Old 01-23-07, 08:24 PM
  #2
High on RXtasy

Thread Starter
iTrader: (2)

94Rx-7's Avatar

Join Date: Jul 2002
Location: Kissimmee
Posts: 421
Likes: 0
Received 0 Likes on 0 Posts
examples

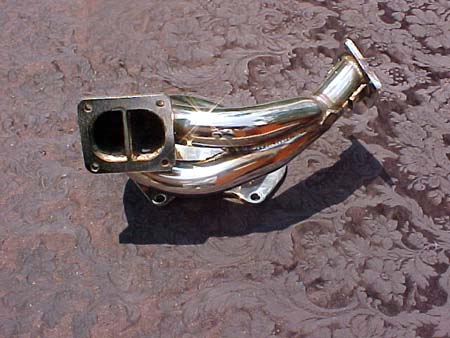

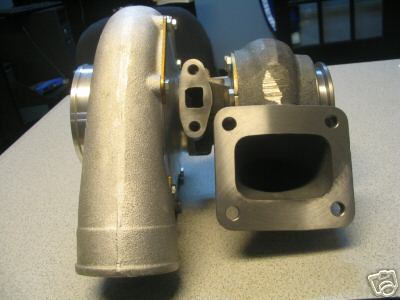

Attached Thumbnails Manifold question-turbo.jpg   Manifold question-manifold.jpg
94Rx-7 is offline
Reply Like
Old 01-23-07, 08:24 PM
  #3
development


dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Likes: 0
Received 6 Likes on 5 Posts
why not just do it right?
dubulup is offline
Reply Like
Old 01-23-07, 09:09 PM
  #4
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
Yes, it will work, just not as well as a divided turbine housing. You can purchase those seperatly.
__________________
Rotary Performance Parts


Turblown is offline
Reply Like
Old 01-24-07, 01:02 PM
  #5
RX7Racer46


RX7Racer46's Avatar

Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
The manifold you used as an example is for an external wastegate setup. Turbo goes on one part. Wastegate on another. You still run the exhaust from the hot side of the turbo.
RX7Racer46 is offline
Reply Like
Old 01-24-07, 01:37 PM
  #6
development


dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Likes: 0
Received 6 Likes on 5 Posts
Originally Posted by RX7Racer46
The manifold you used as an example is for an external wastegate setup. Turbo goes on one part. Wastegate on another. You still run the exhaust from the hot side of the turbo.
dubulup is offline
Reply Like
Old 01-24-07, 02:47 PM
  #7
RX7Racer46


RX7Racer46's Avatar

Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
What? I have a similar setup and I know what Im talkin about. Do you not understand?
RX7Racer46 is offline
Reply Like

Trending Topics

Old 01-24-07, 02:57 PM
  #8
development


dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Likes: 0
Received 6 Likes on 5 Posts
Originally Posted by RX7Racer46
What?
Originally Posted by RX7Racer46
The manifold you used as an example is for an external wastegate setup.
no one asked about this...but good observation
Turbo goes on one part.
I think he knows this...
Wastegate on another.
Pretty sure we all realize this...
You still run the exhaust from the hot side of the turbo.
not the cold side in this case?

but you are right...
I have a similar setup and I know what Im talkin about.
as you've pointed out above.
Do you not understand?
not at all...he asked about a non-divided turbine housing on a divided manifold, you clearly answered everything but his question.

and I'm bored today...
dubulup is offline
Reply Like
Old 01-24-07, 03:06 PM
  #9
marky


peachykeenwight's Avatar

Join Date: Mar 2005
Location: Bothell, WA
Posts: 821
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RX7Racer46
What? I have a similar setup and I know what Im talkin about. Do you not understand?
.. he's asking about using a divided manifold in conjunction with a non-divided turbine housing, not about the wastegate setup or where the downpipe connects to (which he most likely knows). The pictures he supplied are of a turbo with an undivided turbine housing and a divided manifold just in case the respondant was confused about his question..
peachykeenwight is offline
Reply Like
Old 01-24-07, 07:37 PM
  #10
RX7Racer46


RX7Racer46's Avatar

Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by peachykeenwight
.. he's asking about using a divided manifold in conjunction with a non-divided turbine housing, not about the wastegate setup or where the downpipe connects to (which he most likely knows). The pictures he supplied are of a turbo with an undivided turbine housing and a divided manifold just in case the respondant was confused about his question..
Got that. But the divided manifold that he supplied is for an external wastegate setup. I was just sayin...
RX7Racer46 is offline
Reply Like
Old 01-24-07, 10:47 PM
  #11
Rotors still spinning

iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,181
Likes: 0
Received 19 Likes on 13 Posts
Yes it works just fine. It's no worse than a cast log style manifold and actually still has the benefit of keeping the pulses separate and strong right up to the turbo. Use it and don't worry about it. It isn't a divided housings equal but it's not going to be any different than any other non divided turbo in terms of how well it works.
rotarygod is offline
Reply Like
Old 01-25-07, 12:14 AM
  #12
Senior Member


Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Likes: 0
Received 0 Likes on 0 Posts
Currently I'm running a non-divided turbo on a divided manifold (HKS Log) with no problems. I'm swapping to a different turbo in a week or two, which is divided, but not because this one doesn't perform well or anything, but because it is a loaner.
mr_ouija is offline
Reply Like
Old 01-25-07, 04:40 AM
  #13
High on RXtasy

Thread Starter
iTrader: (2)

94Rx-7's Avatar

Join Date: Jul 2002
Location: Kissimmee
Posts: 421
Likes: 0
Received 0 Likes on 0 Posts
Thanks guys. you were all a big help.
94Rx-7 is offline
Reply Like
Old 01-25-07, 09:08 AM
  #14
almost done


KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
Quote:
Originally Posted by RX7Racer46
What?



Quote:
Originally Posted by RX7Racer46
The manifold you used as an example is for an external wastegate setup.

no one asked about this...but good observation

Quote:
Turbo goes on one part.
I think he knows this...

Quote:
Wastegate on another.
Pretty sure we all realize this...

Quote:
You still run the exhaust from the hot side of the turbo.
not the cold side in this case?

but you are right...

Quote:
I have a similar setup and I know what Im talkin about.
as you've pointed out above.

Quote:
Do you not understand?
not at all...he asked about a non-divided turbine housing on a divided manifold, you clearly answered everything but his question.

and I'm bored today...


^
WOW,
KINETIK_FD3S is offline
Reply Like
Old 01-25-07, 09:41 AM
  #15
Hot Dicken's Cider

iTrader: (2)

DelSlow's Avatar

Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes on 0 Posts
That manifold you used as an example is for an RX-7 and the turbo is used to compress air!! I know what I am talking about. Do you not understand?
DelSlow is offline
Reply Like
Old 01-25-07, 12:47 PM
  #16
RX7Racer46


RX7Racer46's Avatar

Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
Wow we have a buncha smart asses in the whole club now. Thats great. Just great!
RX7Racer46 is offline
Reply Like
Old 01-25-07, 01:16 PM
  #17
development


dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Likes: 0
Received 6 Likes on 5 Posts
^now? <-damn that's twice you got this thrown this thread.
we've always been here...just wait for the the unexpecting
dubulup is offline
Reply Like
Old 01-25-07, 02:46 PM
  #18
NASA geek

iTrader: (2)

RacerXtreme7's Avatar

Join Date: Mar 2002
Location: Virginia
Posts: 2,215
Likes: 0
Received 2 Likes on 2 Posts
The smart *** replies tend to follow the DUMBASS replies in threads.

~Mike.............
RacerXtreme7 is offline
Reply Like
Old 01-25-07, 04:56 PM
  #19
marky


peachykeenwight's Avatar

Join Date: Mar 2005
Location: Bothell, WA
Posts: 821
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RacerXtreme7
The smart *** replies tend to follow the DUMBASS replies in threads.

~Mike.............
^ +1
peachykeenwight is offline
