GT3574 kit
11-25-06, 10:40 PM
#1
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
Aspec GT3574 kit
Hey guys,

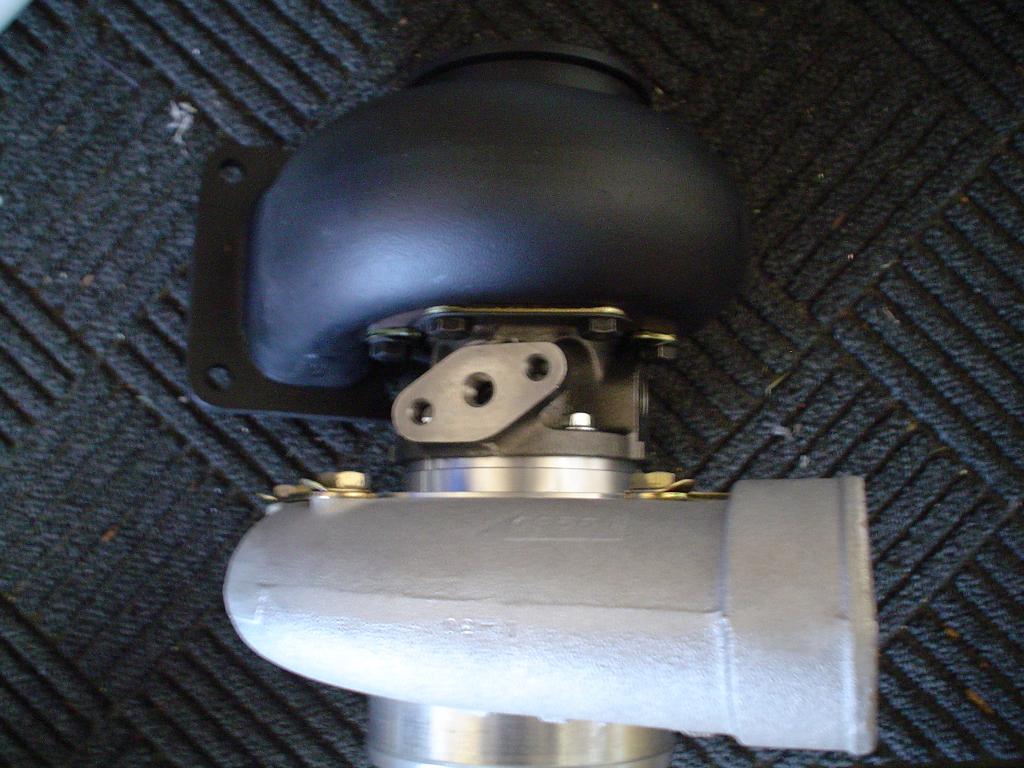

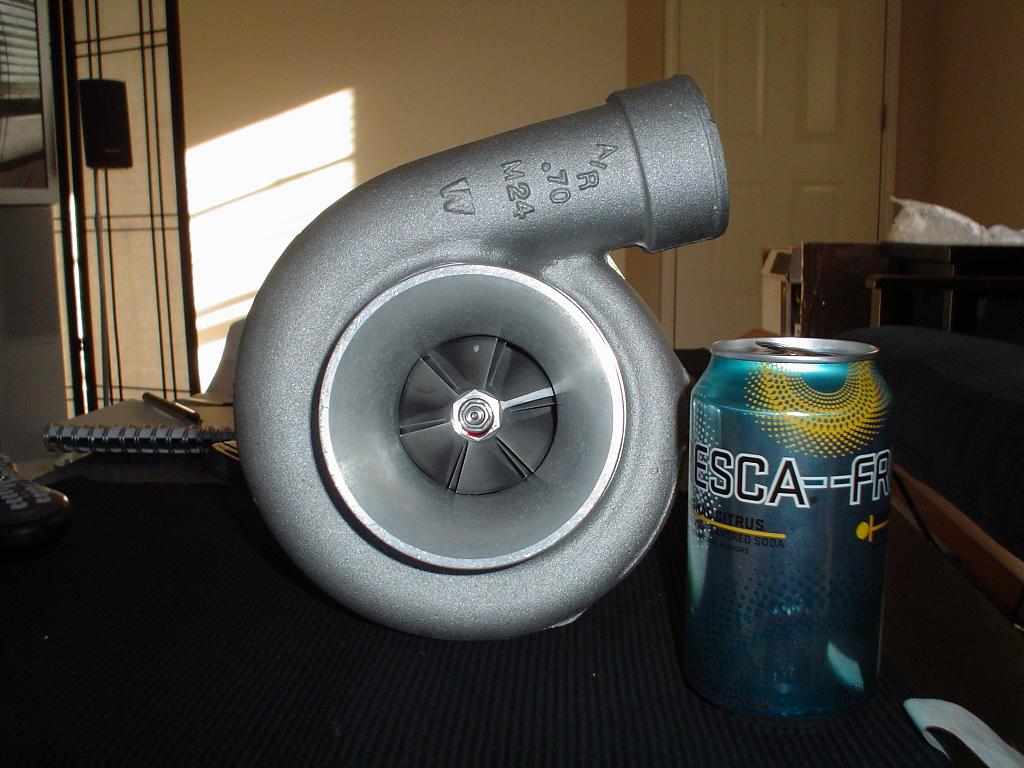

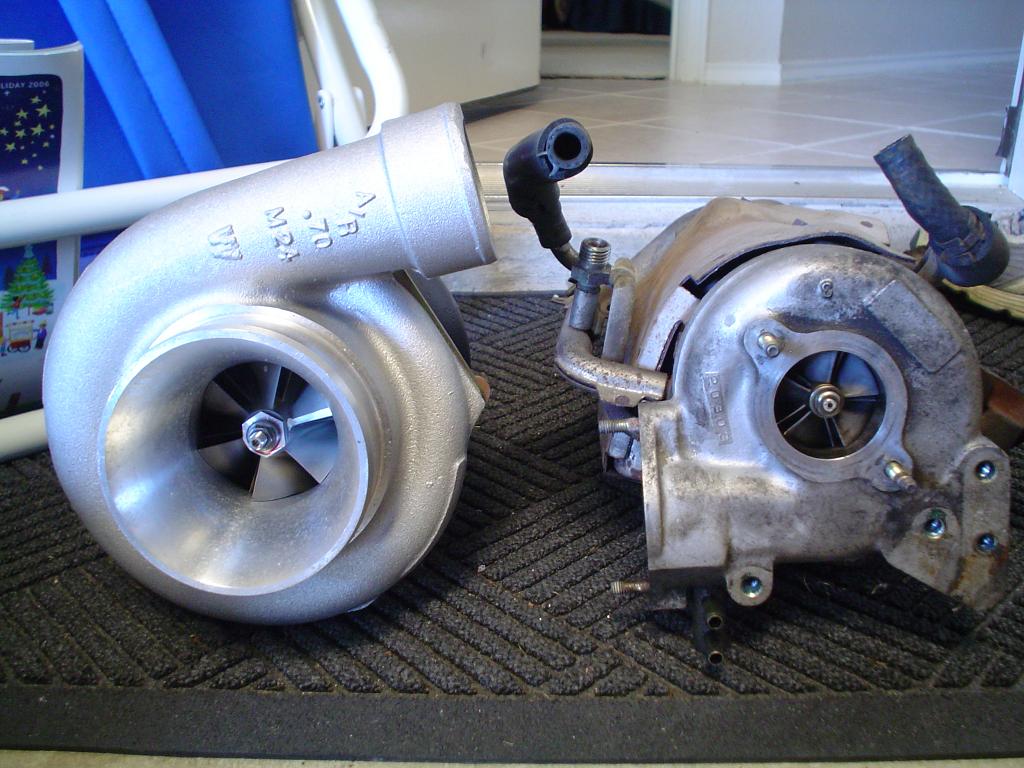

I got my GT3574 kit from Aspec last week. I figured I'd post some pics for everyone. Looks more or less like most of the other pics I've seen of Aspec's kits
. Overall I was very pleased with Aspec's customer service and the quality of the product. They did send me the wrong size turbine housing, but that is being remedied quickly.
It will probably take me a couple of months to get everything into the car, but once I do I'll poast some pics.
The picture of the miscellaneous parts on my living room floor is just to show the downpipe. All those other parts aren't necessarily included in the kit.
- Andy
I got my GT3574 kit from Aspec last week. I figured I'd post some pics for everyone. Looks more or less like most of the other pics I've seen of Aspec's kits
. Overall I was very pleased with Aspec's customer service and the quality of the product. They did send me the wrong size turbine housing, but that is being remedied quickly. It will probably take me a couple of months to get everything into the car, but once I do I'll poast some pics.
The picture of the miscellaneous parts on my living room floor is just to show the downpipe. All those other parts aren't necessarily included in the kit.
- Andy
Last edited by palsor1; 11-25-06 at 10:48 PM.
11-25-06, 10:55 PM
#2
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts

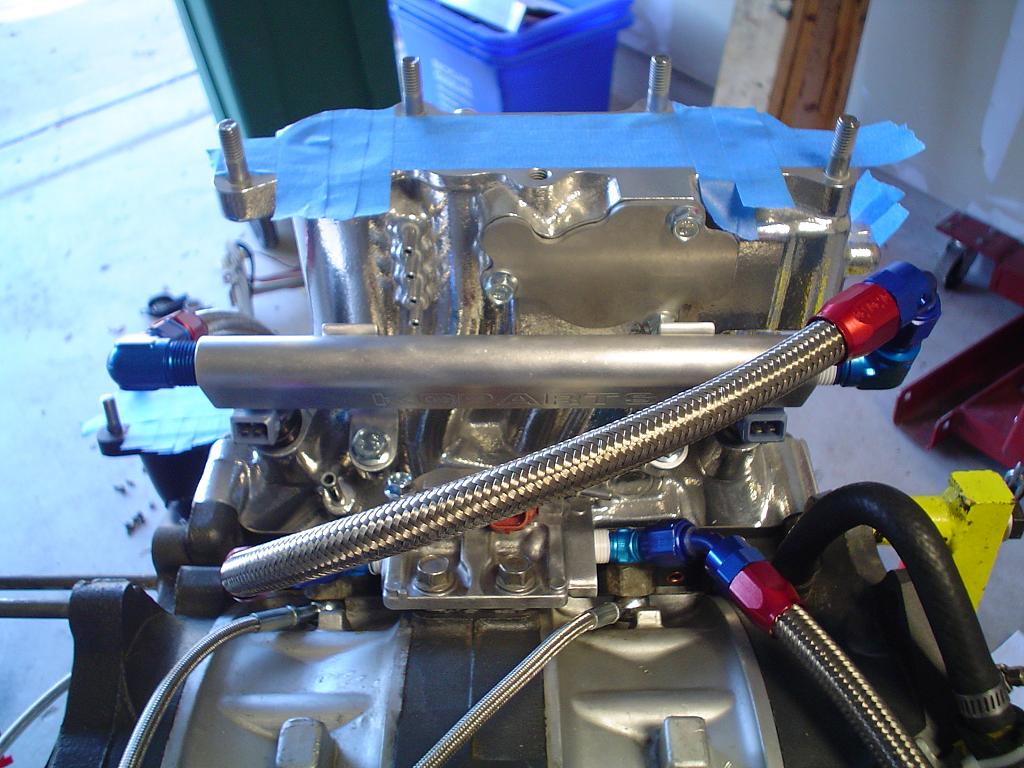

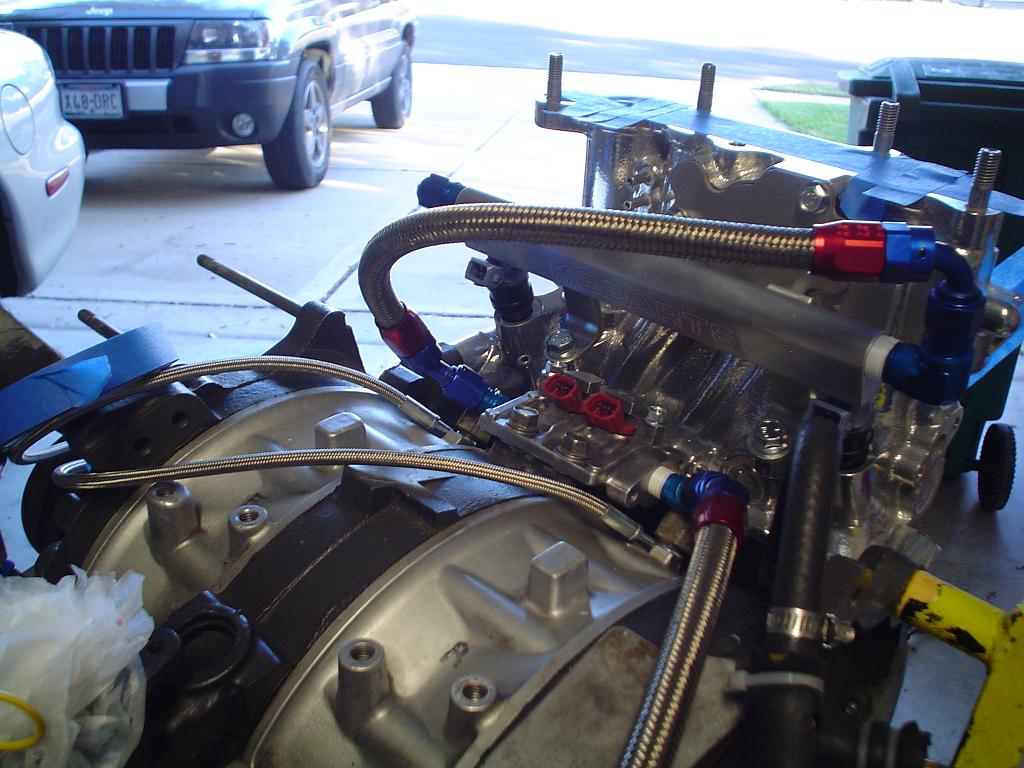

Just for kicks, here are a couple of pics of my kgparts fuel system. Looks like Rich and I are doing almost the same stuff at almost the same time . We'll have to race.
. We'll have to race.
11-26-06, 12:37 AM
#4
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by palsor1
Just for kicks, here are a couple of pics of my kgparts fuel system. Looks like Rich and I are doing almost the same stuff at almost the same time . We'll have to race.
. We'll have to race.
.Everything looks great man, good luck with the install!
11-26-06, 09:29 AM
#7
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by stylEmon
?gt3574?
Originally Posted by Zero R
This is a new turbo I did up here for the demand I was getting for a non-BB 35R. Garrett does sell a non-bb GT35 but it uses a smaller 76mm compressor as oppossed to the larger 82mm wheel of the "R" model. Ours also uses a larger more rotary friendly 74mm turbine as opposed to the 68mm turbine of the standard 35R. This offers a very nice 1.1 wheel ratio as well as slightly increased flow out the turbine.
Here is a comparison
GT35 76mm comp, 68mm turbine.
GT35R 82mm comp, 68mm turbine.
GT3574 82mm comp, 74mm turbine.
As stated above this was a need that definitely needed filling as I get more emails about non-bb 35R's than anything else. So there you have it
Here is a comparison
GT35 76mm comp, 68mm turbine.
GT35R 82mm comp, 68mm turbine.
GT3574 82mm comp, 74mm turbine.
As stated above this was a need that definitely needed filling as I get more emails about non-bb 35R's than anything else. So there you have it
Trending Topics
11-26-06, 10:05 AM
#8
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
Ditto on what Goodfella just said about the turbo kit. Go check out the A-spec vendor forum. Zero has a pretty long post about it in there. It was quite a bit cheaper than a 35r kit at the loss of a little response.
On the OMP lines, I actually got them from rx7store.net, but Gotham also sells them. I did get my oil pan brace from Gotham.
On the OMP lines, I actually got them from rx7store.net, but Gotham also sells them. I did get my oil pan brace from Gotham.
Last edited by palsor1; 11-26-06 at 10:15 AM.
11-29-06, 07:48 AM
#13
Hey Guys,
The GT3574 is a badass setup, the overall Aspec kit for this is sexy. I was able to hit 437rwhp and 340 torque @ 15lbs boost. This is on the .84 housing for added response. I'll be back after winter with some additional fuel and crank it up to 17 lbs. 450-455 should be no sweat. Torque curve is tabletop flat and rising.
Anyone with any doubts of this turbo, throw them out the window, it rocks!
-Seth
The GT3574 is a badass setup, the overall Aspec kit for this is sexy. I was able to hit 437rwhp and 340 torque @ 15lbs boost. This is on the .84 housing for added response. I'll be back after winter with some additional fuel and crank it up to 17 lbs. 450-455 should be no sweat. Torque curve is tabletop flat and rising.
Anyone with any doubts of this turbo, throw them out the window, it rocks!
-Seth
Last edited by Triangle Power; 11-29-06 at 08:04 AM.
11-29-06, 03:24 PM
#15
development
Originally Posted by Zero R
I'm betting with the setup you have you lose zero response to the typical 35R setup. I think you'll be very pleased with the results, keep us updated.
11-29-06, 04:13 PM
#17
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
Always coming up with something new...lose nothing, except the water lines.
11-29-06, 04:15 PM
#18
development
so, I guess the biggest advantage is...it's rebuildable???
It is also my understanding, non BB CHRA's are capable of holding a higher boost...any truth to that?
It is also my understanding, non BB CHRA's are capable of holding a higher boost...any truth to that?
11-29-06, 04:16 PM
#19
development
Originally Posted by palsor1
Except the water lines? What does that mean?
11-29-06, 04:57 PM
#20
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
nothing, I was wrong...I thought since there were no BB's it wasn't water cooled. But I guess you could only run oil...I've seen this done...would I? probably not.
11-29-06, 06:03 PM
#22
11-29-06, 06:14 PM
#24
Rotary Enthusiast
Join Date: Feb 2001
Location: In the Sky
Posts: 1,190
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
Always coming up with something new
