GT35 vs GT40
i'm looking into these two turbos by Garrett, the GT35R and the GT40R. both are Ball Berring turbos and from the maps it looks as though the 40 has the exact same spool time but with higher flow than the 35... am I looking at these graphs wrong?

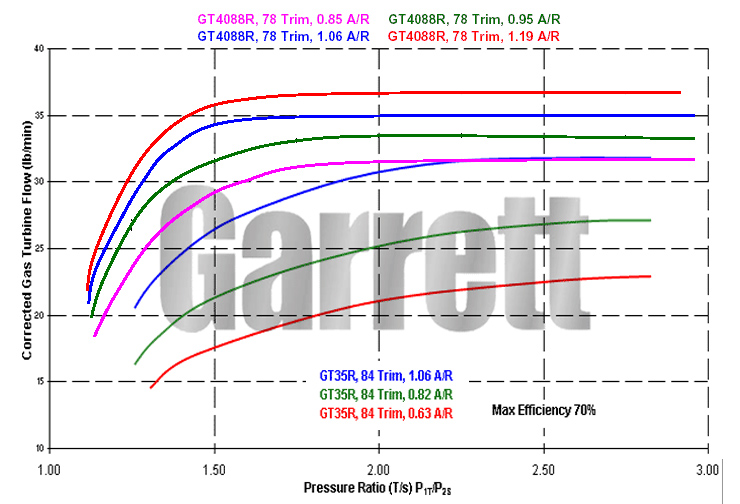

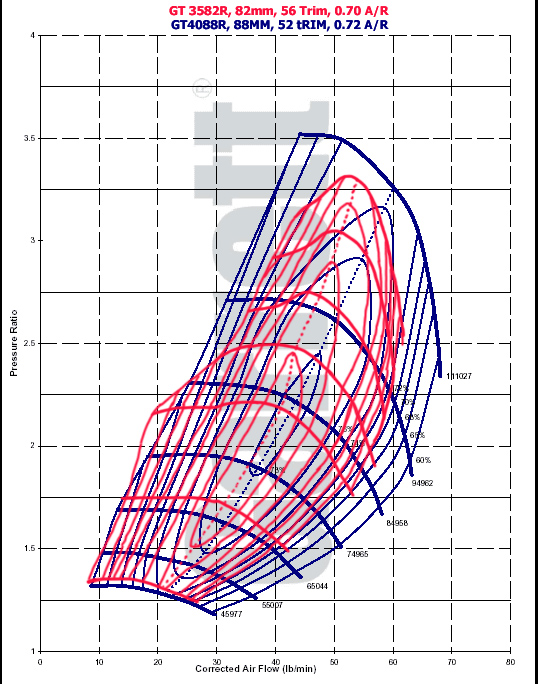

I created these overlays to show my point. the comp map displays the 40 in blue and the 35 in red. the boost graph displays the 40 on the top 4 lines and the 35 on the bottom 3.
my question is would the 35 create positive pressure before the 40 with a 0.86 A/R???
My goal is only about 350whp from an S4 engine. (with supporting mods of course) but I want it to spool as fast as possible to reduce lag without the risk of choking the engine at all if any up top.
thank you for your help,
TR
I created these overlays to show my point. the comp map displays the 40 in blue and the 35 in red. the boost graph displays the 40 on the top 4 lines and the 35 on the bottom 3.
my question is would the 35 create positive pressure before the 40 with a 0.86 A/R???
My goal is only about 350whp from an S4 engine. (with supporting mods of course) but I want it to spool as fast as possible to reduce lag without the risk of choking the engine at all if any up top.
thank you for your help,
TR
Trending Topics
#10
1 miracle from sainthood
Thread Starter
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
ok so the general concesus from multiple people I have been talking to is T04 e 57-60 trim with .84-1.00 A/R... what the hell is A/R? the only thing i know it as is the radius from the turbine shaft to the housing wall... so it would dictate the physical size of the turbo.
thank you all for taking the time to confirm everything, and helping a SEVERE turbo NOOB out.
a fine point: again I'm not looking for a turbo to kick me in the @$$ at 5,000rpm a want the turbo to start generating posative boost as early in the rev band as possible with making the 350WHP i want on stock ports and minimal if any chocking of the engine up top... no detrimental back pressure.
thank you all again,
TR
thank you all for taking the time to confirm everything, and helping a SEVERE turbo NOOB out.
a fine point: again I'm not looking for a turbo to kick me in the @$$ at 5,000rpm a want the turbo to start generating posative boost as early in the rev band as possible with making the 350WHP i want on stock ports and minimal if any chocking of the engine up top... no detrimental back pressure.
thank you all again,
TR
#11
NorCal 7's Co-founder
If you want early early boost response then you don't want a GT40R. There are versions of the GT35R now that will give you really early spool up with great power potential. You could also use the standard T3 hotsided GT35R and easily hit the numbers you want. Or you could look into the Apex'i RX-6 turbo. That spools up very fast and shouldn't have any problems hitting 350rwhp. If you weren't as worried about spool then I would say go with a regular 60-1. That would easily hit the power numbers you want, but I don't have enough experience with them to tell you the spool characteristics of it. Good luck to you.
Zach
Zach
#12
Gone Darkside
iTrader: (14)
Join Date: Mar 2001
Location: Irmo, SC USA
Posts: 2,569
Likes: 0
Received 0 Likes
on
0 Posts
I agree with a lot of the comments made in here including the solid answer made by Zach other than the 60-1 part (which he DID say he wasn't that familiar with it).
The nice thing about the 60-1 is that it is relatively inexpensive, has a T4 flange which will mate directly to the also inexpensive HKS cast manifold and will provide you with the power you're looking for. I ran mine with a 1.15 hotside on a stock ported motor and I loved it.
If you want a faster spool and still be able to hit your power goal, go with the .96 hotside. I would say the .84 for even faster response, but I'm honestly not sure if that would curb you just shy of your 350whp.
IMO, for the money, that's the way to go. If, however, you decide to go with the ball bearing turbo, the GT35 is a great choice. I'm not intimately familiar with it but I know of a good number of people who have had great success with it.
My $.02
Reese
The nice thing about the 60-1 is that it is relatively inexpensive, has a T4 flange which will mate directly to the also inexpensive HKS cast manifold and will provide you with the power you're looking for. I ran mine with a 1.15 hotside on a stock ported motor and I loved it.
If you want a faster spool and still be able to hit your power goal, go with the .96 hotside. I would say the .84 for even faster response, but I'm honestly not sure if that would curb you just shy of your 350whp.
IMO, for the money, that's the way to go. If, however, you decide to go with the ball bearing turbo, the GT35 is a great choice. I'm not intimately familiar with it but I know of a good number of people who have had great success with it.
My $.02
Reese
#13
Go with the 35r with the T4 flange, even with the stock ports. Then when you port that a little bit you'll be into the 400's. Aspec RS based 35 would be better on a ported engine I would think.
Don't do the 40r on a stock ported engine with low boost or HP goals.
Don't do the 40r on a stock ported engine with low boost or HP goals.
#16
NorCal 7's Co-founder
Reese, I've told you about that T4 GT35 variant before. You don't listen!! I would have to say that if you have the money that turbo seems to be the one to beat these days!!
#17
KM48 Burnout
iTrader: (4)
Join Date: Nov 2001
Location: Ventura County, CA
Posts: 1,692
Likes: 0
Received 0 Likes
on
0 Posts
Do you have a refrence to purchase this T4 turbine housing for a GT35R bb turbo? I asked Innovative, but they don't have any idea where to get a T4 housing for a GT35R. I have a T3 and would like to have the option to bump the housing up bigger.
#19
Rotary Enthusiast
I just bought a GT4067, not an r, it has a 67mm inducer at compressor housing, 4" inlet .58 A/R,,,,,, turbine housing T4 flange .95 A/R, but the exducer size measures as a Q wheel, I would have preferred a P wheel turbine, what might be expected from this turbo. its brand new never used. and finding P trim wheels and housings for GT40s aint easy, and probably cost more than another turbo. looking for 500whp FD. any opinions??
