BorgWarner EFR 8374 IWG Dyno Results

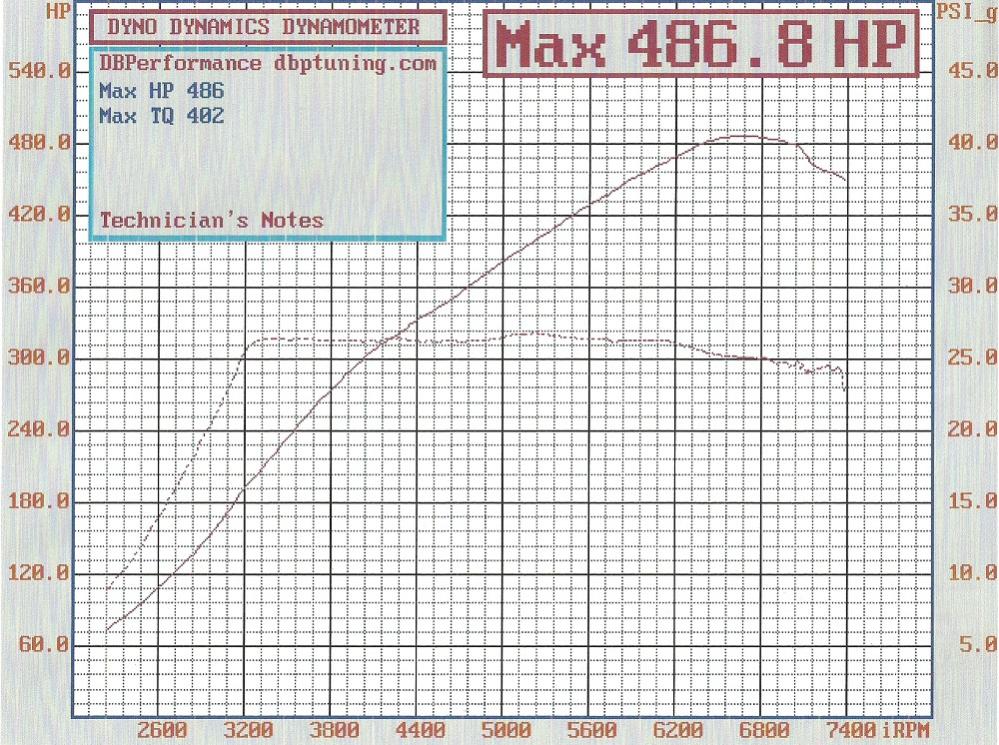

Boost Response and Power Output from our 8374 BorgWarner EFR( T4 .92 IWG) FD3S Turbo System. Adaptronic E440D Universal, stock port engine, E85, IGN-1A coils, Vmount, 4" ambient air intake, 3.5" full exhaust, Xcessive Manufacturing LIM, Injector Dynamics ID2000s x 4. Ran out of fuel pump on the top end.

BorgWarner EFR IWG FD3S Turbo System
Attached Thumbnails BorgWarner EFR 8374 IWG Dyno Results-8374iwgresponse.jpg   BorgWarner EFR 8374 IWG Dyno Results-8374iwghptq.jpg   BorgWarner EFR 8374 IWG Dyno Results-shawnefrdyno.jpg
__________________
Rotary Performance Parts
Turblown is offline
Reply With Quote
Old 04-03-14, 05:56 PM
  #2
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 28 Times in 20 Posts
nice job Elliot... i am impressed w 420 hp at 5500. SAE or STD? either way it should be a midrange rocket. what's w the fuel pump? what pump, hard wired?

i recommend a Walbro 9000267.

howard
Howard Coleman CPR is offline
Reply With Quote
Old 04-03-14, 06:18 PM
  #3
Rotary Enthusiast
iTrader: (3)

shawnm565's Avatar

Join Date: May 2011
Location: Minnesota
Posts: 882
Thanks: 0
Thanked 8 Times in 8 Posts
Originally Posted by howard coleman View Post
nice job Elliot... i am impressed w 420 hp at 5500. SAE or STD? either way it should be a midrange rocket. what's w the fuel pump? what pump, hard wired?

i recommend a Walbro 9000267.

howard
Its a Fuelab 1500hp pump 1/2 jumper-ed. I was only getting 11.5V reading on the ECU so I think I need a new battery/alternator. Pump gets power right off the battery with a Relay activated by the ECU
shawnm565 is offline
Reply With Quote
Old 04-03-14, 08:01 PM
  #4
Rotary Enthusiast
iTrader: (19)

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,164
Thanks: 0
Thanked 5 Times in 4 Posts
Looks great! Look at how early that power is coming on!
lOOkatme is offline
Reply With Quote
Old 04-03-14, 08:36 PM
  #5
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,593
Thanked 43 Times in 43 Posts
It still makes peak power around 6500rpm, similar to a stock engine. That's pretty good when you're going for a high revving setup in our modern world of turbo engines that fall on their face at 5000rpm. I've come to appreciate stock ports more and more over time.

You are using a PWM output from the Adaptronic to control boost with the 3 port solenoid that comes with the turbo? I'm familiar with the software. Can you post a screenshot of your boost control settings? I'm curious what gains you were using on the PID controller and what kind of base duty cycles to expect with the 3 port solenoid + internal gate combination.
arghx is offline
Reply With Quote
Old 04-03-14, 08:41 PM
  #6
Rotary Enthusiast
iTrader: (3)

shawnm565's Avatar

Join Date: May 2011
Location: Minnesota
Posts: 882
Thanks: 0
Thanked 8 Times in 8 Posts
We are actually not using a electric boost controller.. we are using a manual controller... I brought he car to elliot on monday with no turbo kit and we tuned on thursday... only worked on the car 2 8 hour days... going to retune once I work out the electrical issues and wire up the boost controller.
shawnm565 is offline
Reply With Quote
Old 04-03-14, 10:39 PM
  #7
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,681
Thanks: 0
Thanked 13 Times in 13 Posts
the boost response and torque numbers are making me smile. Time to break out the credit card haha
silverTRD is offline
Reply With Quote
Old 04-04-14, 09:53 AM
  #8
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,169
Thanked 39 Times in 37 Posts
Originally Posted by silverTRD View Post
the boost response and torque numbers are making me smile. Time to break out the credit card haha
These torque and response numbers are just ridiculous! Would love to see the torque numbers on this turbo at 15lbs and 20lbs on pump gas as that is what the majority of people would run.
djseven is offline
Reply With Quote
Old 04-04-14, 12:31 PM
  #9
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Thanks: 0
Thanked 0 Times in 0 Posts
What fuel is Jacob using on his fd? He just was the other one posted with same kit last week.
Grinch is offline
Reply With Quote
Old 04-04-14, 01:14 PM
  #10
Lives on the Forum
iTrader: (125)

allrotor93's Avatar

Join Date: Jul 2001
Location: Cary, NC
Posts: 6,698
Thanks: 0
Thanked 3 Times in 3 Posts
Torque is greatly increased with the stock port motor. Do you have a plot on a ported engine?
allrotor93 is offline
Reply With Quote
Old 04-04-14, 04:26 PM
  #11
Rotary Enthusiast
iTrader: (3)

shawnm565's Avatar

Join Date: May 2011
Location: Minnesota
Posts: 882
Thanks: 0
Thanked 8 Times in 8 Posts
Originally Posted by Grinch View Post
What fuel is Jacob using on his fd? He just was the other one posted with same kit last week.
I believe Jacob used 93 octane.
shawnm565 is offline
Reply With Quote
Old 04-05-14, 11:54 PM
  #12
Full Member

Join Date: Apr 2008
Location: Richmond, BC
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
Looks excellent. Does anyone know if there's much of a spool up diff between a 3.5" and 4" exhaust?

Thank you
ali123 is offline
Reply With Quote
Old 04-06-14, 10:51 AM
  #13
Back to basics
iTrader: (4)

dabigesii's Avatar

Join Date: Mar 2004
Location: Crescent City
Posts: 793
Thanks: 0
Thanked 0 Times in 0 Posts
I remember when these turbos first came out. They were backordered for so long and decided to cancel my order and switch over to precision 6766. The itch is coming back and I'm really curious as to how the 9180 performs.
dabigesii is offline
Reply With Quote
Old 04-06-14, 10:59 AM
  #14
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 28 Times in 20 Posts
airflow makes power and it may be this dyno sheet that most clearly proves the point. i am always first and foremost a hp under the curve (HPUC) fan.

HPUC is what wins races and also contributes to a more pleasurable overall driving experience.

i have an Excel spreadsheet w 69 dynosheets all corrected to SAE with seven power inputs.... from 5000 to 7500. largest total wins.

when you shift to the next gear it is important to have hp at 5500!

maybe i will repeat that.

when you shift to the next gear it is important to have power at 5500.

next time you look at a dyno sheet, i suggest you consider more than the top tick number.

one of the ways i evaluate HUPC is at what RPM does the motor make 200 hp.

generally i find 200 at between 3900 and 4400.

the 8374 made it at a tick below 3200! for a single turbo that is in another zipcode. of course if you look at the boost curve it is no mystery... at 3200 it is almost at 25 psi!

i don't know what effect stock ports have but they are probably more supportive of early power/spool. as may be the 3.5 exhaust. i do suspect the turbo is the key to the early airflow.

of course in a racing situation you would almost never see 3000 rpm as, even with the crappy wide spaced gearing and shifting around 7800 you see something in the 5000 area. i do figure that the dynamics that create the early airflow would still be working at higher rpm so the turbo appears to have an edge, though decreasing w rpm, everywhere.

not too surprising given the turbine weight among other things.

here's the 8374 part of my thread in this section re the EFR line:

BW EFR 8374



BW EFR 8374 compressor area................ 6.626
the compressor is just a bit smaller than the Garrett TO4Z, GT500, PT67 which all measure right around 7 square inches.

58 pounds of air at 14.7 psi boost good for 437 hp
66 pounds at 20 psi 497 hp
75 pounds at 35 psi 565

all of the above are plotted at 65% efficiency so there is a bit more (significantly more) power than i calculate as well as more pounds output if you want to extend to 60%

the 8374 hotside is a large efficient 6.23 square inches of a Titanium composite.

TO4Z, PT67, GT500, 5.171 or 5.894 w "P" trim option
BW S300 63 6.31


like the 7670, the 8374 is available in a T4 .92 or 1.05 twin scroll configuration

clearly the 8374 is the mid-range (500-550) power generator in the line so it relates to the S300 63 (177283) and 66 in the non EFR in the BW lineup....

all hp numbers assume the turbo can be driven to the point on the compressor map which may not be the case. they also assume best tuning configuration. the numbers are primarily for comparison.

surge line is also a consideration. ideally you want it as far to the left (a lower number) as possible. surge point moves depending on boost, i picked 2.2 pressure ratios which is 17.64 psi boost

7670...................16 pounds
GT3582r........................24 pounds

8374...................22.5 pounds
TO4Z.............................24
BW S30063...................27.5
BW S366.......................23

9180.....................22 pounds
GT4094r..........................25
GT4294r..........................24
GT4202r..........................31
BW S475.........................32



looking good BW especially for the rotary!

howard
Howard Coleman CPR is offline
Reply With Quote
The Following User Says Thank You to Howard Coleman CPR For This Useful Post:
Warrior777 (06-12-18)
Old 04-06-14, 11:10 AM
  #15
247 RWBBQ

ColinShark's Avatar

Join Date: Jul 2004
Location: Detroit, MI
Posts: 305
Thanks: 0
Thanked 2 Times in 2 Posts
That powerband is amazing. Probably the most impressive 13B dyno I've seen so far. I have this big list of dyno graphs that I superimpose to get a good comparison. Of course there is a lot of room for error, but it puts things into the ballpark when all the graphs are using the same units.

Check out some of the best ones (only torque is graphed):


Notable: The brown line is HppRX7's crazy SSM autocross car ( https://www.rx7club.com/build-thread...build-1013942/ ), with a rather small turbo for quick spooling. Fantastic low end, but the EFR is still ahead.

The 8374 seems like a really great match for the 13B so far. Looks like there's breathing room in the middle to turn up the boost, too.
ColinShark is offline
Reply With Quote
Old 04-06-14, 08:36 PM
  #16
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Thanks: 0
Thanked 0 Times in 0 Posts
here are my dyno graphs with the same turbo and manifold as Elliot posted above (mine is at 12psi with medium street port engine and rich tuning):

the slight dip in torque is from tuning.

the torque curve is VERY broad with this turbo setup. i got the turbo and manifold via Turbosource/Turblown, and i highly recommend their kit.




scales changed to look a little more normal:

jacobcartmill is offline
Reply With Quote
Old 04-06-14, 08:43 PM
  #17
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,681
Thanks: 0
Thanked 13 Times in 13 Posts
I'll be getting one once I have saved enough quarters!

Jacob, I recall you had your dp fabbed locally, is there a reason you didn't use turblowns dp? Im assuming it wasn't available yet...
silverTRD is offline
Reply With Quote
Old 04-06-14, 09:03 PM
  #18
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Thanks: 0
Thanked 0 Times in 0 Posts
TRD, that's correct. i was also helping elliot, doing some testing to make sure the IWG was capable of handling low boost on a ported REW while they were finishing up the jigs for selling the turbo kit as a whole.

also, yes, i have a very good fab guy around here (an old friend of mine) Coffey Fabrication and Race Prep, so he made the downpipe for me, and he let me make my own hard lines and do other work at his shop to get the turbo setup complete and ready for the dyno.
jacobcartmill is offline
Reply With Quote
Old 04-07-14, 09:02 AM
  #19
Senior Member
10 Year Member
iTrader: (6)

drftinmx6's Avatar

Join Date: Mar 2004
Location: Columbia, SC
Posts: 523
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by dabigesii View Post
I remember when these turbos first came out. They were backordered for so long and decided to cancel my order and switch over to precision 6766. The itch is coming back and I'm really curious as to how the 9180 performs.
you're better off with your precision probably, there's a video on youtube comparing the the 62mm BB preicsion vs the 62mm borg warner EFR, the precision made better overall power and only spooled 700 rpms slower.
drftinmx6 is offline
Reply With Quote
Old 04-07-14, 10:15 AM
  #20
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,169
Thanked 39 Times in 37 Posts
Originally Posted by drftinmx6 View Post
you're better off with your precision probably, there's a video on youtube comparing the the 62mm BB preicsion vs the 62mm borg warner EFR, the precision made better overall power and only spooled 700 rpms slower.
Im guessing you are talking about the Supra comparison from a couple years back? Though that was the case with the 2JZ it hasnt been the case at all with the rotary in the few dynos we have seen. There are several dynos out there of guys running 62mm Precision billet setups and the spool and torque is no where close to that of the EFR. Jacob Cartmill's build thread is direct proof, he went from the 62/62 Precision to the 62mm EFR and testing them on the same engine at same boost levels. Power was similar but response/torque down low was night and day different in favor of the EFR.
djseven is offline
Reply With Quote
Old 04-07-14, 11:34 AM
  #21
Senior Member
10 Year Member
iTrader: (6)

drftinmx6's Avatar

Join Date: Mar 2004
Location: Columbia, SC
Posts: 523
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by djseven View Post
Im guessing you are talking about the Supra comparison from a couple years back? Though that was the case with the 2JZ it hasnt been the case at all with the rotary in the few dynos we have seen. There are several dynos out there of guys running 62mm Precision billet setups and the spool and torque is no where close to that of the EFR. Jacob Cartmill's build thread is direct proof, he went from the 62/62 Precision to the 62mm EFR and testing them on the same engine at same boost levels. Power was similar but response/torque down low was night and day different in favor of the EFR.
that may be true in the moderate boost levels, but what about in the higher boost levels ( 30+ psi)?
drftinmx6 is offline
Reply With Quote
Old 04-07-14, 11:58 AM
  #22
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,169
Thanked 39 Times in 37 Posts
Originally Posted by drftinmx6 View Post
that may be true in the moderate boost levels, but what about in the higher boost levels ( 30+ psi)?
Not sure how many rotary guys will be running a 62mm at 30+ psi. This application will be for autox, street and track guys for the most part. Drag guys dont care a whole lot about torque at 3k rpms.
djseven is offline
Reply With Quote
Old 04-07-14, 01:12 PM
  #23
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,681
Thanks: 0
Thanked 13 Times in 13 Posts
Plus, Jacobs car is smashing on the precision torque wise at only 12 psi. Not to mention his previous setup was built for spool in mind I believe, I say this because he was using a 6262 not the more common 6266 and he was using the .84 turbine housing to help aid in the spool department.

I have no plans to boost to 30psi right now and the EFR is still the clear choice IMO of course.
silverTRD is offline
Reply With Quote
Old 04-27-14, 09:42 AM
  #24
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,824
Thanked 13 Times in 13 Posts
We hoped on another dyno again yesterday with Shawn's car. Voltage was mainly fixed, but the fuel pump still ran dry past 5500rpms( down to 40psi , with a base fuel pressure of 50psi and 25 to 27psi).

With the voltage from moved from 11.5 to 12.7 to 13.1 volts( still not not perfect, but better) it made 516rwhp and 426rwtq by 5500rpms @ 25psi. The fuel pump's second stage is now going to be turned on and a bigger alternator put on. I have a feeling its going to be near 600rwhp all said and done. I intend to turn up the boost even more too.

I finally got to ride in the car, and this is by far the best 2 rotor turbo system I have ever experienced. The boost response and dyno charts don't lie, this car is an absolute animal, and feels like a highly modified stock twin R35 GTR.

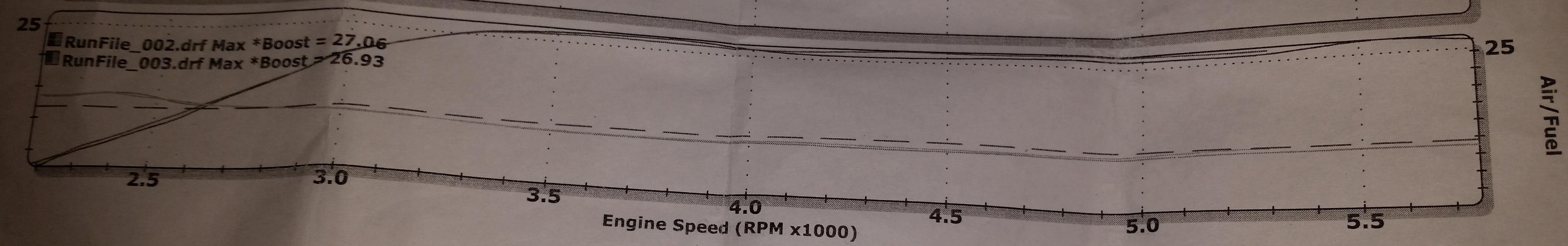

Attached Thumbnails BorgWarner EFR 8374 IWG Dyno Results-adaptronicafrtune.jpg
__________________
Rotary Performance Parts
Turblown is offline
Reply With Quote
Old 04-27-14, 09:12 PM
  #25
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,606
Thanks: 0
Thanked 0 Times in 0 Posts
Where did the power increase come from? Having more fuel pump won't give you more power?
rx72c is offline
Reply With Quote

Thread Tools
Search this Thread
Quick Reply: BorgWarner EFR 8374 IWG Dyno Results


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
