Single Turbo FAQ Single turbo Archive

The begining of my exh mani





Old 08-26-02, 05:35 PM
  #1
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
The begining of my exh mani

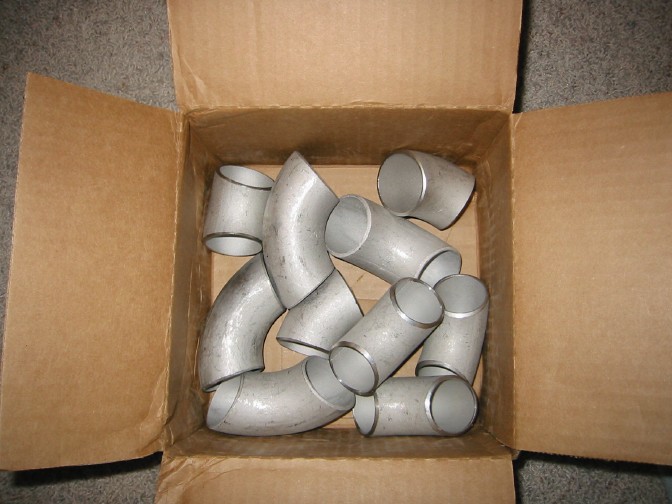

Just got my box of SS 304L "weld els" in the mail today. Now I just need to pick up a 15x6" plate of steel to make the flanges and a few feet of 1.5" and 1.25" sch 10 pipe and I'm ready to start cutting, grinding and welding my way to a new manifold Just one question, what thickness of plate should I get? People have told me 3/8" and 1/2", I know the 1/2 would get the job done but is it overkill? Will 3/8" warp??
setzep is offline
Old 08-26-02, 05:40 PM
  #2
Driven a turbo FB lately?
iTrader: (1)

MIKE-P-28's Avatar

Join Date: Oct 2001
Location: Fort Branch, Indiana
Posts: 6,444
Likes: 0
Received 0 Likes on 0 Posts
1/2 inch, only way to go, makes everything a lot more solid... Actually the flanges on my RB downpipe i think are 1/2 inch plate
MIKE-P-28 is offline
Old 08-26-02, 06:37 PM
  #3
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,679
Received 40 Likes on 37 Posts
overkill? what's that? if you can get it and you can weld it, why not?
peejay is offline
Old 08-26-02, 07:46 PM
  #4
Freedoms worth a buck o'5
10 Year Member

Maxthe7man's Avatar

Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like on 1 Post
I used 3/8 and its fine... Just remember to bolt the new flange regardless of thickness to an old n/a or stock turbo manifold when you weld the pipes onto the flange or you will warp the **** out of it, doesn't matter what thickness it is, same goes for the turbo flange., What are you gonna weld it with? Max
Maxthe7man is offline
Old 08-26-02, 08:41 PM
  #5
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Hey Max, good to see you chime in here Will do that with the flanges, good thing I have a few of both laying around. I decided to have my bud weld it for me. He's a certified welder, they let him weld on roller coasters so I guess he can weld my manifold He's going to TIG it, I guess he just got a new backpurge system at work that he'll be using.
setzep is offline
Old 08-26-02, 09:02 PM
  #6
Freedoms worth a buck o'5
10 Year Member

Maxthe7man's Avatar

Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like on 1 Post
Yeah, tig does a nice job, especially on the thinner stuff, I have stick welded thicker stainless as well, the backpurge is probably the most important part.. Hope it works out for you..Max
Maxthe7man is offline
Old 09-19-02, 07:55 PM
  #7
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts

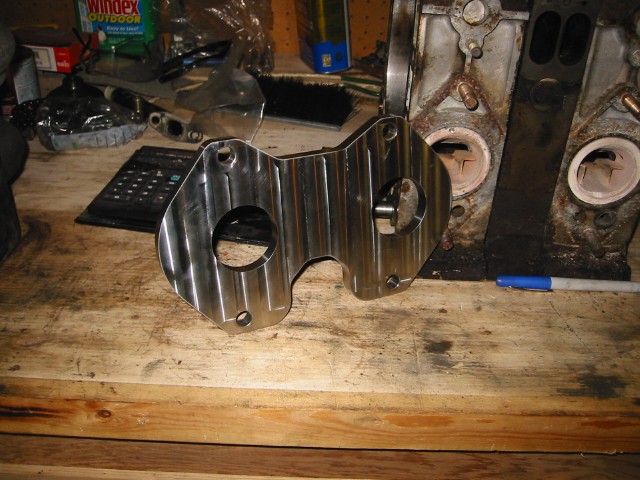

I got another thing to add to my box of parts Now I just need my bud to machine out my engine flange so i can get started with the dirty work.
setzep is offline
Old 09-19-02, 08:20 PM
  #8
Laying Down Rotary Law
10 Year Member

Join Date: Mar 2001
Location: central florida
Posts: 2,075
Likes: 0
Received 0 Likes on 0 Posts
Hey PM me plz with where you got the Weld els and That Flange I'm going to need to make one in the near future

Are you making a on-center type turbo manifold?
kabooski is offline
Old 09-19-02, 08:46 PM
  #9
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
I got the pipe from mcmaster.com and I went out and bought a piece of flat bar and had my buddy machine it out into a flange. I'm sure you could buy just the flanges if you wanted to somewhere but I wanted to make them out of SS. The flange is a tang/devided style, not sure if that is the same as a on-center.
setzep is offline
Old 09-19-02, 09:08 PM
  #10
Senior Member
10 Year Member

Join Date: Jul 2001
Location: Kalifornia
Posts: 360
Likes: 0
Received 0 Likes on 0 Posts
Purging it is mandatary or else your weld will not sit flat on the inside. This will also help to alleviate porosity. The pieces are small enough so it will not be hard to clean up the inside welds. Stainless is a bitch to grind. Have your friend gap the welds to what ever he thinks is necessary for a full pen and support it at 120 degree intervals so it wont suck closed on him. Use the " plate and machine it when you are finished. Sch 10 or 40 304 SS. should hold up to the heat from a rotary just fine 99% of the time. Weld an exhaust temp. sensor into the manifold Not too close to the exhaust port though. I have read of cases where the temps, exceeded 2400 degrees F. in some race applications. Supposedly the sensors melt at around 2000F.

I used Sch 10 for my wastegate plumbing back to my down pipe on a APEX'i RX6 kit. The material that APEX'i used for the manifold was SCH 40 I think.

Good luck on your project.
80-CU.IN.T is offline
Old 10-02-02, 08:21 PM
  #11
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Well I got another item to add to my collection.

setzep is offline
Old 10-02-02, 08:26 PM
  #12
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
oops, DP

Last edited by setzep; 10-02-02 at 08:38 PM.
setzep is offline
Old 10-02-02, 08:33 PM
  #13
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts

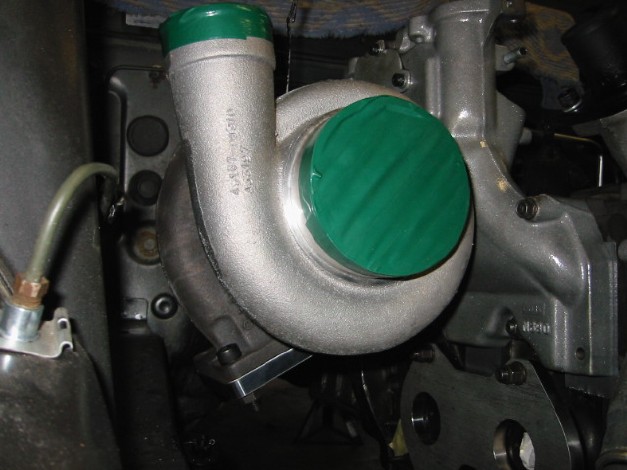

Might as well throw in a couple turbo pics.


Last edited by setzep; 10-02-02 at 08:36 PM.
setzep is offline
Old 10-02-02, 08:41 PM
  #14
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts

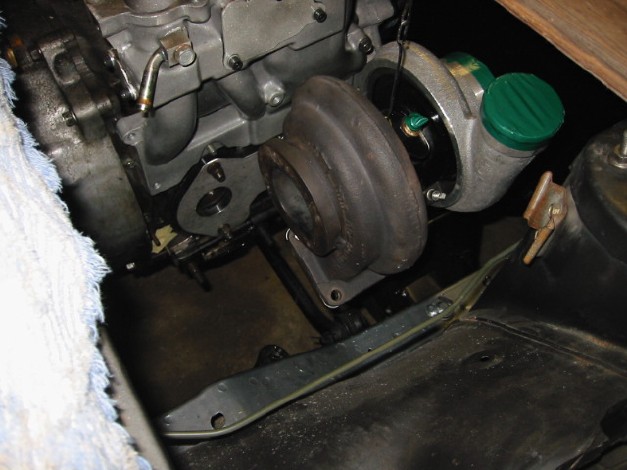

What do you guys think? This look good for turbo placement?

setzep is offline
Old 10-02-02, 08:49 PM
  #15
1993 RX7 R1
10 Year Member

Mr. Stock's Avatar

Join Date: Jul 2001
Location: SoCal
Posts: 1,266
Likes: 0
Received 0 Likes on 0 Posts
Nice pic.

I like your avatar and the caption.
Mr. Stock is offline
Old 10-02-02, 08:59 PM
  #16
Freedoms worth a buck o'5
10 Year Member

Maxthe7man's Avatar

Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like on 1 Post
Hey Setzep, nice hardware....
Just remember to leave enough room above the compressor outlet to get a 90 on it so it points towards the front of the car without hitting the hood.. or you can do like me and clock the turbo so the outlet points down and then 90, either way, but just make sure you can get a 90 on it..
The best place I found is to center the oil drain on the turbo with the drain back hole on the front cover, it makes that bit a straightforward plumbing job..Max
Maxthe7man is offline
Old 10-02-02, 09:18 PM
  #17
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Mr. Stock- Thanks, "take this off ******" is exactly what he looked like he was thinking after I put it on him. He had to wear it for a week after he had surgury.

Maxthe7man- thanks also. I took in account the 90 I will have to put in there when "hanging" my turbo. I didn't even think of clocking it to point downward though, I'll have to take a look at that.
I wish I could place the turbo farther forward but the "short" engine bay of a FB kind of limits how far I can place the turbo forward. I had a manifold that did just that and the inlet of my compressor was 4.5" away from the core of my radiator so I ditched it. the way I have it now I'm 11 inches away from the radiator core, plenty of room for a filter and ducting also looks like I'll have room for a down pipe.
setzep is offline
Old 10-03-02, 03:33 AM
  #18
Say NO to aux. bridging!
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
Are you using a 3rd gen engine with 2nd gen n/a rotor housings? Please say no! Where did you buy the SS flat bar?
rotarygod is offline
Old 10-03-02, 03:10 PM
  #19
Infamous...Butcher...
10 Year Member

BicuspiD's Avatar

Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes on 0 Posts
Why 304?

Everytime I see people making headers, they seem to use 304 grade stainless. 321 grade is so much better suited for exhaust manifold material, and the price difference is not severe at all. (not like going up to inconel or anything). Anyways, just curious. I have only used 321 in all the manifolding and downpipes and never worry about cracking or heat expansion or anything - Especially in a rotary engine, with its elevated exhaust temperatures.


304 Stainless Specifications

321 Stainless Specifications

the 1/2inch flange is the way to go as well. Less chance of warpage, nice solid base to weld on.I like to overbuild. Do it just once and its truly cheaper...
BicuspiD is offline
Old 10-03-02, 04:31 PM
  #20
10 Year Member

rx7passion's Avatar

Join Date: Feb 2001
Location: Phoenix, Az
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by rotarygod
Are you using a 3rd gen engine with 2nd gen n/a rotor housings? Please say no! Where did you buy the SS flat bar?
if thats how a cosmo motor is built then yeah thats what he has...
rx7passion is offline
Old 10-03-02, 07:02 PM
  #21
Death to Infinite Scroll

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,679
Received 40 Likes on 37 Posts
rotarygod is confusing a junk partially disassembled engine on the workbench with a 13B-RE sitting in the enginew bay
peejay is offline
Old 10-03-02, 08:16 PM
  #22
Say NO to aux. bridging!
iTrader: (1)

rotarygod's Avatar

Join Date: Jul 2002
Location: Houston
Posts: 4,176
Likes: 0
Received 5 Likes on 5 Posts
Oh thank god!
rotarygod is offline
Old 10-03-02, 08:44 PM
  #23
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by rotarygod
Are you using a 3rd gen engine with 2nd gen n/a rotor housings? Please say no! Where did you buy the SS flat bar?
I got the plate from a local steel supplier. Cost me $30 for more than enough material to make both flanges and another $15 for a 3' piece of the 1.5" sch 10 pipe.
setzep is offline
Old 10-03-02, 08:56 PM
  #24
Rotary Freak
10 Year Member
Thread Starter

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Re: Why 304?

Originally posted by BicuspiD
Everytime I see people making headers, they seem to use 304 grade stainless. 321 grade is so much better suited for exhaust manifold material, and the price difference is not severe at all. (not like going up to inconel or anything). Anyways, just curious. I have only used 321 in all the manifolding and downpipes and never worry about cracking or heat expansion or anything - Especially in a rotary engine, with its elevated exhaust temperatures.


304 Stainless Specifications

321 Stainless Specifications

the 1/2inch flange is the way to go as well. Less chance of warpage, nice solid base to weld on.I like to overbuild. Do it just once and its truly cheaper...
I went with the 304 because it's cheep (sorta), easy to find and was told it will work good for what I'm doing. Maybe my next one will be 321, know of a good place to buy bends like I posted above?
setzep is offline
Old 10-03-02, 09:14 PM
  #25
Infamous...Butcher...
10 Year Member

BicuspiD's Avatar

Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes on 0 Posts
Burns Stainless

I use these guys . they are local so I can go down there and pick it up, they stock a ton of stuff (no pun intended), and can get everything.. not the cheapest, but my choice.
BicuspiD is offline
