Instead of adding to the other "engine finally went" thread I decided to start a fresh one for those who care.

New motor:

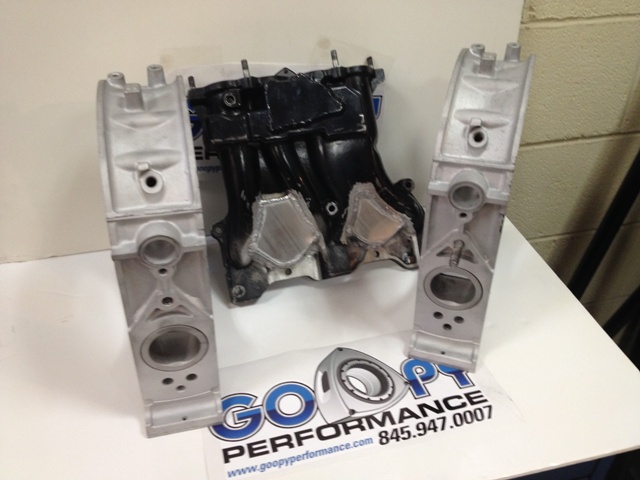

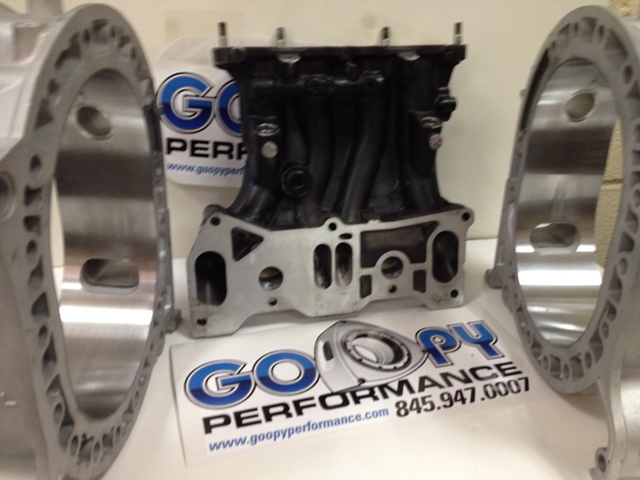

Med street port and semi peripheral by Goopy!
Balanced and race clearance by Balancing WIZ
New RX8 e shaft
ALS seals

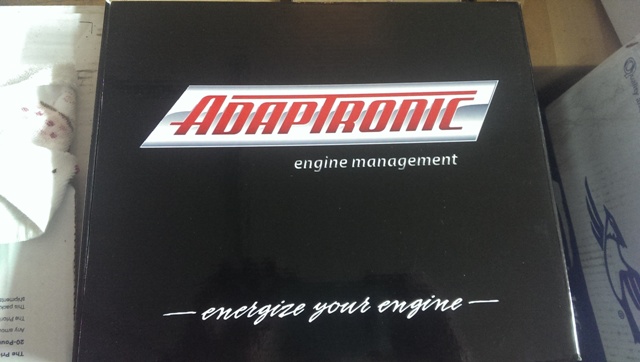

Adaptronic ecu from Turblown
custom harness from C. Ludwig
Direct fire on AEM Coils
Turblown stock size studs and going to mix in 5 goopy oversized
Custom turbo manifold from Sean @ A-spec

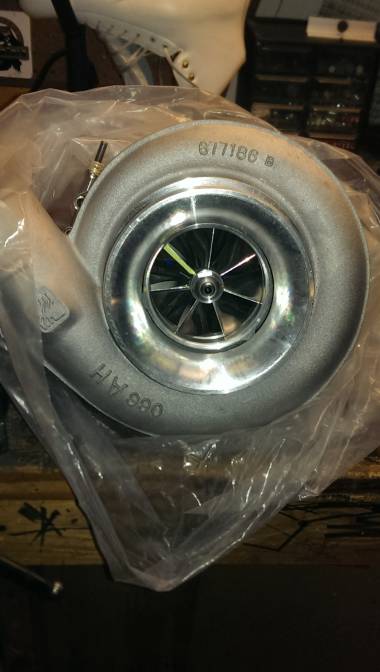

Borg Warner S482 billet turbo with race cover

I will update and add pics as I find time.



This bad boy is gonna make some power! Can't wait to see the car run!



Sick just sick can't wait to see more pics of the set up



Looking good!



What are you going to do for a trans?



[QUOTE=C. Ludwig;11696927]What are you going to do for a trans?[/QUOTE

Not a 100% yet. Still looking into a auto set up. Wouldnt mind trying to shift a 5.99 diving to and from track. I am still on oem mazda driveline. Maybe I will try and beat that oem dtiveline record before I swap to auto.



Sweet Jesus! Ain't nobody got no time for shifting gears!


Looking good Mike!


.

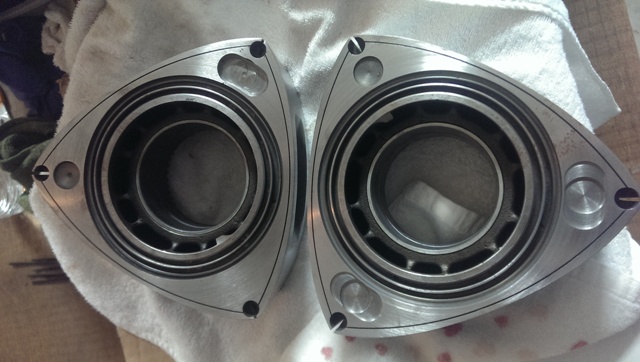

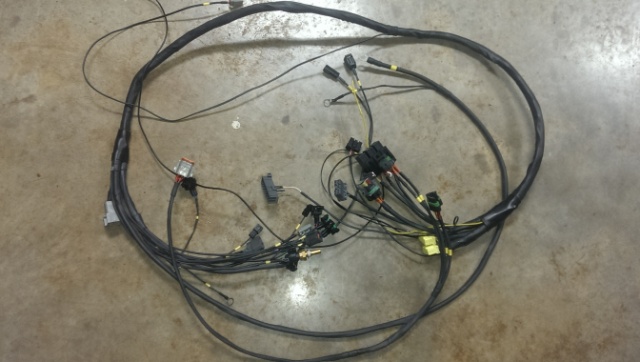

Here is a pic of the Balancing WIZ work and Chris Ludwig's harness he made. Really nice work!



Looking good!



Looking good!



Let's see who hits that elusive 8 sec pass first..... Although we're over a decade behind .... LOL



Not if it's a street car! Right on time



Damn, you guys are stepping up yall game!

Best of luck with the setup.



Lots of nice parts but have to ask, why did you go with the "smaller" turbo?



compared to what? the T6 version? Its a step up in both wheels from my last set up. So well see. The shop I got it from is local and made me a good deal. Compared what it was going to cost me to upgrade the rear wheel on my old turbo it made more sense to just buy a new unit. I am changing so much and I mainly run 1/8th mile events. Well see what it makes.



Awesome! looks good sk8world keep up the Hard work!



Thanks man. Wondered we're you been. What's new in your car?



Ok. I gave in. Sent turbo back for t6 96/88 swap. Just have to decide if I want to run a 1.3 or 1.5 housing



nothing much just collecting dust really. It seems that even when she sits in the garage somehow when I go to use it **** still needs fixing lol it never ends. I'm picking up welding and using my girlfriend's 13B drag truck as the guinea pig so that's been keeping me busy. I'm real excited to see your car back up and running tho so keep us updated!



Looking good!



1.32 housing on the 96mm wheel seems like plenty, I couldn't see any reason to go larger? It's not just the number, but a ratio. T6 w/ 96mm exhaust wheel will flow tons more than the T4 wheels regardless of the A/R.

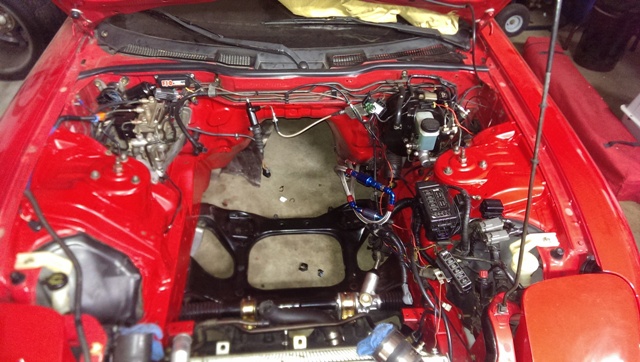

got the engine bay cleaned up and put in a new manual rack I have had for years collecting dust.

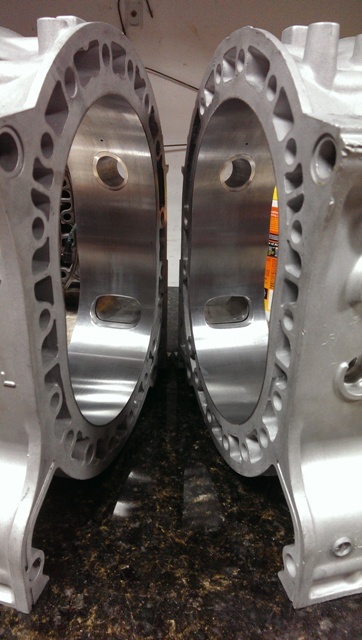

Also finished the exhaust ports.

Next inline:

Drill motor for studs

Change bearings



Looking good!



Fuel pump
Fuelab 1300hp one looks interesting. Max pressure 125psi.

One of the local guy is using the 1000hp one and is very happy with it. Around 400$.



Thanks man. I was set to go e85 but after taking with ray last week I may just stay q16. I still need more pump. We ran out last time on twin supra s. I may try the1000hp one. Been thinking about doing a small cell also instead of dumping my stock tank. Reclaiming q16 is like paning for gold....
