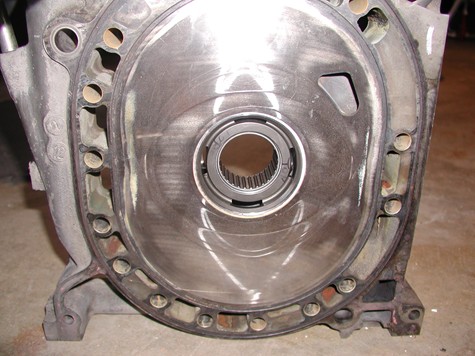

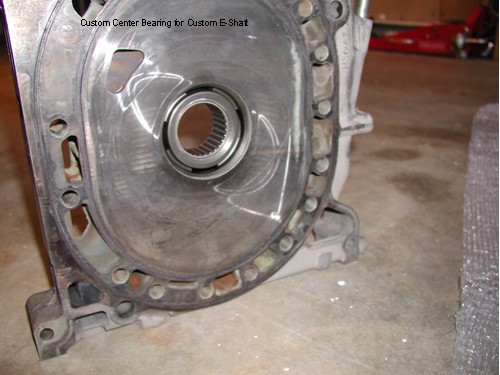

Hey guys. My car is coming along nicely. Ray Wilson of PFSupercars will be porting my motor and the assembly. He will be able to clearance the engine very tight due to how rock solid the engine will be from the Guru Motorports oversized (1/2" engine stud kit) and Guru Motorsports E-shaft. Pics are the engine stud kit (note how much larger they are compared to stock). This will all but eliminate flex, which can happen at very high boost. Major Props to Ross Machine. Tom Ross (http://www.rossmachineracing.com/)did all the machine work which was very involved, that included the drilling and tapping all 18 studs as well as the center bearing for the custom E-shaft. All this along with my new PPG dog box will allow me to put the power to the ground. Hope to be pounding asphalt very soon!
06-29-06, 09:13 PM
#2
Living life 9 seconds at a time
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: Abingdon, Md
Posts: 6,541
Likes: 0
Received 0 Likes
on
0 Posts
A couple more. Its been awhile, but now everything is coming togeather very nice. Ray has done a great job with everything from fabrication, porting, to the tuning.
06-30-06, 05:41 AM
#5
Living life 9 seconds at a time
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: Abingdon, Md
Posts: 6,541
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Mahjik
Nice Ernie. I've got the stock stud replacement from them since I wasn't building quite the monster you are. Studs not quite as big, but still bigger than stock.
06-30-06, 07:55 AM
#6
Lives on the Forum
Hmmm...even though someone else called them "bolts", that stud kit wasn't what caught my attention...
I was looking at the pic of the center plate.
Hmmm...some secret porting?
No, ports look mild or even stock...
HOLY SARDINES BATMAN! It's a fricken' center bearing retrofit!
Checked the pic of the e-shaft - Yep, e-shaft machined to accept the needle bearing center.
Did Guru give you a claim of how high you can spin the motor???
-Ted
I was looking at the pic of the center plate.
Hmmm...some secret porting?
No, ports look mild or even stock...
HOLY SARDINES BATMAN! It's a fricken' center bearing retrofit!
Checked the pic of the e-shaft - Yep, e-shaft machined to accept the needle bearing center.
Did Guru give you a claim of how high you can spin the motor???
-Ted
06-30-06, 08:41 AM
#7
Originally Posted by ErnieT
Hey guys. My car is coming along nicely. Ray Wilson of PFSupercars will be porting my motor and the assembly. He will be able to clearance the engine very tight due to how rock solid the engine will be from the Guru Motorports oversized (1/2" engine stud kit) and Guru Motorsports E-shaft. Pics are the engine stud kit (note how much larger they are compared to stock). This will all but eliminate flex, which can happen at very high boost. Major Props to Ross Machine. Tom Ross (http://www.rossmachineracing.com/)did all the machine work which was very involved, that included the drilling and tapping all 18 studs as well as the center bearing for the custom E-shaft. All this along with my new PPG dog box will allow me to put the power to the ground. Hope to be pounding asphalt very soon!
Soooo sexy, good luck with the build up!
