PvillKnight7

iTrader: (16)

I rebuilt an s4 13bt but over ported the endplates. I'm having trouble find a 4 port block for parts...Can I use the 6 port irons as replacements? Just the ends..the primaries are good... I already have a lower turbo intake mani modified for a 6 port block and I run an E6k so turning won't be a problem. Any modifications/problems i'd run into?

PvillKnight7

iTrader: (16)

i'd have to either re-tap the oil feed line hole on the front iron or use the oil temp sender unit hole on the rear iron to run the oil feed line.

anything else? i dont have any spares to look at right now

diabolical1

iTrader: (3)

they can be used. i had a friend that did it and the car was an animal. however, he cheaped out on tuning and fucked the motor up - secondary port timing is different. i'd say that you probably should wait until you can get some genuine T2 endplates to use.

SureShot

Yes - and you won't even have to port them much, just a little radius on the closing edge.

But - It's a racing secret kind of like beveled rotors.

TonyD89

iTrader: (10)

But I thought the problem with this is the LIM. The stock ones don't work.

I'm sorry if it has already been done (send links please!), but i was wondering if a person couldn't plug the 5th and 6th ports with, say, a machined aluminium plug. Then when porting machine between the ports to make one big long single port. But only intaking from the 3rd and 4th ports.

Know what I mean?

Couldn't you then use the stock 4-port LIM?

B6T

iTrader: (2)

^ That would probably work, but how effective could the porting be if it still have to breathe through the single port on the end housing?

And this is sort of a newbie question, but why aren't there more turbo 6-ports out there? Does it just not work well?

TonyD89

iTrader: (10)

To extend port timing. One wouldn't have to use all of the now completely plugged port. I thought it might, in the right situation, offer improvements from timing and duration rather than volumn.

Tom93R1

iTrader: (2)

You could do this!
http://www.yawpower.com/dec2004.html

TonyD89

iTrader: (10)

Wow! That 's wild!. They look like they are still using 5th and 6th through a custom manifold but it is certainly impressive. Bet the power is waaaayyyyy up there!

PvillKnight7

iTrader: (16)

thx for the link, i've seen it before but had forgotten about it

PvillKnight7

iTrader: (16)

here's a pic of what i did- filled the LIM and ported it to fit the 6 port irons

pall yaw's does look very flowable doesn't it

i'll try to do the same

NOPR

the reason most people dont turbo 6-ports i because the irons crack as soon as you start making serious horsepower.

RXBeetle

Where are the 6 port irons weaker? I am building a 6 port turbo motor but I won't be pushing that much power, just curious. I have already seen a few small cracks in my side housings around the egr passages near the bottom (heat not stress related). I'll get some pics.

PvillKnight7

iTrader: (16)

how much is 'serious power'? i am shooting for 350 at the wheels

NOPR

350 at the wheels will most likely crack the rear one right at the rear dowel pin, just like it does to a lot of the S4 t2 engines. its a huge weak spot and mazda beefed it up more and more with each engine (FD and RE have some super thick casting there). j-rat just made a thread about cracking his rear iron, and karack also busted his. both had s4 tII engine. the 6 port iron's reinforcement is the most pathetic of them all. if it were me, and i planned on keeping the engine for a while, and making big power i wouldn't do it.

PvillKnight7

iTrader: (16)

thanks for the info- i didn't know it was such a trouble spot

i read j-rat's thread, that really blows

kabooski posted a good pic of the spot

i had the option of buying good used 4 port irons from a guy but now i think i will pull a s5 6 port block i know of and try to use those irons.

i'll make a post when i complete it...prob won't be until next summer =P i just started my senior year of college

microvio

what about the renesis irons does anyone think those can hold 350hp on boost

Henrik

What did you fill the voids with?

-Henrik

PvillKnight7

iTrader: (16)

JB weld

renns

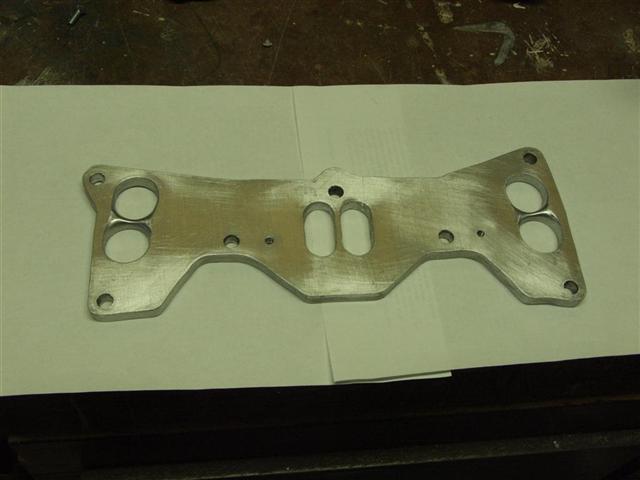

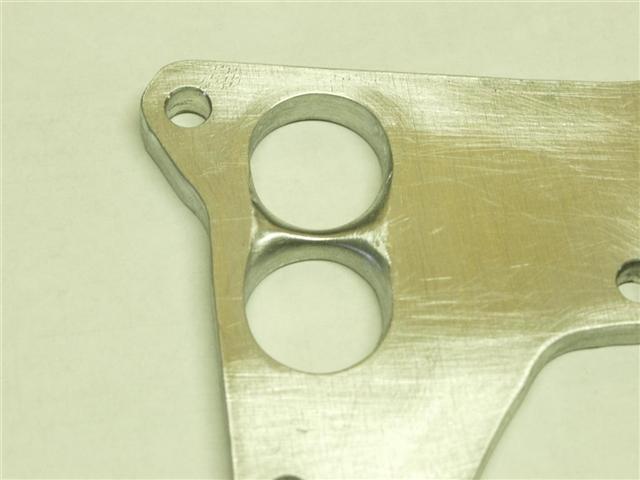

To mate the TII lower to 6-port irons I fabricated an adapter plate. Using an adapter plate allows for blending the transition where the runner splits from single to double ports, and also allows port matching to both the manifold and iron.
