Show Pics of your cages please!
#277
Senior Member
Thread Starter
Just wanted to say thanks for posing all the pics. I hope this thread helps some of you in making a cage or atleast know what to look for when you have a cage built.

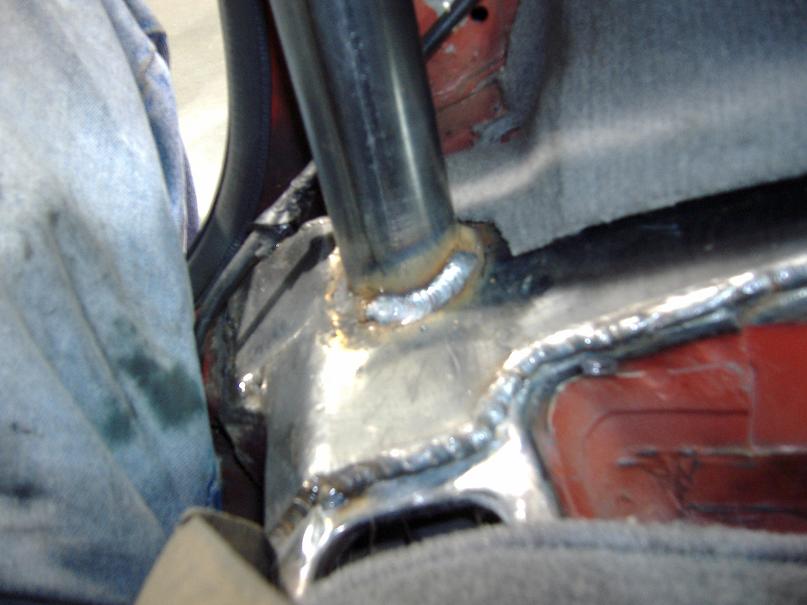

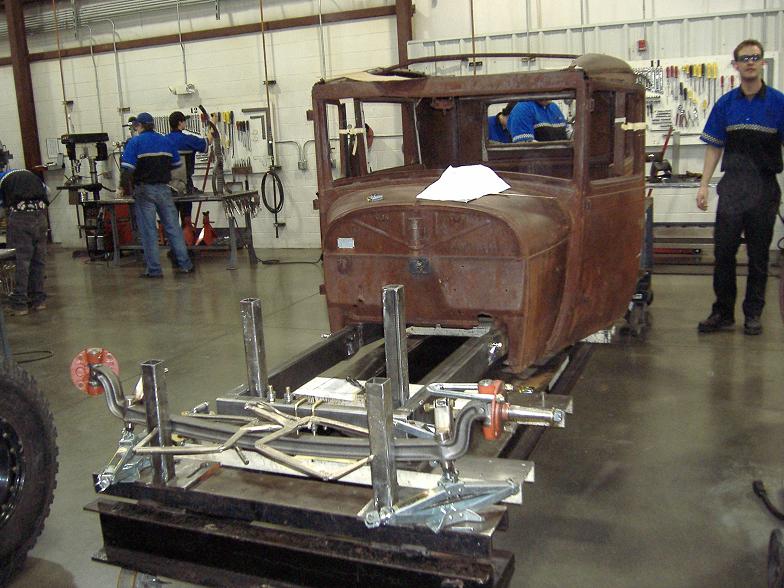

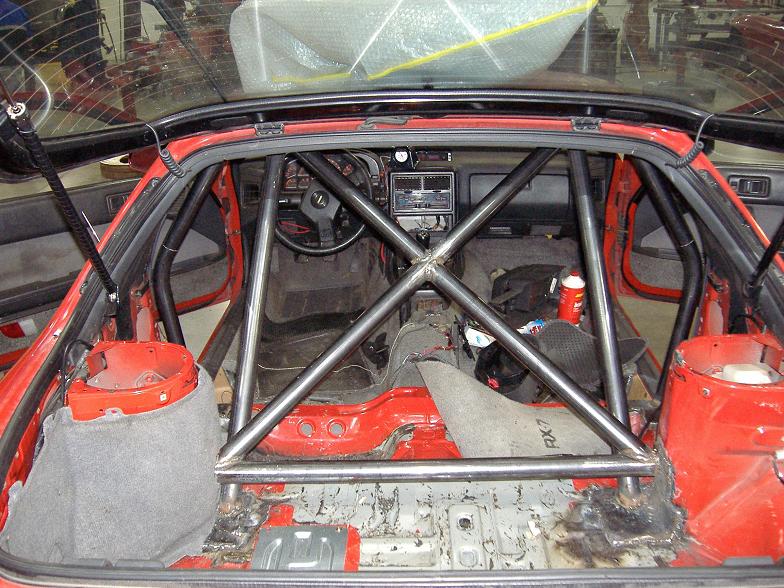

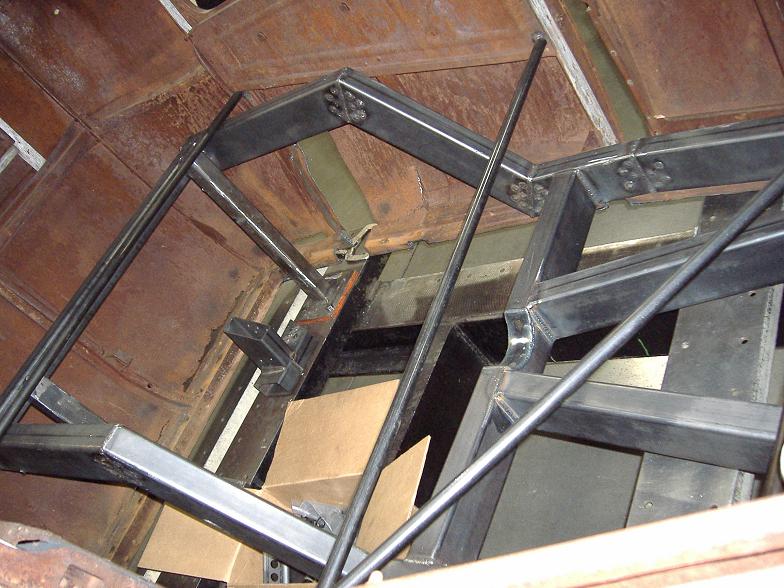

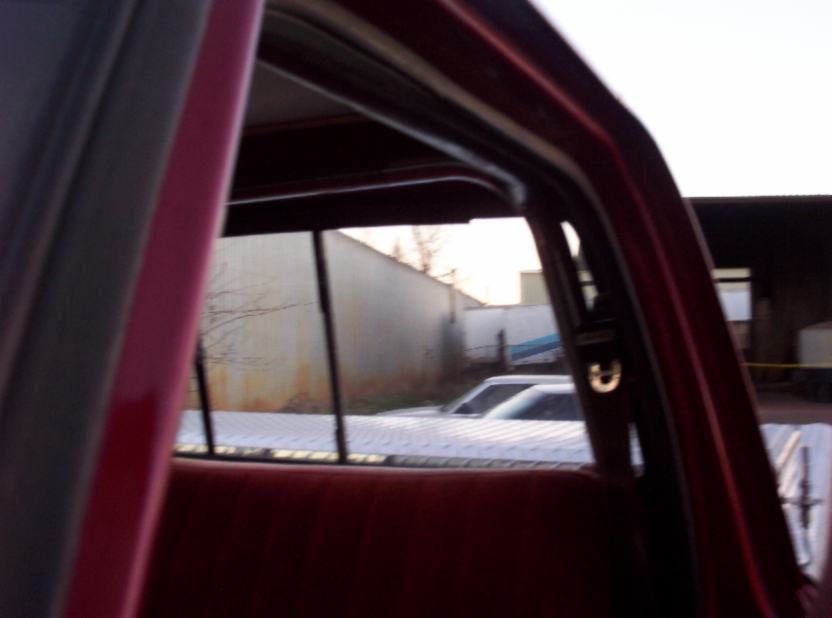

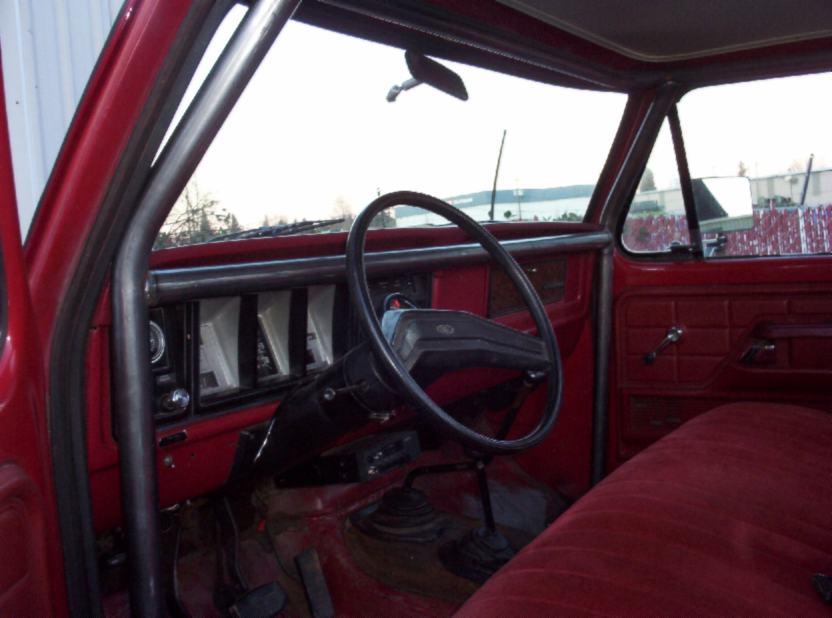

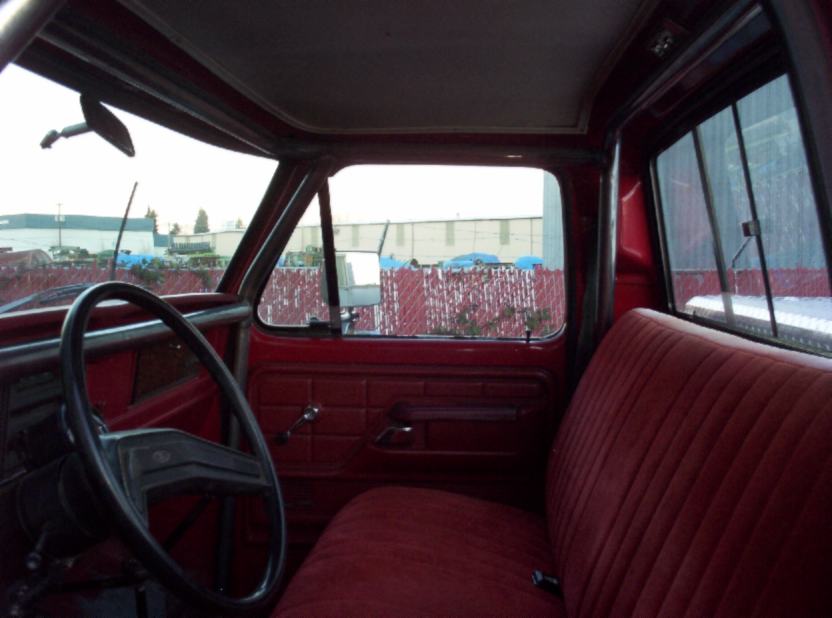

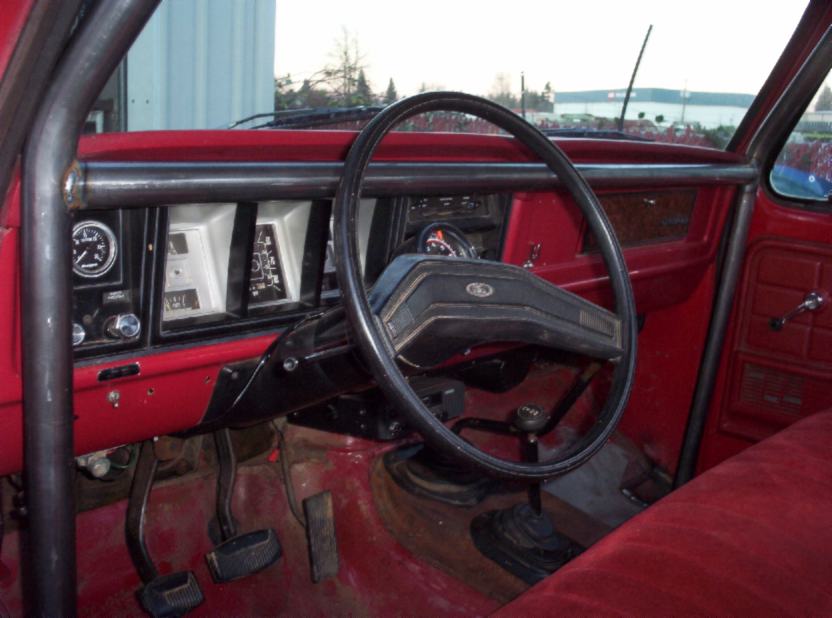

Did a 79 F150 today, just interior 4 pt. Took about 5.5 hours. Very simple, the customer already had the interior stripped and pretty clean.
Took a few shots.
Did a 79 F150 today, just interior 4 pt. Took about 5.5 hours. Very simple, the customer already had the interior stripped and pretty clean.
Took a few shots.
#278
Pink Taco Expert
iTrader: (1)
Join Date: Jun 2005
Location: Napa, Ca
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts

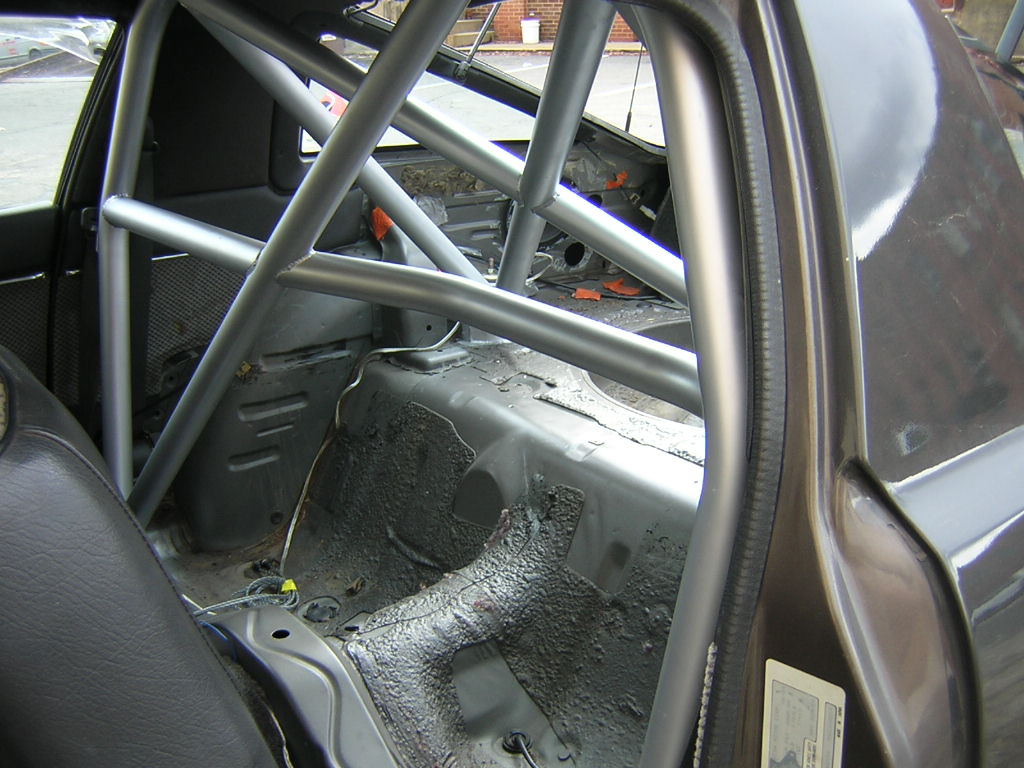

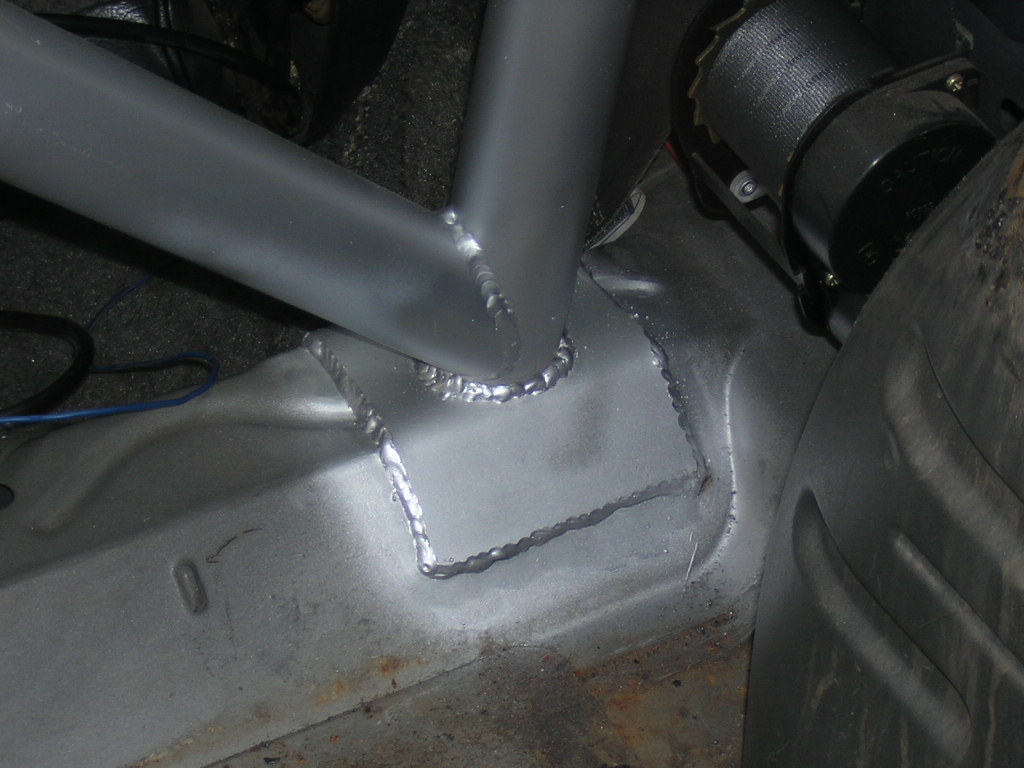

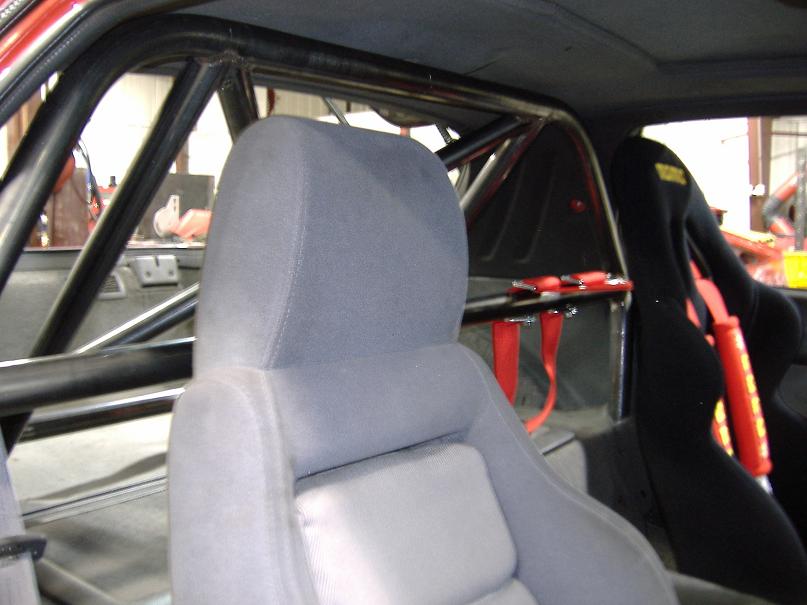

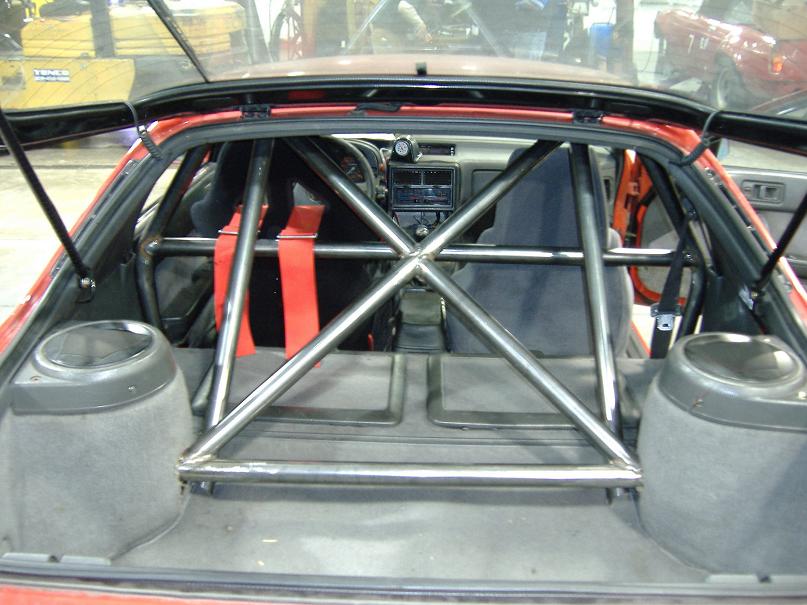

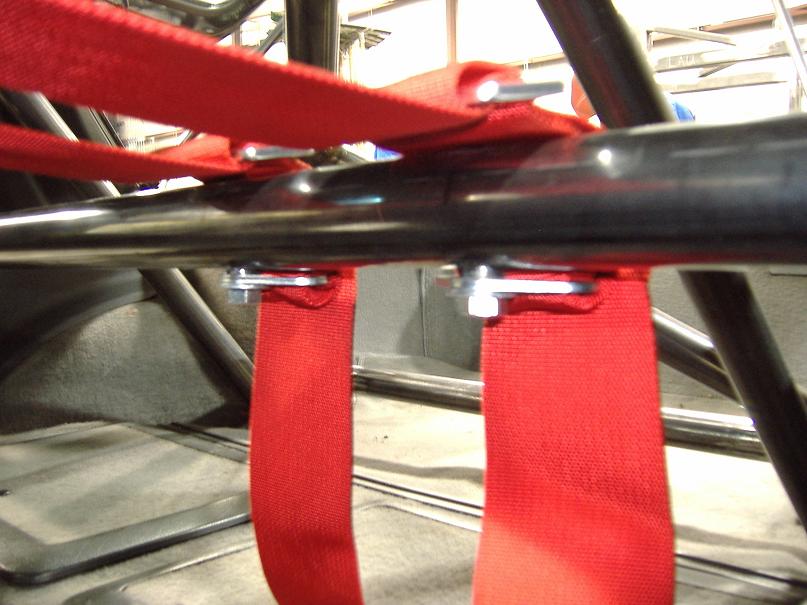

ok i was able to snap some photos today of the final product. The ENTIRE interior was put back in with very little modification. sorry the pictures arent good quality. i really wis my interior looked like the last picture.
#280
Senior Member
Thread Starter
Mainly to keep the driver safe in an accident. Also serves as a Chassis stiffener and makes it easier to dial in the suspension. I guess it looks cool and is difficult to paint. Makes a nice head basher in a street car if the hoop is to close to the head!
#281
Senior Member
Thread Starter

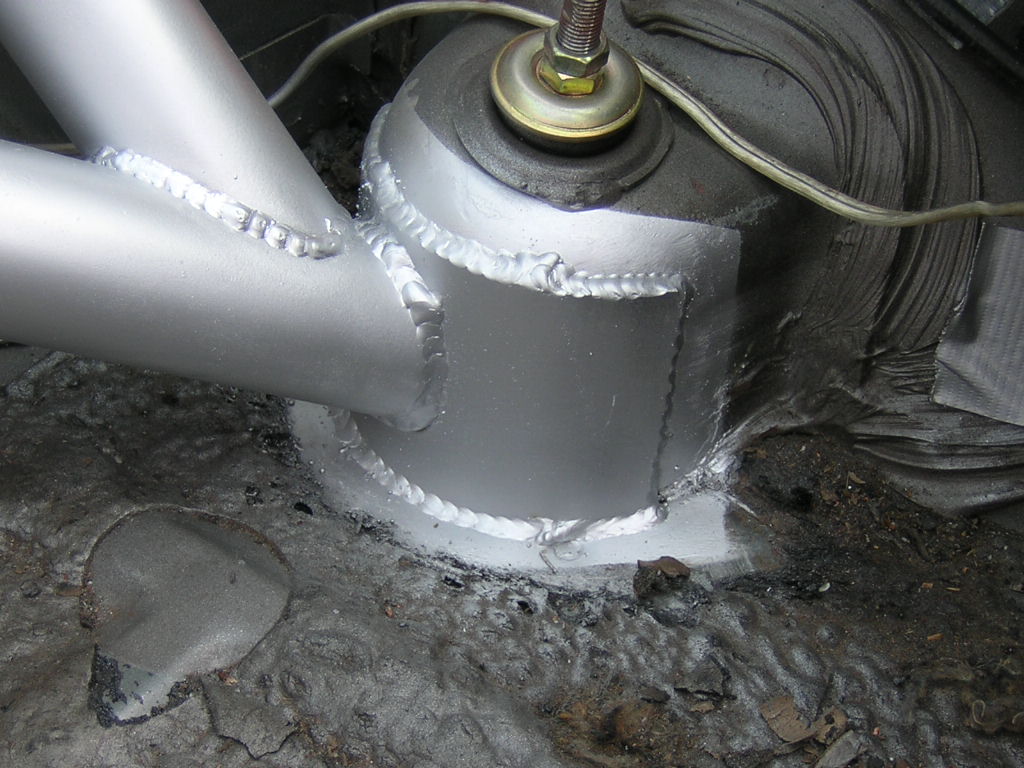

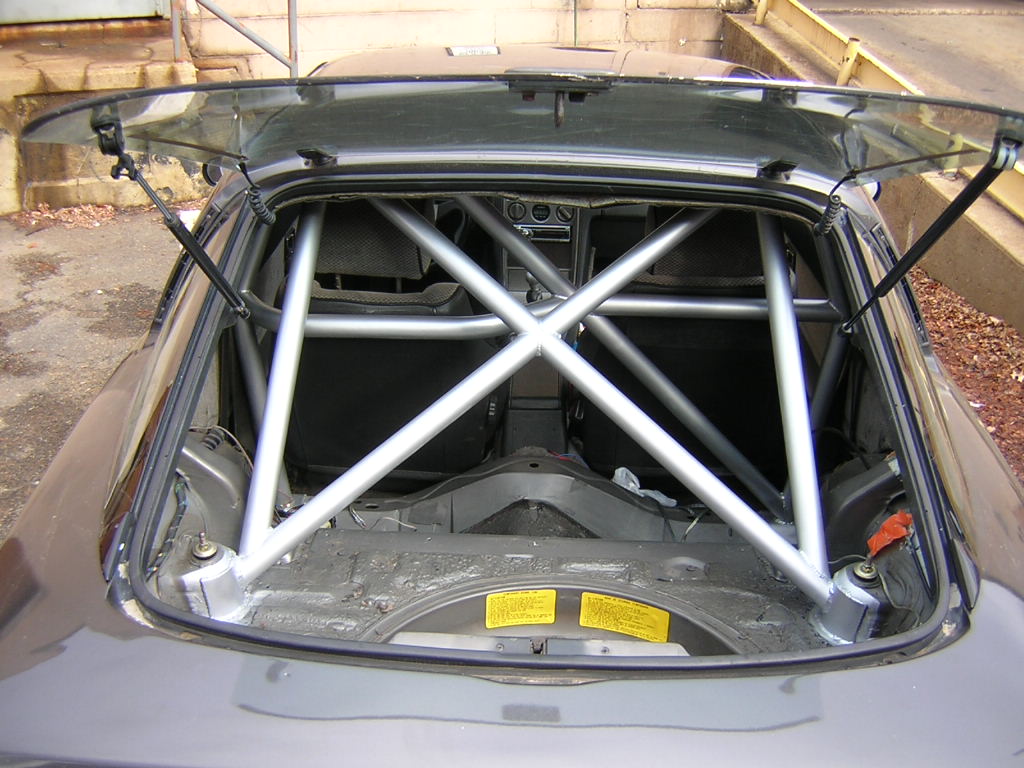

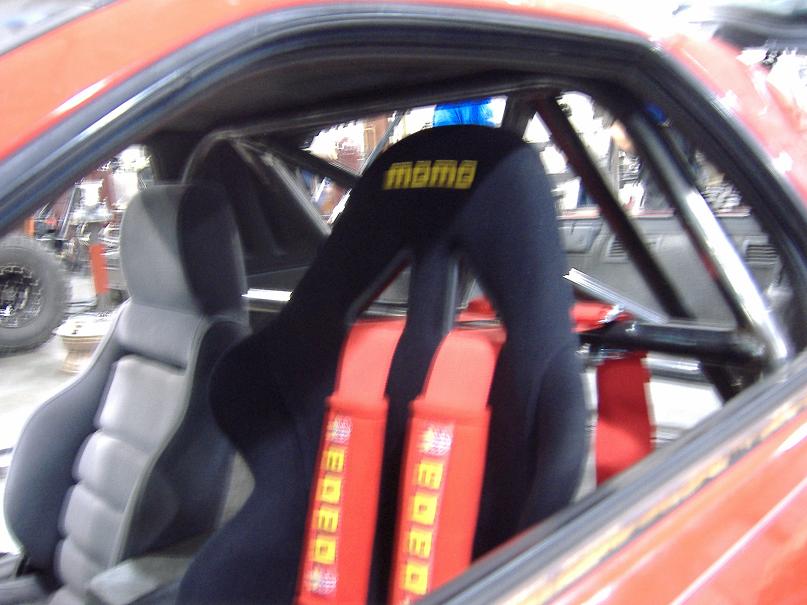

Finished a 94 Supra 5 point roll bar with a swing out driver's door Saturday. Cars are crowed like 3rd gens except the roofs come off.
Working within the confines of not cutting any plastic or carpet restrictions, I believe it came out pretty good. Customer was very happy and it meets all of the technical needs of NHRA. Next it is paint and padding.
I forgot to get a picture of the door bar installed, after car is painted I will post.
Working within the confines of not cutting any plastic or carpet restrictions, I believe it came out pretty good. Customer was very happy and it meets all of the technical needs of NHRA. Next it is paint and padding.
I forgot to get a picture of the door bar installed, after car is painted I will post.
#284
Senior Member
Thread Starter

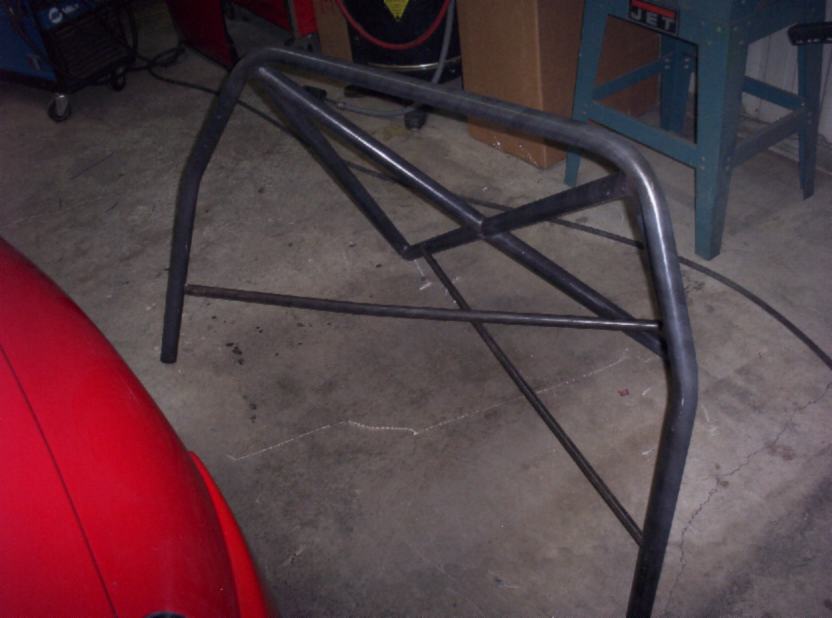

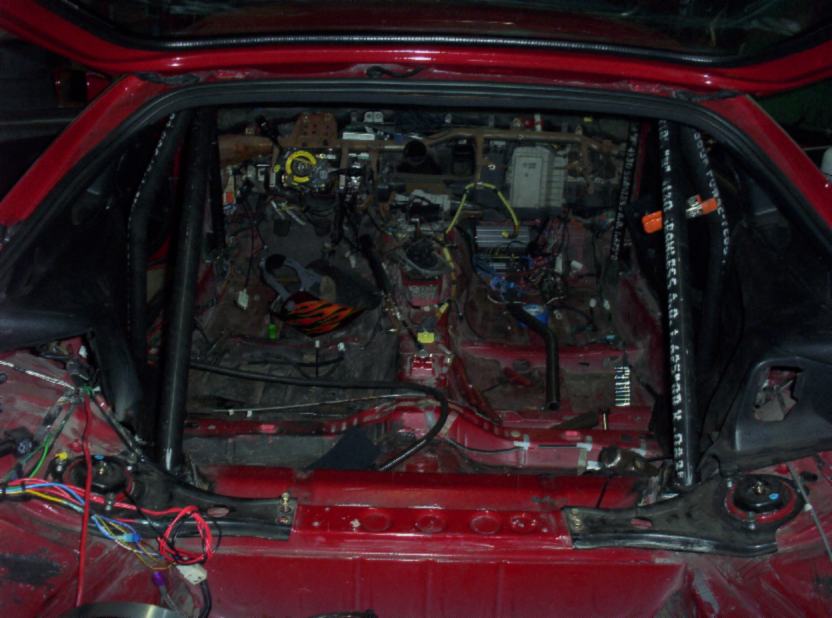

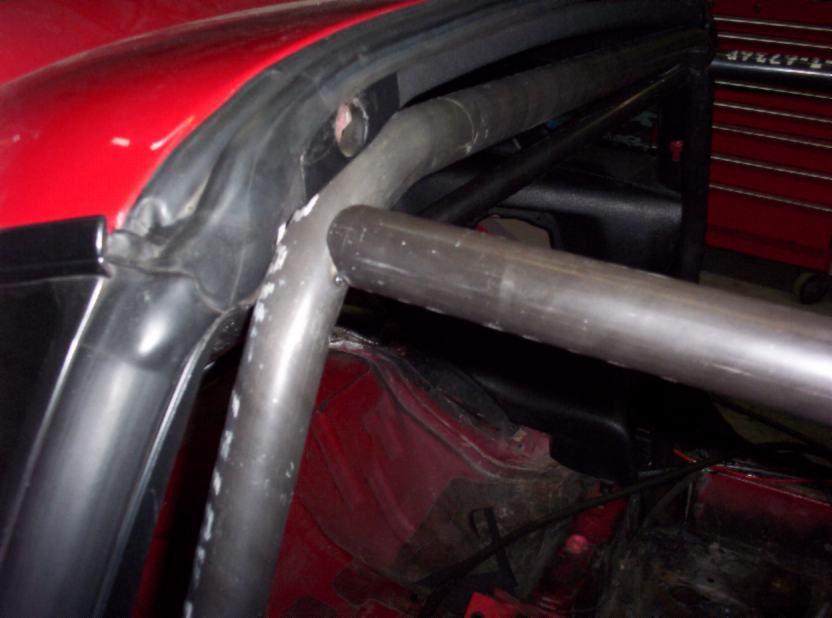

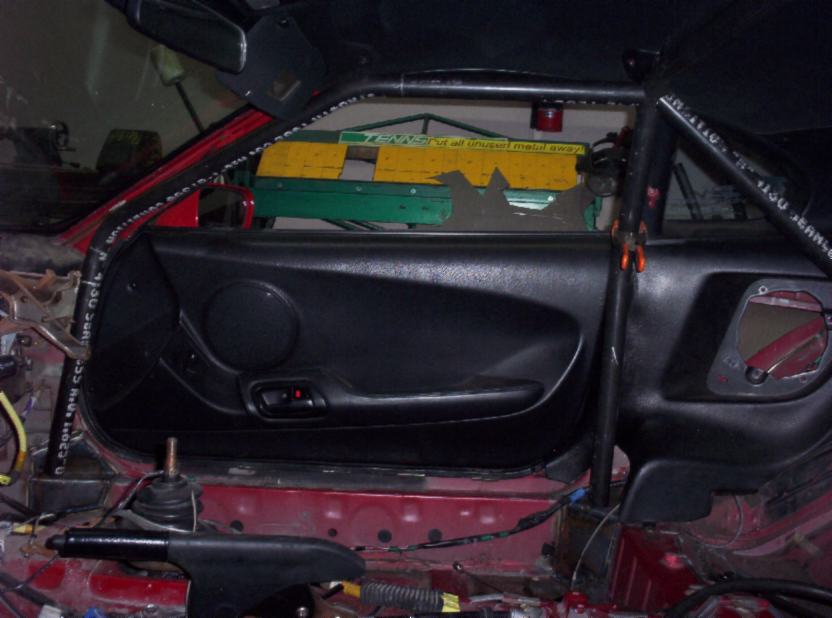

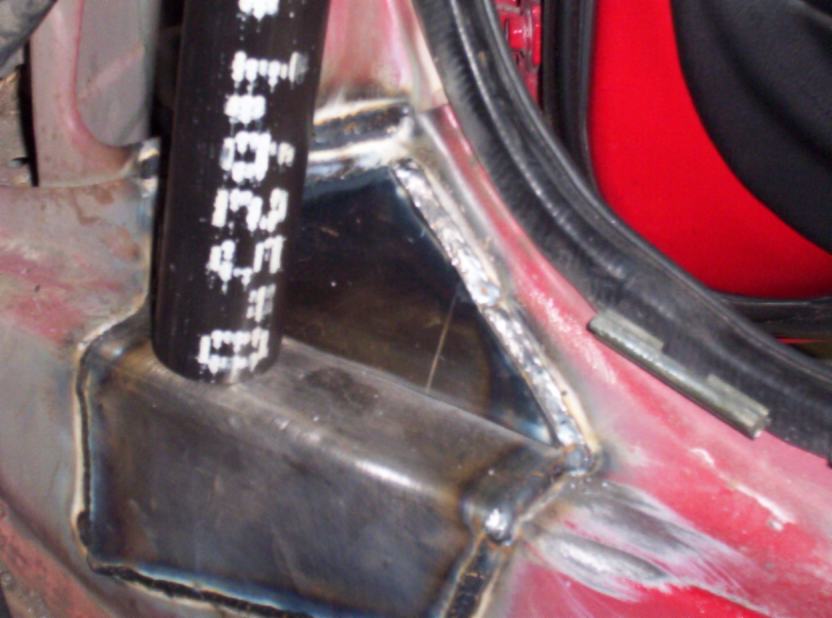

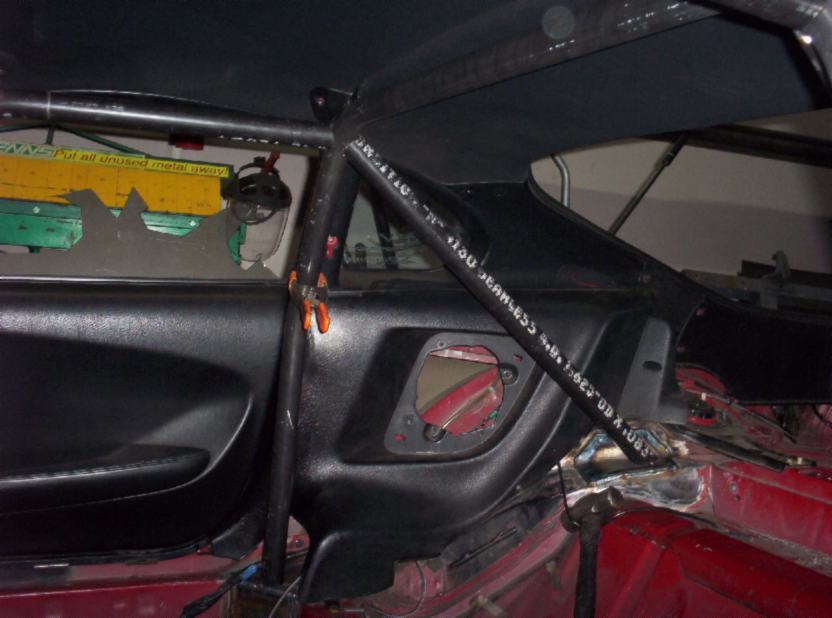

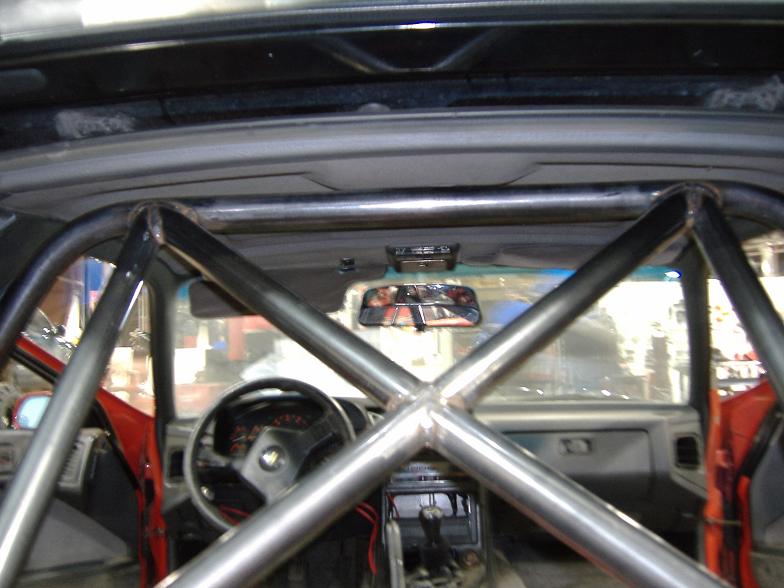

Added a few more pics of the 4130 Chrome moly cage I am currently doing for a drag car. It is a Supra though, sorry! I am in the fitting stage right now. making sure the whole cage fits befor I start welding. I have to pull the the entire back half out so I can tig weld it and then place it back in to weld in the front half. Doing it in 3 stages since I am not dropping it through the floor so I could weld completely around all of the joints in the rear. Supras are good for this since the roofs come off. Since I am mount the A-pillar bars on the rocker, this method seems to work best.
Still need to add the rear X, horizontal bar in main hoop, dash bar, A-pillar cross over bar, and swing out door bars. That will be in the next 2 days. Than I have to fit the dash back in.
Still need to add the rear X, horizontal bar in main hoop, dash bar, A-pillar cross over bar, and swing out door bars. That will be in the next 2 days. Than I have to fit the dash back in.
#285
Senior Member
Thread Starter

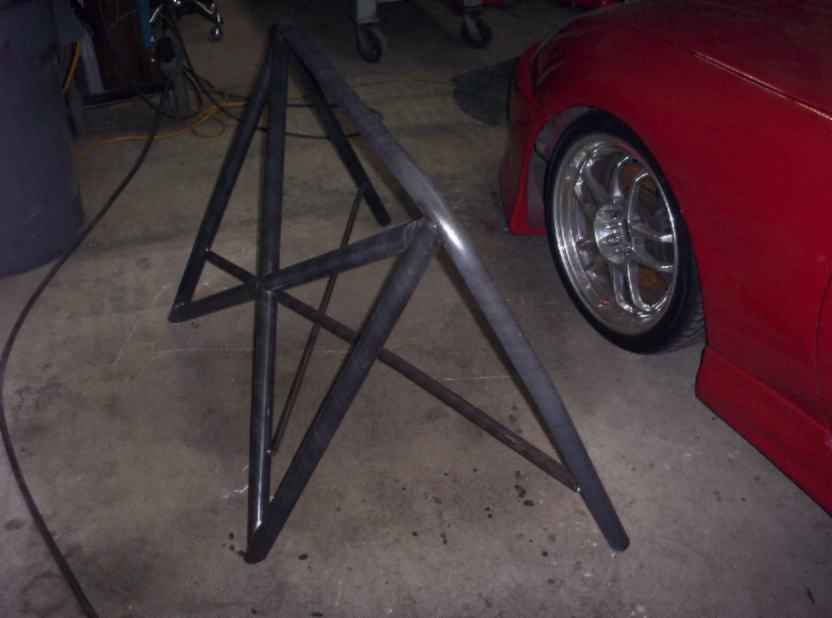

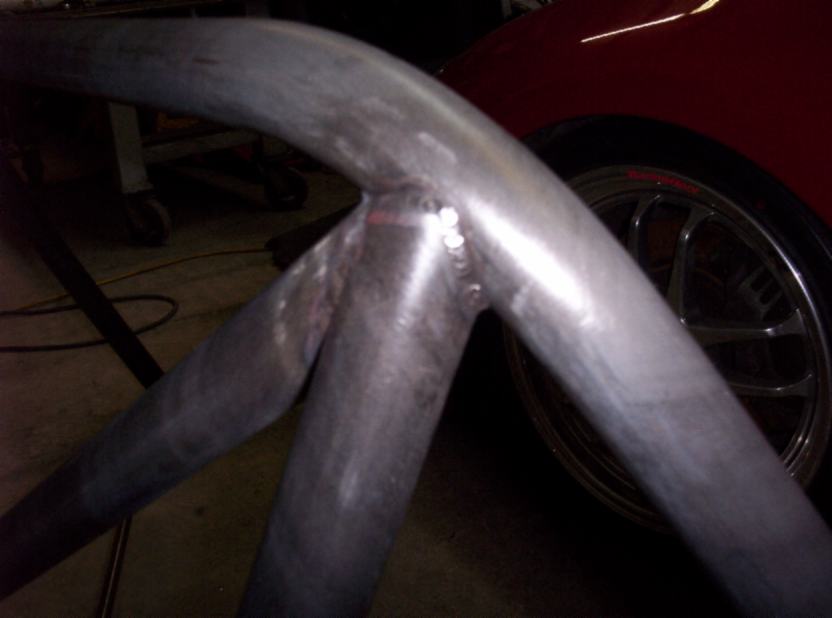

Been messing around with the 4130 cage still between other jobs. Have the main hoop welded up now. Did it outside of the car to make sure I was able to weld continuously around all of the tubes. I can weld the rest in the car.
The 1/2"x1/2" square and the 1" round tubing in the hoop is there to keep it from deforming while the welding procedure. Keeps its down to a minimum.
All the tubing is 1 5/8"x.083" and weighs maybe 30lbs so far. I expect the whole cage to weigh in about 65lbs.
The 1/2"x1/2" square and the 1" round tubing in the hoop is there to keep it from deforming while the welding procedure. Keeps its down to a minimum.
All the tubing is 1 5/8"x.083" and weighs maybe 30lbs so far. I expect the whole cage to weigh in about 65lbs.
Last edited by cagedruss; 12-31-05 at 08:17 PM.
#286
Is it legal to fully gusset a cage on a production car? Here are a couple pics. One is Mazdatrix conv EP and the other is the old Frey racing EP. They both have gussetted cages in different places. Can the front bars be gusseted to the a-pillar? How about the halo above the windshield and above the door? How much stiffness does this add?
#288
Senior Member
Thread Starter
Sorry, Yes. Production does not follow the IT rules for attachment points and gusseting. Gusset away! Makes the chassis stiffer and sometimes easier to fix bodt damage.
#289
GET OFF MY LAWN
iTrader: (1)
It will add a lot of stiffness if you connect in the cowl area, pillars, and top of windshield. This area needs all the help it can get, don't try to keep the A-pillar bars close to the pillar either. If you are going to connect them with gussets think of the area as an I-beam(taller is stronger). Just try to keep things out of your line of sight.
#290
Racing is life!
iTrader: (2)
Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,173
Likes: 0
Received 0 Likes
on
0 Posts
Quick question for you cage guru's.
Should I cut the hole for the fuel cell before or after cage install? I'm also cutting for the rear fiberglass fenders as well. The only thing left is to get the tar out, sand blast and prime....now if we just had some production car cage builders in the metroplex.
I'll post pics when the cage is getting built.
Thanks, Paul
Should I cut the hole for the fuel cell before or after cage install? I'm also cutting for the rear fiberglass fenders as well. The only thing left is to get the tar out, sand blast and prime....now if we just had some production car cage builders in the metroplex.
I'll post pics when the cage is getting built.
Thanks, Paul
#292
Racing is life!
iTrader: (2)
Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,173
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jgrewe
If the car is gutted and is on flat ground with the load going through the normal suspension points you could do it either way. Just make sure you know what you're cutting through, on an FB the spring perches are just inboard of the shocks.
#294
Senior Member
Thread Starter
Yes it is. There is actually more room inside the hardtop than the soft top. Less interference with folding mechanisms. All SCCA SM's have to run a Hardtop, I have one here for just the purpose of fitting the cages.
#295
Question about tubing thickness.
Can support bars (not part of basic cage per GCR) be a thinner wall tubing? So if the standard cage is 1.5x.095", can you use 1.5x.060" for a petty bar etc?
Can support bars (not part of basic cage per GCR) be a thinner wall tubing? So if the standard cage is 1.5x.095", can you use 1.5x.060" for a petty bar etc?
#296
Senior Member
Thread Starter
Damned if I can find it now in the GCR. There use to be a paragragh somewhere that stated all tubes had to be the same size and wall thickness. I know of a few cars that add thicker main hoops that are required and the minimum for everything else. And there are a few out that use lesser material to save weight because SCCA techs check only the main hoop. I do not recommend or condone the use of lesser material in a cage that could be checked, could be a very expensive risk. A petty bar is not a required bar unless it is in a car that can't utilize rear bars. Get a clarification from a tech in your area. We are really not the source for that unless we can find the rule. Remember that you the car owner, is responsible to prove your car is legal if it scrutinized. Maybe someone else can shed some light on this!
#297
Originally Posted by cagedruss
All SCCA SM's have to run a Hardtop...
#298
Thanks Russ,
Thats what I always thought. My brother in law came up with this bright idea for redoing his AS car, from somebody that does cages for WC cars. I couldn't find anything in the GCR either. He was going to call SCCA for clarification. I figured I would ask how you guys that build cages interpret the rules. My thought was why bother to save 10-15lb on a car that weighs that much. My EP cage will be 1.5 x.095 all the way
Thats what I always thought. My brother in law came up with this bright idea for redoing his AS car, from somebody that does cages for WC cars. I couldn't find anything in the GCR either. He was going to call SCCA for clarification. I figured I would ask how you guys that build cages interpret the rules. My thought was why bother to save 10-15lb on a car that weighs that much. My EP cage will be 1.5 x.095 all the way
#299
Senior Member
Thread Starter
Originally Posted by sctty
Thought national SM rules allowed cars to run w/o hardtop...just not a popular option for aero reasons.
#300
Until the national rules came out, most regions required the hardtop. There was a bit of hubub when they were released and the top was made optional. The only instance where I can think of it being necessary to not use a hardtop would be with a very tall driver.
You're right, bet it would be fun to drive one without a top.
You're right, bet it would be fun to drive one without a top.
