Series vs. parallel oil cooling

Old 12-27-10, 10:24 AM
  #1
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
Series vs. parallel oil cooling

I know that running oil coolers in series is better for max cooling but results in a higher pressure drop. Is this that big of a problem with the rotary engines?

Application is various nonturbo 13B engines (I'll be realistic here ) meaning small pump and large pump style engines, short (40-90 sec) run times at low speeds so most of the airflow comes from the cooling fan. I currently have a GSL-SE oil cooler mounted in its stock location with some ducting to prevent air from going around it.

My goal is to be able to keep the engine cool in real time. Currently, I've been finishing runs with coolant and oil temps in the 230 degree F range. I can get coolant down to ~190 before the next run but oil is more difficult, so I want to focus on oil cooling. Plus, sometimes a repeat run has to be made right away, and some regions split into smaller run groups so there IS no cooldown time. I'd like to be able to take my car to those events again.

I have an FC cooler that I plan to mount above the existing one. Series and parallel would be about equally as difficult to plumb, obviously parallel would cost a lot more, but $100 more for fittings is still cheaper than another killed engine.
peejay is offline
Old 12-27-10, 11:18 AM
  #2
Senior Member
10 Year Member
iTrader: (4)

Join Date: Nov 2005
Location: Calgary
Posts: 352
Likes: 0
Received 1 Like on 1 Post
Not overly familiar with the early series engines but pressure drop is usually only a couple PSI over the whole cooler so a second one in series should be fine. My guess is that in your case just adding a second cooler will fix up the problem.
fd_neal is offline
Old 12-27-10, 11:24 AM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,572
Likes: 0
Received 123 Likes on 112 Posts
I like the idea of parallel better, but I notice that the fd and rx8 are in series, so maybe it doesn't matter.

The only thing is the pre fd coolers are long, vs the later ones being tall, so the old ones should have more pressure drop
j9fd3s is offline
Old 12-27-10, 11:43 AM
  #4
Can Post Only in New Member Section
iTrader: (2)

Syritis's Avatar

Join Date: Jul 2004
Location: Calgary, Canada
Posts: 930
Likes: 0
Received 0 Likes on 0 Posts
i know the second gen oil coolers have a build in termostat, so in theory when the oil is cold and thick, it bypasses the cooler and goes right back to the engine. and when the oil is hot a thinner it is less resistant to getting pushed through the cooler.

in reality the you'll see high pressures when it's cold, due to it's resistance to being pushed into small gaps like the bearings. so as long as there are thermostarts i don't think it will matter either. IE if it's hot in the first cooler, in series to the second cooler, it'll bypass and and still get to the engine with the same pressure.

have you modded your oil pump passage? I've see it result it a much faster oil pressure response and 10 to 15 PSI increase.
Syritis is offline
Old 12-27-10, 03:58 PM
  #5
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Parallel will give you more cooling, not series. The cooler is more efficient when the temperature differential from the air to the oil is higher.

There is a bunch of easy ways to run parallel without spending a ton on AN fittings. I usually run a remote filter on the race cars so I buy a mount that has two in, two out and use one in and two out. Through the coolers. Coming back into the engine I like to bring both circuits back to the stock return location. I started to make my own custom fittings that use a stock banjo bolt with the head drill through and then weld an AN fitting from the hydraulic store welded on to the top.

One thing that I always wondered about was if one cooler was cooling the oil more than the other and bringing the oil back to two locations with a big difference in oil temps.(Like to the front plate) It probably wouldn't be an issue but bringing the oil back to one spot blends it
jgrewe is offline
Old 12-28-10, 08:49 AM
  #6
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
Originally Posted by jgrewe View Post
Parallel will give you more cooling, not series. The cooler is more efficient when the temperature differential from the air to the oil is higher.

There is a bunch of easy ways to run parallel without spending a ton on AN fittings. I usually run a remote filter on the race cars so I buy a mount that has two in, two out and use one in and two out. Through the coolers. Coming back into the engine I like to bring both circuits back to the stock return location. I started to make my own custom fittings that use a stock banjo bolt with the head drill through and then weld an AN fitting from the hydraulic store welded on to the top.
What I'd been reading is that parallel will have less resistance to flow, but series will result in better cooling in marginal applications. If one cooler gets more airflow than the other, the cooler oil in it will have more resistance to flow and the oil will preferentially go through the hotter one.

I can't poke holes in the theory like the "water moving too fast" myth for cooling systems, plus there's enough anecdotal evidence to support it.

Ultimately, two would be better than one no matter what, but if one way would result in oil volume and pressure problems, then I'll avoid it. Most setups run plate style oil coolers which would seem to me have less resistance to flow than what Mazda used.

I'm starting to have second thoughts, though, and am now considering trying to rearrange the existing coolers in what I think is called a V mount configuration.
peejay is offline
Old 12-28-10, 09:24 AM
  #7
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
jgrewe nailed it.

Personal experience is this - Customer's ITS road race car came in a couple years ago with a series setup. Comes in for engine management install and tuning. We cover that part. Car makes great power but oil pressure is lower than I'd like to see. We're seeing only about 70 psi WOT 3k+ RPM. Ideally, I'd want to see 100+. Tell owner this, they run it anyway, with no changes. They had bought the car already built as it sits, and, I think, convinced there is not an issue.

I'm asked to drive the car in a couple regionals that year and the car performs very well. However, oil and water temps are fairly high (230-ish), and oil pressure during extended running is no more than 70 psi. I think perhaps the engine has a stock FC pressure regulator in it, and recommend they have the regulators swapped out for Mazdaspeed or REW regulators.

Week after I win a couple races with it, the owners call me. The engine is locked up. They bring it down to me and we tear it down together. Front main is seized, noticeable wear on all other bearings. Oil pump is broken. One of the rotors is in 4 pieces. It's a TII pump FWIW. I build them a new engine with the typical ITS setup. New TII pump, REW regulator, Mazdaspeed open e-shaft jets, race bearings, etc.

Start the engine in the car with the old series setup and immediately have lower than expected oil pressure. Pressure on first start (cold oil) at idle is around 70 psi. We should be seeing 100+. As the oil temp comes up, the pressure goes down. To around 25 psi at idle. We're still seeing a max of 70 psi with warm oil at 3k+.

I'm thinking one or both of the coolers is clogged. I send them out for ultrasonic cleaning. No change. I bypass one of them and run the engine with just one cooler. With one cooler we have 100+ on cold start, comes down to around 60 at idle, and 100-110 warm at 3k+. Good! So the other cooler is bad right? Nope. Plumb that one in by itself and the results are repeated. With just a single cooler, either one of them, the pressure is good. Plumb them in series and we loose 30+ psi at 3k+ with warm oil!

One other thing we found while experimenting was that one of the coolers still had the thermostat bypass while the other had it removed and the bypass blocked. With relatively cold oil (the working thermostat bypassing), we would see good oil pressure at 3k+. Once the oil warmed, and the thermostat closed, the pressure at 3k+ dropped.

Working backwards, I think we answered the question of "how the hell did the oil pump break"? Without a pressure gauge on the line at the front cover outlet I can't say for sure, but I would have to guess that with the huge restriction obviously imposed by the series setup, that we would be bumping the pressure setting of the front regulator and working the heck out of the oil pump to do so.
C. Ludwig is offline
Old 12-28-10, 10:02 AM
  #8
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,618
Received 51 Likes on 51 Posts
^ There is a seemingly-obvious difference between your customer's series-plumbed oil cooler setup and a set of FD or Rx-8 oil coolers, plumbed in series from the factory. Some guy rigged up those dual coolers in his garage whereas the OEM FD and Rx-8 coolers were actually engineered to be run in series. So the oil cooler thermostats, the piping, the OEM oil pump, the dimensions of the coolers, the ducting, etc all work together as a system. The OEM dual coolers may not have the highest oil cooling capacity on paper but at least they were track-tested by real experts.

Most turbo piston engines have the equivalent of a single FD oil cooler or use coolant to cool the oil like some of the 1st gens did. So in that comparative sense the OEM dual coolers are still high capacity.
arghx is offline
Old 12-28-10, 10:13 AM
  #9
Senior Member
10 Year Member
iTrader: (4)

Join Date: Nov 2005
Location: Calgary
Posts: 352
Likes: 0
Received 1 Like on 1 Post
C.Ludwig with that said, pressure drop in the system is dependant on both plumbing and the cooler used. Ive run 3 different cooler setups, all in series, and never had pressure issues. I log oil pressure pre cooler and have the a gauge post cooler.

From an engineering standpoint more flow and greater temp differentials both improve the efficiency of the cooler. series will maximize flow, while parallel will maximize temp differentials. Series will have greater pressure loss over the coolers and parallel will have greater pressure loss over the plumbing. IMO its all a trade off, properly setup both are well proven setups.
fd_neal is offline
Old 12-28-10, 11:49 AM
  #10
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
...That's exactly the real-world data I needed to hear, C. Thanks a bunch!

Summit sells -10 Y-blocks for $35 a pop and -10 straight fittings are cheap enough. I'll use the Summit blocks but I'm not thrilled with their hose ends. Fine for the low-pressure fuel applications where I've used them, but I'll stick with Earl's for oil.

Yes, I'm dithering. It all depends on how low and forward I'd be able to cram the radiator in so it would fit at an angle enough that I could mount an oil cooler next to it. As it is, my radiator fan to water pump clearance is small enough that the fan rubs from time to time.

Of course, if I could un-marry myself from the idea of using stock oil coolers, I could just run one big square one under each headlight. But then we're rapidly exiting the notions of "using stuff on hand". Plus I'd need an oil thermostat, and I don't think the GM ones that I've scavenged would have enough flow.
peejay is offline
Old 12-28-10, 01:39 PM
  #11
Migrant Rotorhead
10 Year Member
iTrader: (1)

Viich's Avatar

Join Date: Jul 2006
Location: Ottawa, ON
Posts: 236
Likes: 0
Received 0 Likes on 0 Posts
Any rules against a system for spraying water on your oil cooler during your runs? Just throwing it out there.
Viich is offline
Old 12-28-10, 02:01 PM
  #12
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
None at all. The rules structure is very lenient. Basically, if it is recognizeable as an RX-7 (*) and meets some very rudimentary safety minimums, it's good to go. Engine and drivetrain are 100% free, as is suspension.

I've considered a water sprayer, but my concern with that is that the days where temperature control is a serious problem tend to be dusty. Dust blows off okay, mud tends to stick around.



(*) The rule that bothers me. I could lop a foot off of the nose of the car SO easily, it's all empty space out there in front of the hood mount's crossbeam, but then it could be argued that it is "not recognizeable" anymore.
peejay is offline
Old 12-28-10, 09:41 PM
  #13
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,572
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by arghx View Post
and a set of FD or Rx-8 oil coolers, plumbed in series from the factory.
the FD and Rx8 coolers are taller cores with shorter flow tubes = less pressure drop per cooler?
j9fd3s is offline
Old 12-29-10, 07:31 AM
  #14
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,703
Likes: 0
Received 3 Likes on 3 Posts
Parallel will provide as much or more cooling capacity as series coolers. Because the oil spends more time in each cooler being the flow is divided between two rather than flowing through two in serries at the same flow rate as if it were only one cooler. Plus, both coolers are operating at the same high inlet temp rather than one having less temperature differential (Thus, less heat rejection).

Pressure drop is far less through two coolers in parallel as the flow is roughly cut in half through both coolers. Pressure drop in a closed loop system is solely based on flowrate.

Thus parallel piping (good parallel piping with Y-fittings or reverse return arangement) is better in every way. And fairly convenient.

Not to say series piping arrangements are bad. But the very primary reason they were employed on the FD and RX-8 was due to cost. MUCH cheaper to run them in series when they are at opposite front corners of the car.

FCs have an advantage in having all the connections on the same size. thus it is just some extra costs in fittings to make them work in parallel.

PS: I am a mechanical engineer who specializes in heat transfer, you can listen to me with faith.
RockLobster is offline
Old 12-29-10, 08:49 AM
  #15
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts




Not sure how well it works, but ISC is usually pretty on top of it.
www.iscracing.net
C. Ludwig is offline
Old 12-29-10, 09:47 AM
  #16
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,703
Likes: 0
Received 3 Likes on 3 Posts
I considered that one as well. It looks like a huge two pass cooler. Probably very effective and pretty cheap to plumb.

I ultimately decided to go with two stockers so i could have the thermostat capability without spending a bunch of money on an aftermarket external thermostat. And i had two recently reconditioned stock coolers already in hand.
RockLobster is offline
Old 12-29-10, 10:56 AM
  #17
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
peejay - another thought might be to add a fan or two to your cooler(s). The relatively low speeds of rallycross doesn't provide much in the way of air being forced across the coolers you do have. Just a thought...
C. Ludwig is offline
Old 12-29-10, 10:59 AM
  #18
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
ISC has some issues with that cooler and I think they are going to change the design. They are having pressure problems that lead to cracking, I have a friend that has one and its cracked twice. Inlet side pressure is stupid high.
jgrewe is offline
Old 12-29-10, 11:45 AM
  #19
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,572
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by C. Ludwig View Post
peejay - another thought might be to add a fan or two to your cooler(s). The relatively low speeds of rallycross doesn't provide much in the way of air being forced across the coolers you do have. Just a thought...
that works. back in the day a friend of mine had a FMIC, and 240 degree oil temps, cause the IC blocks the oil cooler.

he put 2-3 computer fans on it, and viola, oil temps were more like 190-200
j9fd3s is offline
Old 12-29-10, 05:15 PM
  #20
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
I have an electric fan for this purpose. The oil cooler is ducted to the radiator so that the airflow can't bypass the oil cooler to get to the fan. Fan is hardwired to the ignition system - if the key is on, the fan is on.

Current procedure is to finish the run, get back to grid as quickly as possible, shut down engine as soon as possible, and turn ignition back on to get the fan turned on. Fan then runs until the car is cool or the next run is due. This cools the engine a lot more quickly than leaving it run, surprisingly enough. Sometimes I start and run the engine a few seconds at a time to cycle the fluids around, but it seems to be unnecessary.

I was thinking about the computer fan thing, since the 120mm jobs seem to grow on trees around here, but I was worried about stifling airflow.

I'm also thinking of attacking the cooling problem from the other direction - a small additional coolant radiator mounted in the heater hose loop. If nothing else, it would allow me to run without the heater on
peejay is offline
Old 12-29-10, 07:03 PM
  #21
Banned. I got OWNED!!!
iTrader: (1)

Join Date: Jun 2006
Location: Denver
Posts: 697
Likes: 0
Received 0 Likes on 0 Posts
Never tried fans, but I really pay attention to oil cooling. Coming from an air/oil cooled Porsche background, I have seen some pretty extreme oil cooler setups.

Oil cooler in 911 Turbo Race car, its fairly large and does its job perfectly-






Little oil cooler on Eclipse GSX track car-



I have had no real issues running oil coolers in series, but I can see how others have.
D Walker is offline
Old 12-29-10, 09:12 PM
  #22
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Originally Posted by D Walker View Post



Love it! That's a nice cooler.
C. Ludwig is offline
Old 12-30-10, 12:55 PM
  #23
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
...and looking at it, the Porsche cooler looks a lot like a bar and plate cooler in design with large tanks and many short tubes, while the Mazda coolers force everything to go through two or three very long tubes... in each direction.

So, I can see how Mazda coolers in series can cause restriction and not the other ones.

I'm not impressed by engineering degrees, I'm impressed by real-world evaluations. What works on paper never seems to pan out in the real world...
peejay is offline
Old 12-30-10, 01:55 PM
  #24
Banned. I got OWNED!!!
iTrader: (1)

Join Date: Jun 2006
Location: Denver
Posts: 697
Likes: 0
Received 0 Likes on 0 Posts
The oil cooler in the 911 is not OEM obviously, but very effective.

I read everywhere about how the OEM cooler was all you ever needed, blah blah blah, but I could not bring myself to use it. Instead I used a single "stacked plate" oil cooler similar to the coolers that used to be made by "Long" and now are sold by B&M etc.. I used a 11x12-ish cooler (would have to go actually measure it) and never had anywhere near high oil temps even at altitude and continuos high RPM. Obviously using e-85 affected this, but I think too much is made of the 2nd gen coolers abilities. I could be wrong, but this has been my experience.
D Walker is offline
Old 12-30-10, 03:24 PM
  #25
Death to Infinite Scroll
Thread Starter

peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 11,700
Received 43 Likes on 40 Posts
Originally Posted by D Walker View Post
I read everywhere about how the OEM cooler was all you ever needed, blah blah blah, but I could not bring myself to use it. Instead I used a single "stacked plate" oil cooler similar to the coolers that used to be made by "Long" and now are sold by B&M etc.. I used a 11x12-ish cooler (would have to go actually measure it) and never had anywhere near high oil temps even at altitude and continuos high RPM. Obviously using e-85 affected this, but I think too much is made of the 2nd gen coolers abilities. I could be wrong, but this has been my experience.
I assume you've gone back to talking about the RX-7 setup? Interesting.

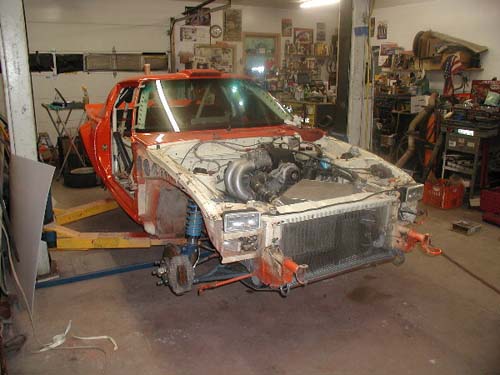

The setup that I'd most like to emulate is on this rally car (may look familiar to some). I forgot where I found this pic, but it's probably 7-8 years old, but if you look through the screen you can see the radiator and oil cooler are side by side.

BTW - I can probably cover the stock oil cooler with new 120mm fans for $30. Experience with computer electronics says that the fans do not tolerate any amount of contamination with anything. Dust, moisture, anything...
Attached Thumbnails Series vs. parallel oil cooling-oct16-174lowres.jpg

Last edited by peejay; 12-30-10 at 03:26 PM. Reason: forgot to add the attachment
