semi-interesting FC parts weight

Old 04-29-13, 09:46 PM
  #1
trying to build a racecar
Thread Starter

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
semi-interesting FC parts weight

I was finally able to weigh my stripped FC chassis last weekend. The only thing NOT removed from the car is the front crossmember, pedal assembly, and steering wheel/shaft. There might some other misc. things (few nuts/bolts, short pieces of hardline) here and there, but nothing significant.

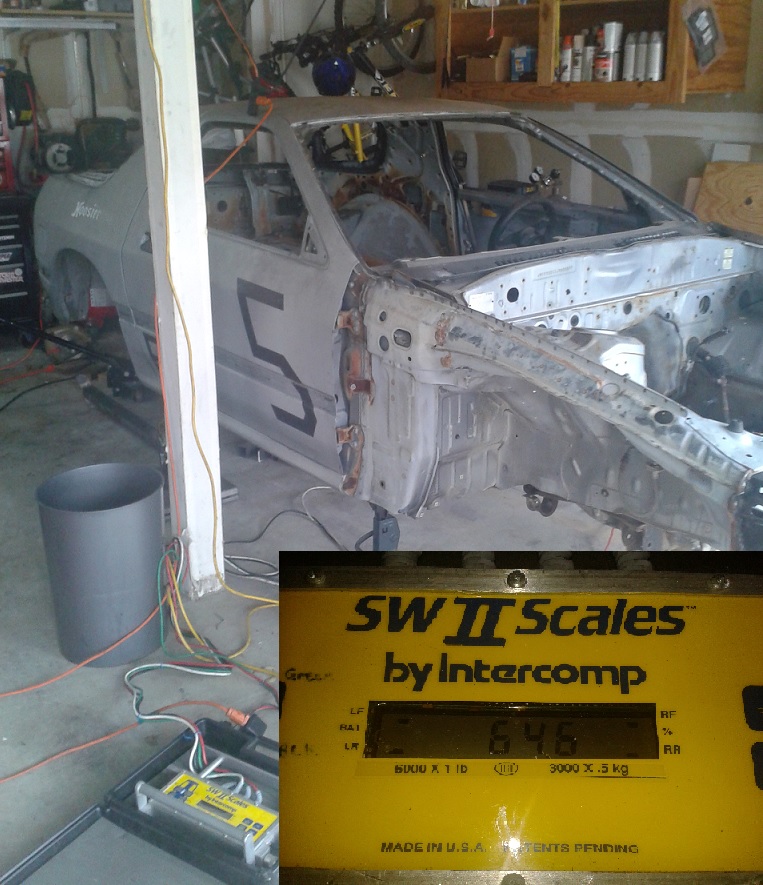

Bare chassis weighs in at 646lbs

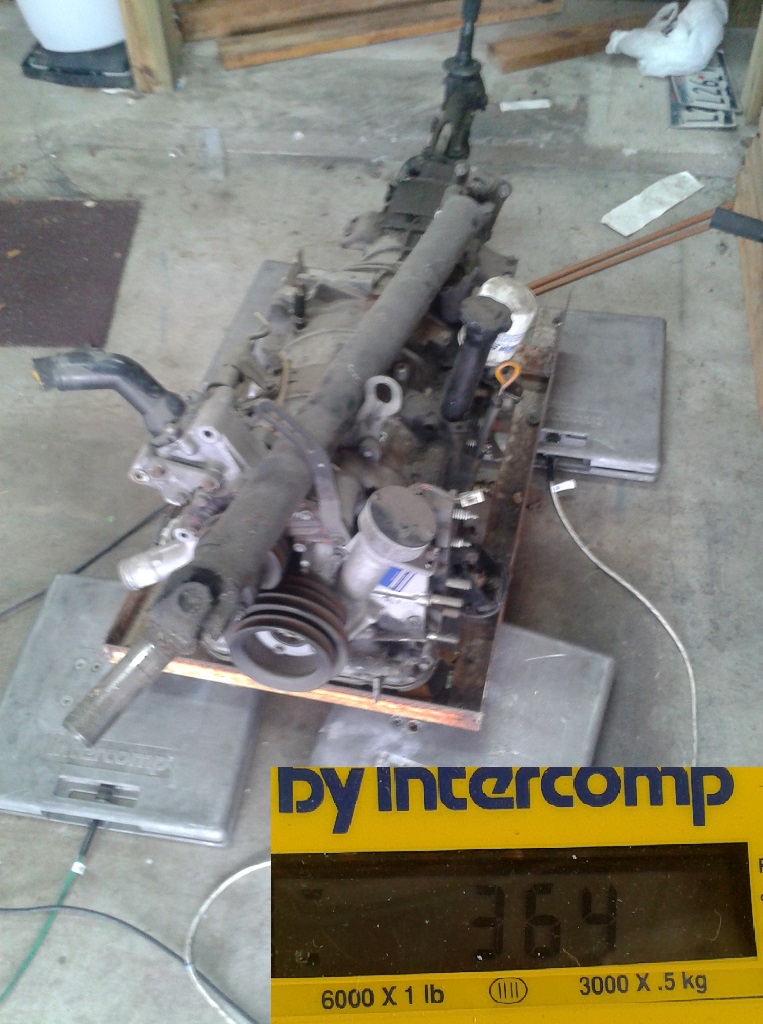

Drivetrain (engine, tranny, driveshaft... no intake/exhaust) weighs 364lbs.

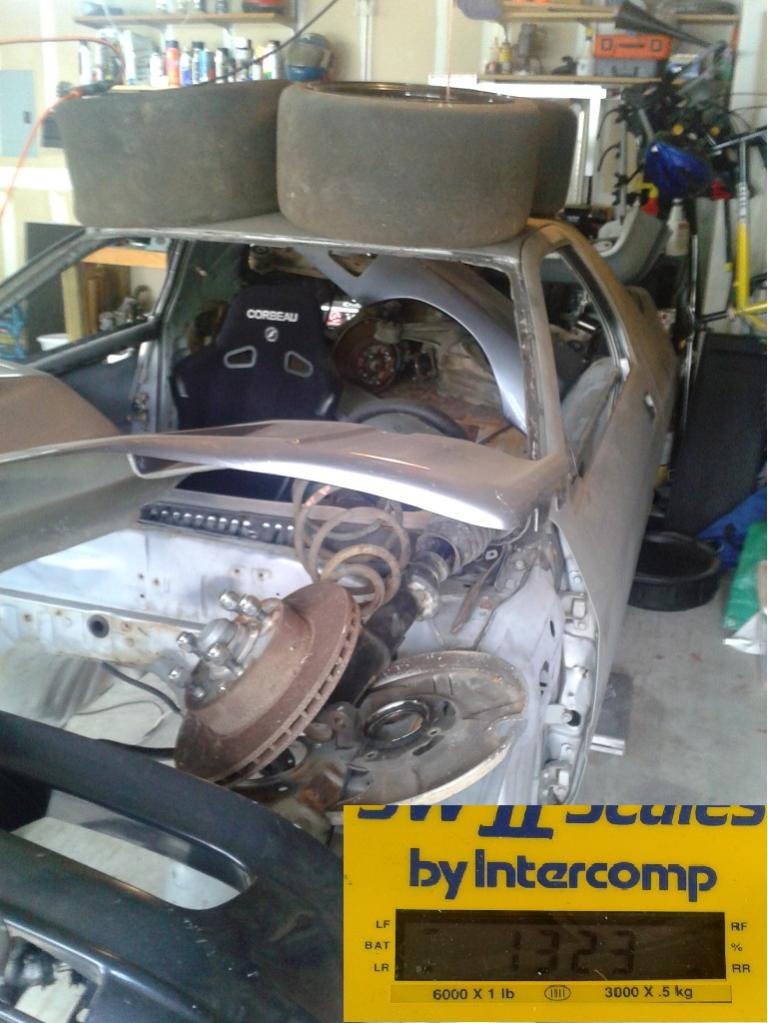

I then loaded all the parts I have back into the chassis and re-weighed it. That came up to 1323lbs.
Minimum weight for an NA FC in SoloII F-Prepared is 1900lbs. So adding it up brings the current weight to 1687lbs. Which only leaves me 213lbs for all the things I don't have, like a cooling system, intake, exhaust, lexan, fuel cell, wiring, hood, etc.
So unless I find some place to lose a lot more weight, I'm pretty certain to be over the minimum.
I know I can save weight in the wheels, and I might be able to remake the rear trailing arms. I might not need the rear wide body fenders, but they're only about 5lbs.
Maybe I should just throw and LSx in it and go to XP.
Attached Thumbnails semi-interesting FC parts weight-bare_chassis_weight.jpg   semi-interesting FC parts weight-driveline_weight.jpg   semi-interesting FC parts weight-stuffed_chassis_weight.jpg
Travis R is offline
Old 04-30-13, 12:23 PM
  #2
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,703
Likes: 0
Received 3 Likes on 3 Posts
Pull all the extra stuff, you mentioned off including the doors and you have 550lbs. (weighed it when we stripped a chassis completely)

The doors are really heavy.
RockLobster is offline
Old 04-30-13, 06:44 PM
  #3
trying to build a racecar
Thread Starter

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
I should weigh a door while I've got the scales. I've already gutted them, so I'm curious to see exactly how much I've taken out of them.
Travis R is offline
Old 04-30-13, 09:49 PM
  #4
trying to build a racecar
Thread Starter

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
Damn! That stupid thing STILL weighs almost 30lbs. Definitely cutting more out of the door.
Travis R is offline
Old 04-30-13, 10:07 PM
  #5
Rotary Freak
10 Year Member
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
anyone know what a bare vert shell weighs?
Josh18_2k is offline
Old 05-01-13, 04:23 PM
  #6
Senior Member
iTrader: (9)

Join Date: Sep 2010
Location: Boulder, CO
Posts: 411
Likes: 0
Received 1 Like on 1 Post
Are you dead set on keeping the stock doors in some form? The XP and EP guys I know replaced their doors with molded plastic, and got them down to less than a pound a piece.
Brigdh is offline
Old 05-01-13, 05:31 PM
  #7
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Josh18_2k View Post
anyone know what a bare vert shell weighs?
Probably about 150lbs more than the coupe. Floor and rockers are twice as thick, extra layers in the cowl and pillars, extra bracing behind the doors.

The door bars on the FC are 11lbs each.
jgrewe is offline
Old 05-09-13, 09:14 AM
  #8
Formerly known as 25BP

25XP's Avatar

Join Date: Oct 2011
Location: NorCal
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Travis, nice data there.
My XP car weighed in on the SCCA scales at 2068 at the El Toro Pro. Personally I felt they were generous by about 10 pounds. Regardless, there is more weight I can shed.

I think you can be in the 1900's on an NA. I say that based on all the "extra" heavy items I have still have with my turbo car.
FMIC with loads of silicone hose, the turbo itself, swirl pot with extra fuel pump and filter. A full size deep cell battery. Factory turbo hood with headlight covers. Factory tie downs. This also includes a dual element wing and uprights as well as a front splitter and facia. I still retain the factory front and rear bumper covers.

Some places that I would like to investigate additional weight savings that cover any FC

Wildwood super drag brakes (possibly adapting the Mustang kit??)
Carbon or plastic door skins
Carbon rear hatch frame
One piece (eliminates headlight covers) Carbon hood
Carbon bumper covers

Keep up the good work..keep the ideas coming
25XP
25XP is offline
