FC Center of gravity

I corner balanced my car this week.

CG height = 19.2" (measured with rear 4" off the ground. I need to check the +/-, since this isn't very high)
2500#
52% front
51% left

My car is somewhat lightened, but I believe most of the weigh reduction happened near or below the CG, so it probably didn't help in that regard. In summary: LS1+T56, single 3.5"exhaust, no interior aside from dash, gutted doors, alum hood, no headlights or bumpers, still have HVAC with heater.

My ride height with 25" tires Probably not much lower than stock unfortunately. That damn frame rail over the front tire ruins the fun.
Name:  IMG_0060.jpg
Views: 688
Size:  344.3 KB
Josh18_2k is offline
Old 05-18-13, 12:17 AM
  #2
Do a barrel roll!
15 Year Member
iTrader: (4)

Rxmfn7's Avatar

Join Date: Oct 2001
Location: Lower Burrell, PA
Posts: 7,529
Likes: 0
Received 1 Like on 1 Post
Your FC gives me bonarz..
Rxmfn7 is offline
Old 05-18-13, 12:50 AM
  #3
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Received 98 Likes on 85 Posts
Originally Posted by Rxmfn7 View Post
Your FC gives me bonarz..
Premature OMP injection!.
I like the vent on the hood..more info on that?
misterstyx69 is offline
Old 05-18-13, 06:16 AM
  #4
Don't hate my V8
10 Year Member
iTrader: (4)

gear_grinder's Avatar

Join Date: Mar 2006
Location: Cornfield, Indiana
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by misterstyx69 View Post
Premature OMP injection!.
I like the vent on the hood..more info on that?
http://www.ebay.com/itm/URAS-STYLE-HOOD-VENT-Universal-/251275698535?pt=Motors_Car_Truck_Parts_Accessories&hash=item3a8132e167&vxp=mtr
gear_grinder is offline
Old 05-20-13, 12:13 AM
  #5
Rotary Freak
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts

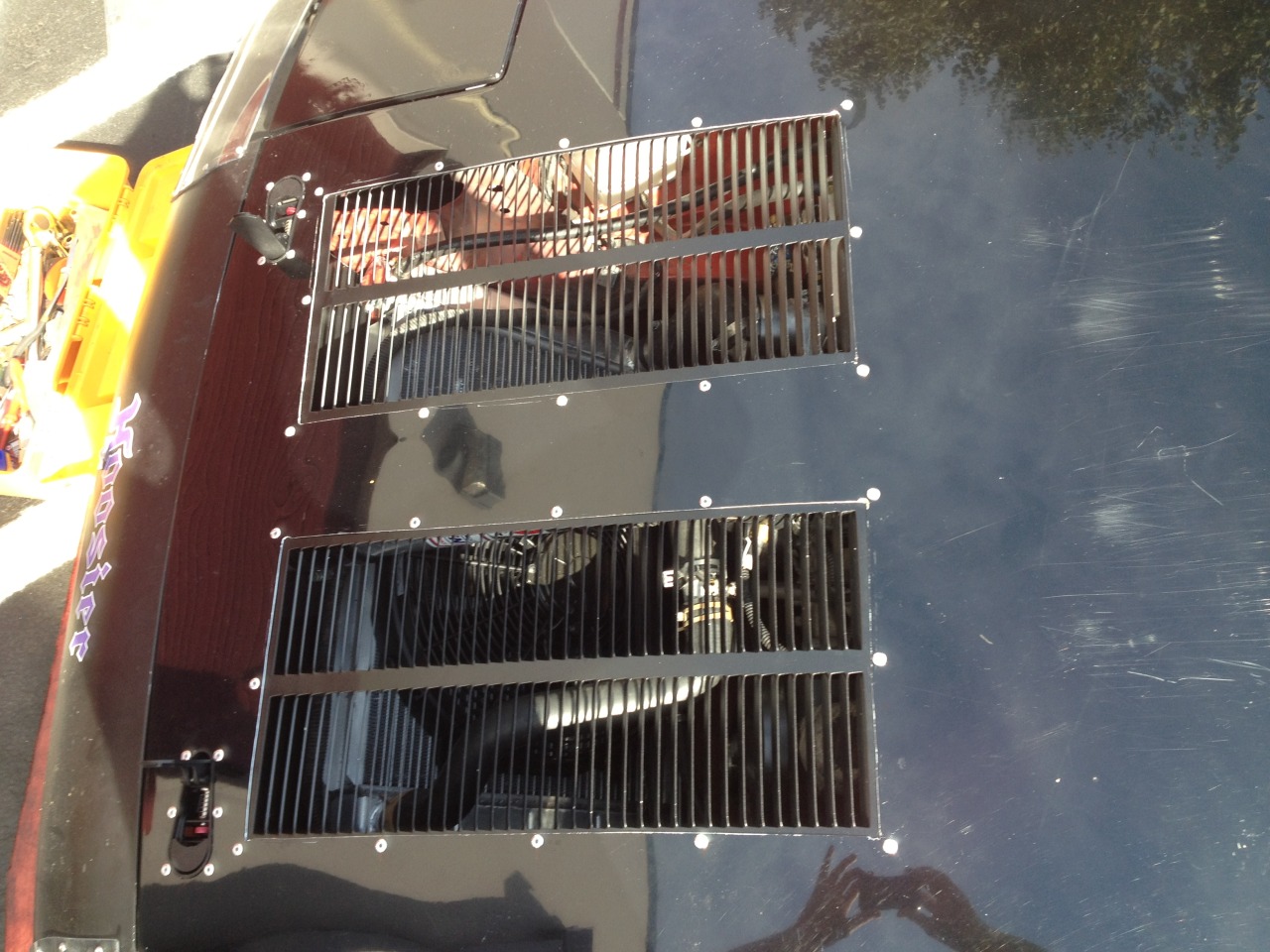

i actually got rid of that hood scoop. the vents didn't flow enough for my liking (had cooling issues with my tilted radiator.

new vents work much better

Name:  IMG_0156.jpg
Views: 122
Size:  291.3 KB

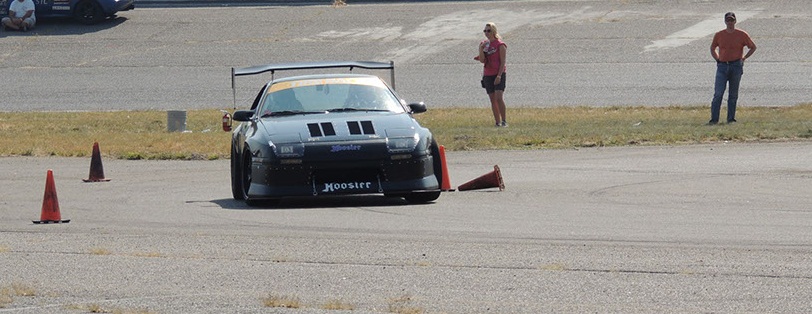

Name:  4-1.jpg
Views: 126
Size:  116.1 KB
Josh18_2k is offline
Old 05-20-13, 12:14 AM
  #6
Don't hate my V8
10 Year Member
iTrader: (4)

gear_grinder's Avatar

Join Date: Mar 2006
Location: Cornfield, Indiana
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
home depot or lowes?
gear_grinder is offline
Old 05-22-13, 08:29 PM
  #7
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Even if you're not happy with the CG Josh, the turn-in on that car is nothing short of amazing.
When you get the back to stick as well as the front, you will need to beef up your neck muscles for the sudden transitions.
jkstill is offline
Old 05-22-13, 09:50 PM
  #8
Rotary Freak
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
we pulled the aero off on sunday afternoon, and the car was actually balanced pretty well. grip was worse, but much more balanced. i do believe the splitter is doing more than the wing- big wing time!

i also noticed that the endplates have a huge affect on stability when sliding, even at low slip angles. the car was way snappier without them.
Josh18_2k is offline
Old 05-22-13, 09:51 PM
  #9
Rotary Freak
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gear_grinder View Post
home depot or lowes?
home depot lol
Josh18_2k is offline
Old 05-23-13, 09:44 AM
  #10
trying to build a racecar

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
If you are not already in the "big wing time" zone, then I don't know what is! Lol
Have you though about trimming down the splitter to balance the car?
Travis R is offline
Old 06-11-13, 09:14 AM
  #11
Rotary Freak
10 Year Member
Thread Starter
iTrader: (3)

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 0 Likes on 0 Posts
I would rather add more wing than take away splitter. I ordered foam cores last week, so ill be putting together a dual element soon.
Josh18_2k is offline
Old 06-11-13, 11:56 PM
  #12
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Originally Posted by Josh18_2k View Post
I would rather add more wing than take away splitter. I ordered foam cores last week, so ill be putting together a dual element soon.
*like*

I'm not really surprised its not balancing out the splitter. It doesn't look like its really designed for low speed at all. Are you making the same wing I am? I still haven't even started yet... It got put on the back burner when I blew up my engine.
