Race Car Tech Discuss anything related to road racing and auto X.

Bushing in the transmission mount brace

Old 03-16-12, 02:01 PM
  #1
Living on the North Coast
Thread Starter
iTrader: (30)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 4 Likes on 4 Posts
Bushing in the transmission mount brace

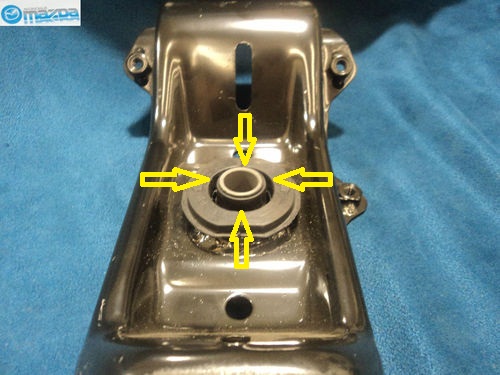

Since my car is still street legal, rather than go with solid bushings, I went with a full set of Mazda competition rubber mounts for the transmission and differential. The question that I had was the bushing in the transmission mount brace.

Would it make any sense to fill the voids in this bushing with say 55 durometer polyurethane window adhesive?

http://solutions.3m.com/wps/portal/3...beQH8HT14PGTgl

I have used this material in the past on several other vehicles to fill in the voids in rubber bushings (both suspension and mount) that were designed primarily with compliance and NHV in mind and not true/full containment.

TIA.
Attached Thumbnails Bushing in the transmission mount brace-fc02-39-370.jpg

Last edited by DeaconBlue; 03-16-12 at 02:13 PM.
DeaconBlue is offline
Old 03-20-12, 04:20 PM
  #2
Living on the North Coast
Thread Starter
iTrader: (30)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 4 Likes on 4 Posts
Over a hundred views and no comments. So either I am being way too **** and worrying about something that doesn't need to be done or I came up with something no one else had thought of before. I tend to think it is more likely the former than the latter.
DeaconBlue is offline
Old 03-20-12, 04:50 PM
  #3
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Sounds like a good idea, I used to pound nails into the motor mounts on my first VW Rabbit racecar.
jgrewe is offline
Old 03-20-12, 07:36 PM
  #4
Senior Member
5 Year Member

wlfpkrcn's Avatar

Join Date: Jul 2005
Location: CA
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by jgrewe View Post
Sounds like a good idea, I used to pound nails into the motor mounts on my first VW Rabbit racecar.
Did you have them attached to a string in the cockpit?
Hey that guys is closing in. better drop a couple nails on the track
wlfpkrcn is offline
Old 03-20-12, 07:46 PM
  #5
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wlfpkrcn View Post
Did you have them attached to a string in the cockpit?
Hey that guys is closing in. better drop a couple nails on the track
No, but I did use the parking brake lever to adjust the rear sway bar...(not legal) Having the nails to release would imply that I thought I would be out front
jgrewe is offline
Old 03-22-12, 02:19 PM
  #6
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
after replacing the two tranmission mounts with mazdacomp mounts, I don't think that bushing is going to get much load on it... it's probably not worth it.
eage8 is offline
Old 03-23-12, 06:05 PM
  #7
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,080
Received 145 Likes on 128 Posts
I say fill it or punch the metal sleeve out tearing the rubber tabs and press in a metal sleeve that fits with no voids.

I don't know how, but even with full Mazdacomp mounts on the car that transmission mount still breaks off the rubber connecting the steel sleeve to the bushing and the giant washer with rubber pad under the trans mount gets all bendy.
BLUE TII is offline
Old 03-23-12, 06:21 PM
  #8
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Likes: 0
Received 0 Likes on 0 Posts
Hmm, you have me thinking. See what i can come up with.
just startn is offline
Old 03-23-12, 09:36 PM
  #9
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Likes: 0
Received 0 Likes on 0 Posts
I just made something after reading this. Uploading photos now. (idk if you can already buy this mount aftermarket).
just startn is offline
Old 03-23-12, 10:53 PM
  #10
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Likes: 0
Received 0 Likes on 0 Posts
The way it sat when removed from transmission

Clean off old rubber on spacer


Pressed in


think im going to make some sort of a rubber spacer to take the space up so the bushing cannot slide up.
just startn is offline
Old 03-25-12, 11:39 AM
  #11
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Likes: 0
Received 0 Likes on 0 Posts
Deacon, lmk what you think. your only right down the street and can have a poly mount for dirt cheap.
just startn is offline
Old 03-26-12, 10:08 AM
  #12
Living on the North Coast
Thread Starter
iTrader: (30)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 4 Likes on 4 Posts
That is a very cool idea. I should have my new mount brace this week. When it comes in I will send you a PM. Thanks.
DeaconBlue is offline
Old 06-19-12, 08:52 AM
  #13
Psalms 37**25

Join Date: Jan 2007
Location: Garnerville N.Y
Posts: 862
Likes: 0
Received 0 Likes on 0 Posts
very nice work!
rotaryB-2000 is offline
