BigAl's FD 20B racecar project
10-31-10, 06:12 PM
#426
Full Member
iTrader: (1)
Join Date: Feb 2007
Location: Lancashire Uk
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
are the e-stop buttons the same as kill switches? if so are they sufficent to pass scrutineering, or do you have to put in a dedicated kill switch as well? I am seriously considering using this system, am very interested how you find it.
10-31-10, 06:18 PM
#427
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
these switches have nothing to do with the rules, I've installed these on my own. I have the required battery switch. these switches are strictly to increase the level of safety, it was an option made possible through the ISIS system. So far I haven't found anything I would change with this system.
BigAl...
11-01-10, 08:33 PM
#429
Juggernaut
Join Date: Jan 2010
Location: Miami, Floor-it-a
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
. come on al,
we all know the REAL hard part will be picking out which stickers to display!
11-02-10, 05:02 PM
#430
Senior Member
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
I seriously think a fellow should wire the entire car, take it all apart and then do it again, taping and doing ties. My car has taught me a great deal of what not to do. One of my early goals was to put the relays where the current was needed, allowing for less big wire in the car. Turns out it is a pain in the a$$. I have four relays, two for fuel pumps in the back of the car (1 for both lift pumps) and one for rad fan and one for ignition in the front. I also did the entire car with breakers, so it was a lot of hand fabbing of the panel. Next car I'm going to lay it all out, get all the wires run, loosely taped and then, when everything is in, start cutting things to length, soldering them in and doing connectors. I'm also seriously thinking about using a pre-built marine breaker panel. I also plan to use a dash unit with the Microtech and use way fewer gauges.
Lately, I plan too much and do too little. Good job doing more.
-Trent
Lately, I plan too much and do too little. Good job doing more.
-Trent
11-07-10, 10:19 AM
#431
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts

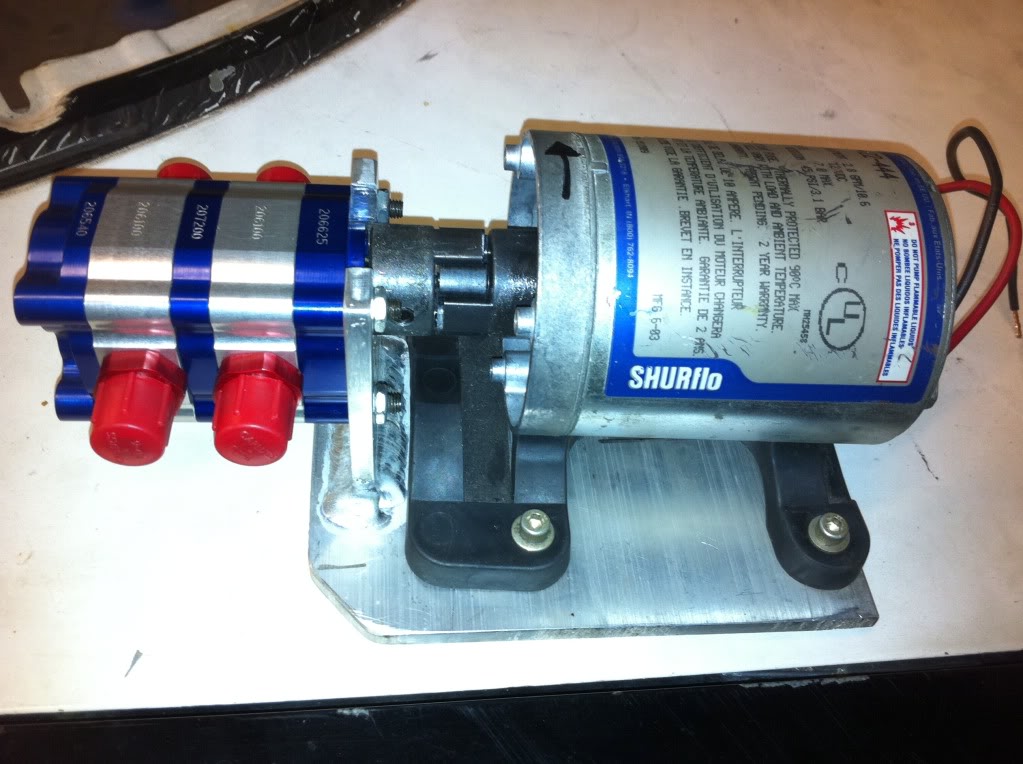

here's my latest addition to the project. it's a two stage pump attached to an electric motor. I saw something similar in a race car and when I called they wanted way to mu$h, so I just made it myself for about half the $. I'll be using it for the tranny and diff fluids. the pump is from raceline pumps and the motor is from a shurflo pump I had laying around, a couple of hours and some aluminum and a little welding later, viola!

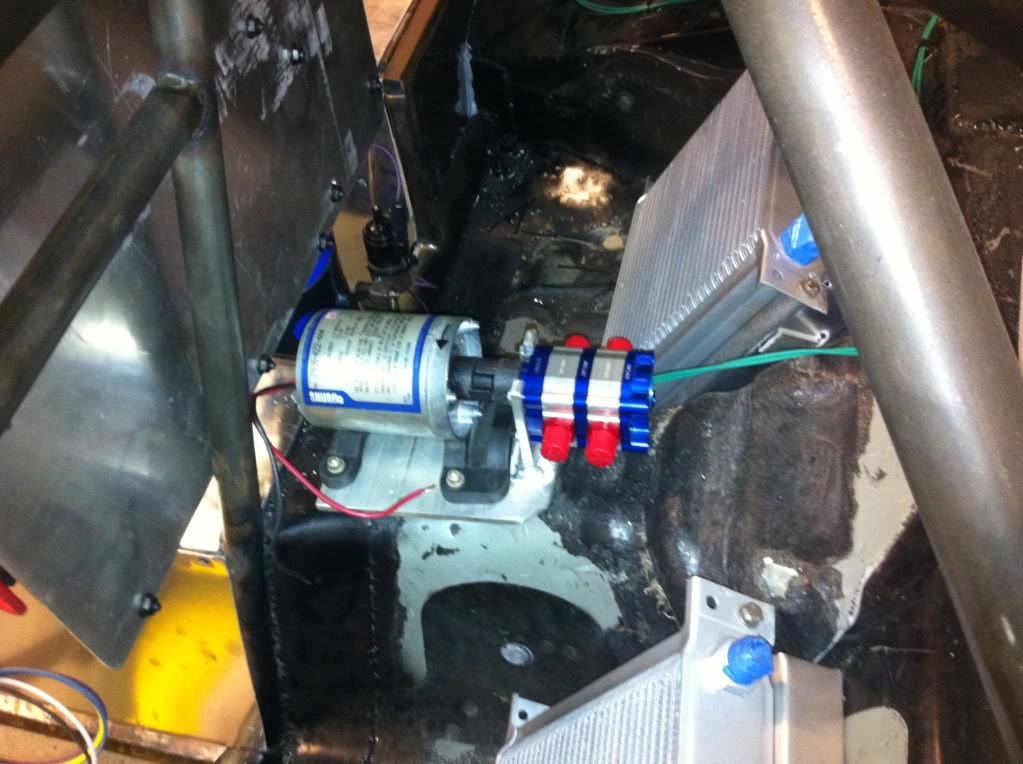

here it is in its new home
next on the list is a heat shield for the headers
BigAl...
here it is in its new home
next on the list is a heat shield for the headers
BigAl...
11-07-10, 02:52 PM
#432
Rotary for LIFE!
Join Date: Jan 2008
Location: Adelaide, South Australia
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
That looks good Al. Did that really work out cheaper than a Tilton diff oil pump? I guess once you buy two pumps, I guess it probably would
Are you going to control the pump based on oil temps? If you are, can ISIS handle that, or will you use the ECU to handle it? I've read that some diff/gearbox oils are too thick for the Tilton pump (as an example) when they're cold, do you think this will be an issue at all with this pump?
Are you going to control the pump based on oil temps? If you are, can ISIS handle that, or will you use the ECU to handle it? I've read that some diff/gearbox oils are too thick for the Tilton pump (as an example) when they're cold, do you think this will be an issue at all with this pump?
11-07-10, 03:39 PM
#433
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
That looks good Al. Did that really work out cheaper than a Tilton diff oil pump? I guess once you buy two pumps, I guess it probably would
Are you going to control the pump based on oil temps? If you are, can ISIS handle that, or will you use the ECU to handle it? I've read that some diff/gearbox oils are too thick for the Tilton pump (as an example) when they're cold, do you think this will be an issue at all with this pump?
Are you going to control the pump based on oil temps? If you are, can ISIS handle that, or will you use the ECU to handle it? I've read that some diff/gearbox oils are too thick for the Tilton pump (as an example) when they're cold, do you think this will be an issue at all with this pump?
BigAl...
11-08-10, 06:41 AM
#434
Rotary for LIFE!
Join Date: Jan 2008
Location: Adelaide, South Australia
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Hmm. Diff oil is generally 75w90 (to pick a common one) but motor oil more like 5w50 (once again, to pick a common one), that says to me the diff/transmission fluid will be more viscous than the engine oil it was designed for - are you sure the motor and pump will handle it OK?
11-08-10, 07:36 AM
#435
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
Hmm. Diff oil is generally 75w90 (to pick a common one) but motor oil more like 5w50 (once again, to pick a common one), that says to me the diff/transmission fluid will be more viscous than the engine oil it was designed for - are you sure the motor and pump will handle it OK?
BigAl...
11-08-10, 04:32 PM
#436
Rotary for LIFE!
Join Date: Jan 2008
Location: Adelaide, South Australia
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
11-11-10, 02:08 PM
#437
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
I got some more work done on the car, we cut some louvers to relieve pressure from the front wheel well.

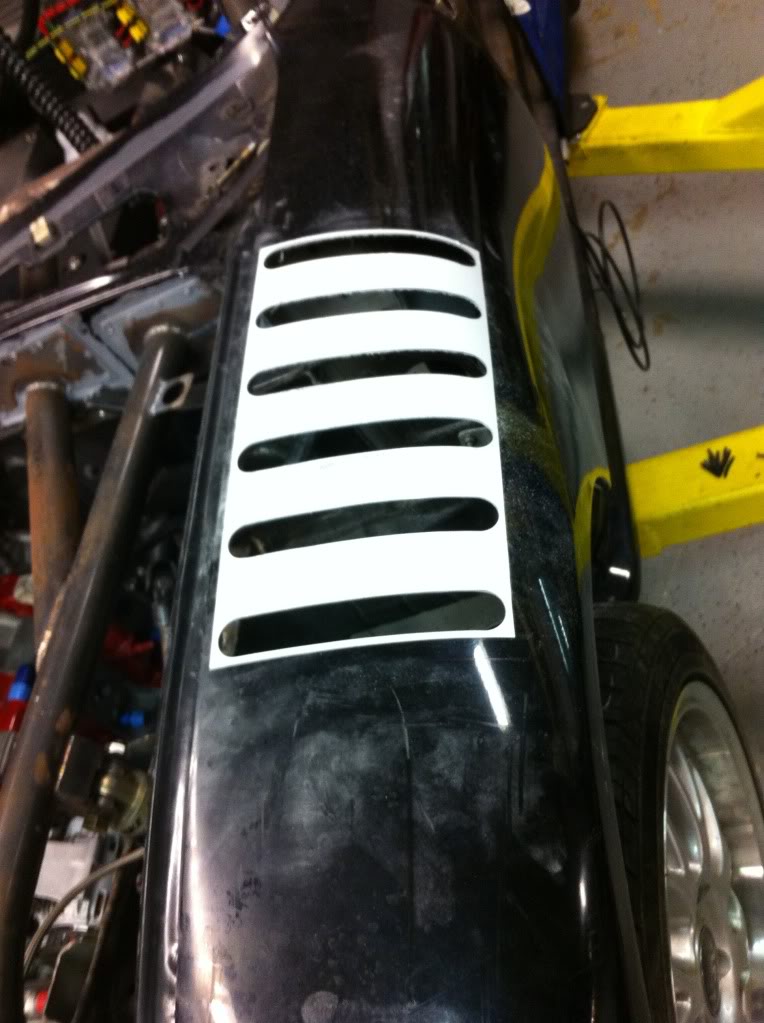

here's the sticker template I had made

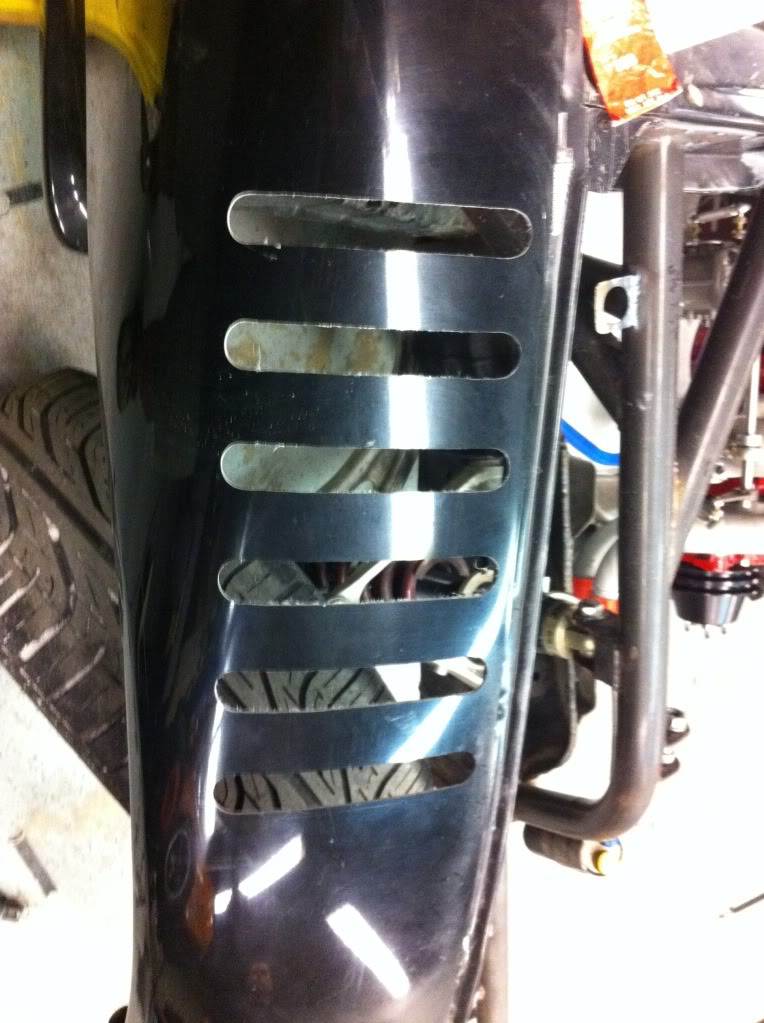

here it is after cutting
here's Rob doing his thing

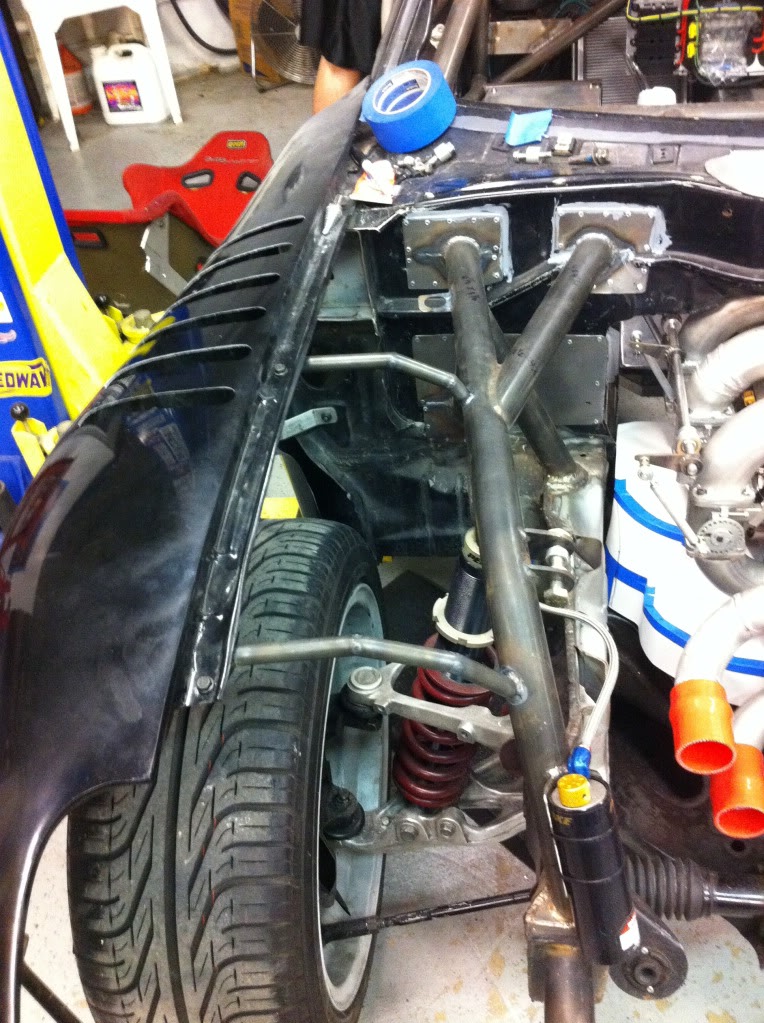

here you can see the stringers I made to hold the fenders, they turned out a LOT sturdier than I expected
The fenders are Shine Auto fiberglass deals.
BigAl...
here's the sticker template I had made
here it is after cutting
here's Rob doing his thing
here you can see the stringers I made to hold the fenders, they turned out a LOT sturdier than I expected
The fenders are Shine Auto fiberglass deals.
BigAl...
11-17-10, 03:35 PM
#439
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
01-23-11, 07:54 PM
#445
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
02-10-11, 11:08 AM
#448
Love your Fabricator!
Thread Starter
Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the kind words guys
BigAl...
02-20-11, 12:37 AM
#450
rx7 killer
OMFG!!! I come back 2yrs from the last time I checked your thread and you were just installing your side exit exhaust, and I went through the thread were i left off and you have made so much progress it's making me want to build a race car as serious as yours....man it's so enjoyable reading your thread I'm so stoked on the outcome...I don't need to say but I am...you're project is 1000000000000000x awesome!!!!! Keep it up BIgAL!!!!
