NJ bad *** 2jz twin turbo rx7 fd build

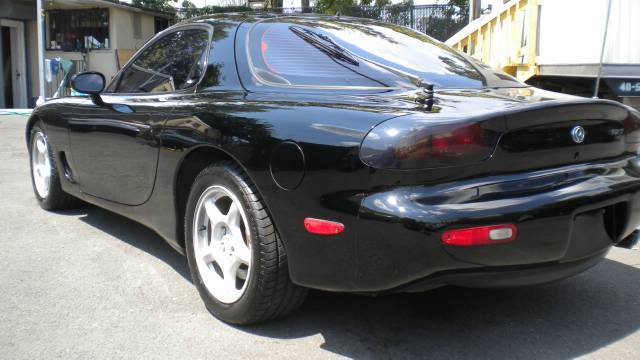

well i just picked up my new project a 93 mazda rx7. the car is completely stock i almost feel bad ripping out the motor but then again i dont lol. well im going to be taking my fully built motor from my sc300 and stuffing it in the place of the weak 1.3L no torque making Wankel motor. well here are pics of the car.
Name:  titorex6.jpg
Views: 1379
Size:  32.6 KB
Name:  titorex2.jpg
Views: 1281
Size:  38.8 KB
Name:  titorex2.jpg
Views: 1281
Size:  38.8 KB
Name:  titorex5.jpg
Views: 1119
Size:  44.8 KB
Name:  1283261614.jpg
Views: 1238
Size:  77.1 KB
Name:  1283261636.jpg
Views: 1198
Size:  67.8 KB
Attached Images
File Type: jpg
turbotito121079 is offline
Old 01-18-11, 08:11 PM
  #2
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Ok I have some updates and pics so here is a list. I got my wheels and brakes powder coated the wheels are two tone black and the clipers are red. I installed all black jnterior just need carpet and floor mats. I also had my friend Danny rewrap the seats with new red covers to make the car pop inside. I installed the tech2 sub frame that I will be doing a mod so the hood clears. I installed my built motor with custom 9.5:1 cp pistons with lataral gas ports and upgrade pins swinging on some carrillo HD rods with carr bolts. The block has arp hardware and callico bearings block was lined honed as well. The block was but by lee at the lad in long island Brian refferd me to him. I also installed mu fully built head that was porter by me. It has all the goddies 1mm oversize valves dual valve springs and retainers 5 angle valve job and valve guilds everything from fearra. The head is sandwiched with a cometic 1.4mm h/ and arp head studs. I also took my r154 to get rebuilt and upgrade with all the upgrades that driftmoton had. The thirst washer, 1st 2nd billet fork, the bearing case plate, both shifter bushings and all bearings and syncros
Name:  404d5316.jpg
Views: 855
Size:  66.1 KB
Name:  33c13a3e.jpg
Views: 929
Size:  69.2 KB
Name:  089e3c7e.jpg
Views: 835
Size:  81.8 KB
Name:  4ebd85cc.jpg
Views: 820
Size:  37.6 KB

Name:  64bf7df2.jpg
Views: 840
Size:  102.3 KB
Name:  f0e1c590.jpg
Views: 825
Size:  91.1 KB
Name:  faa03a79.jpg
Views: 844
Size:  74.0 KB
Name:  0af030f4.jpg
Views: 842
Size:  93.2 KB
Name:  81900117.jpg
Views: 849
Size:  94.7 KB
Name:  3cb5891c.jpg
Views: 832
Size:  56.3 KB
Name:  cebc5839.jpg
Views: 853
Size:  91.1 KB
turbotito121079 is offline
Old 01-18-11, 08:12 PM
  #3
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Name:  59aefb1b.jpg
Views: 858
Size:  80.0 KB
Name:  9eab46b2.jpg
Views: 1708
Size:  97.8 KB
im going to use my scoot hood im going to modify my sub frame a little bit. i love my hood way to much to put that tech2 hood. im going to make custom soild mounts and drop the rack about a inch give or take and get the hinson super cars bump steer kit they are adjustable.

here are pics of my 1jz flywheel act 6 puck and xtream pp with are flywheel bolts i just installed today.
Name:  1288310234.jpg
Views: 831
Size:  73.6 KB
here the precision intercooler on the car.
Name:  1288571515.jpg
Views: 834
Size:  48.6 KB
turbotito121079 is offline
Old 01-18-11, 08:13 PM
  #4
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
here are some new pics
my custom radiator support i made
Name:  1288657610.jpg
Views: 840
Size:  109.1 KB
a little more more work done to the motor a/c and power steering got put on today. first time i ever use them.
and last i finaly got my d2 coilovers thy are really light i was surprised. they are 32 way adjustable i had them on my sc300 and were great so i decided to get them again.
Name:  1288657908.jpg
Views: 836
Size:  53.0 KB

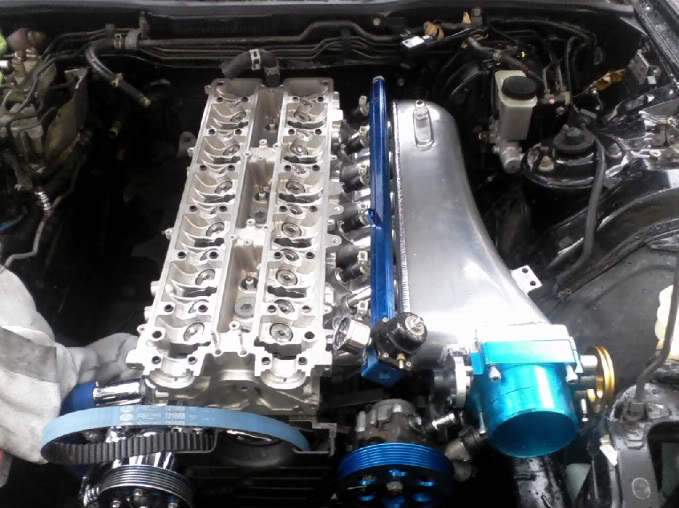

modified my intake manifold to fit the rx7.
Name:  1289240069.jpg
Views: 1507
Size:  80.1 KB
ok here are few more pics
just a picture of my motor so far where i am
Name:  1289240069.jpg
Views: 1507
Size:  80.1 KB
here is a pic with hks twin manifolds that got me thinking about going twin turbo
Name:  1289779555.jpg
Views: 858
Size:  66.0 KB
here is a picture with my hood closed without that ugly tech2 hood.
Name:  1289779575.jpg
Views: 916
Size:  83.0 KB
here is the radiator that i am getting ready to mod
Name:  1289779478.jpg
Views: 867
Size:  57.4 KB
modding my power steering pump for fitting welded on hole shut and welded a -6an on the other so i can run braided lines for a nice looking setup
Name:  1289779633.jpg
Views: 873
Size:  35.3 KB
here are some new pics of the radiator done.
Name:  1290562705.jpg
Views: 827
Size:  39.6 KB
Name:  1290562821.jpg
Views: 819
Size:  56.3 KB
here is an updated picture
Name:  1294349653.jpg
Views: 892
Size:  78.8 KB
update pic with turbos just ordered the parts to make my downpipes
Name:  1294951902.jpg
Views: 5620
Size:  71.3 KB
Attached Images
File Type: jpg
turbotito121079 is offline
Old 01-18-11, 08:14 PM
  #5
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Name:  1294951901.jpg
Views: 1347
Size:  69.4 KB
Name:  1294951899.jpg
Views: 1925
Size:  74.0 KB
Name:  1294951896.jpg
Views: 934
Size:  60.7 KB
i took all the pics form my supraforums thread and copy and past on here because they band me over there for trying to sell a turbo manifold that i made. if it was a ebay crap manifold there would had been no problems. anyway im waiting for some more parts to come in.
turbotito121079 is offline
Old 01-18-11, 09:12 PM
  #6
compression ignition
5 Year Member

12arotary.'s Avatar

Join Date: Feb 2007
Location: Cincinnati Ohio
Posts: 178
Likes: 0
Liked 0 Times in 0 Posts
^^rough forum
12arotary. is offline
Old 01-18-11, 10:27 PM
  #7
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts
Do you have any pictures of what you might have done to the subframe to get the hood to close?

I'm a good bit into my swap, and noticed you had the Tech2 subframe with a scoot style hood closing.

Seems you would need at least 1.5" shim to bring the engine down to do this.
MK3Brent is offline
Old 01-19-11, 09:49 AM
  #8
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 12arotary. View Post
^^rough forum
yea im working on resizing the pictures thats why some are small and some are big
turbotito121079 is offline
Old 01-19-11, 09:52 PM
  #9
Senior Member
5 Year Member
iTrader: (13)

Toyotarx7's Avatar

Join Date: May 2007
Location: New jersey
Posts: 681
Likes: 0
Liked 0 Times in 0 Posts
where in NJ are u?
Toyotarx7 is offline
Old 01-20-11, 12:21 AM
  #10
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
bergen county
turbotito121079 is offline
Old 01-20-11, 11:07 AM
  #11
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
my powder coating was done by billy he is a really cool dude man. his number is 201-889-1873 he also has a good turn around time.
turbotito121079 is offline
Old 01-23-11, 02:04 AM
  #12
FD + 2JZGTE = WIN! **D
iTrader: (19)

YoshiFD3S's Avatar

Join Date: Mar 2004
Location: King George, VA USA
Posts: 1,670
Likes: 0
Liked 0 Times in 0 Posts
Dang.

I'm jealous.

That looks way more B.A. than my 2JZ swap...not gonna lie. ^.^
YoshiFD3S is offline
Old 01-26-11, 09:36 AM
  #13
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by YoshiFC3S View Post
Dang.

I'm jealous.

That looks way more B.A. than my 2JZ swap...not gonna lie. ^.^
thanks i believe i have the second ever twin turbo rx7 fd. around right now. im second to the original supra7 that SP engineering did. but first with 2jz twin turbo scoot hood lol. i just welded up my downpipes. they are 2.5 inch each going in to a y-pipe that i made and hooks up to a 4in electric exhaust cutout. i also had to make a hole in each manifold so i can run external waste gates. im run 2 tial 38mm mbs gates. the new style is so much smaller.
turbotito121079 is offline
Old 01-27-11, 01:08 AM
  #14
FD + 2JZGTE = WIN! **D
iTrader: (19)

YoshiFD3S's Avatar

Join Date: Mar 2004
Location: King George, VA USA
Posts: 1,670
Likes: 0
Liked 0 Times in 0 Posts
The engine bay definitely looks clean in the pics...but I have to say that the 90-degree elbows concern me in regards to air flow..

Sharp bends like that, especially in a coupler, are never really good.

Maybe you could re-do your intercooler piping a little? Just a recommendation..
YoshiFD3S is offline
Old 01-27-11, 01:26 AM
  #15
Registered User
iTrader: (4)

Join Date: Nov 2010
Location: New Jersey
Posts: 466
Likes: 0
Liked 0 Times in 0 Posts
Impressive.

Nice to see more 2jz FD's pop up in NJ, especially Bergen county.
Polak Graphics is offline
Old 01-27-11, 07:17 AM
  #16
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts
Originally Posted by YoshiFC3S View Post
The engine bay definitely looks clean in the pics...but I have to say that the 90-degree elbows concern me in regards to air flow..

Sharp bends like that, especially in a coupler, are never really good.

Maybe you could re-do your intercooler piping a little? Just a recommendation..
Kinda like the welds inside your intake manifold?

I'm just pickin'
MK3Brent is offline
Old 01-27-11, 07:55 AM
  #17
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by YoshiFC3S View Post
The engine bay definitely looks clean in the pics...but I have to say that the 90-degree elbows concern me in regards to air flow..

Sharp bends like that, especially in a coupler, are never really good.

Maybe you could re-do your intercooler piping a little? Just a recommendation..
if you noticed when the air comes up its ot hitting a flat surface on the coupler. the coupler is rounded so when the air makes its way up it has a smooth curve to flow threw.
turbotito121079 is offline
Old 01-27-11, 07:57 AM
  #18
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by MK3Brent View Post
Kinda like the welds inside your intake manifold?

I'm just pickin'
^^^ lmao and by the way no i did take picture of what i did to make the hood close.
turbotito121079 is offline
Old 01-27-11, 08:40 AM
  #19
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts
For what it's worth, I've done a flow calculation on varying geometry which includes angles.

You may be surprised that the changing ID from source to termination causes more non laminar areas than direction changing while in a pressurized state.
MK3Brent is offline
Old 01-27-11, 09:58 AM
  #20
Classy
10 Year Member
iTrader: (17)

evot23's Avatar

Join Date: Feb 2001
Location: Gainesville, FL
Posts: 6,900
Likes: 0
Liked 0 Times in 0 Posts
nice looking swap!
evot23 is offline
Old 01-27-11, 10:59 AM
  #21
FEED me
iTrader: (26)

TRISPEEDFD3S's Avatar

Join Date: Jan 2004
Location: Bay Area, CA
Posts: 2,787
Likes: 0
Liked 0 Times in 0 Posts
Nice I can't wait to see the finished product
TRISPEEDFD3S is offline
Old 01-27-11, 01:27 PM
  #22
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts

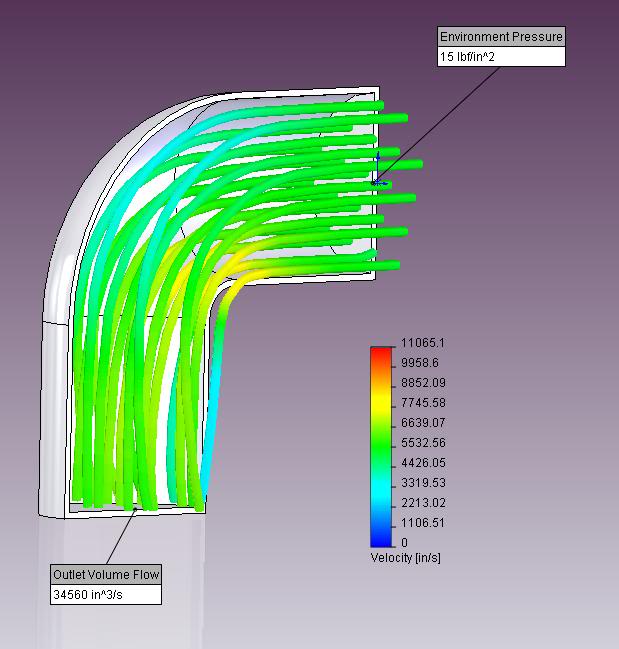

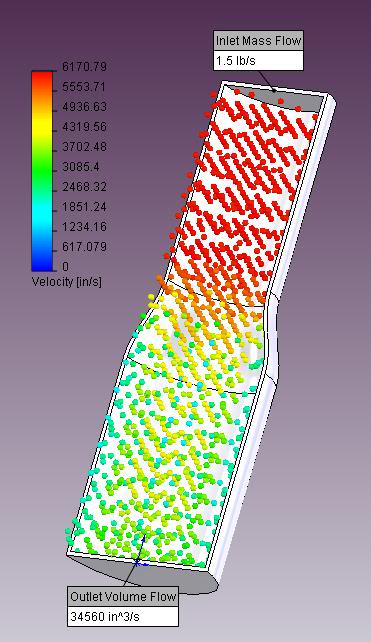

Here is a quick calculation based on difference in geometry.

Note the velocity change:

Name:  FLOW_4_to_3inch.jpg
Views: 845
Size:  51.5 KBName:  3inch_90degree.jpg
Views: 834
Size:  48.8 KB
MK3Brent is offline
Old 01-27-11, 03:14 PM
  #23
Don't worry, Be happy

ssonsk's Avatar

Join Date: Sep 2010
Location: where the fish fly and the birds swim, (Ga)
Posts: 166
Likes: 0
Liked 0 Times in 0 Posts
gah that's a clean 2jz D:

how much hp you think you're going to be making?
ssonsk is offline
Old 01-27-11, 10:25 PM
  #24
Full Member
5 Year Member
Thread Starter

Join Date: Oct 2004
Location: nj
Posts: 99
Likes: 0
Liked 0 Times in 0 Posts
im looking for just 700rwhp im not going for crazy numbers in this little *** car lol.
turbotito121079 is offline
Old 01-28-11, 06:52 AM
  #25
PURIST
10 Year Member
iTrader: (42)

Join Date: Feb 2004
Location: Bel Air, MD
Posts: 3,166
Likes: 0
Liked 0 Times in 0 Posts
Have you been building this thing outside in the snow?

-Austin
turbodrx7 is offline

Thread Tools
Search this Thread
Quick Reply: bad ass 2jz twin turbo rx7 fd build


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
