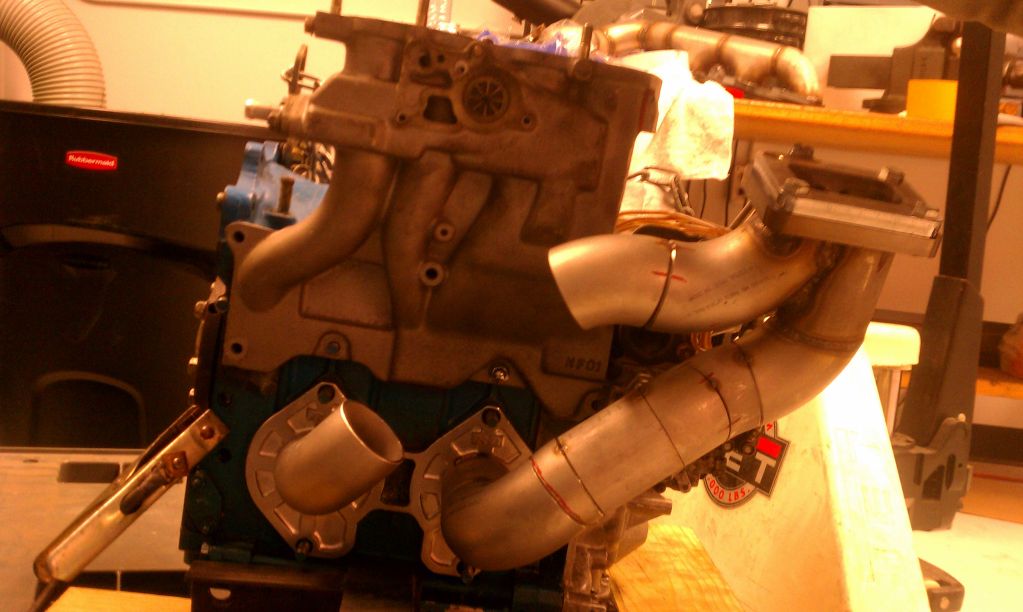

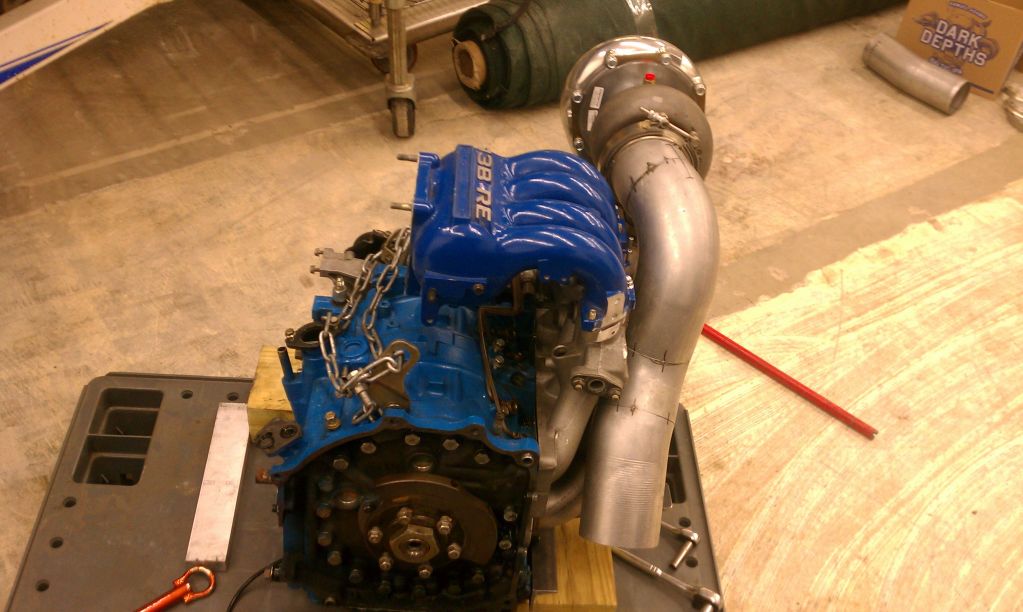

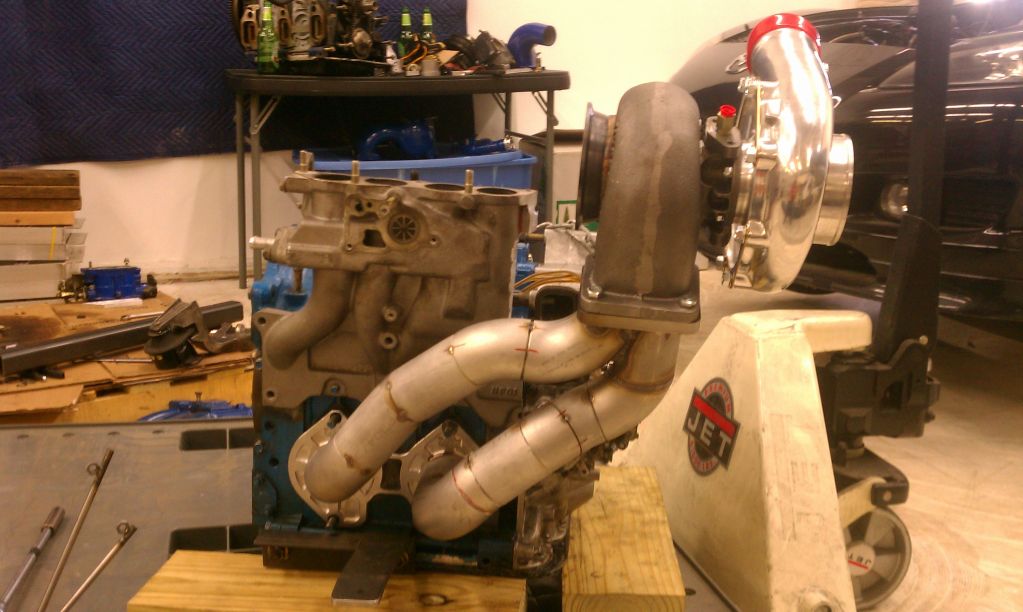

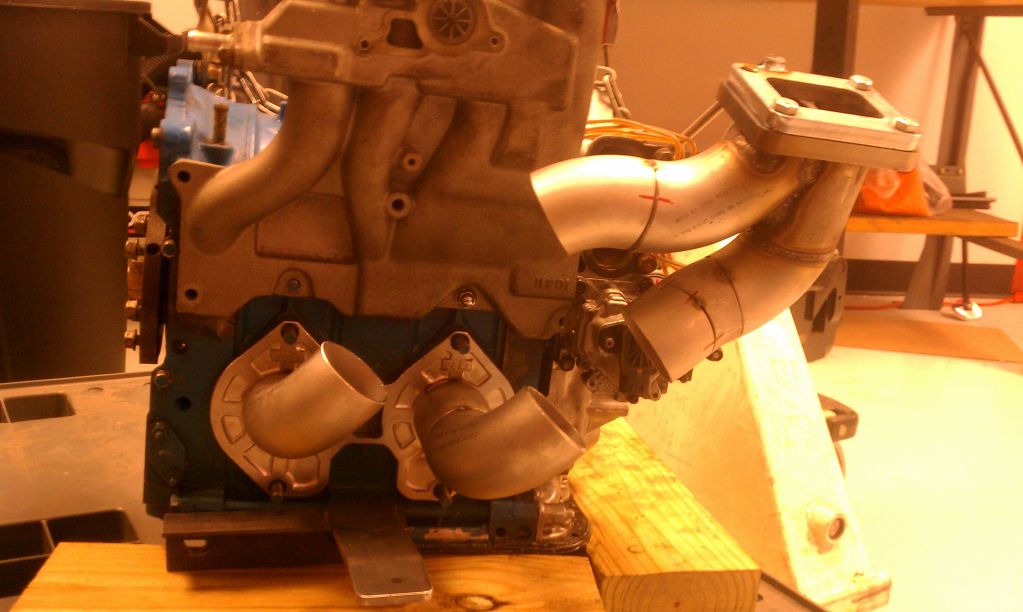

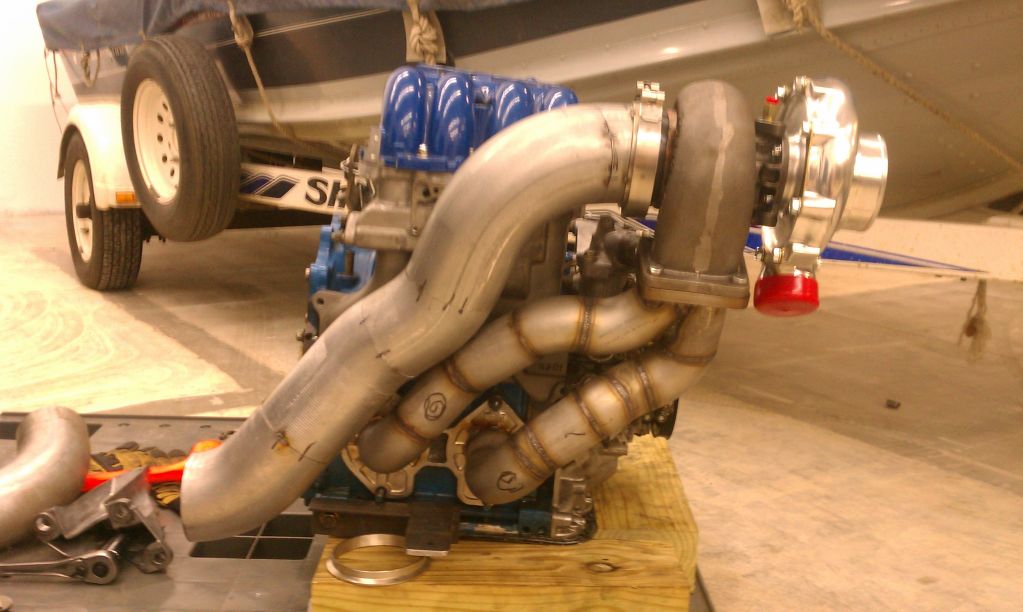

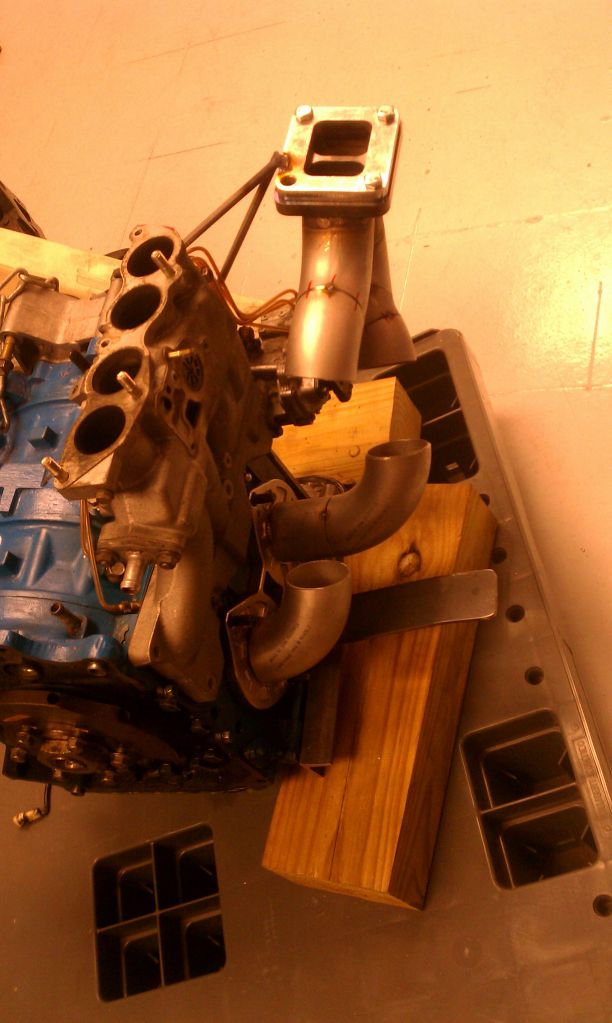

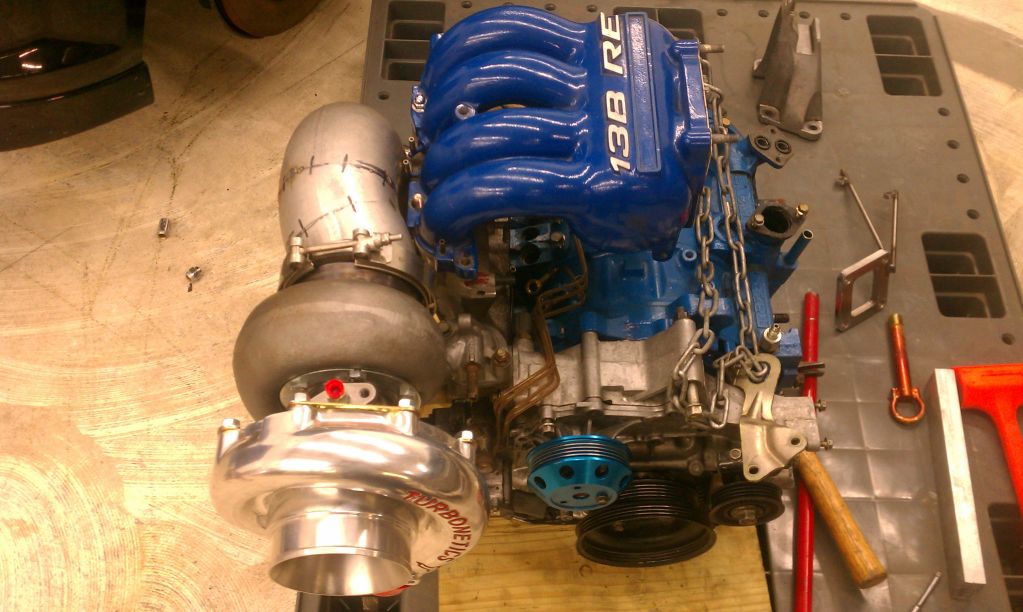

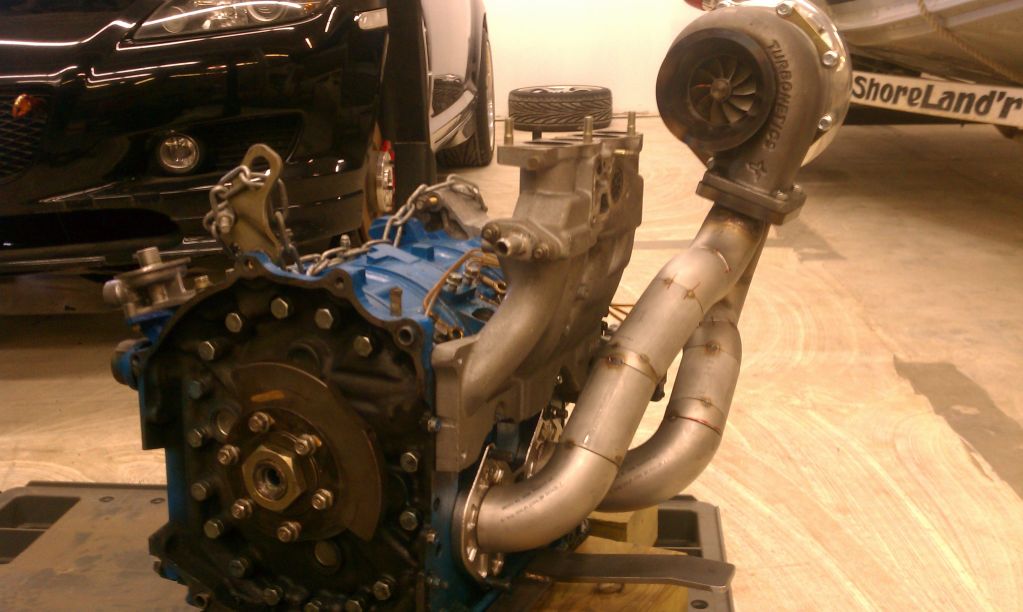

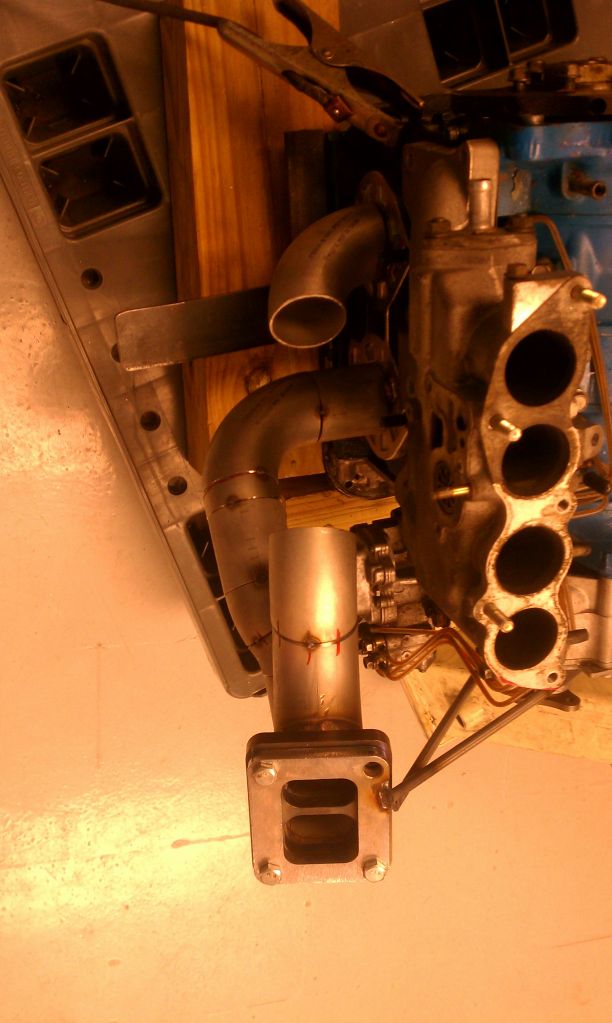

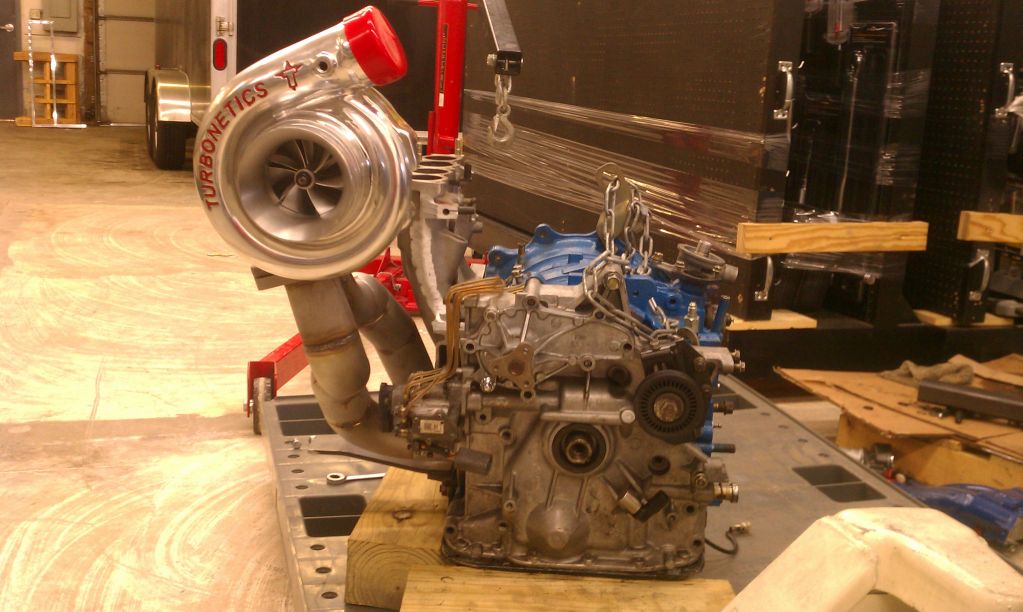

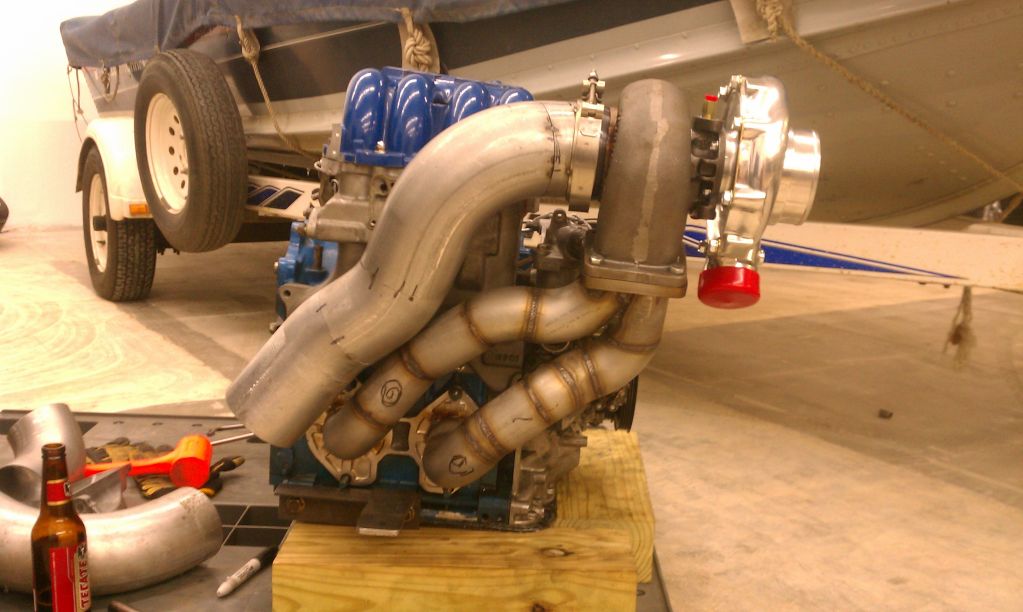

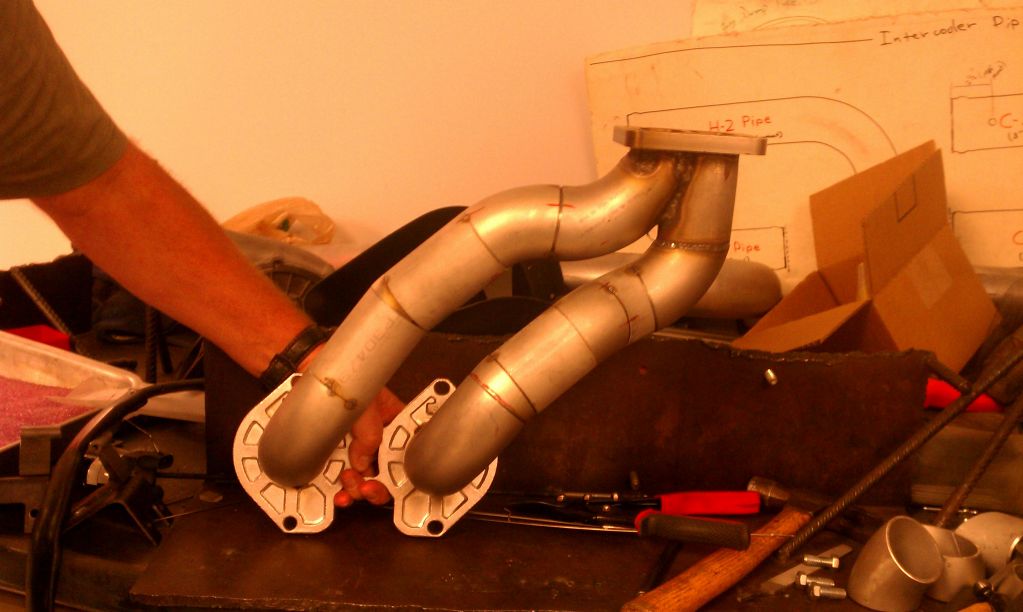

Finished tacking the manifold together and threw it on the engine with the turbo just to see it...now I will drop the engine back in the car and make sure everything fits properly before I weld all the seams together...pics speak for words

Cheers.

Chris

1973rx3

Extremely nice! Excellent work!!!

ChrisRX8PR

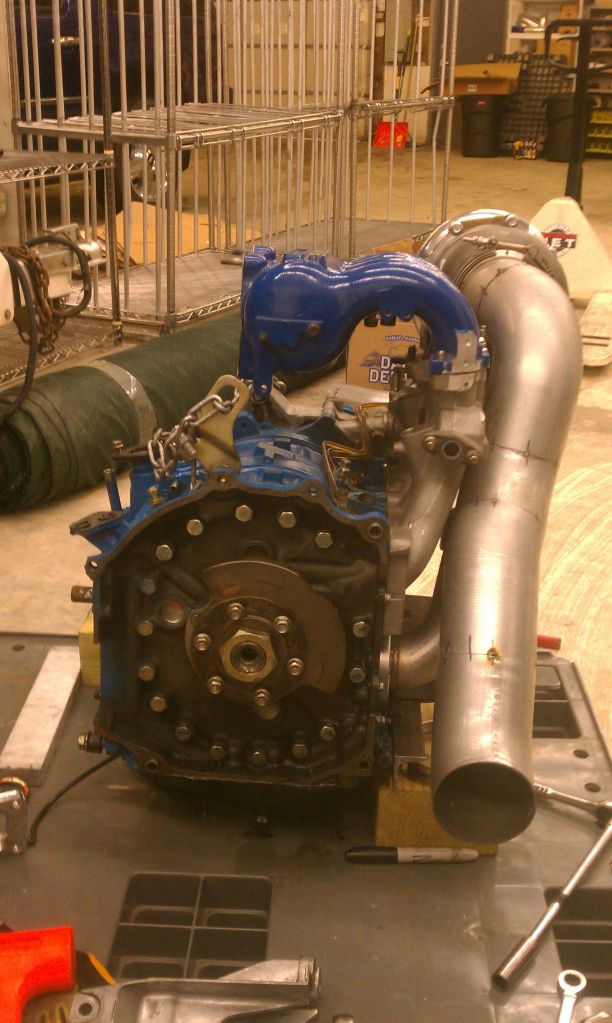

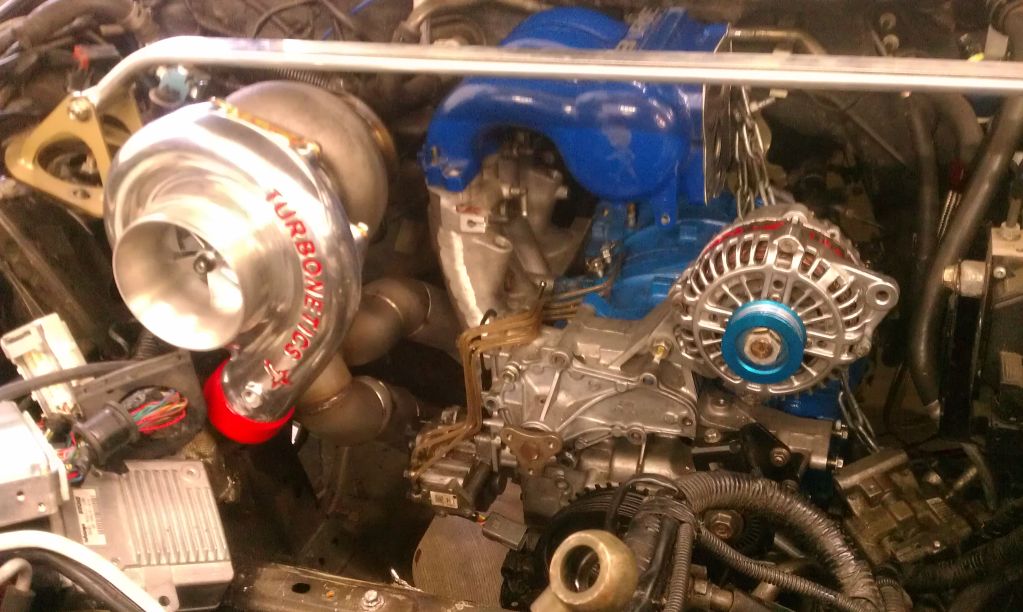

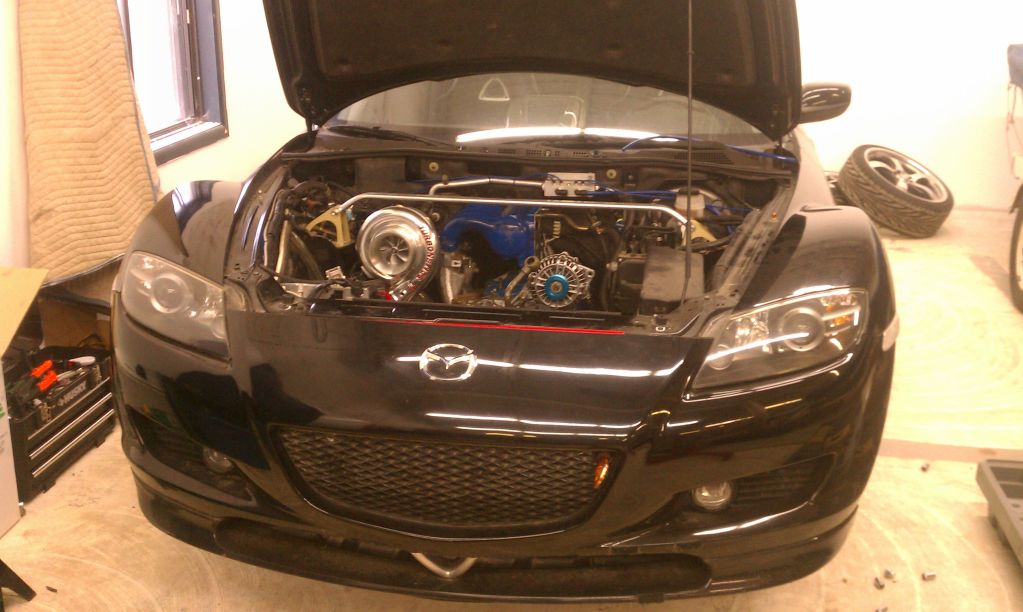

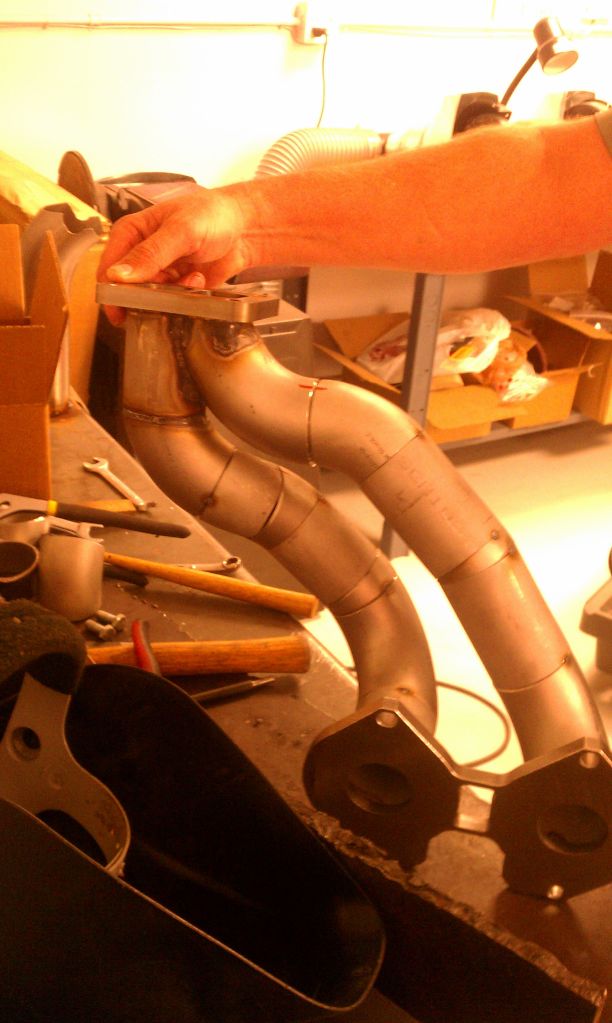

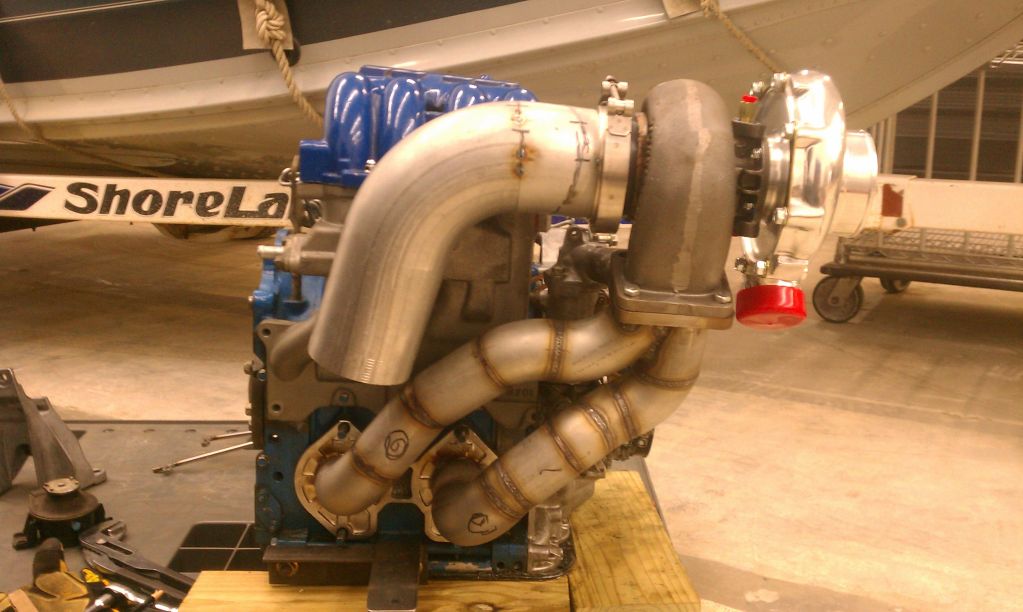

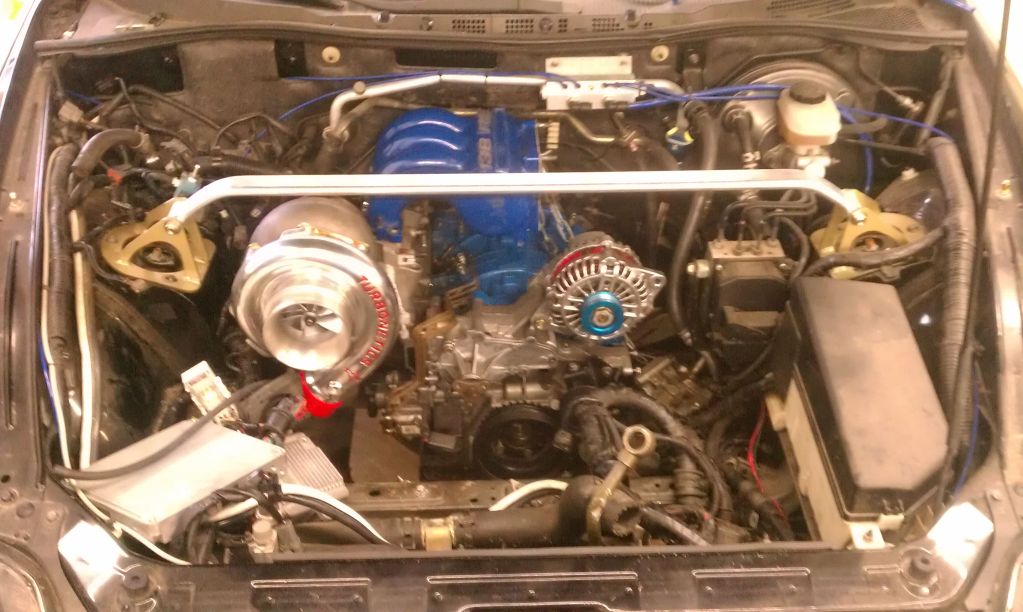

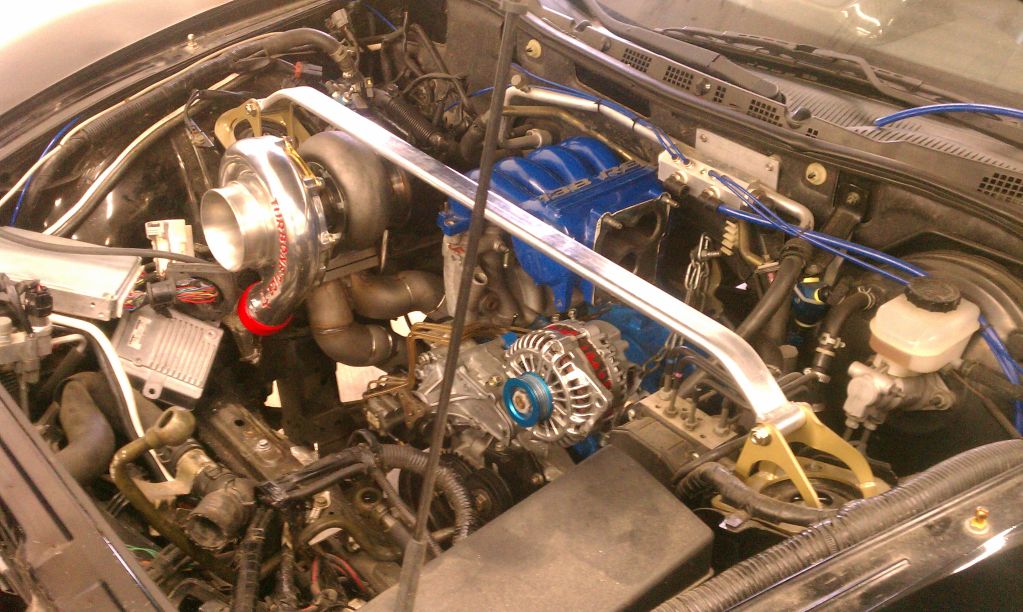

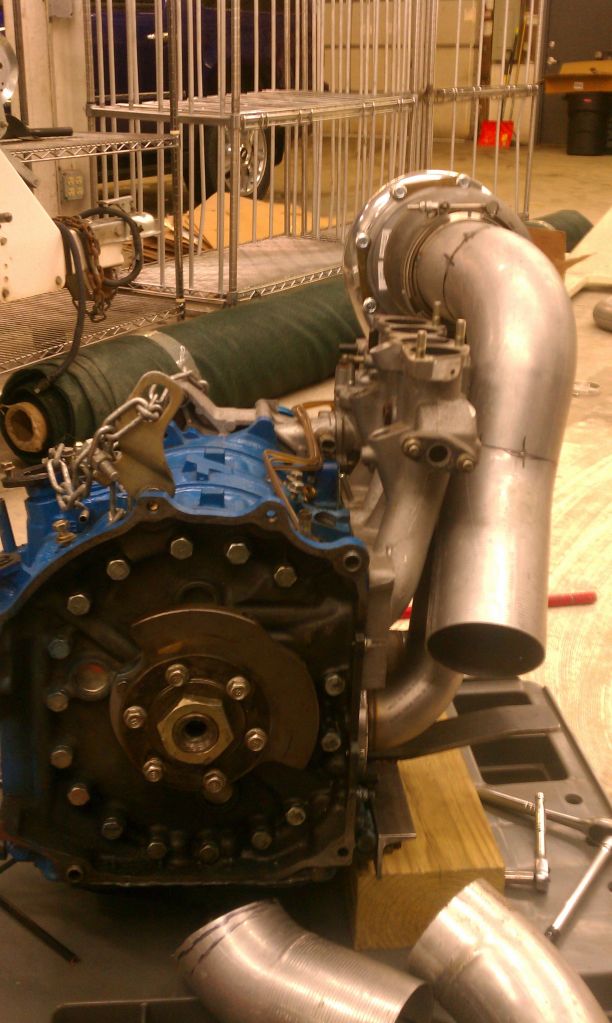

Got the engine in the car again to check manifold fitment, clears everything perfectly. The Downpipe area is tight for 4"...might need to cut or hammer a lip in the engine bay to get it through. Now just need to pull things out again and weld the manifold shut.

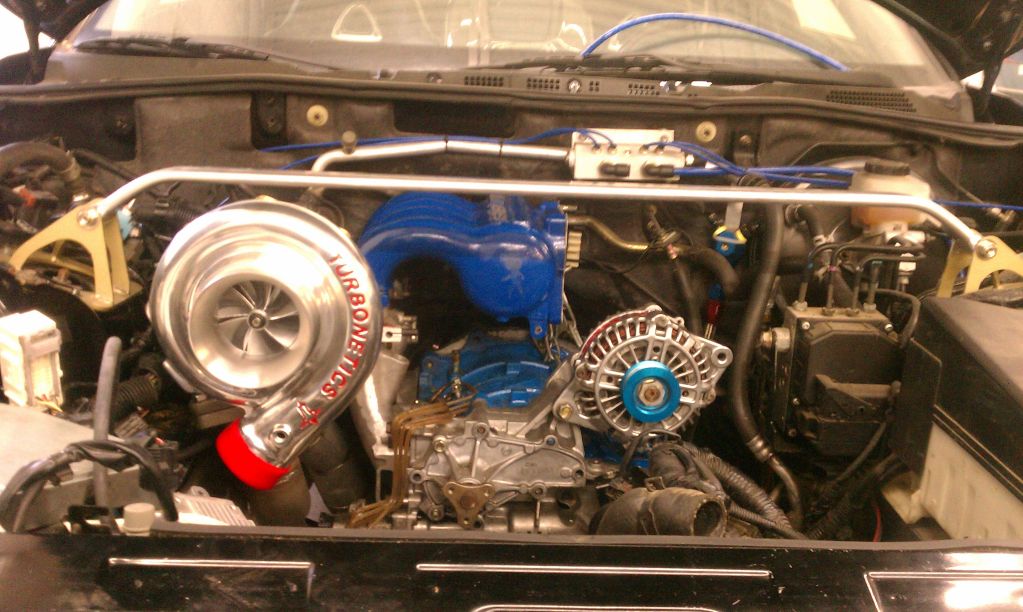

On another note, I placed the Alternator as in the pictures and realized I could make a rod so that its mounted like that instead of the other way...only thing I will have to do is make a tensioner wheel so the belt clears the base for the A/C tensioner.

Cheers

Chris

p.s. started to get excited when I saw the turbo in there...lol

cfamilyfix

iTrader: (15)

Sweet!!!

ChrisRX8PR

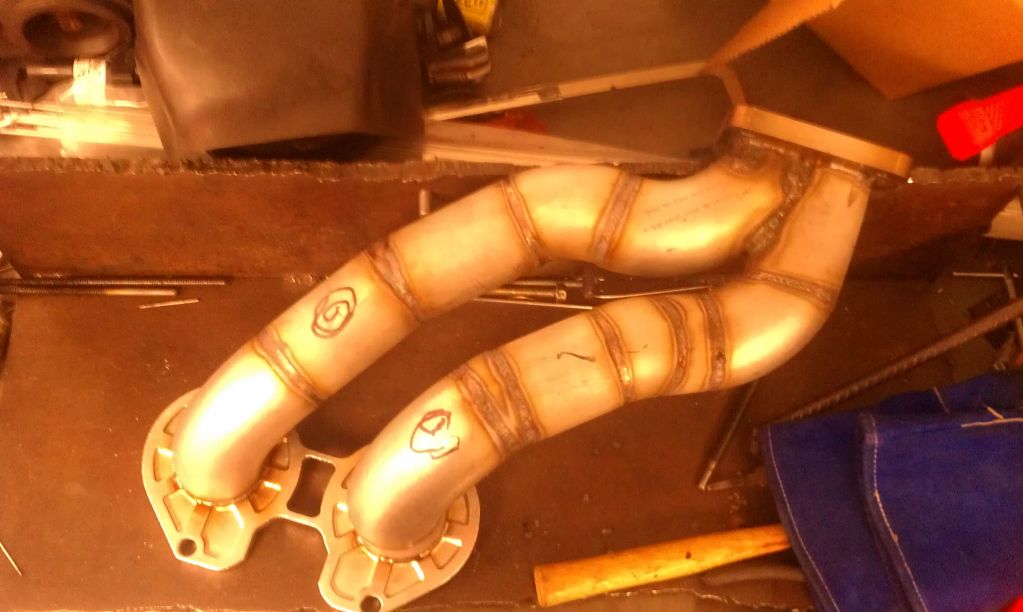

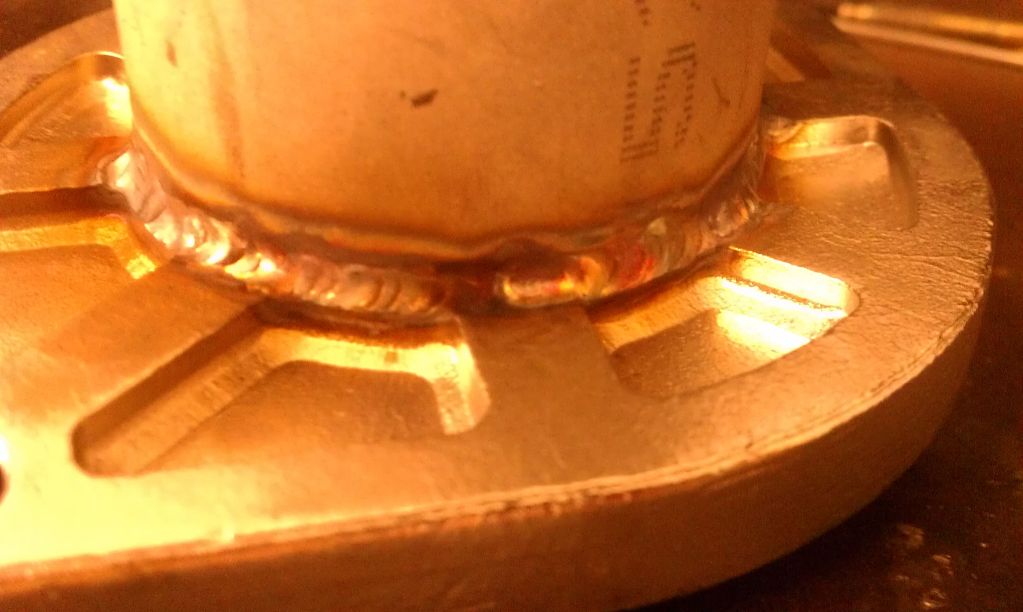

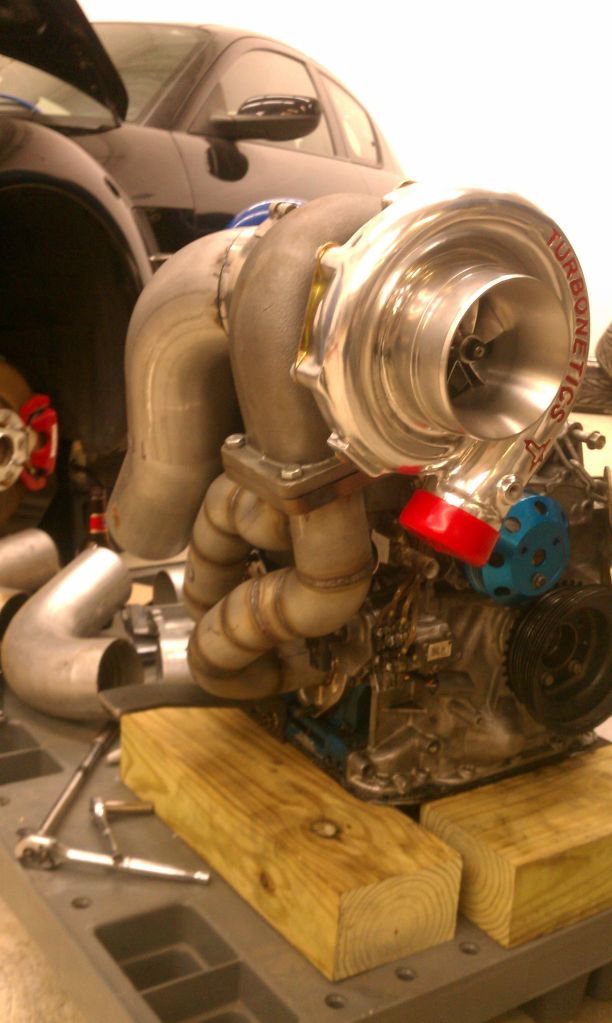

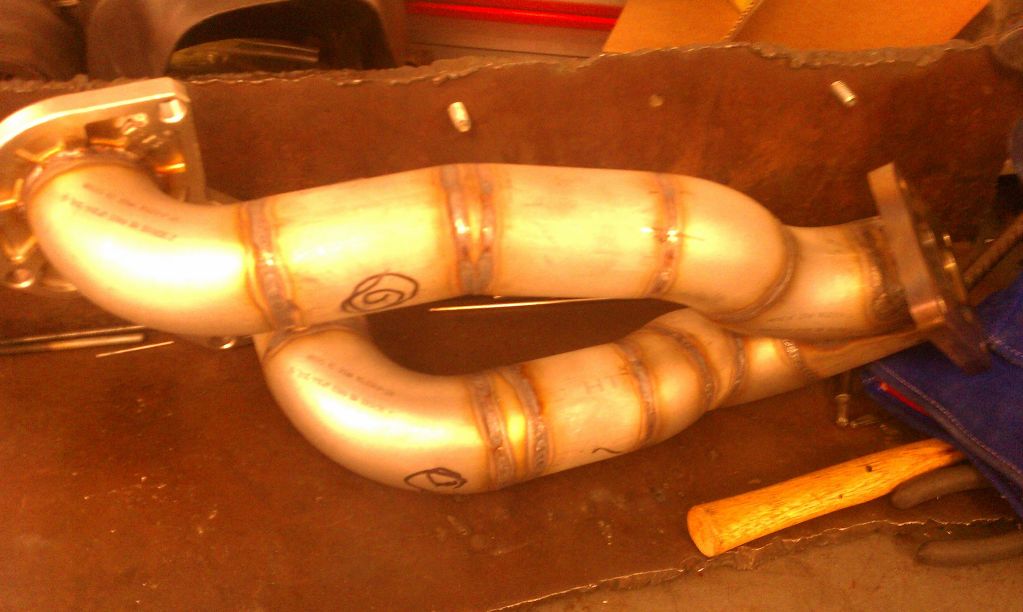

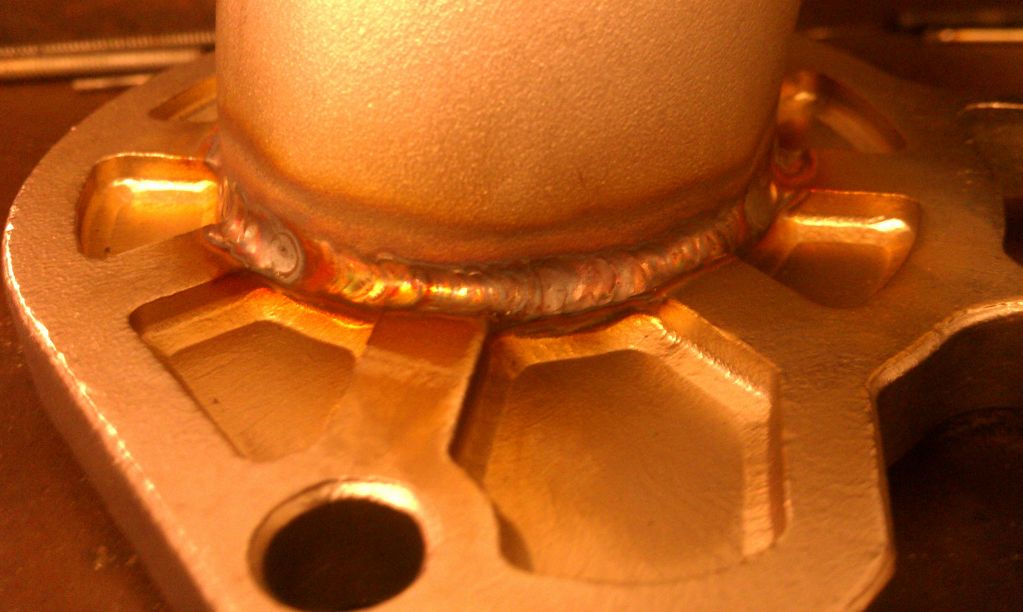

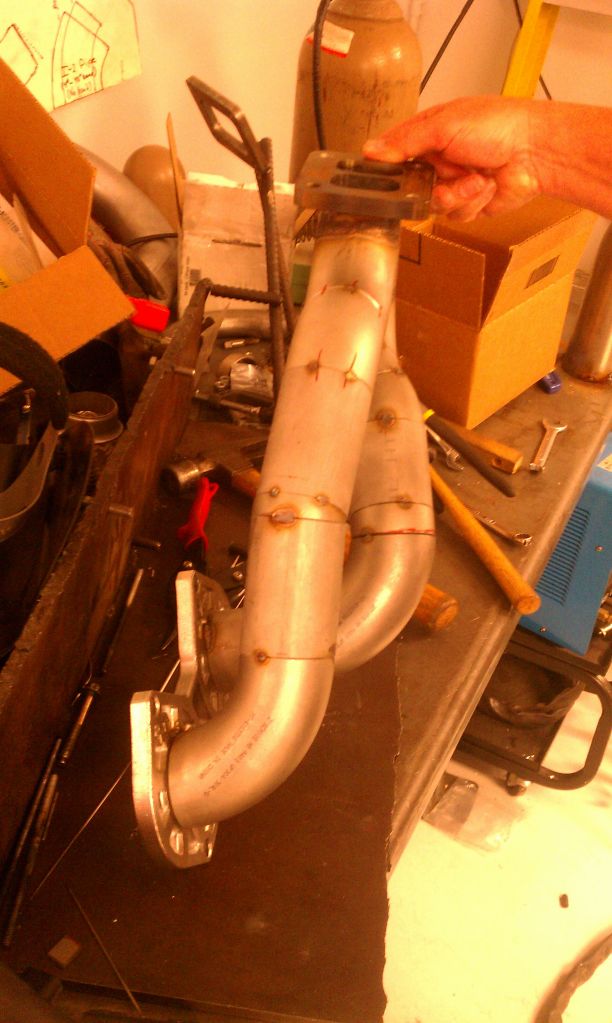

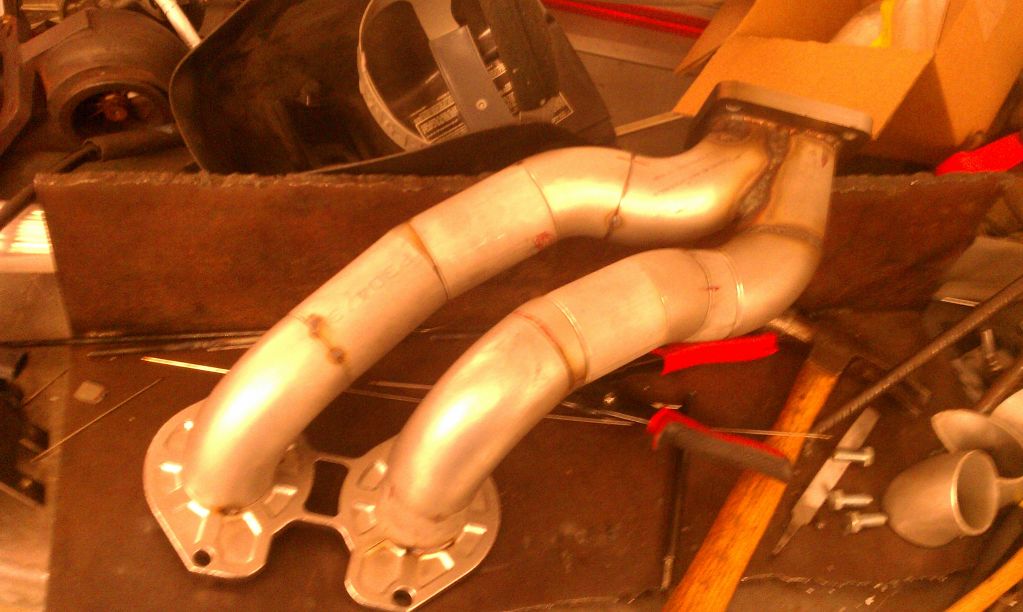

Sewed her up!

Now just to open up two holes for the wastegates and done deal!

Cheers!

Roen

iTrader: (2)

Which specific standalone ECU if you would be so kind?

ChrisRX8PR

The goal is to end up using a Haltech Sprint RE but I might start with one of the Microtechs I have around here just to get it up and running before spending on the Haltech.

Chris

John Huijben

iTrader: (1)

Exhaust looks pretty good. I assume you took some 90 degree premade bends and cut them to size? How did you cut them? Grinder? I'm currently also fabricating a header, but it's tricky getting the bends cut precicely right. I'm using a much thinner gauge as you so I'll need to get the gaps as small as possible if I want to get it welded nicely.

ChrisRX8PR

I used 2" Schedule 10 304 SS pipe both straight and 90Deg bends. I cut everything using an industrial bandsaw I have at the shop for cutting Solid Bar to be used in the CNC machines. If you are using thinner gauge I would recommend cutting things a bit longer (approx 1/8") and then sanding them to fit with a large band sander...I couldn't do that because of the thicker gauge.

Cheers!

Chris

ChrisRX8PR

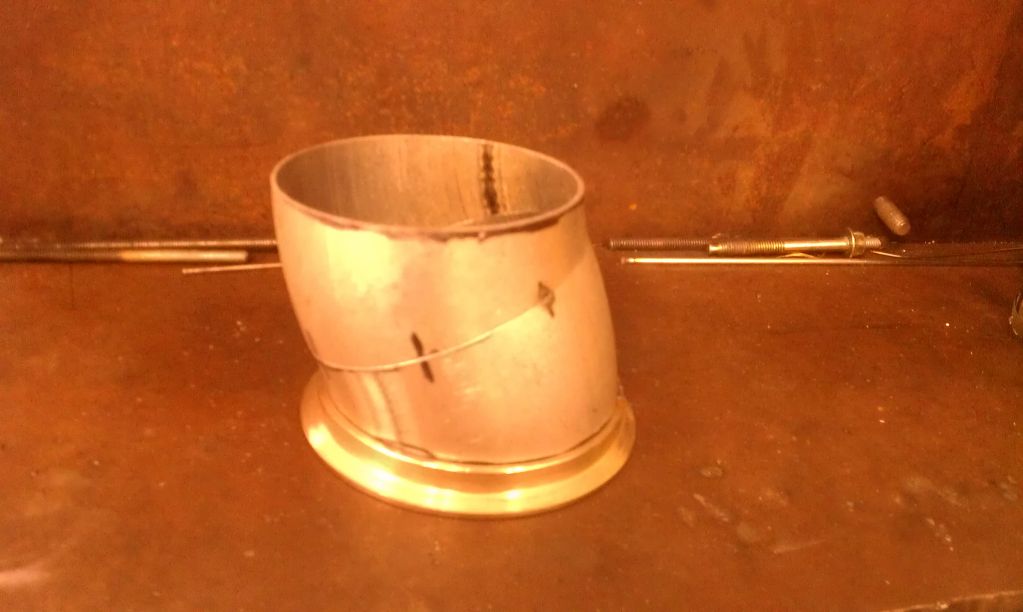

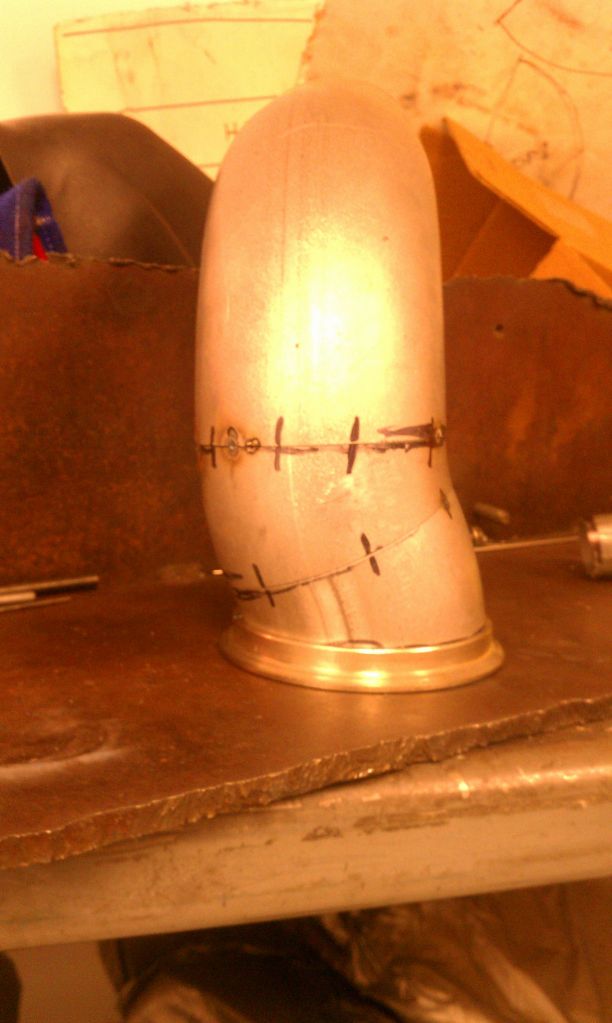

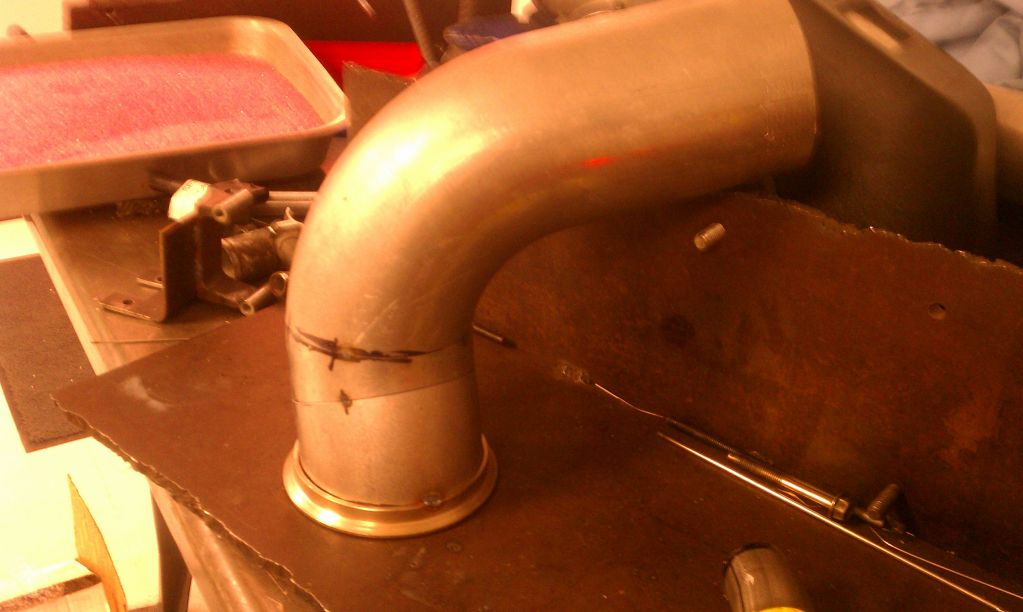

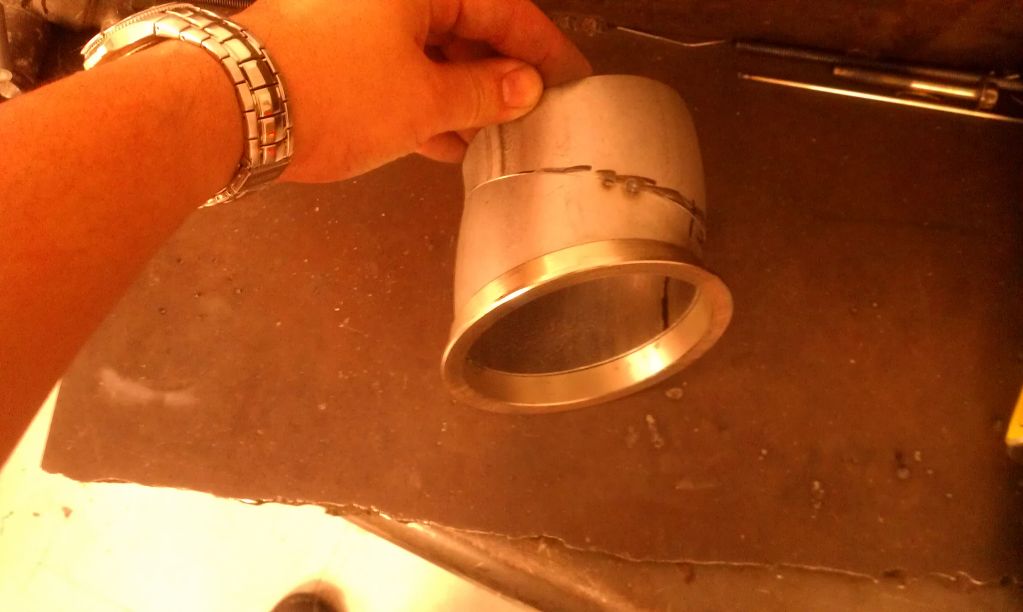

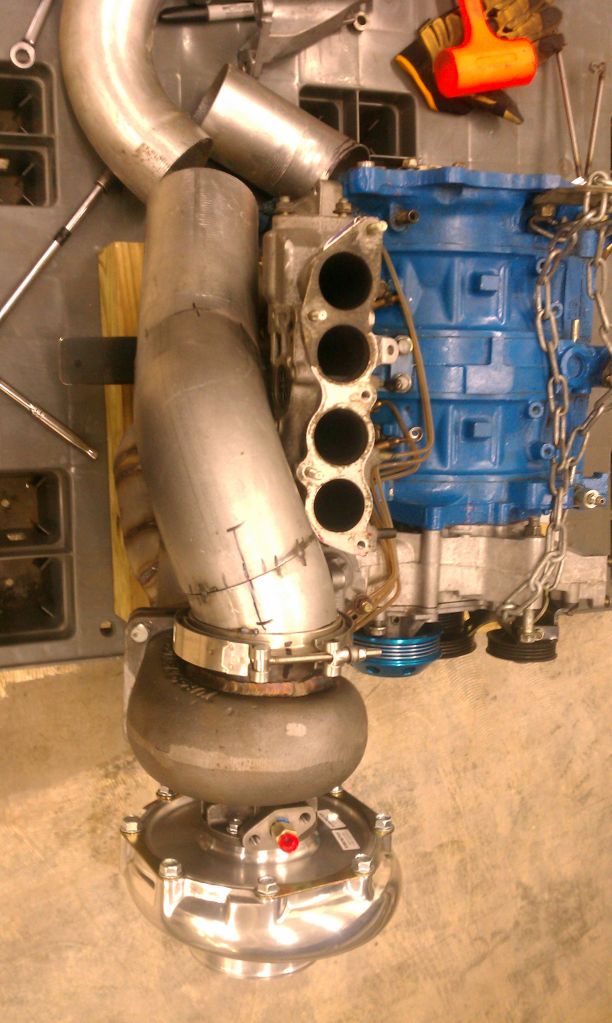

Started working on the down pipe after receiving the 4" v-Bands...

Cheers

ChrisRX8PR

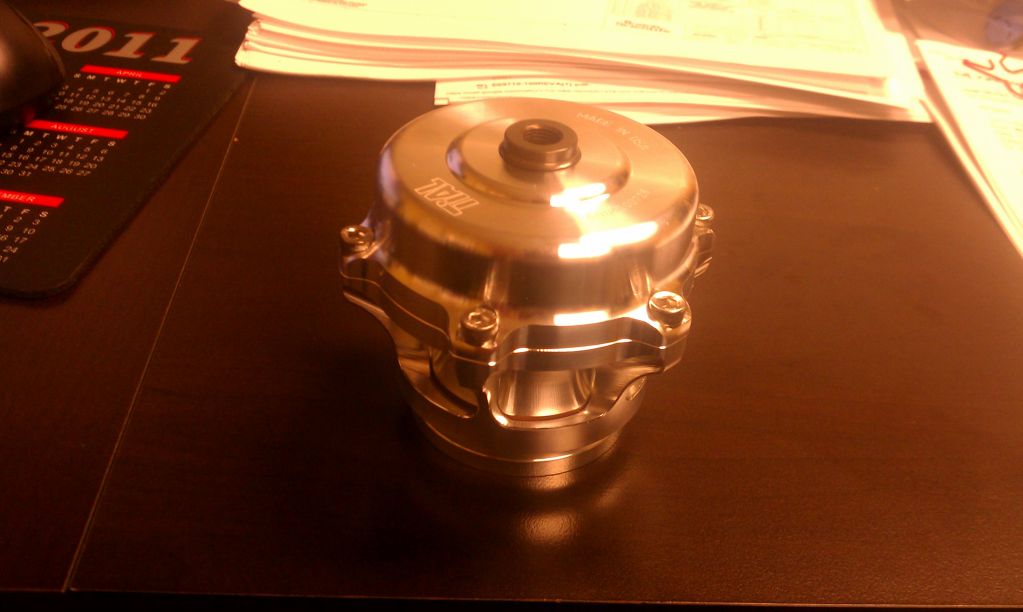

Tial Q just came in!

stevensimon

iTrader: (11)

what size piping/tubing is your exhaust mani?

ChrisRX8PR

2" Schedule 10 304 SS...You can find it at McMaster Carr.

Chris

ChrisRX8PR

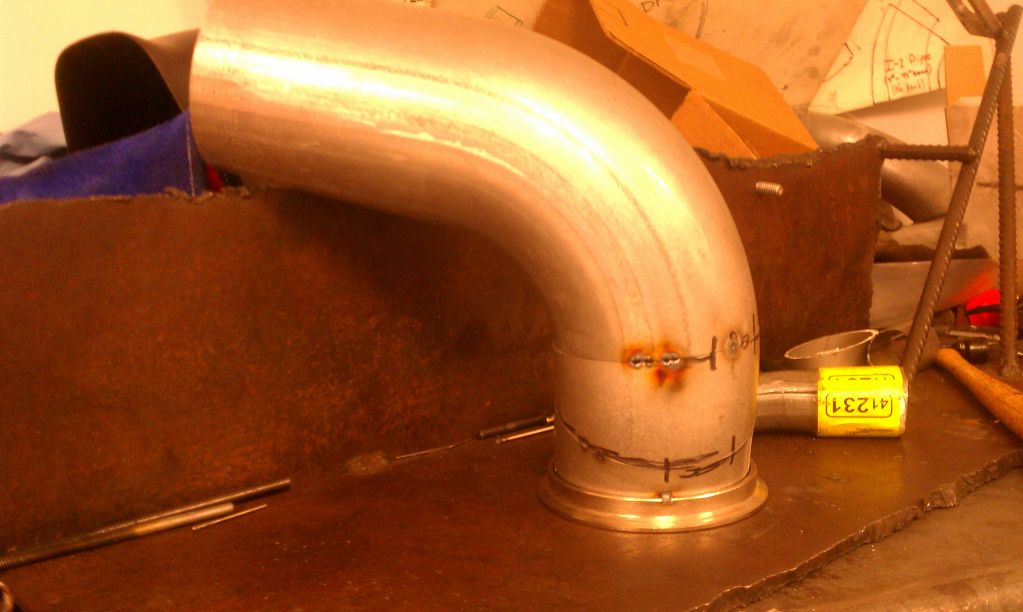

One step closer to having the DP finished....

Cheers

ChrisRX8PR

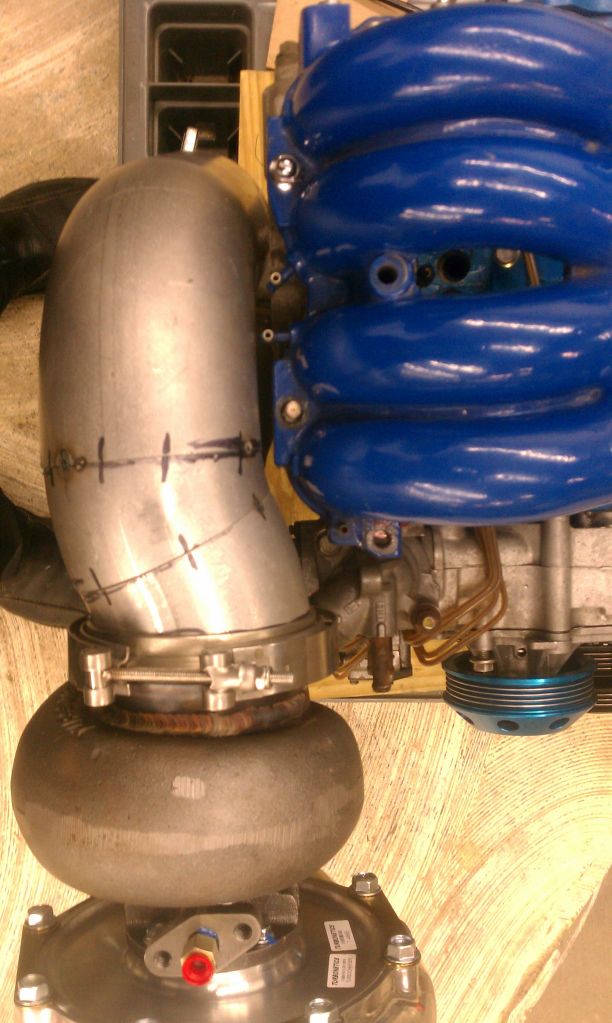

Had to modify the piece I had already "fabbed" once I fit it in the car again to make sure everything fit properly. All the DP should need now is a straight shot into the existing exhaust and full welding...

Cheers

Chris

gmpaul

Hey Nice project but if you don't mind me asking which do you perfer RX-8 Or RX7?!? I personally cant stand the RX8 and think that 1: yeah mazda put out another rotary series but its verry round IMO Just The Body Style Itself is IDK gross lol but then again thats My opinion.

speedrx8er

Oh my, I did not realize how much space that 4" downpipe will take up..
You have any scraps I can have or borrow for visual placements?

ChrisRX8PR

I like them both...they are very different cars. The handling is great on both but one is a minimalist 2 seater with 0 compromises as a sport car. The other has amenities and space. If I were going to have only one car it would be RX-8, GPS, heated seats, everything's electric, 4 seats, traction/stability control, etc etc etc make for a very nice daily driver in comparison. I already have the RX-8, like the amenities and its only about 200-250lb heavier than an FD so it still goes great with a rotary. I also intend to drive it all the time and living in MN its the better option at least for me.

Cheers

Chris

ChrisRX8PR

Yes you can have the left overs...Im not planning on building two...lol

Chris

speedrx8er

Awesome, thanks

ChrisRX8PR

Don't forget your turbo exits to 5" on the hot side so you will need a reducer.

Chris

ChrisRX8PR

Updated list of todo's

Machine front cover - STARTED
Weld front cover
Front cover oil line
Machine front pulley spacer
Driver engine mount finish
Pass engine mount finish
Finish LIM (welding, holes etc) - STARTED
Drill UIM bolt hole
Make/Weld Throttle body adapter to UIM - STARTED
Make RX-8 Throttle body flange
Oil filter Pedestal (machine, relocate, whatever)
Modify Water Pump Outlet - STARTED
Oil pan and pickup
Alternator Adapter
Custom Alternator Tensioner
Relocate OEM ECU to Firewall
Install Wastegates
Make Downpipe - STARTED
Make Wastegate dump
Fuel rail mod
Make/Modify Fuel lines
Make Turbo Oil lines
Make Radiator cover plate
Water reservoir
Intercooler mount
Cut Intercooler piping
Weld Intercooler piping
Weld BOV
Replace exhaust sleeves
Machine engine for studs/Dowels
Make Ignition Bracket
