Sorry i have been busy working on the engine but I will start this thread again.. thanks for all the good comments and support on the other thread...
I will try to update this thread as often as i can...
Now that the cat is out of the bag this will not be as much fun as when i was only showing little pieces of the engine and making people wonder... but here it is...
i will try to answer questions the best i can...

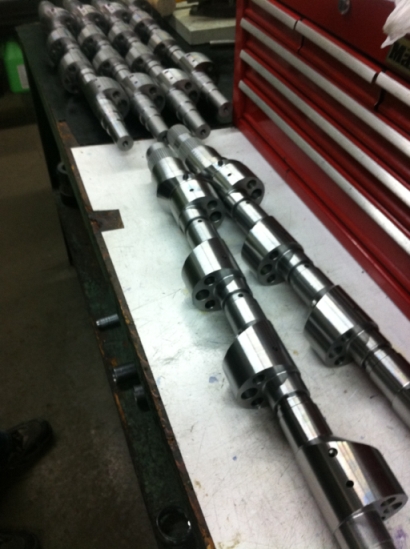

here are a few pics...

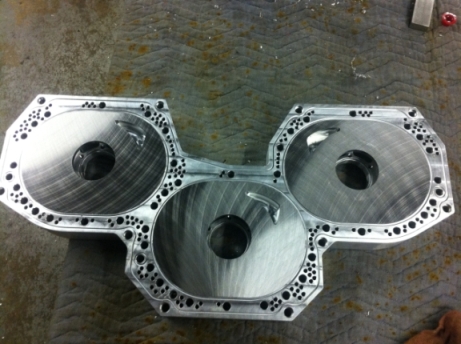

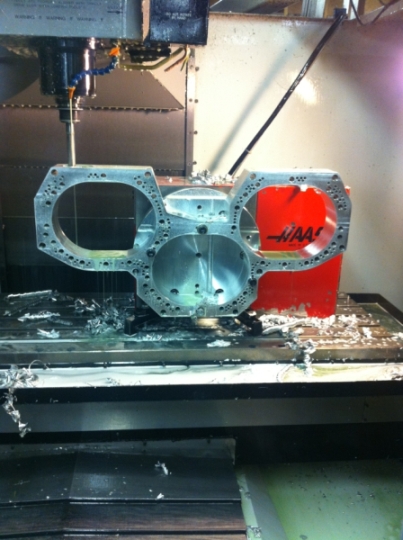

few more pics....

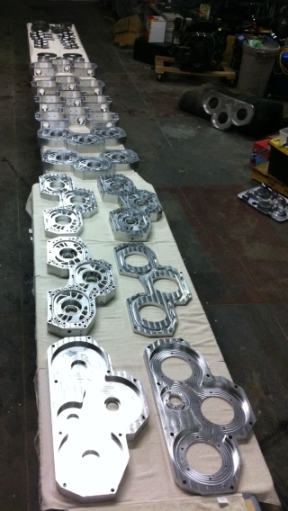

this is some of the parts...



we are working on a 4 rotor straight engine and a 4 rotor two rotor long and two rotor above engine that will fit better into a rx7 length wise. with only small hood modification not having to redesign the car to get a long engine to fit..



I'm from kansas city and if I ever go back to visit family you've GOT to let me check out your shop. If someone was interested in a 3 or 4 rotor shaft, is it something mere mortals could afford?



One word for you


IDOL



Let me know next time your down in this area..
I don't have a price on the 3 or 4 rotor shaft yet, will depend on how big of production I start doing..



Soo glad you decided to return.
Do you have any video of this thing running?



Wow! Im truely amazed. I never thought that would be possible. If there was a like button, id' tap dat



Idol...
No I don't sing...
This engine is music to my ears tho...



Nice seeing something like this come out of Mo.



Nah man im saying your my idol haha



WOW...incredible...are you going to design any engine for cars.?



He should go help design that new 16x coming out. O wait he probably did because hes the man! haha



Just so I'm clear. Your talking about a short crank eccentric shaft that uses standard intermediate plates instead of the thick one from the 20B? If that's the case are you going to be able to find a workaround to prevent eccentric shaft flex? Kiwi-RE is using some type of roller bearings from what I can remember.



How are the three shafts linked?



Short eccentric yes, but I'm not using anything from Mazda I make every piece of the engine from scratch, so no on the 20b thick, but also no on the smaller intermediate plate.
Kiwi is trying to use factory stuff and designs is why they have that problem, I designed this engine from scratch and addressed those problems.



I think he's talking about doing a side-by-side 4 rotors. 2-2.



Very nice. I think alot of people have asked- Can you post a video of it running?

Thanks



I'm at awe! A video please! What is the material of the housing surface where rotor makes contact? Also a pic of your rotores if possible? I just wonder how long it will be before someone has it on a car at the dragstrip? Wow!!!



i have never dirtied my pants as much as i am right now!!!

this is awesome, every part of it....video of the harmonious sound this thing must make please!!!



In for the video as well!!



i'm loving this.

all are your rotors the same size?

Ever considered doing a motorcycle rotary from scratch? something around 800CC's and maybe a 1x1. like your 2x2 idea. or maybe just a 1 rotor 300ish cc?

Mad Props! pun intended.



I will post a video soon.. I have the engine back apart to put a coating inside the water jackets in case we run the engine in the ocean to keep the aluminum from getting ate away by the salt water..
when i get it back together and all the accessory brackets made were going to make alot of videos of it running... our dyno will not handle this much power so were working on finding a dyno that can handle lots of hp for extended periods of time and I will have a live feed on the internet of us dynoing the engine..

I put videos on youtube all the time so dont worry i will have it on there soon.
here are a couple of my videos...

this is a video of what we are going to do with these engines.. i took these videos out of a helicopter taping a couple of my friends running there boats.
http://www.youtube.com/user/TysonGar...77/biIZyKsv5-A
http://www.youtube.com/user/TysonGar...66/kpKqY3a6ceE

here are some engines we have done... i know there piston but this is why i dont have a video on here yet.. notice there all finished and clean and look good.. when this engine is at this point I will put the videos on here.
