thejallenator

iTrader: (14)

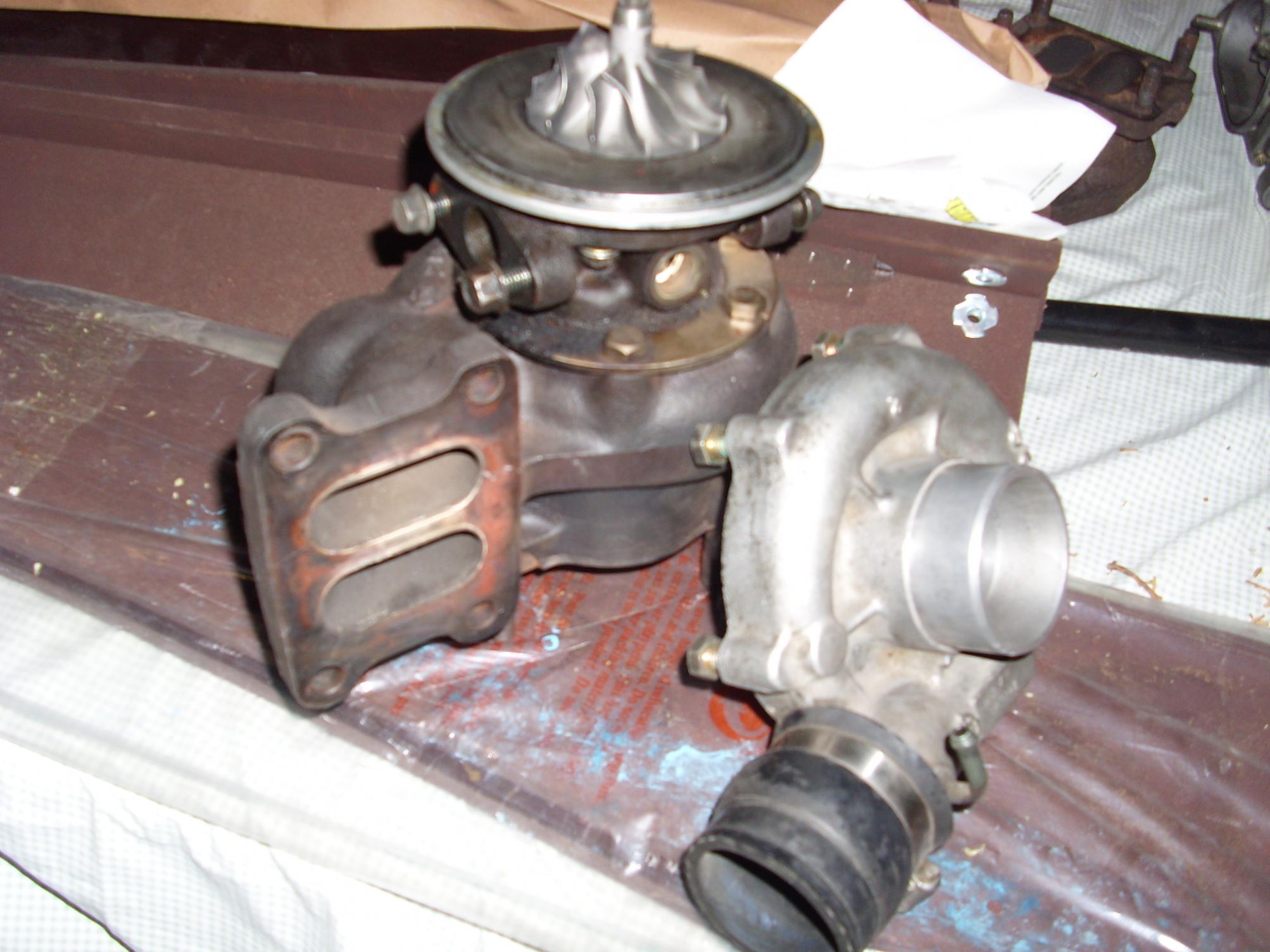

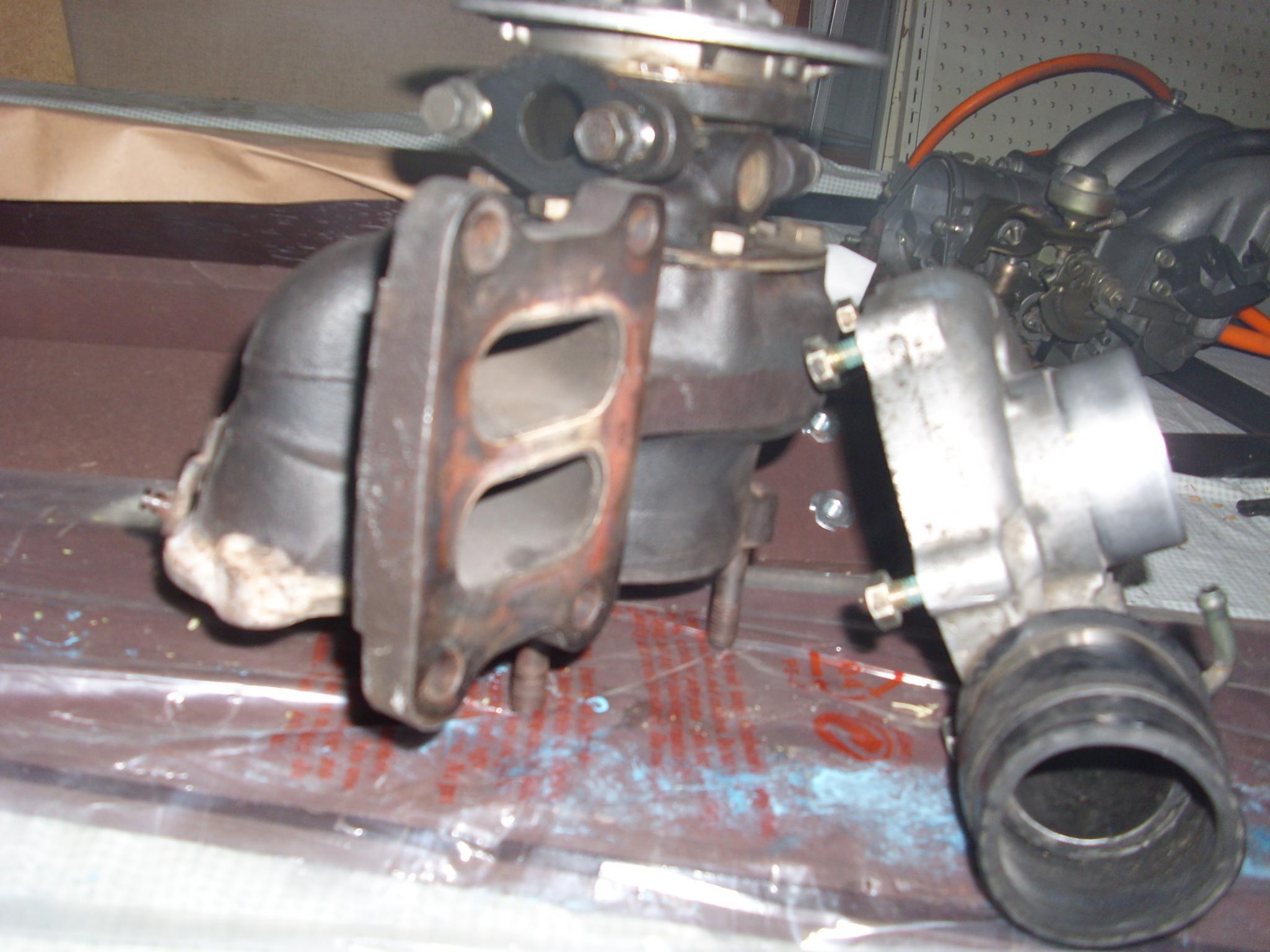

ok after lookin at pictures i think that my turbo is missing a few pieces. can any one confirm this? just starting in the turbo world so im still curious.

rotary-guy

iTrader: (24)

oil feed/drain, water feed/drain lines, wastegate, and backing plates to hold your compresser housing on

rotorette

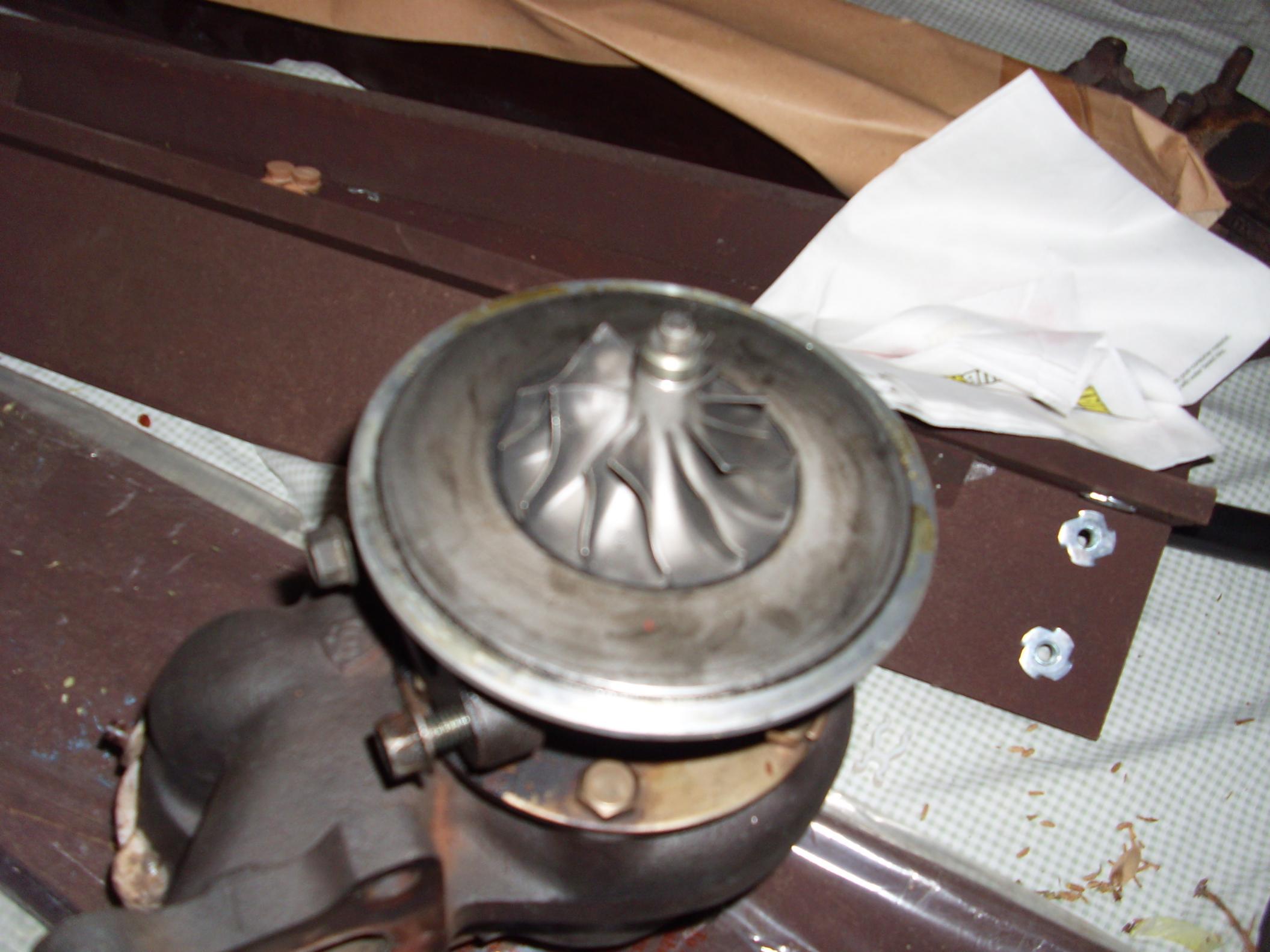

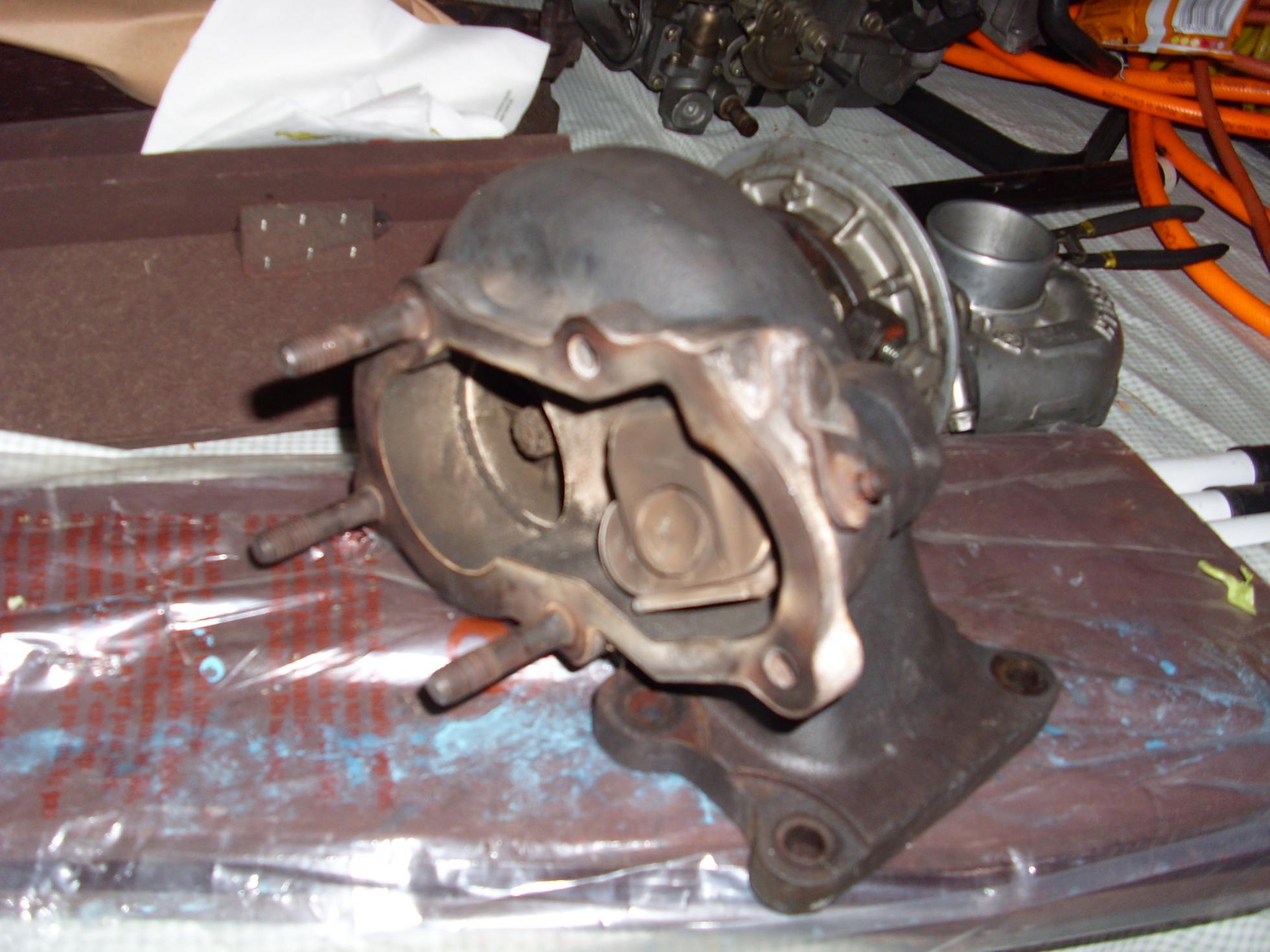

The compressor "cold side" backing plate is there, its under the comp wheel, but you are also missing the exhaust/down pipe plate on the back of the turbine.

thejallenator

iTrader: (14)

so the oil/water feed and drain, waste gate and teh plate on the back for the dp? also it doesnt appear to have the backing plate to hold the compressor housing on. where do i go about finding these missing pieces also?

rotary-guy

iTrader: (24)

ment the pices that hold the housing on, there is 3 i believe, you know the pices that join 2 bolts and span a little across the plate
