wide body rear fenders
#3
Old Fart Young at Heart
iTrader: (6)
Generally when one installs over fenders the stock fenders need to be trimmed up for tire clearance. I have a writeup in the first gen archives on how to do that. Search for threads started under my user name there. After I installed the over fenders I made a new liner that filled in the space from the newly trimmed inner fender to the over fender. I used rolled aluminum for the liner, it came from the roofing section of the local building center.
I don't recommend foam as it often expands too much and can distort the over fender. If your over fenders are fiberglass, stiffen them up by adding a couple more layers of fiberglass.
I don't recommend foam as it often expands too much and can distort the over fender. If your over fenders are fiberglass, stiffen them up by adding a couple more layers of fiberglass.
#5

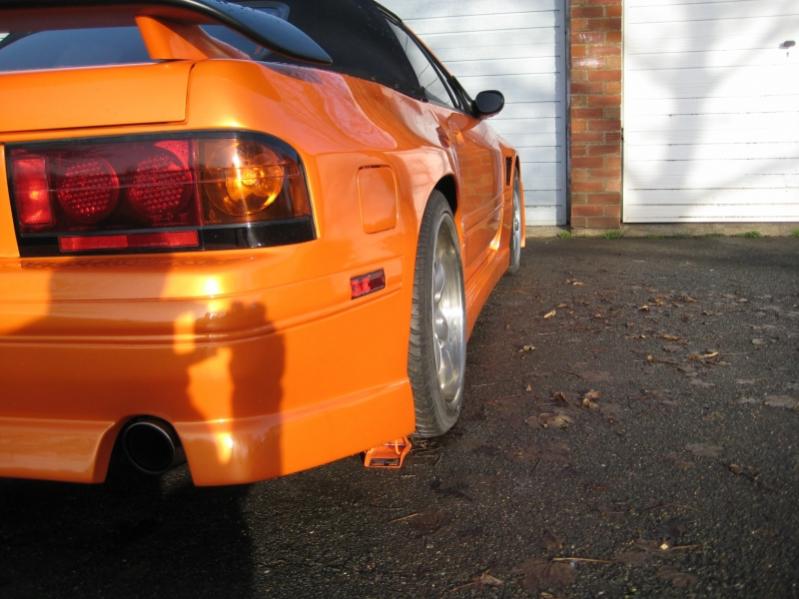

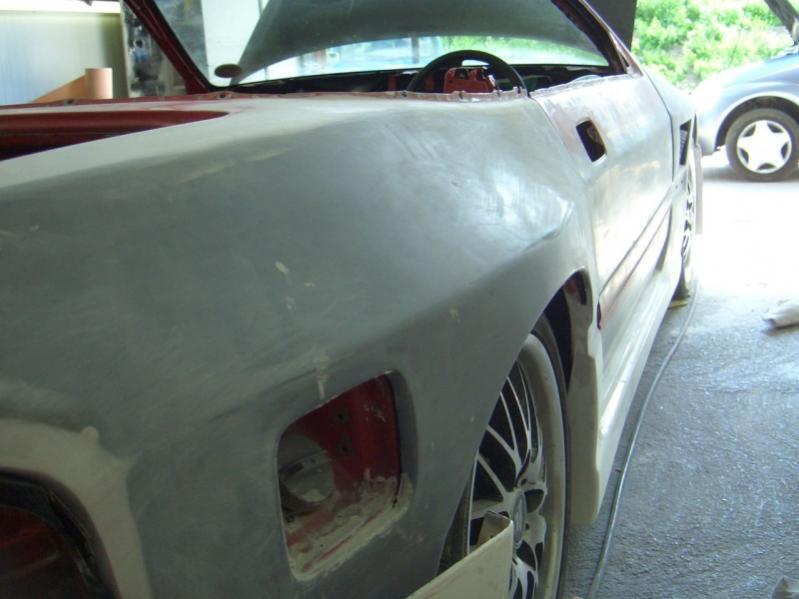

My rear quarter panels were bonded on, no foam is necessary and the gap is smaller than you think. In fact normal body filler was used and then totally blended in to look like as if it was there from the start. I would also recommend cutting the inner arch prior to this going on to accomodate the larger width wheel. It looks better as well. I did mine after and it cost me more to cut it out with a plasma cutter.
#7
Old Fart Young at Heart
iTrader: (6)
I told you how to search for my 'How To' thread but since I'm feeling generous tonight, here's the link to it:
https://www.rx7club.com/1st-gen-archive-71/body-how-modify-wheel-wells-fender-flares-733340/
https://www.rx7club.com/1st-gen-archive-71/body-how-modify-wheel-wells-fender-flares-733340/
