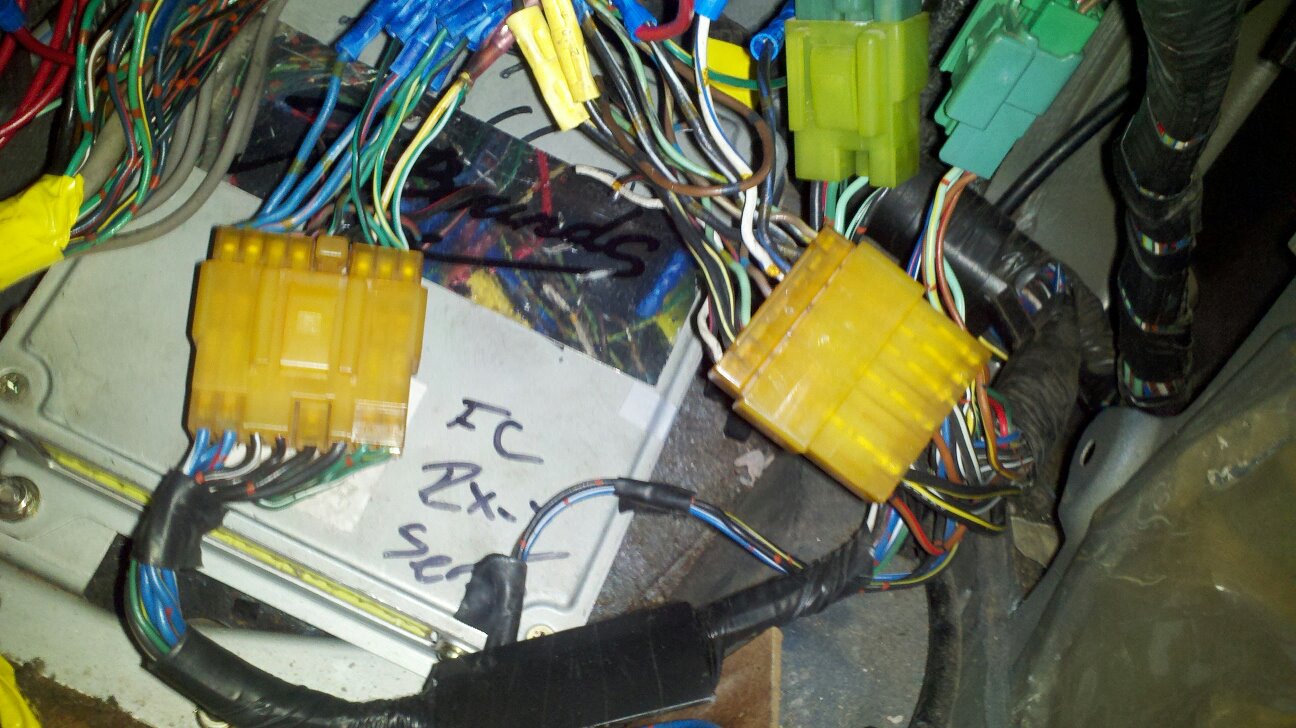

really need the pin outs for these connectors, the car is an s4 and i am in the process of swapping an s5 motor,wiring harness and ecu, but i dont have the body harness so i made the plug for the ecu but i bought the wiring harness already re-wired for the swap and i think it might be wrong (car wont start) PLEASE HELP!!!

satch

iTrader: (1)

https://docs.google.com/file/d/0Bzy-...hl=en_US&pli=1

a96beretta

cant get the link you posted to work, any suggestions?

satch

iTrader: (1)

Works just fine for me. How about one more time for the Gipper.

a96beretta

i have tried to open it in internet explorer and Firefox, i will either get a blank screen or a problem loading page screen

misterstyx69

iTrader: (142)

www.foxed.ca
it has everything you need.

a96beretta

Thank you, and you wouldn't happen to know what these connectors are for or what they are called do you?

satch

iTrader: (1)

Depends on whether you are using a turbo or non-turbo but if it's a turbo then the plugs connected to the ECU are BI-03, BI-10 and BI-23. The connectors between the two harnesses would be X-10, X11 etc and these connector diagrams are located towards the very bottom of the S5 wiring diagram.

Lmill86

iTrader: (10)

Sounds like work. I think the haynes manual has some.
