12a detonated

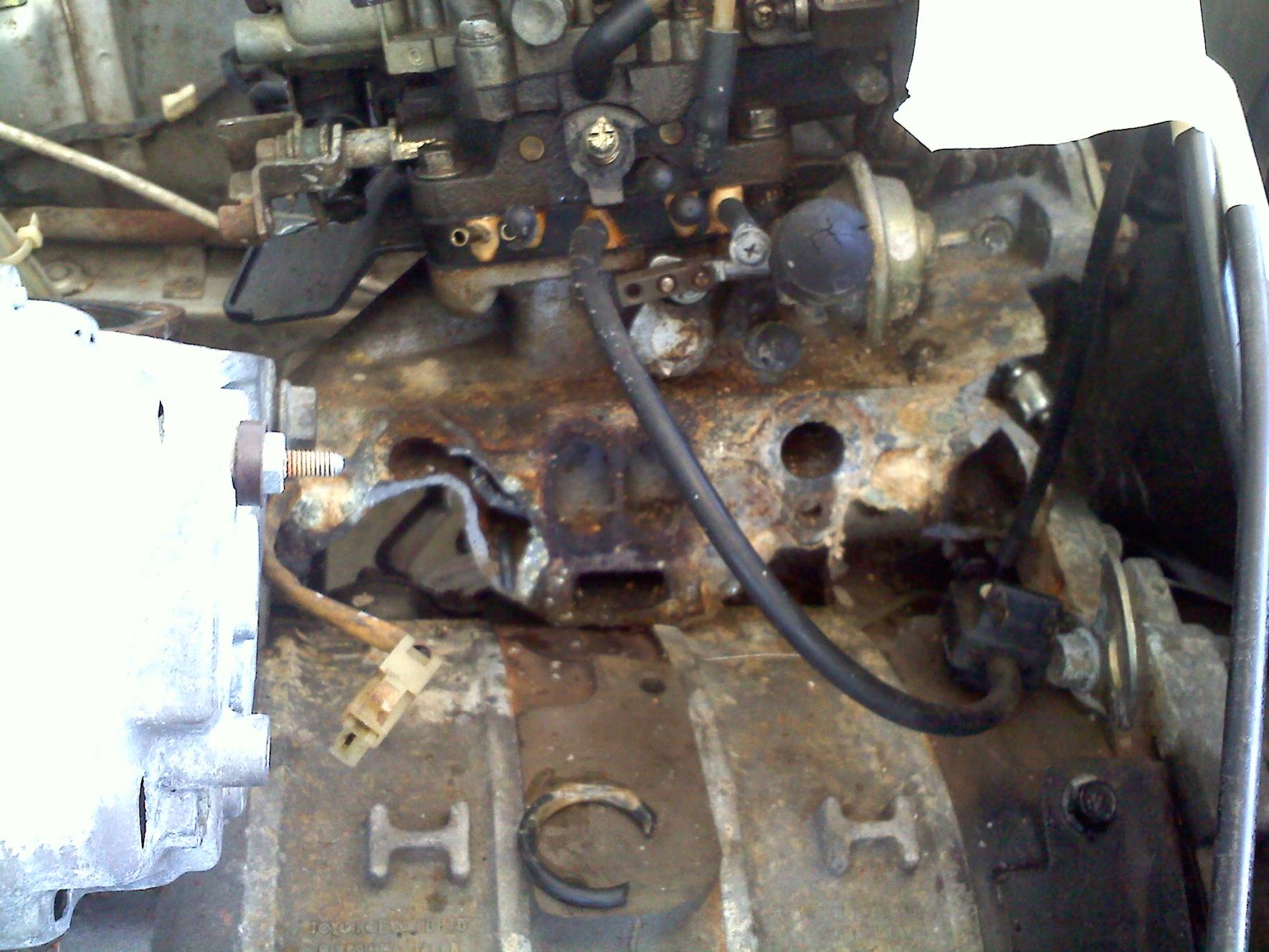

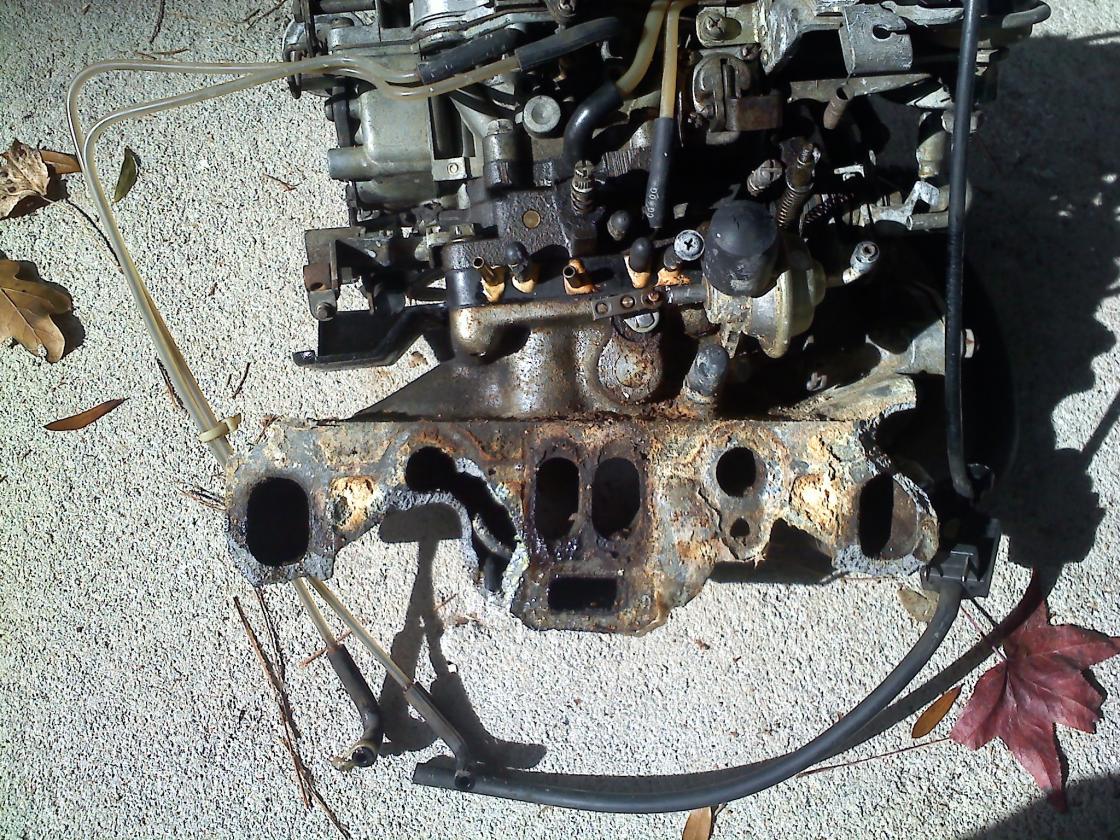

What would cause the intake manifold to separate from the "block" on one side of the engine and put a hole in the other side where a spark plug is seated?
I was changing lanes in traffic, rolling along about 25mph in 3rd gear, dropped down to 2nd and stepped on it. About 6000 rpm, it sounded like something external broke. All the lights came on and smoke billowing out the back of the car.
The car seemed to be running just fine. I had just put in an Optima Redtop, 10 minutes prior to meltdown. The only other thing I noticed that was winky, was the tachometer would bounce in time with the turn signal.
I was changing lanes in traffic, rolling along about 25mph in 3rd gear, dropped down to 2nd and stepped on it. About 6000 rpm, it sounded like something external broke. All the lights came on and smoke billowing out the back of the car.
The car seemed to be running just fine. I had just put in an Optima Redtop, 10 minutes prior to meltdown. The only other thing I noticed that was winky, was the tachometer would bounce in time with the turn signal.
12-15-10, 07:04 AM
#3
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: Tallahassee, FL
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Actually it didn't sound very loud at all. It just sounded like something broke. The rearend had been making some noise, so I thought it was that.

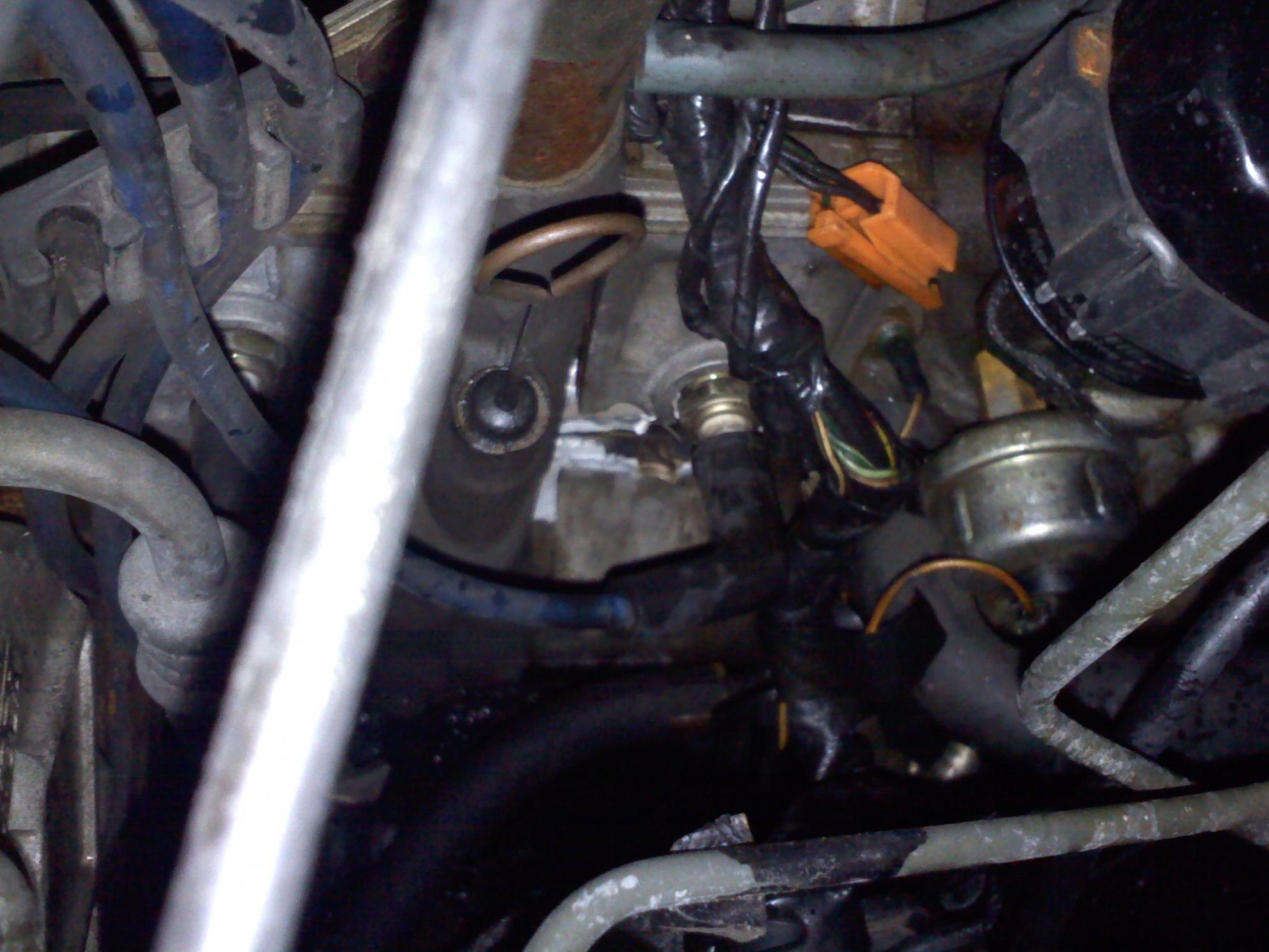

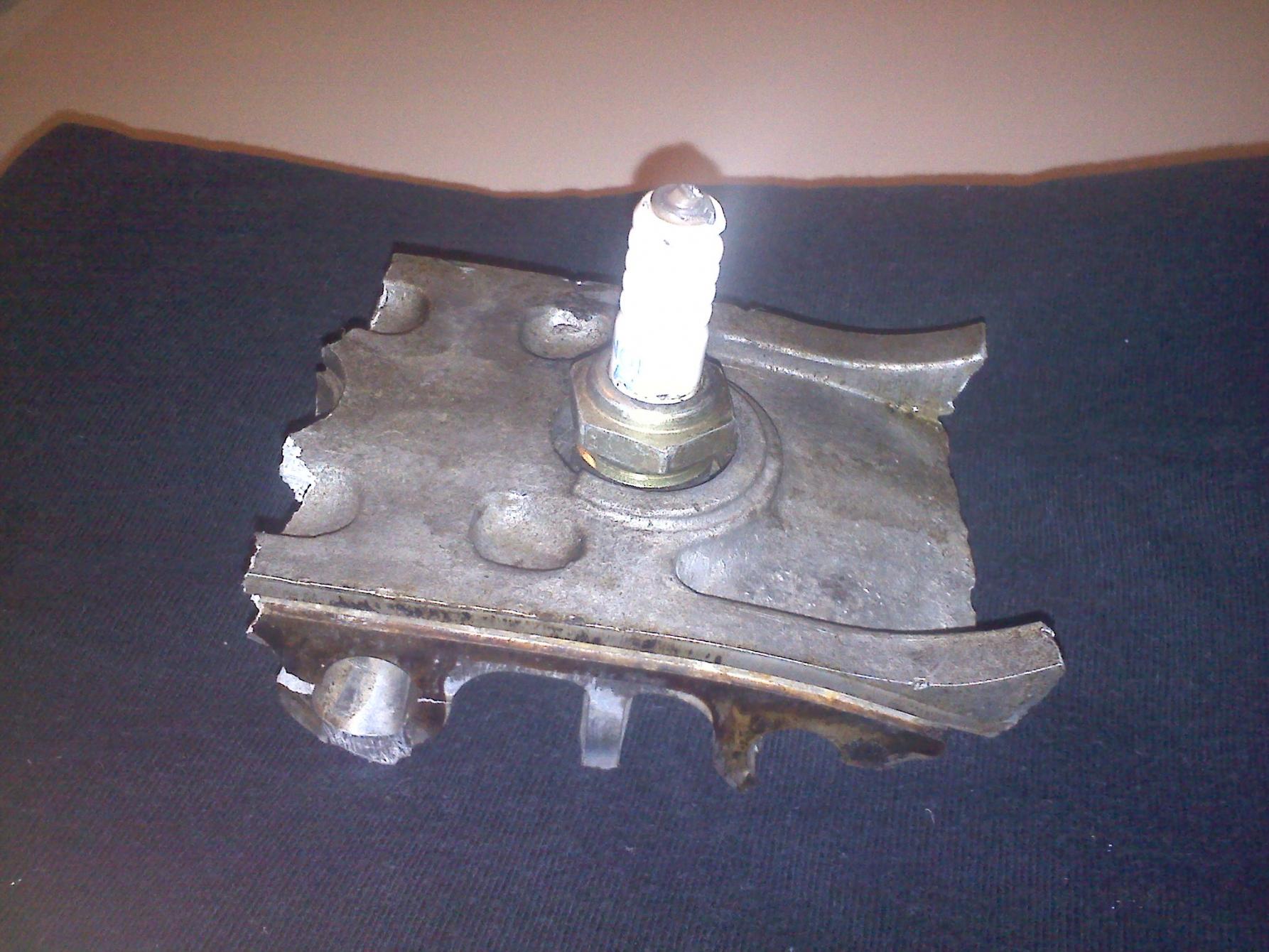

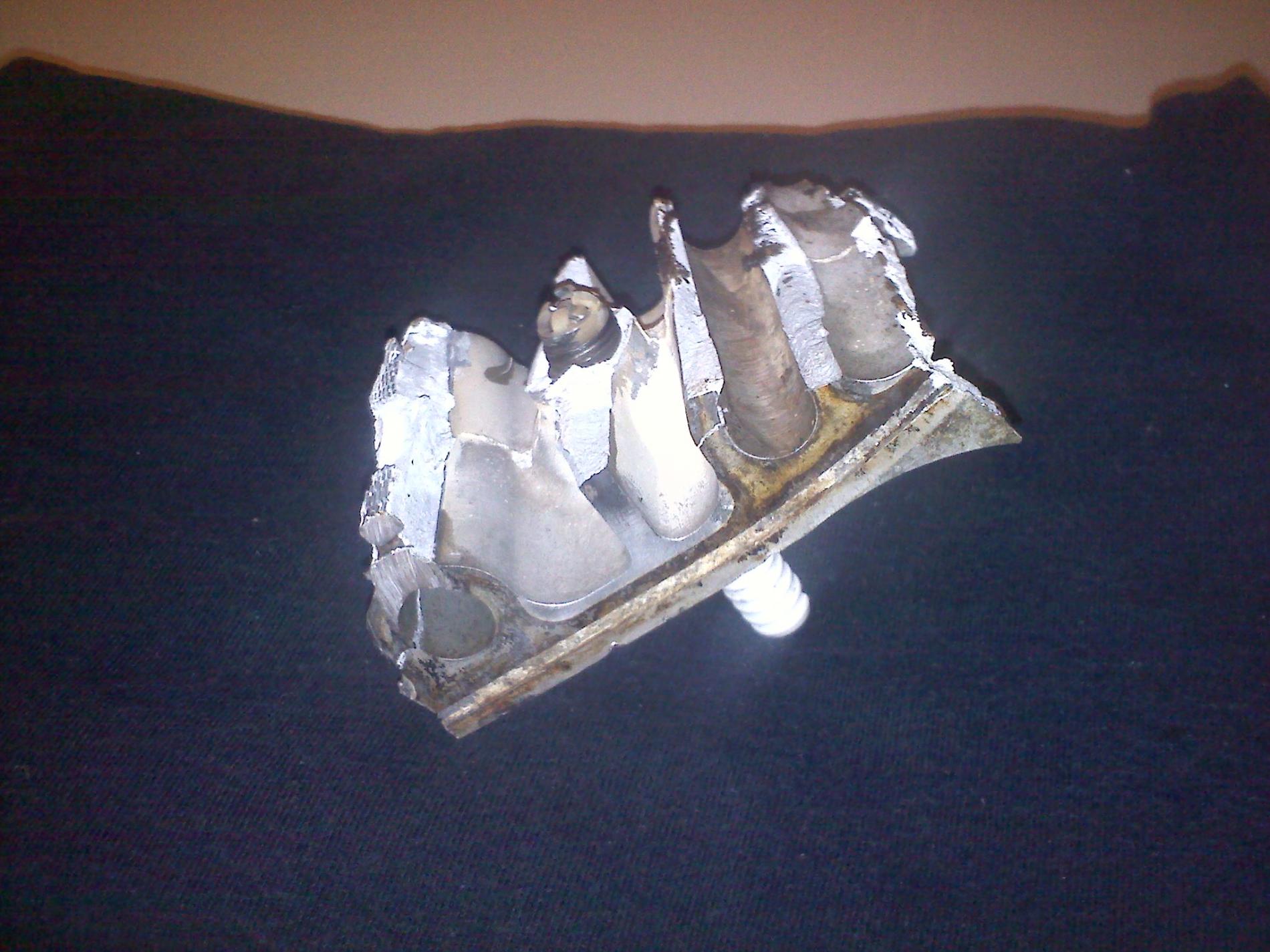

This is my first rotary, and I've only had it since this past Saturday. If you're standing on the driver side, looking at the engine, the piece came from the lower rear spark plug area.
The engine had been street ported about six years ago. I don't know how many miles are on the rebuild, but the car show 137K on the odometer. The guy I got it from had it for about 1 1/2 yrs, and put about 7k on it. He did admit that he drove it very conservatively, almost never taking it over 4000 rpm. I, on the other hand, had no reservations about ringing the motor out. Just to remove any carbon build-up, mind you.
This is my first rotary, and I've only had it since this past Saturday. If you're standing on the driver side, looking at the engine, the piece came from the lower rear spark plug area.
The engine had been street ported about six years ago. I don't know how many miles are on the rebuild, but the car show 137K on the odometer. The guy I got it from had it for about 1 1/2 yrs, and put about 7k on it. He did admit that he drove it very conservatively, almost never taking it over 4000 rpm. I, on the other hand, had no reservations about ringing the motor out. Just to remove any carbon build-up, mind you.
Last edited by retodd1000; 12-15-10 at 07:15 AM.
12-15-10, 01:10 PM
#4
well since i've never had this happen nor seen it happen til now, i can't even begin to guess as to what caused it. only thing i can think of is the housing was already damaged when built. i have over 60k on my build and had only one incident when i had detonation a few yrs ago, but that was only at wot. since being fixed it's seen 7-8k many times since then and have yet to blow a housing apart like that. i'm guessing u have this part of the housing after taking the engine apart, right?
12-15-10, 05:29 PM
#5
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: Tallahassee, FL
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
I didn't know it until today, but I know a guy that used to be an instructor for Mazda. He seemed very confident that it was the stationary gear that failed.
12-16-10, 02:12 PM
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
HOLY ****!
I don't even know what to say. That is just incredible.
Seeing as you can now look directly into the engine, is the eccentric shaft broken? Catastrophic eccentric shaft failure at high RPM could be about the only thing that can cause something like this, and that is exceedingly rare.
I don't even know what to say. That is just incredible.
Seeing as you can now look directly into the engine, is the eccentric shaft broken? Catastrophic eccentric shaft failure at high RPM could be about the only thing that can cause something like this, and that is exceedingly rare.
Trending Topics
12-16-10, 08:55 PM
#8
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: Tallahassee, FL
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
I don't know about the timing; temp was good, below half; no turbo, no nitrous, it was street ported.
not positive (i was watching car in the side mirror), but I think it let go between 5k-7k.
12-18-10, 01:42 AM
#10
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
Holly Molly I think I might build a sploding shield on my drag bike that's gettin pretty close to the boys, I wouldn't want to blow them off i'd kinda like to keep em ..
===
===
01-05-11, 12:50 PM
#14
Friend of mine blew the side out of this Gen 3 motor a few years back when running in a Texas Open road race at 130 mph. It ended up being a catastrophic coolant seal failure that hydro-locked the rear housing and blew a hole the size of a tennis ball around the spark plug. He showed me pics of the spark plug wire still attached to the plug which was still screwed into the housing, but dangling next to the gaping hole. Weird!
01-05-11, 09:28 PM
#17
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: Tallahassee, FL
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts

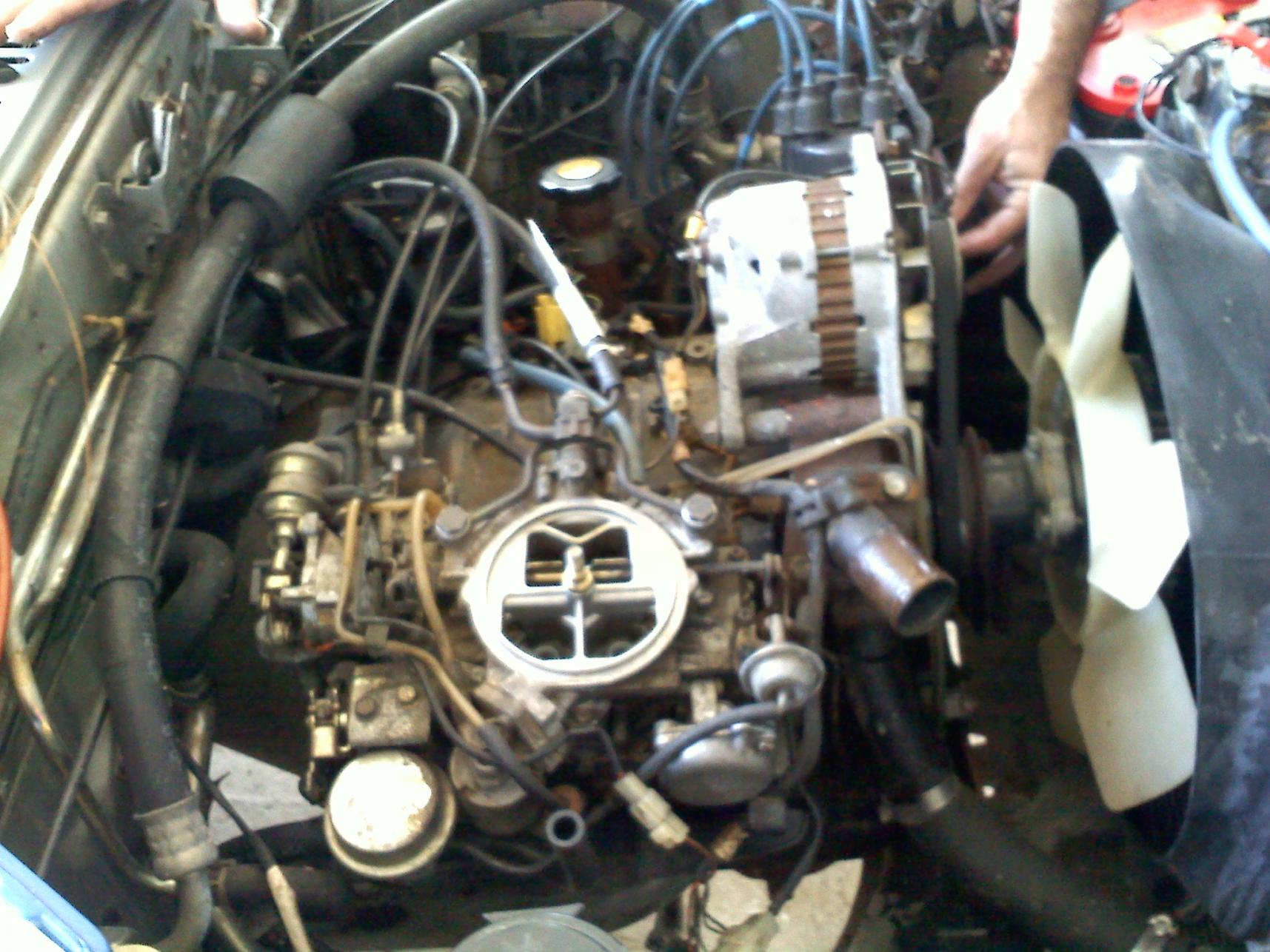

I have more recent photos, with the engine out of the car, on my profile page. https://www.rx7club.com/members/retodd1000-151738-albums-catastrophic-failure-4114/
