Converting 13b rew to na help
#1
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
Converting 13b rew to na help
I want to convert my 13b rew to na and need some help.
I know i need to block off the oil and coolant lines to my turbo and cap off all my vacuum lines.
Im running a power fc untuned, would i need to do anything about the ecu?
To me converting it to na sounds simple but is there anything else im missing?
Thanks
I know i need to block off the oil and coolant lines to my turbo and cap off all my vacuum lines.
Im running a power fc untuned, would i need to do anything about the ecu?
To me converting it to na sounds simple but is there anything else im missing?
Thanks
#3
Rotors still spinning
iTrader: (1)
You'll need a header and a little bit of exhaust work. It's basically just removing the turbos and intercooler, using an n/a style exhaust, and running a filter on the throttlebody. Preferably somewhere where it will get cool air. Plug the oil and water lines to the turbo and retune the ecu. That should basically be it. Keep in mind that you do have lower compression than standard n/a rotaries.
#4
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
I just bought the RB header and modified from 2 pipes to 1.
Already got the air filter on arround the headlight area.
Plugged all the oil, water and vacuum already too.
I also did some extra stuff like rerouting more air to the intake from bumper and covering my radiator so the engine doesn't get heat soaked.
I'll post some pics soon
Already got the air filter on arround the headlight area.
Plugged all the oil, water and vacuum already too.
I also did some extra stuff like rerouting more air to the intake from bumper and covering my radiator so the engine doesn't get heat soaked.
I'll post some pics soon
Trending Topics
#8
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
The reason im going na for now is bc my turbo is leaking oil like crazy (single turbo) and i call 3 shops arround my area to get it rebuilt but no one can do it bc they don't have the parts for it. I've also been working on this car for 3 years now and want to take a break and save alot of money to get a 3 rotor later.
Im also doing this so i could make it to sevenstock.
Im also doing this so i could make it to sevenstock.
Last edited by widebodyseven; 09-09-09 at 10:35 PM.
#9
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
I ran into a little problem, my car ran find with no headers but after i put the headers on it starts and dies but i don't think thats the problem i think it has something to do with the vacuum lines.
What am i supose to do with the fuel injector atomization?
Also do i need the presure sensor still?
Those were the only thing i messed with after it was running fine.

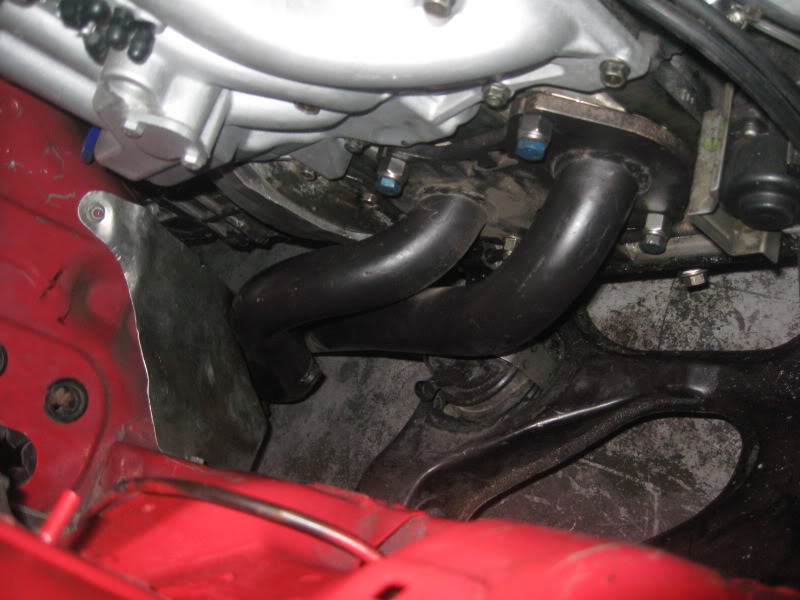

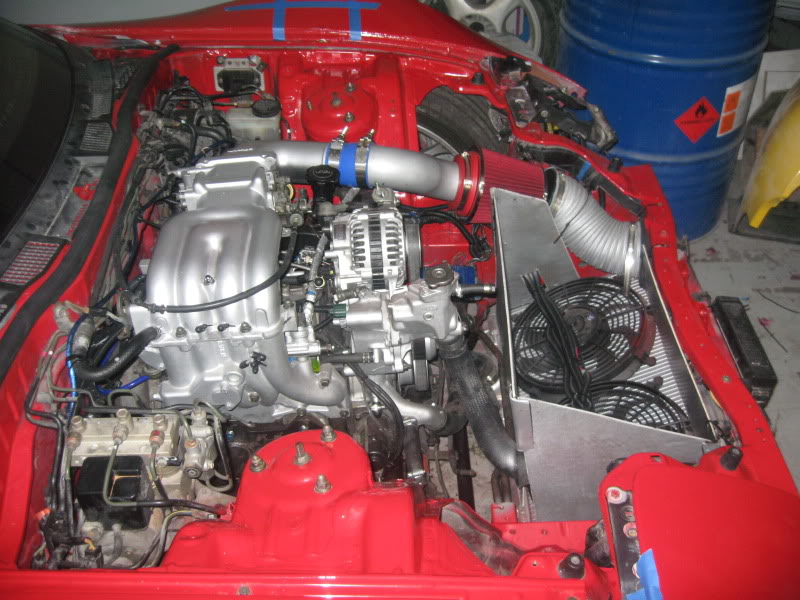

Here are some pics.
What am i supose to do with the fuel injector atomization?
Also do i need the presure sensor still?
Those were the only thing i messed with after it was running fine.
Here are some pics.
#11
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
Where am i supose to connect the fuel injector atmoization line?
I think thats my only problem right now.
Also the rad ducting is probably my favorite part of this conv. it looks cool and should work fine with my vented hood.
I think thats my only problem right now.
Also the rad ducting is probably my favorite part of this conv. it looks cool and should work fine with my vented hood.
#13
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
Theres a picture on post #20 it says you have to conect it to a intercooler pipe but i don't have one.
https://www.rx7club.com/showthread.p...vacuum+diagram
https://www.rx7club.com/showthread.p...vacuum+diagram
#16
It's all in the timing.
Join Date: Jun 2009
Location: Australia
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
#18
Formerly widebodyseven
Thread Starter
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
Wow surprise to see this bump.
Unfortunately i sold the car a couple months after i finish this project.
But here's a video some one took of me leaving sevenstock a few years ago. 13B REW open headers.
www.facebook.com/v/141244013388
Unfortunately i sold the car a couple months after i finish this project.
But here's a video some one took of me leaving sevenstock a few years ago. 13B REW open headers.
www.facebook.com/v/141244013388
#20
Senior Member
iTrader: (15)
Wow surprise to see this bump.
Unfortunately i sold the car a couple months after i finish this project.
But here's a video some one took of me leaving sevenstock a few years ago. 13B REW open headers.
www.facebook.com/v/141244013388
Unfortunately i sold the car a couple months after i finish this project.
But here's a video some one took of me leaving sevenstock a few years ago. 13B REW open headers.
www.facebook.com/v/141244013388
#23
Rotor Head Extreme
iTrader: (8)
20b's are just as available as Renesis engines. Either way you would still have to fit the Renesis in the the Fd chassis and do a lot of custom fab work to make either engine run. 20b's have the advantage of having subframes available. Not so with the Renesis. The only main difference is you spend more money for the 20b engine and custom headers. Everything else is a wash!
