Microtech tune above 10psi

Old 10-11-08, 08:43 PM
  #1
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
tune above 10psi

Ok so you guys have been a huge help so far so i thought i would try again..

My turbo has been played with a ruined.. (to4 front cover without changing wheels or anything) so it doesnt hold boost at rpm well at all so currently it will hit 9 psi and come down to around 7 but i would rather 12-13 psi and come down to 7 a it pulls alot harder.

So 2 plans of attack.. would upgrading wheels in stock s5 turbo work or better off with standard front cover on turbo would be happy with over 10psi at redline. not using standard wastegate got 44mm Tial.

Problem:

Tuner didnt tune above 10 psi so above that it leans out... which is stupid because boost cut is 16psi so if something failed and freeboosted it would lean out. so need to know how to adjust map for that boost


Engine is extend port. 500hp Bosch pump 550/660 injectors, full 3inch exhaust etc.
Spannersrx7 is offline
Old 10-11-08, 10:32 PM
  #2
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Show us your map. Will richen it up. easy.
rx72c is offline
Old 10-11-08, 10:38 PM
  #3
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
which map?
Spannersrx7 is offline
Old 10-12-08, 03:53 PM
  #4
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Load map.
rx72c is offline
Old 10-21-08, 10:50 PM
  #5
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts

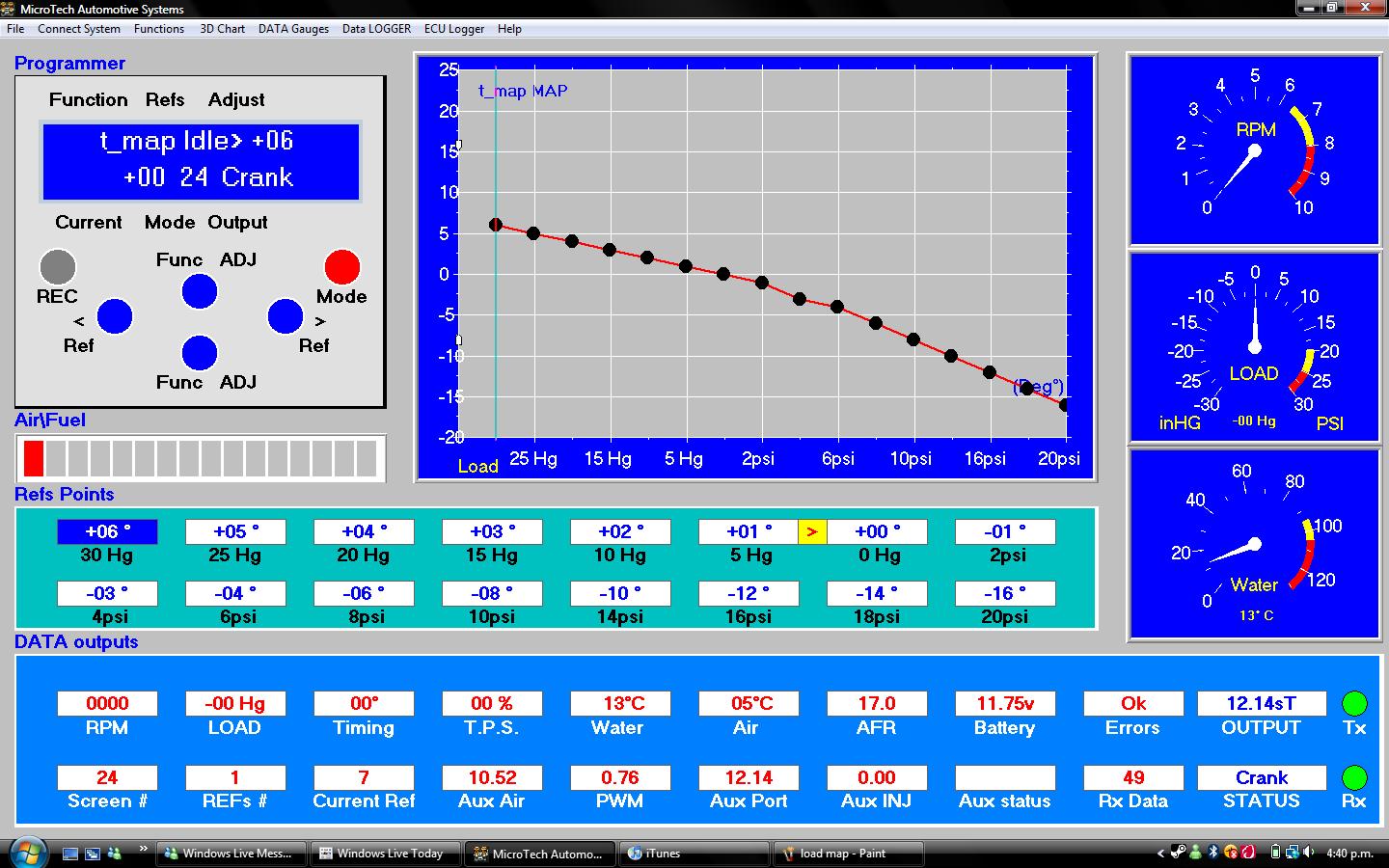

tune above 10psi-load-map-timing-injector.jpg

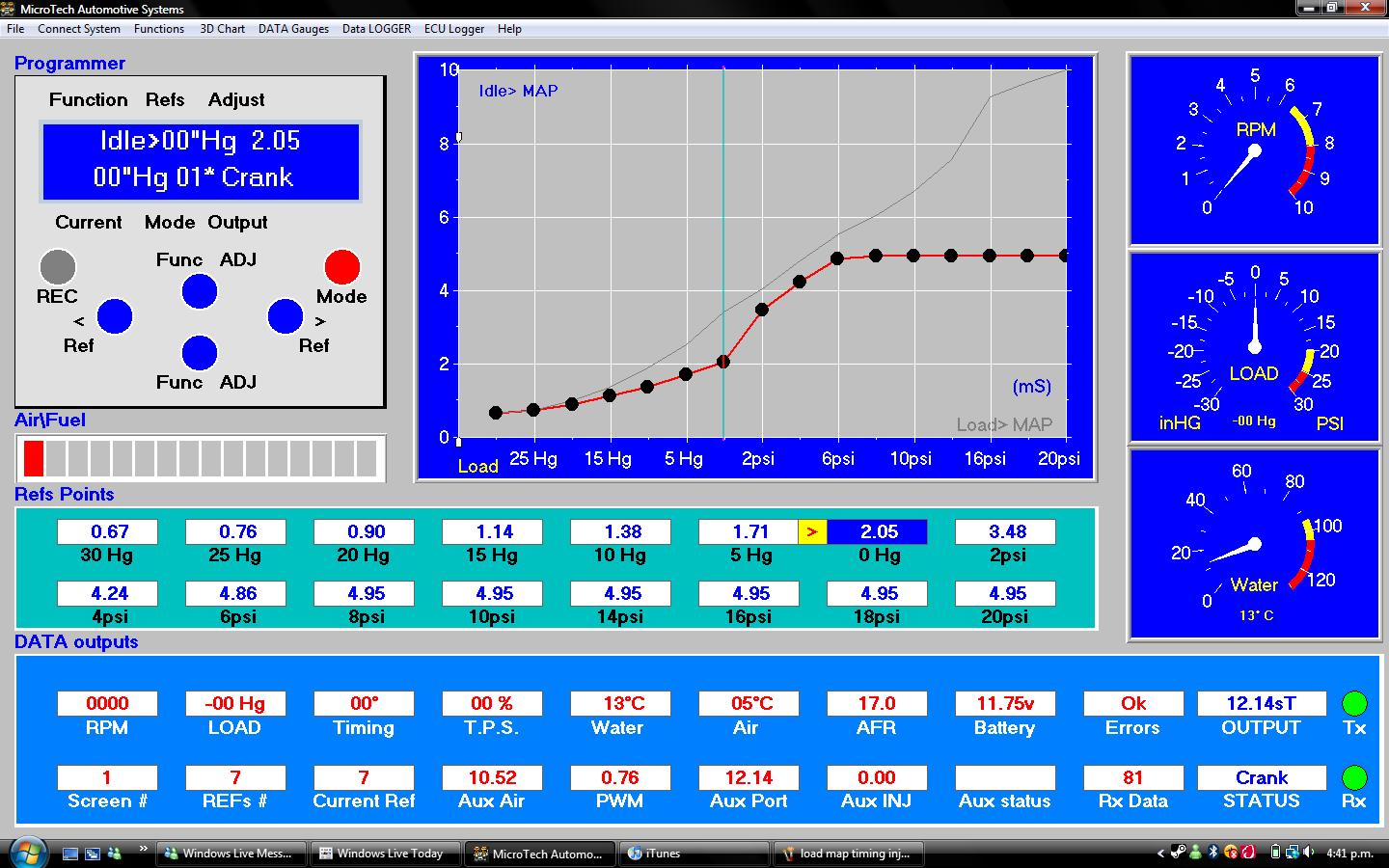

tune above 10psi-load-map-load-injector.jpg

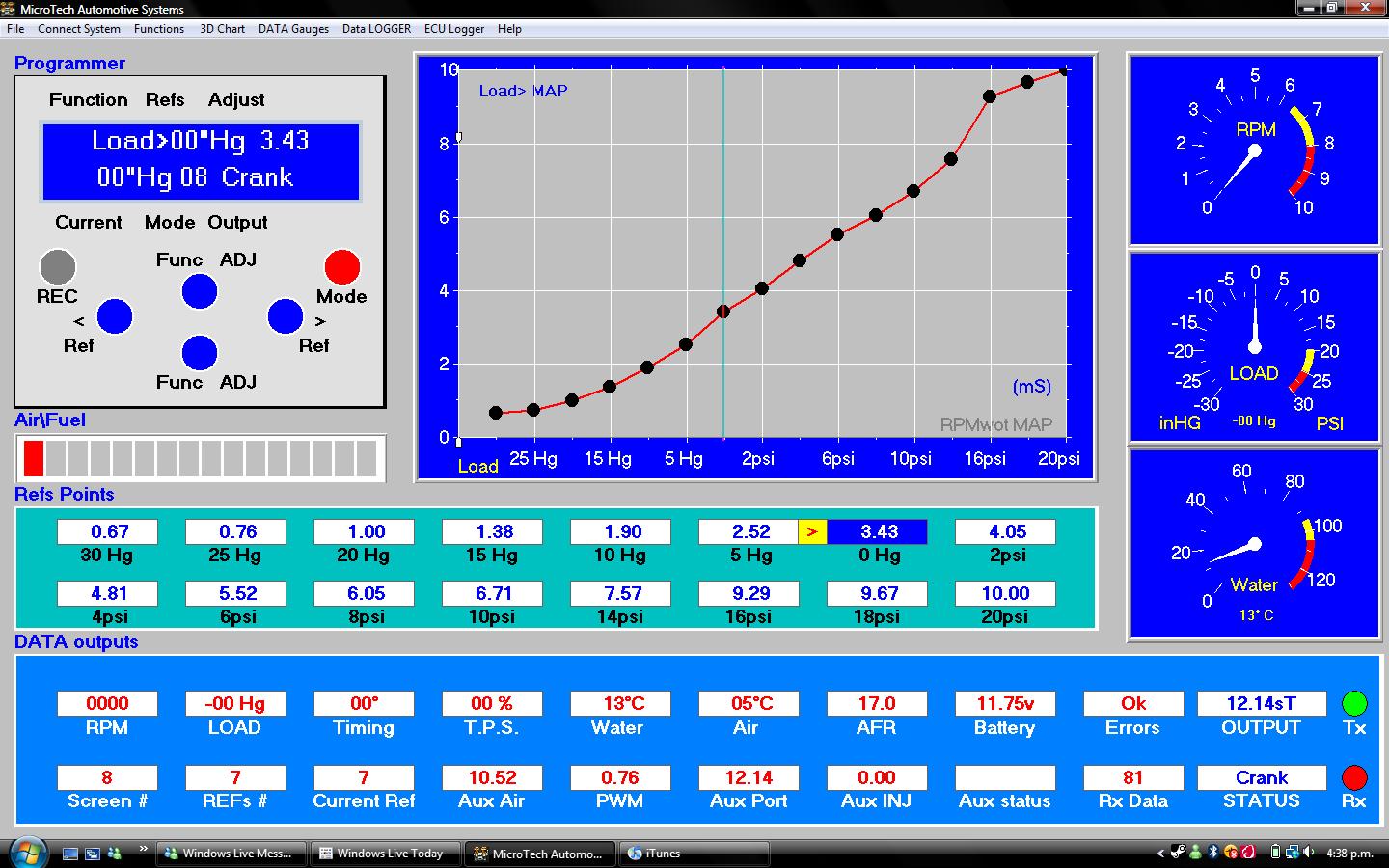

tune above 10psi-load-map.jpg



haha seems obvious now in first map..goes flat
Spannersrx7 is offline
Old 10-21-08, 10:52 PM
  #6
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
i mean second lol
Spannersrx7 is offline
Old 10-22-08, 07:02 AM
  #7
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Load map is fine. Timing map is fine. And so is your idle map.
rx72c is offline
Old 10-22-08, 11:18 PM
  #8
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
well how come it leans out as soon as i go above 10psi, it never used to
Spannersrx7 is offline
Old 10-23-08, 07:26 AM
  #9
Senior Member
iTrader: (1)

BluRR's Avatar

Join Date: Apr 2006
Location: Jamaica
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
you can try pulling up the 14psi value up some more and try it again...just keep pulling up the values until you stop leaning out. If you find you have maxed it out and you still going lean..then you have a fuel delivery problem..your pump isnt flowing enough
BluRR is offline
Old 10-23-08, 04:08 PM
  #10
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Richen up the 14psi map.
And see if it helps.

If it dosnt get any richer, then either your injectors or your fuel pump are maxed out or possibly both.
rx72c is offline
Old 10-23-08, 04:26 PM
  #11
Senior Member
iTrader: (1)

BluRR's Avatar

Join Date: Apr 2006
Location: Jamaica
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rx72c View Post
Richen up the 14psi map.
And see if it helps.

If it dosnt get any richer, then either your injectors or your fuel pump are maxed out or possibly both.
Dude stop repeating me...they say impersonation is greatest form of flattery... but thats just ridiculous
BluRR is offline
Old 10-23-08, 04:58 PM
  #12
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
lol **** didnt even realise.
hahahaha
rx72c is offline
Old 10-24-08, 01:08 AM
  #13
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
on the load map?
Spannersrx7 is offline
Old 10-24-08, 01:53 AM
  #14
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Yes the load map.
rx72c is offline
Old 10-29-08, 03:51 AM
  #15
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
ok changed the map and no more lean out actually goes rich as so have heaps of fuel so will take a little out.. gonna keep a/f round 11? and sometimes it stutters a bit but that may be the voltage? alt belt pretty loose havent tightned up yet a was only on 12.5 volts.. but a couple runs up to 6.5k rpm and went smooth as just real rich
Spannersrx7 is offline
Old 10-29-08, 09:00 PM
  #16
Senior Member
iTrader: (1)

BluRR's Avatar

Join Date: Apr 2006
Location: Jamaica
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
yeah...if its rich pull out some..you can aim for 11.5 AFR when you on boost
BluRR is offline
Old 10-30-08, 12:26 AM
  #17
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
alrite will give that a go tonight
Spannersrx7 is offline
Old 10-30-08, 03:03 AM
  #18
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
ok is there anything wrong with having it run a bit rich apart from not as much power?? and it has a misfire at around 3500 rpm in 3rd in 4th under full load
Spannersrx7 is offline
Old 10-30-08, 05:35 AM
  #19
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
what does the missfire show up as on the afr meter.
nothing wrong with rich. how rich is it though?
rx72c is offline
Old 10-30-08, 11:22 PM
  #20
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
misfire jumps to lean a couple times then comes right.. could be something to do with sencondary injecters.. the correct phrase i cant think of now
Spannersrx7 is offline
Old 10-31-08, 12:32 AM
  #21
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
at what load point is it doing it at?
what are you staging settings?
show us your staging settings.
rx72c is offline
Old 12-09-08, 02:15 AM
  #22
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
how do i find my staging settings
Spannersrx7 is offline
Old 12-09-08, 06:25 AM
  #23
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
go the option menu

look opt_revstg
opt_mapstg

and opt stg%
rx72c is offline
Old 12-15-08, 02:57 AM
  #24
Full Member
5 Year Member
Thread Starter

Join Date: Dec 2006
Location: New Zealand
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
will get those values in a sec.. also i have an air leak and its really annoying.. can i pump more fuel in for starting etc. as it will run nice when warm just have to have the idle up but won't run at all cold because its going too lean
Spannersrx7 is offline
Old 12-15-08, 06:34 PM
  #25
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Water map . thats were you compensate for it when its cold. add fuel in that map.
rx72c is offline
