Auxfan output not working with temp activation. Plz help

Microtech Area is for discussing Microtech systems

Auxfan output not working with temp activation. Plz help

Old 11-12-15, 11:51 PM
  #1
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Auxfan output not working with temp activation. Plz help

So my relay is wired up correctly to my fan and it will turn on with rpm activation but won't turn on with temp activation, has anyone else had this problem ? Lt10s ecu
wthdidusay82 is offline
Old 11-15-15, 09:50 AM
  #2
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Anyone ? I will probably just wire it up to a toggle switch, then later to a thermo.
wthdidusay82 is offline
Old 11-16-15, 08:35 AM
  #3
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
Can you post a screenshot showing the settings? That's weird. I suspect that the aux output has a 2nd parameter set somewhere.
Aaron Cake is offline
Old 11-17-15, 09:45 PM
  #4
Rotary Enthusiast
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
also make sure your microtech is reading the temp sensor correctly on the main screen.
stickmantijuana is offline
Old 11-18-15, 11:33 PM
  #5
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Auxfan output not working with temp activation. Plz help

I can take a pic but I assure you the settings were both set to off for rpm and map, no matter where I put the temp setting (even at zero) , it won't activate.

However it will activate with rpm activation, the thermosensor works and clearly gets a reading but it won't turn on.

Last edited by wthdidusay82; 11-18-15 at 11:58 PM.
wthdidusay82 is offline
Old 11-18-15, 11:33 PM
  #6
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Auxfan output not working with temp activation. Plz help

To my knowledge there are only 3 settings for the aux output #1

AuxRpm_On
AuxMap_On
AuxFan_On

Is there any other setting that could conflict with the function

Last edited by wthdidusay82; 11-18-15 at 11:37 PM.
wthdidusay82 is offline
Old 11-21-15, 10:16 AM
  #7
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
I can't think of a setting that would conflict other than the aux functions.

AuxMAP_ON and AuxRPM_ON must both be set to zero for AuxFAN_ON to work.
Aaron Cake is offline
Old 11-21-15, 02:49 PM
  #8
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
By zero you mean off ? Also I tried using the map to turn on function and that will not work either. The only function that works is rpm on.

Don't understand what I'm doing wrong here.
wthdidusay82 is offline
Old 11-22-15, 09:35 AM
  #9
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
Don't remember if it is zero or "off". Maybe someone else can see if you post screen shots.
Aaron Cake is offline
Old 11-22-15, 12:12 PM
  #10
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Pretty sure it's off according to the manual
wthdidusay82 is offline
Old 12-14-15, 07:31 PM
  #11
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
what colour wire did you use?

sounds like you used the wrong one
rx72c is offline
Old 12-15-15, 10:10 PM
  #12
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Aux input 1 iirc
wthdidusay82 is offline
Old 12-16-15, 09:14 AM
  #13
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
INPUT?! There's your problem.
Aaron Cake is offline
Old 12-16-15, 02:52 PM
  #14
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Actually the problem was it was on on aux output 1, come to find out that's only used for rpm, aux output 2 is for the fan
wthdidusay82 is offline
Old 04-07-16, 01:57 PM
  #15
Stewiefied Racing CEO
iTrader: (36)

rotorhead_izzy's Avatar

Join Date: Jun 2006
Location: Milwaukee, WI
Posts: 1,769
Received 6 Likes on 5 Posts
I have the same thing going on, mine is connected to output1, ill switch it to 2 ans see whats up
rotorhead_izzy is offline
Old 05-28-16, 02:42 PM
  #16
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 2 Likes on 2 Posts
Fix your problem izzy?

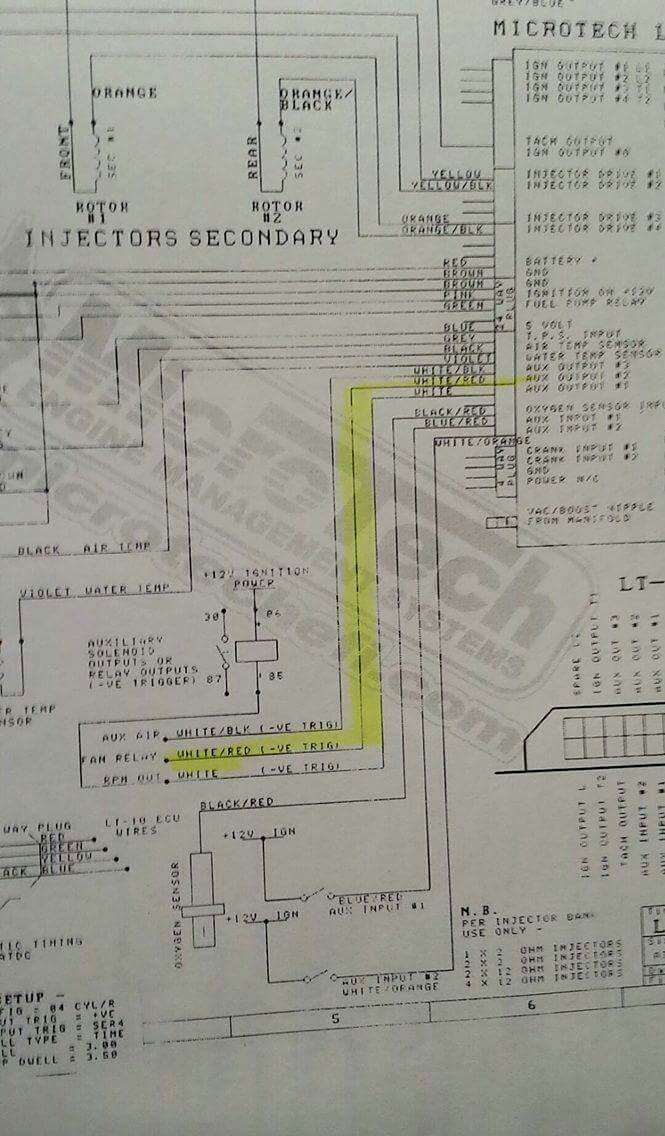

Attached Thumbnails Auxfan output not working with temp activation. Plz help-received_10154136367039463.jpeg
wthdidusay82 is offline
