Enclosure theory.
Has anyone ever tried pressurizing the inside of an enclosure? It would obviously only work on a sealed enclosure, but by increasing the amount of air inside, wouldn't that be somewhat like increasing the size? Also, would a bit of pressure in the box help control excursion?
Just thinking.
Just thinking.
#2
Rotary Enthusiast
Join Date: May 2005
Location: bartlett IL
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts

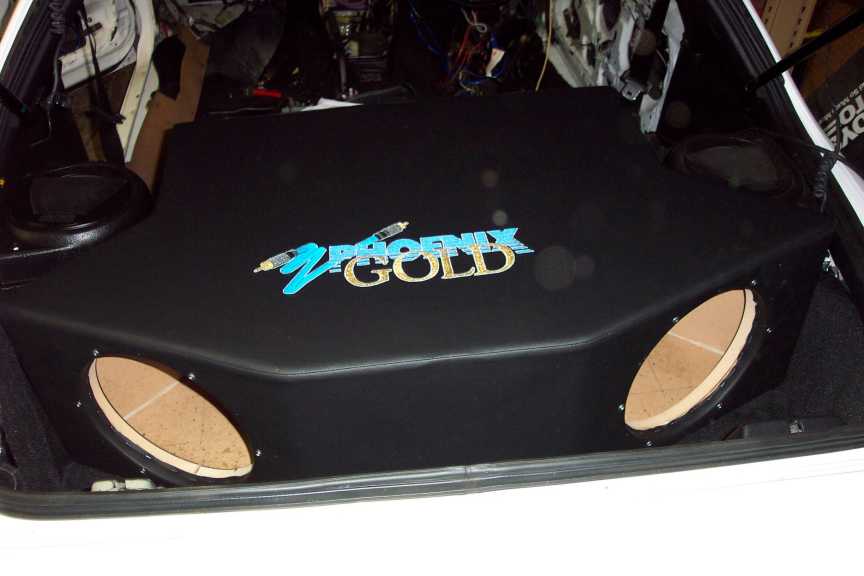

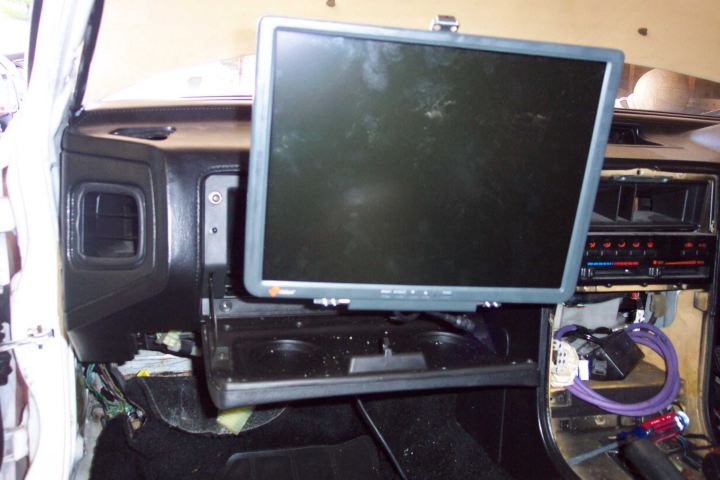

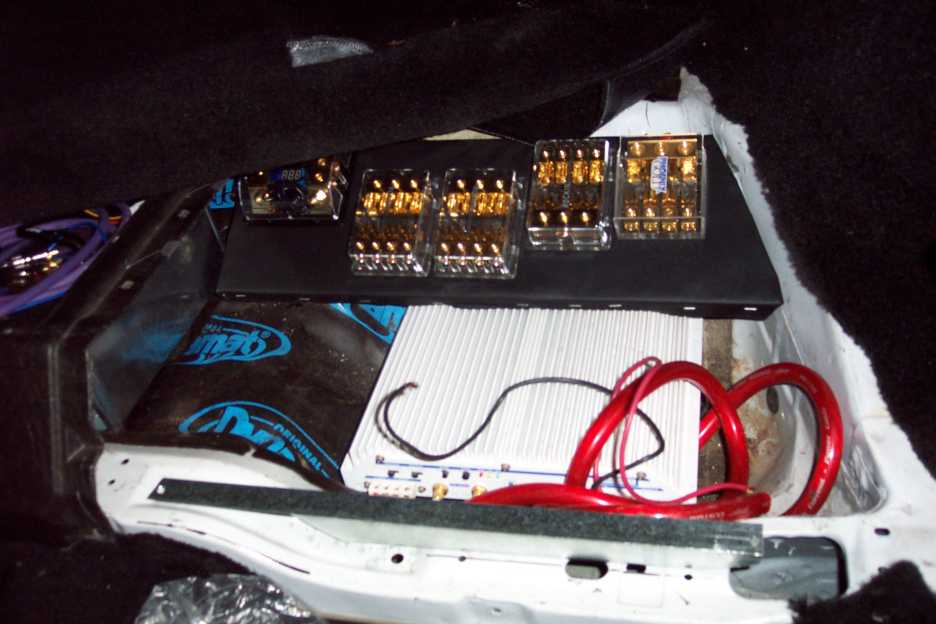

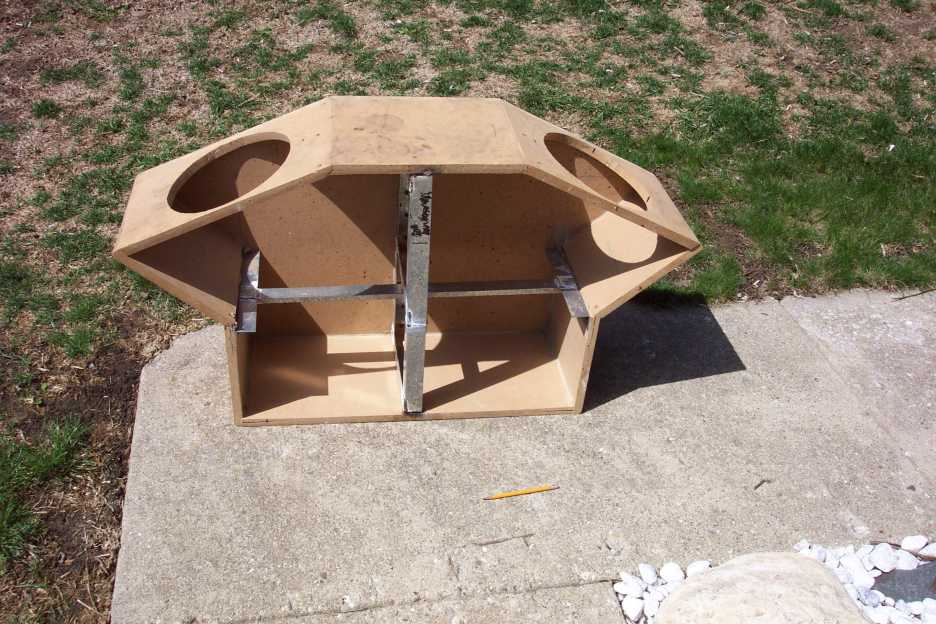

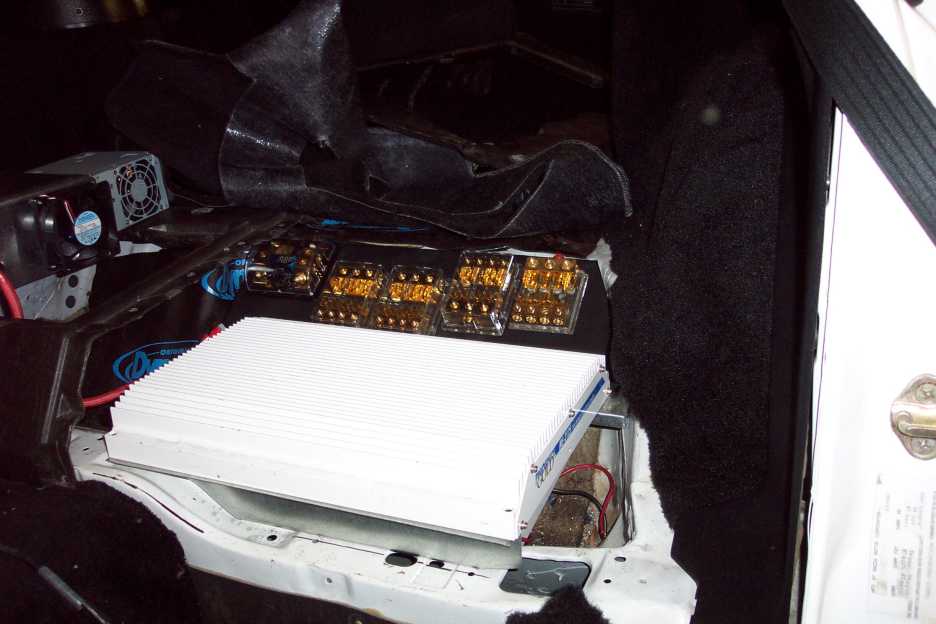

I believe pressurizing an enclosure would make it seem to the sub as a smaller enclosure not bigger. It doesnt sense the molecules of air itself it merely reacts to the pressure the pressure of course changes with the air volume and the speaker movement the larger the volume the less pressure is exerted on the sub. If you pressurize the box the sub will have to work too hard and you will damage it. Here are some pics of my GC monitor, box, amps, and power distribution
#3
Lives on the Forum
Pressurizing a sealed enclosure would make the enclosure appear smaller to the driver.
It wouldn't work though. If the enclosure is already "charged" with pressure then even when the driver is at rest with no signal the enclosure is attempting to drive it. Some or all of the xmax of the driver would be used up just sitting there. Even if it was made to work with some sort of special dsp there's no sense in it. If you wanted the enclosure to act smaller you'd just make it smaller.
It wouldn't work though. If the enclosure is already "charged" with pressure then even when the driver is at rest with no signal the enclosure is attempting to drive it. Some or all of the xmax of the driver would be used up just sitting there. Even if it was made to work with some sort of special dsp there's no sense in it. If you wanted the enclosure to act smaller you'd just make it smaller.
#4
Top of the food chain!!!
iTrader: (1)
Originally Posted by $100T2
Has anyone ever tried pressurizing the inside of an enclosure? It would obviously only work on a sealed enclosure, but by increasing the amount of air inside, wouldn't that be somewhat like increasing the size? Also, would a bit of pressure in the box help control excursion?
Just thinking.
Just thinking.
If your looking for "fake volume" you can cram some of that polyurathane cotton stuff in there and it simulates a bigger airspace.
#5
Full Member
Join Date: Jun 2005
Location: Wherever you want
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
I don't think it would be good for the speaker: since the pressure would not be the same on both side of it, there would always be a pression on your sub when it is not playing.
#6
On the prowl for an FB
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by ItalynStylion
If your looking for "fake volume" you can cram some of that polyurathane cotton stuff in there and it simulates a bigger airspace.
#7
Lives on the Forum
Originally Posted by $100T2
How exactly does that work?
Trending Topics
#9
AUTOBAHN!!!
Join Date: May 2006
Location: Sherman, Texas USA
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
Putting the driver in the sealed box reduces the 180deg wave (thickness=stiffness=effectiveness) It would have no purpose but to burn money. Save the dampening for the front doors fore they do not have a enclosure and any reduction for the negative waves would be a bonus.
For the answer to all your audio questions Please go to Wanye Harris's Articles Page for he is the grandfather of car audio.
http://www.termpro.com/articles/articles.html
For the answer to all your audio questions Please go to Wanye Harris's Articles Page for he is the grandfather of car audio.
http://www.termpro.com/articles/articles.html
#10
Rotary Enthusiast
Join Date: Sep 2002
Location: Statesboro, GA
Posts: 1,233
Likes: 0
Received 0 Likes
on
0 Posts
and just a note, pressurizing the enclosure, wether positive or negative pressure, will have negative effects on over excursion. the voice coil works both ways, if there is positive pressure the voice coil will reach full out excursion sooner than normal. and just the opposite would happen if there were a vacuum in the enclosure. the VC would bottom out sooner. and as it was mentioned earlier, the likelyhood that you'll have a perfect seal is slim to none. couple hours tops and you'll be back to atmospheric pressure.
