Bose CD Auxillary Mod

Reply




Old 12-30-07, 03:52 AM
  #1
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
Bose CD Auxillary Mod

OK, I've searched forever and can't find it again. Can someone point out the link for wiring up the stock Bose CD player for an external MP3 player input.

Thanks
roland88 is offline
Reply With Quote
Old 12-30-07, 05:37 PM
  #2
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
OK, I found it - it was actually on the Miata forum: http://www.miata.net/garage/external...interface.html

Essentially, we can keep everything as stock and bypass the CD player with an auxillary in for your MP3 player or whatever you want to connect - even another cd player if you get creative
roland88 is offline
Reply With Quote
Old 12-30-07, 06:14 PM
  #3
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Thanks: 0
Thanked 0 Times in 0 Posts
wow that's cool i've never seen that before.
jacobcartmill is offline
Reply With Quote
Old 12-31-07, 03:48 AM
  #4
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts

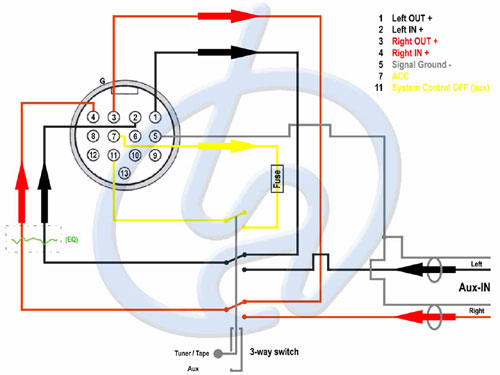

OK, we need to do something like from Tobias's website (thanks for the image Tobias)
http://www.tobias-albert.de/
Attached Thumbnails Bose CD Auxillary Mod-aux_in_big.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 03:50 AM
  #5
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts

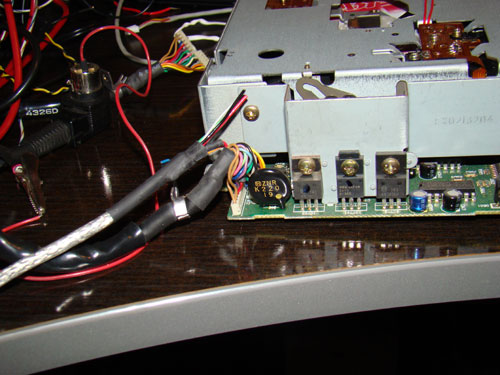

we first rip open the Bose CD player. I've used a USB cable, because it is shielded has the right number of connections and is a cool way to get an interesting plug. Plus, it's really all I had lying around
Attached Thumbnails Bose CD Auxillary Mod-image1.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 03:54 AM
  #6
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
we find the Line In for left and right channels, snip them and run 4 cables out for each end of the left and right channels. We also run our signal ground to the shield of the USB cable. I've used some heatshrick tubing to keep things insulated
Attached Thumbnails Bose CD Auxillary Mod-image2.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 04:33 AM
  #7
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts

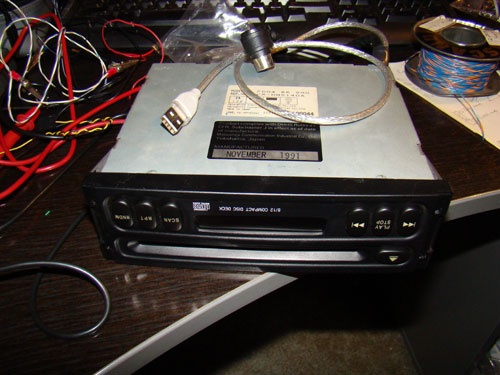

well, that was a pain in the butt, in any case it's done. Now I gotta make the other end
Attached Thumbnails Bose CD Auxillary Mod-image3.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 04:36 AM
  #8
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
now we need a box, a DPDT switch (one with 6 connectors), a female USB cable and a socket for out audio input
Attached Thumbnails Bose CD Auxillary Mod-image4.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 04:48 AM
  #9
Full Member
10 Year Member
Thread Starter

roland88's Avatar

Join Date: Mar 2002
Location: Sydney, Australia
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up

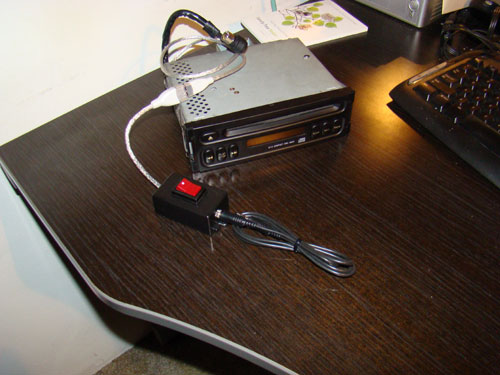

OK, so the CD circuit board side of our 2 line wires to the centre of the switch (this is our common). Other end of the wires that we snipped to one switchable side of our switch - so in this switch position is basically just rejoins the wires so the CD player will still play normally. Mine actually still plays most of the time - well this one anyway, I have 6 of these dumb Bose CD players ... the others make good bookends.

Wire up the 3.5mm (1/8th inch) audio socket to the other side of the switch, so we change the line in from the CD player to our new auxillary for an MP3 player or whatever.

$16 worth of parts and around 2 hours worth of mucking around with a soldering iron and I have kept my audio looking stock, no loss of functionality with the CD player or radio/cassette and I now can run anything I like through the Bose sound system.

The USB cable makes a neat way of pluging the box on. The box can be hidden under the dash, or in the gloce compartment.

Hope my efforts here with this post can help someone else.

Cheers and Happy New Year!!!!
Attached Thumbnails Bose CD Auxillary Mod-image5.jpg
roland88 is offline
Reply With Quote
Old 12-31-07, 05:33 AM
  #10
Rotary for life!

rexhvn's Avatar

Join Date: Oct 2005
Location: Somewhere...
Posts: 1,124
Thanked 1 Time in 1 Post
I didn't even know the bose system had wires! haha...
rexhvn is offline
Reply With Quote
Old 01-02-08, 12:22 AM
  #11
It's dark like Poe.

DarkLikePoe's Avatar

Join Date: Mar 2007
Location: California
Posts: 359
Thanks: 0
Thanked 0 Times in 0 Posts
Love the DIY methods! I bought an AuxMod Basic for the 05 Miata radio I installed and ran the AUX input through the ashtray.

DarkLikePoe is offline
Reply With Quote
Old 02-09-11, 12:17 PM
  #12
Slow-Poke
iTrader: (5)

RedRevolver's Avatar

Join Date: Mar 2010
Location: Bellingham, WA
Posts: 91
Thanks: 0
Thanked 0 Times in 0 Posts
Did this mod and it works great =) My original head unit was dead but when I plugged a new one it it worked just fine. I now use the top space for 3 guages and have a little slot that the aux cord comes out of. Velcro my zune HD to the dash and it works just great. Well, until I learned velcro backing melts in hot weather haha.

the instructions for the miata worked just fine. But instead of buying a new connector I just used the one to the CD player and took the wiring out from inside of the CD player like roland did above.
RedRevolver is offline
Reply With Quote
Old 02-10-11, 11:32 PM
  #13
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 8 Times in 6 Posts
Wow this is neat! My cd player doesn't work and I've been using a tape adapter for my MP3. I wanted to do something like this years ago but I'm getting ready to put in another stereo anyways.
t-von is offline
Reply With Quote
Old 02-19-11, 01:20 AM
  #14
Senior Member
iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Thanks: 0
Thanked 1 Time in 1 Post
Anyone tried this cable out yet? http://www.amazon.com/Pyle-PLIPKENWD...pd_sim_sbs_e_1

Found one on ebay for 7.99; thought I'd give it a try.

Last edited by bufferovrflo; 02-19-11 at 01:23 AM.
bufferovrflo is offline
Reply With Quote
Old 03-17-11, 04:09 PM
  #15
Senior Member
iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by bufferovrflo View Post
Anyone tried this cable out yet? http://www.amazon.com/Pyle-PLIPKENWD...pd_sim_sbs_e_1

Found one on ebay for 7.99; thought I'd give it a try.

For what it's worth, it works but the ipod doesn't have enough juice to power the speakers to be very loud. With the deck cranked up and the ipod on max, it's pretty quiet. So if you have a loud cbe I wouldn't recommend it.
bufferovrflo is offline
Reply With Quote
Old 03-18-11, 01:49 AM
  #16
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 8 Times in 6 Posts
Originally Posted by bufferovrflo View Post
For what it's worth, it works but the ipod doesn't have enough juice to power the speakers to be very loud. With the deck cranked up and the ipod on max, it's pretty quiet. So if you have a loud cbe I wouldn't recommend it.


Thx for updating the thread!
t-von is offline
Reply With Quote
Old 02-13-13, 05:29 PM
  #17
Full Member
iTrader: (2)

Join Date: Apr 2012
Location: Phoenix, Arizona
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Time for resurrection. I'm not sure if anyone looks at this thread anymore, but I have some useful information in regards to the link posted near the beginning of this thread http://www.miata.net/garage/external...interface.html. This information was very useful but wasn't quite correct. This was enough information to get me started, though. I did have success in adding an aux to my factory Bose/Clarion head unit. I used a 13 pin DIN cable that is widely available for Kenwood/Clarion/Blaupunkt/Aiwa head units for around $10. I cut it in half and used a multimeter to find the wires for pins 1-5. I soldered them to the 274-0246 normally closed 1/8 in stereo panel mount jack in this configuration

Din Cable Pin 1/8" Jack Pin
1 5
2 3
3 4
4 2
5 1

Hopefully this will help others in the future. Total cost was about $13 and it sounds great. You can also mount it wherever you like.
rtrylvr is offline
Reply With Quote
Old 02-14-13, 09:59 AM
  #18
Full Member
iTrader: (2)

Join Date: Apr 2012
Location: Phoenix, Arizona
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by rtrylvr View Post
Time for resurrection. I'm not sure if anyone looks at this thread anymore, but I have some useful information in regards to the link posted near the beginning of this thread http://www.miata.net/garage/external...interface.html. This information was very useful but wasn't quite correct. This was enough information to get me started, though. I did have success in adding an aux to my factory Bose/Clarion head unit. I used a 13 pin DIN cable that is widely available for Kenwood/Clarion/Blaupunkt/Aiwa head units for around $10. I cut it in half and used a multimeter to find the wires for pins 1-5. I soldered them to the 274-0246 normally closed 1/8 in stereo panel mount jack in this configuration

Din Cable Pin 1/8" Jack Pin
1 5
2 3
3 4
4 2
5 1

Hopefully this will help others in the future. Total cost was about $13 and it sounds great. You can also mount it wherever you like.
Since this didn't format the way I typed it I'm going to update it so it's easier to understand. I also wanted to mention that the 13 pin DIN cable I referenced is used for a CD changer or Sirius radio in the fore mentioned post.

Din cable pin 1 to jack pin 5
Din cable pin 2 to jack pin 3
Din cable pin 3 to jack pin 4
Din cable pin 4 to jack pin 2
Din cable pin 5 to jack pin 1

Happy soldering!
rtrylvr is offline
Reply With Quote
