Haltech *HALTECH EXPERTS* How does this Trailing split map look?
#1
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 779 Likes
on
446 Posts
*HALTECH EXPERTS* How does this Trailing split map look?
Having trouble with detonation that is being caused by the trailing coil in high boost (8-10psi).
Wiring is correct.
Wires in the correct location.
No detonation with trailing disconnected.
Does this map look ok?

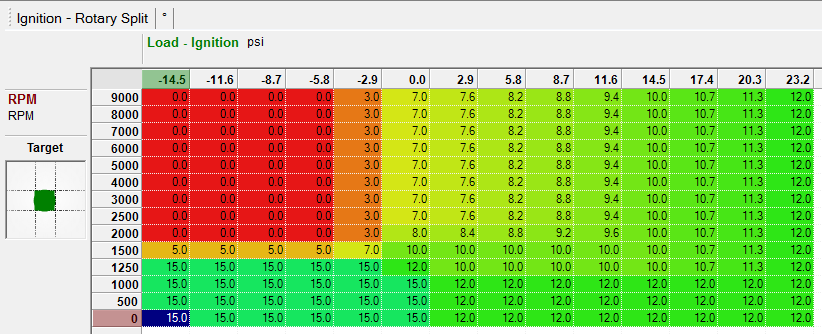

Heres my timing map
Wiring is correct.
Wires in the correct location.
No detonation with trailing disconnected.
Does this map look ok?
Heres my timing map
#3
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 779 Likes
on
446 Posts
I just realized these are the Haltech Base Maps. I was told these were tuned. Im getting detonation on high boost. FML
Last edited by FührerTüner; 12-05-15 at 10:25 AM.
#5
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 779 Likes
on
446 Posts
Its just barely tinking on full throttle pulls, 2nd 3rd gear
When i disconnect the T coil it goes away.
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
is the trailing working correctly? like have you put a timing light on it and made sure that its correct? i'm assuming you've got at least the correct heat range plugs in it, if not something colder.
attached are the S5 T2 timing maps, the load units are not comparable, but since the RPM is, their full load and no load rows are comparable.
they run a little more timing and a little more split than you, generally. although they are making less power, so they can run more timing.
attached are the S5 T2 timing maps, the load units are not comparable, but since the RPM is, their full load and no load rows are comparable.
they run a little more timing and a little more split than you, generally. although they are making less power, so they can run more timing.
#7
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 779 Likes
on
446 Posts
is the trailing working correctly? like have you put a timing light on it and made sure that its correct? i'm assuming you've got at least the correct heat range plugs in it, if not something colder.
attached are the S5 T2 timing maps, the load units are not comparable, but since the RPM is, their full load and no load rows are comparable.
they run a little more timing and a little more split than you, generally. although they are making less power, so they can run more timing.
attached are the S5 T2 timing maps, the load units are not comparable, but since the RPM is, their full load and no load rows are comparable.
they run a little more timing and a little more split than you, generally. although they are making less power, so they can run more timing.
Im running BUR9EQ-Ps all around.
Ive seen those maps, im going to let my tuner take a look at it.
Trending Topics
#10
Senior Member
iTrader: (9)
you probably have something wired wrong.
Maybe do the following:
Check base timing, what pulley do you have ? , check the leading is firing correctly and then the trailing.
Change plugs, check wires ( resistance ) .
check coil wiring, are you running stock T2 trailing coils.
Maybe do the following:
Check base timing, what pulley do you have ? , check the leading is firing correctly and then the trailing.
Change plugs, check wires ( resistance ) .
check coil wiring, are you running stock T2 trailing coils.
#11
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 779 Likes
on
446 Posts
you probably have something wired wrong.
Maybe do the following:
Check base timing, what pulley do you have ? , check the leading is firing correctly and then the trailing.
Change plugs, check wires ( resistance ) .
check coil wiring, are you running stock T2 trailing coils.
Maybe do the following:
Check base timing, what pulley do you have ? , check the leading is firing correctly and then the trailing.
Change plugs, check wires ( resistance ) .
check coil wiring, are you running stock T2 trailing coils.
I'm going to continue this troubleshooting on this thread:
https://www.rx7club.com/haltech-foru...ideas-1093236/
