FC Master Cylinder Brace

Old 08-30-11, 06:30 PM
  #1
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
FC Master Cylinder Brace

I made this for my personal FC and wanted to gauge the interest. If there is enough interest, then I'd be more then happy to put them into production.





Level Zero Motorsports is offline
Old 08-30-11, 06:38 PM
  #2
Full Member
5 Year Member
iTrader: (1)

gameover2145's Avatar

Join Date: Sep 2006
Location: Louisville, Kentucky
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
That looks like a great piece. I'd buy one if the price were right.
gameover2145 is offline
Old 08-30-11, 06:48 PM
  #3
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
I did this for my personal car so I didn't bother to take notes on the total machining time, but off the top of my head pricing would be around $95 shipped, maybe less if I can speed up the machining. Production pieces would be anodized and use all stainless hardware.

The part is 1" thick and the pockets actually take a fair amount of time to machine due to the small radius of the corners. I could have made the part quicker/cheaper but I wanted it to be lightweight and strong which can sometimes be a challenge when designing thick parts.
Level Zero Motorsports is offline
Old 08-30-11, 09:12 PM
  #4
rotors excite me
10 Year Member
iTrader: (16)

SpeedOfLife's Avatar

Join Date: Jun 2006
Location: Central Iowa
Posts: 4,082
Likes: 0
Received 3 Likes on 3 Posts
Can you demonstrate the need? I understand the purpose, but I'm wondering how critical it is.

Also, to lower the cost what about leaving it solid? It only weighs a couple pounds solid, right?
SpeedOfLife is offline
Old 08-30-11, 09:12 PM
  #5
rotors excite me
10 Year Member
iTrader: (16)

SpeedOfLife's Avatar

Join Date: Jun 2006
Location: Central Iowa
Posts: 4,082
Likes: 0
Received 3 Likes on 3 Posts
Or perhaps simple round drilled holes for the weight savings.
SpeedOfLife is offline
Old 08-30-11, 10:11 PM
  #6
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
It's not a critical part. It's mostly to improve the feel of the brake peddle, specifically when threshold braking.

Round holes would be faster to machine, although I'd have to do some testing to make sure it will still be strong enough and not act like a spring. At the end of the day it's a 1 inch thick block of aluminum with 3 machining operations, there is only so much I can do to bring cost down.
Level Zero Motorsports is offline
Old 08-30-11, 10:27 PM
  #7
Full Member
5 Year Member
iTrader: (1)

gameover2145's Avatar

Join Date: Sep 2006
Location: Louisville, Kentucky
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
IMHO, the machining of the holes in the middle for weight savings is unnecessary. If it would make the part cheaper, I would just make it a solid block. The holes really only add to aesthetic appeal and honestly I think function and price take precedence over form. If it drives down production cost and time to make them without the holes and they don't add significant function or value to the part, I say leave them out and offer a simple, functional part to the consumer.

Regardless, I'd probably buy one either way. I'm glad people are willing to produce small scale parts for the FC crowd and I'll always support these operations as much as I can.
gameover2145 is offline
Old 08-30-11, 10:32 PM
  #8
13BEE
5 Year Member
iTrader: (5)

UniqueFc's Avatar

Join Date: Aug 2007
Location: NY
Posts: 546
Likes: 0
Received 0 Likes on 0 Posts
ill buy one
UniqueFc is offline
Old 08-30-11, 10:42 PM
  #9
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
@gameover2145

I appreciate the feedback. As I mentioned this was designed originally for personal use with no consideration given to production times. It's easy for me to design and produce parts, but without feedback from the community it's hard to know what people want and what trade offs they are willing to accept.

I'm going to play with the design a little and see what I can do to speed up the machining without sacrificing too much weight or ascetics.
Level Zero Motorsports is offline
Old 08-30-11, 10:47 PM
  #10
13BEE
5 Year Member
iTrader: (5)

UniqueFc's Avatar

Join Date: Aug 2007
Location: NY
Posts: 546
Likes: 0
Received 0 Likes on 0 Posts
keep us posted
UniqueFc is offline
Old 08-31-11, 12:16 AM
  #11
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts

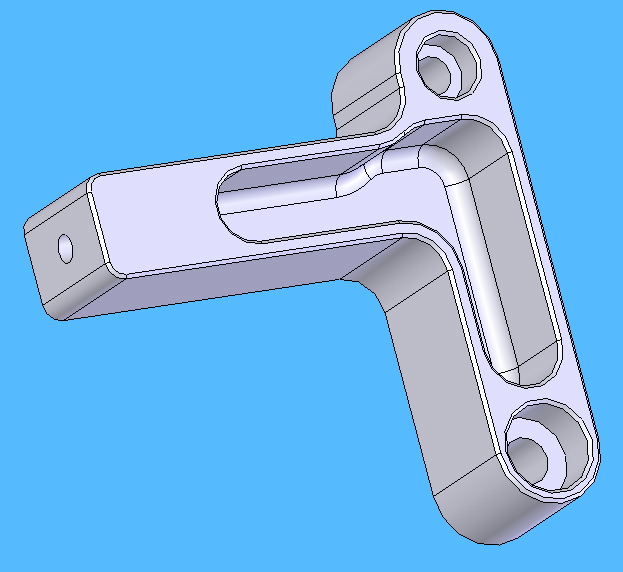

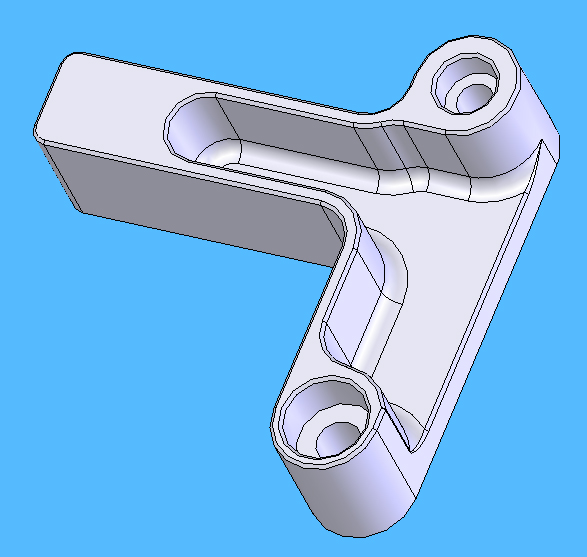

A couple images of other designs I'm playing with. Both weigh a hair less then the original and should actually be faster to machine.

I know I could leave it completely solid, but it would result in a part that wouldn't meet my standards. It might only be a few ounces but for some people those ounces make a big difference. I try to design parts to suit the needs of everyone regardless of if the car is a daily driver or a full our race car.
Attached Thumbnails FC Master Cylinder Brace-mc_brace_7.jpg   FC Master Cylinder Brace-mc_brace_8.jpg
Level Zero Motorsports is offline
Old 08-31-11, 02:14 AM
  #12
rotors excite me
10 Year Member
iTrader: (16)

SpeedOfLife's Avatar

Join Date: Jun 2006
Location: Central Iowa
Posts: 4,082
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by Level Zero Motorsports View Post
I try to design parts to suit the needs of everyone regardless of if the car is a daily driver or a full our race car.
That's the thing. For the guys who drive it on the street more, lower cost may be the bigger need; then for the guys who meticulously prepare for racing may pay a lot more for a little weight savings. There's nothing inherently wrong with selling a few variations of the same concept, as long as you still get what you need out of the deal, too.

BTW I do like that second design you thumbnailed.
SpeedOfLife is offline
Old 08-31-11, 02:20 AM
  #13
On the fasttrack!
5 Year Member
iTrader: (22)

magus2222's Avatar

Join Date: Oct 2006
Location: virginia beach, virginia
Posts: 2,493
Likes: 0
Received 0 Likes on 0 Posts
i personally am down for a copy of the one you made, i love it.
and 95$ is a good price, considering no one makes these.......

Lloyd
magus2222 is offline
Old 08-31-11, 02:36 AM
  #14
I
10 Year Member
iTrader: (25)

Howru's Avatar

Join Date: Dec 2005
Location: Vallejo, CA
Posts: 651
Received 0 Likes on 0 Posts
Ooo...shiny!

If you'd make it an option I'd just leave it a solid block. I can see a possibility for using this as a mount for small things in the area you machine out.
Howru is offline
Old 08-31-11, 08:13 AM
  #15
Full Member
5 Year Member
iTrader: (1)

gameover2145's Avatar

Join Date: Sep 2006
Location: Louisville, Kentucky
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
I like both designs. I don't think you can go wrong in this situation as this sort of part isn't readily available. The only other company that makes this part is Cusco, and I'm not sure if it works with LHD cars. Not to mention it has to be shipped from Japan.
gameover2145 is offline
Old 09-01-11, 10:15 AM
  #16
Senior Member
5 Year Member
iTrader: (1)

Join Date: Jul 2008
Location: westchester, ny
Posts: 437
Likes: 0
Received 0 Likes on 0 Posts
I like it, Quick question is there holes on the strut tower or did u just drill holes and tap two holes.
a2dadamm is offline
Old 09-01-11, 03:54 PM
  #17
Rotisserie Engine
iTrader: (8)

driftxsequence's Avatar

Join Date: Jan 2007
Location: Wilmington, DE
Posts: 1,690
Likes: 0
Received 0 Likes on 0 Posts
why not offer two models? one solid for x price, one lightweight for an increased price. that way you only have to machine the lightweight ones when the orders come in for them.
driftxsequence is offline
Old 09-01-11, 03:55 PM
  #18
Rotisserie Engine
iTrader: (8)

driftxsequence's Avatar

Join Date: Jan 2007
Location: Wilmington, DE
Posts: 1,690
Likes: 0
Received 0 Likes on 0 Posts
cant edit my post,

i'm interested in one.
driftxsequence is offline
Old 09-01-11, 10:26 PM
  #19
Purpose Built
iTrader: (1)

FCzzz's Avatar

Join Date: Apr 2011
Location: Bellingham, WA
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
That's some nice machining, but how did you manage to make that 3 ops? Did you flip it over only to do the chamfer on the back side?
FCzzz is offline
Old 09-03-11, 01:53 AM
  #20
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by a2dadamm View Post
I like it, Quick question is there holes on the strut tower or did u just drill holes and tap two holes.
I used existing holes in the strut tower, which is why if you look close the cap screws are different sizes.

Originally Posted by driftxsequence View Post
why not offer two models? one solid for x price, one lightweight for an increased price. that way you only have to machine the lightweight ones when the orders come in for them.
It's an option but it would really depend on interest. I don't mind do it if thats what people really want. When I add a new product to the website I try to ensure I always have 6+ months of parts in stock at all times. This adds to overhead and takes up space which is always at a premium.

Originally Posted by FCzzz View Post
That's some nice machining, but how did you manage to make that 3 ops? Did you flip it over only to do the chamfer on the back side?
Yes I did. It doesn't add much machine time as the part has to be put in a fixture after the first op to ensure accuracy.
Level Zero Motorsports is offline
Old 09-07-11, 03:15 AM
  #21
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Just a quick update. Prototypes are at the anodizers. I should have them back in a few days. I also ordered in the material in order to make more if I end up going forward with these.
Level Zero Motorsports is offline
Old 09-07-11, 09:01 PM
  #22
Junior Member
5 Year Member

spiff-d's Avatar

Join Date: Feb 2010
Location: Great White North (Beaumont Alberta Canada)
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
I'm interested! But if you do go into production, include the screws!
spiff-d is offline
Old 09-09-11, 06:41 PM
  #23
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by spiff-d View Post
I'm interested! But if you do go into production, include the screws!
Everything needed to install will be included.

Prototypes are back from the anodizers and I picked up the stainless hardware. I need to track down a local S4 just to make sure the mounting holes are the same as the S5.



Level Zero Motorsports is offline
Old 09-10-11, 12:05 PM
  #24
13BEE
5 Year Member
iTrader: (5)

UniqueFc's Avatar

Join Date: Aug 2007
Location: NY
Posts: 546
Likes: 0
Received 0 Likes on 0 Posts
loooks great
UniqueFc is offline
Old 09-10-11, 01:02 PM
  #25
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,667
Received 9 Likes on 9 Posts
are they all going to be red?
