Temperature
09-16-16, 08:17 PM
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,856
Received 2,619 Likes
on
1,856 Posts
between 180-200F
the thermostat opens at 180F. the C mark is 65c, the H is 105C and the S5 has a centering thing in the gauge, so the middle is 66c-100c.
the thermostat opens at 180F. the C mark is 65c, the H is 105C and the S5 has a centering thing in the gauge, so the middle is 66c-100c.
09-17-16, 10:21 AM
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
And the stock gauge on the S5 RX-7 is useless. It has 3 settings: cold, normal, and overheated.
If you really want to know the temperature, you need to get another gauge, read from your EMS if that's an option, or measure the voltage at the ECT sensor.
If you really want to know the temperature, you need to get another gauge, read from your EMS if that's an option, or measure the voltage at the ECT sensor.
09-18-16, 04:55 PM
#5
Junior Member
Thread Starter
Join Date: Aug 2016
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Alrite so I got an auto meter temp gauge and my car is definitely overheating. I changed the coolant to all new coolant. New thermostat. And new sender unit to. Any suggestions?
Trending Topics
09-18-16, 06:10 PM
#9
Not sure if that's too hot, but your jeopardizing the health of the engine (apex seals). If the thermostat is working properly (and the factory one is the only one you want to use) then the items mentioned should be a focal point given that you don't have a blockage in the system. Not sure if a blockage would contribute to a hose blowing or not, but perhaps someone else could chime in.
09-19-16, 08:36 PM
#14

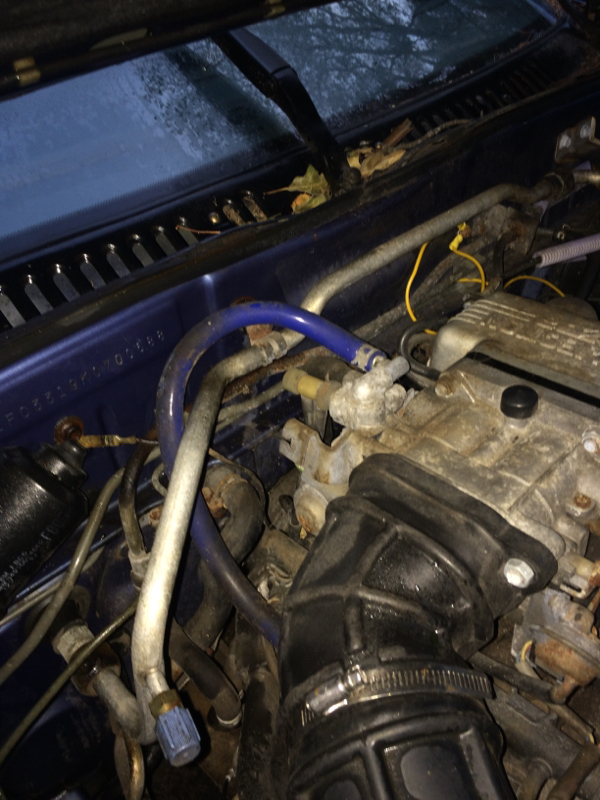

The item w/the blue hose is the thermowax and this item has two nozzles thus only one nozzle, as seen in the pic, has a hose to it thus it is missing a hose. The nozzle which has no hose is the receiving side of the thermowax so that you only have the exit hose on is perplexing because that hose takes the coolant running through the thermowax and passes it through the system on its way back to the radiator and not the other way around.
