Let me add to this post.. I found for auto to manual wire up

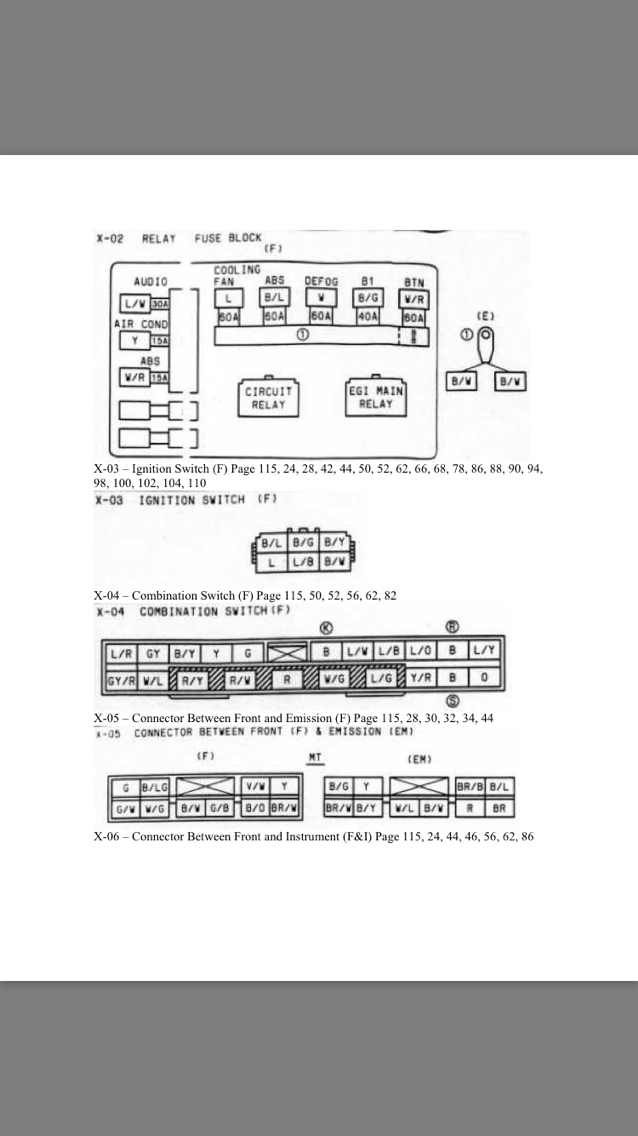

so X-05 connector is the blue one

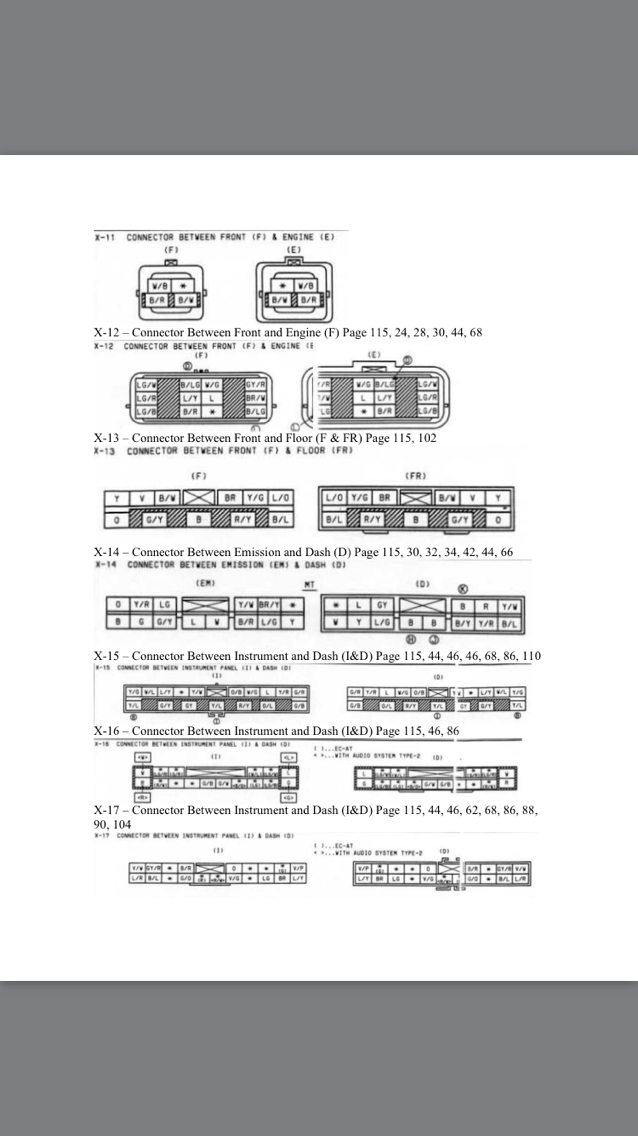

and the x-14 connector is the white one

now I'm following everything that is written up on this post but I still have a few wire lift out...
I know the black wire from the x-14 connector go's to the x-05 connector but were do the others go????? To the black plug

Here are the color wires that are left out...

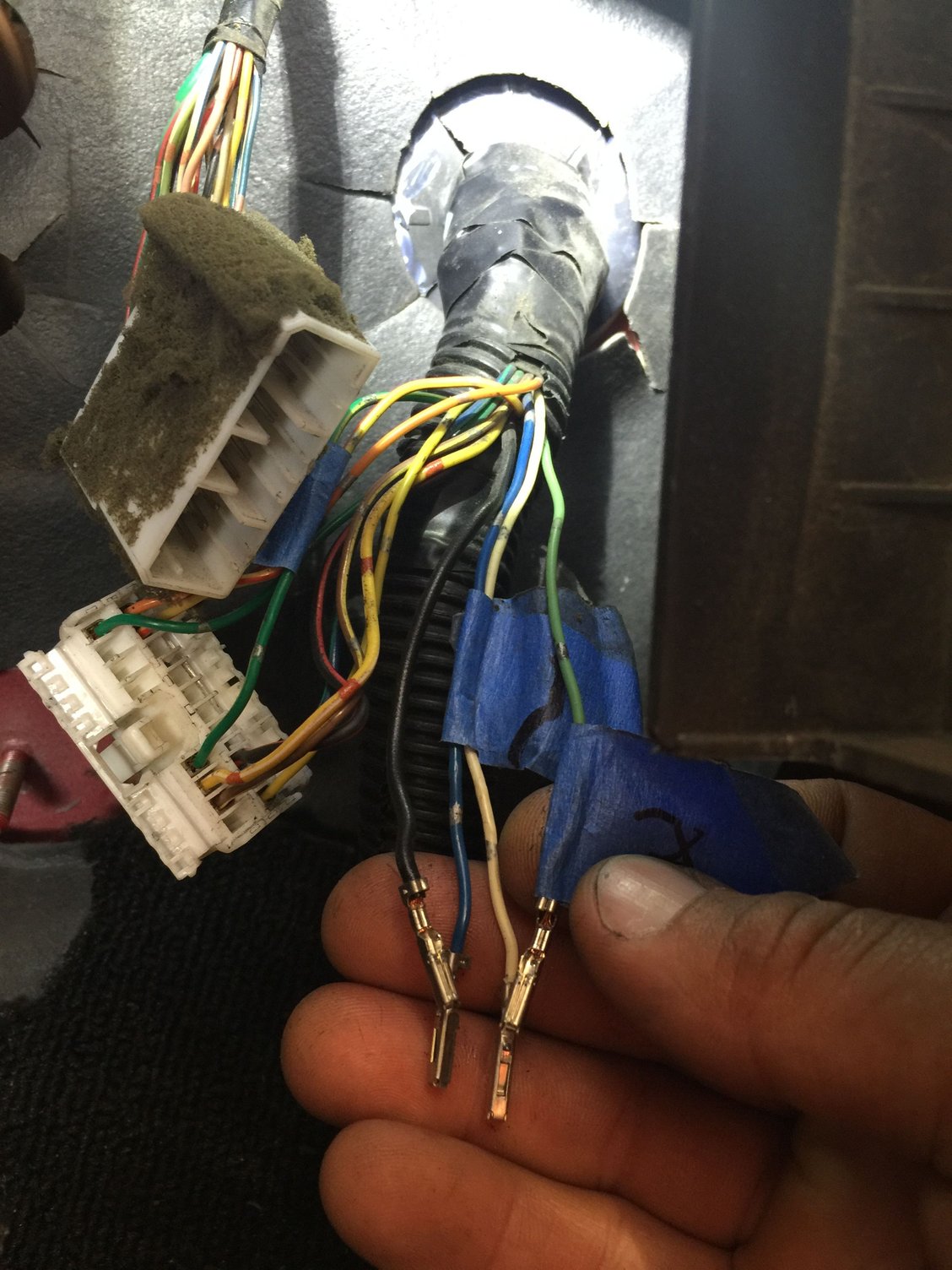

By the white plug (x-14 connector) by the firewall
Black, blue, white, and a light green

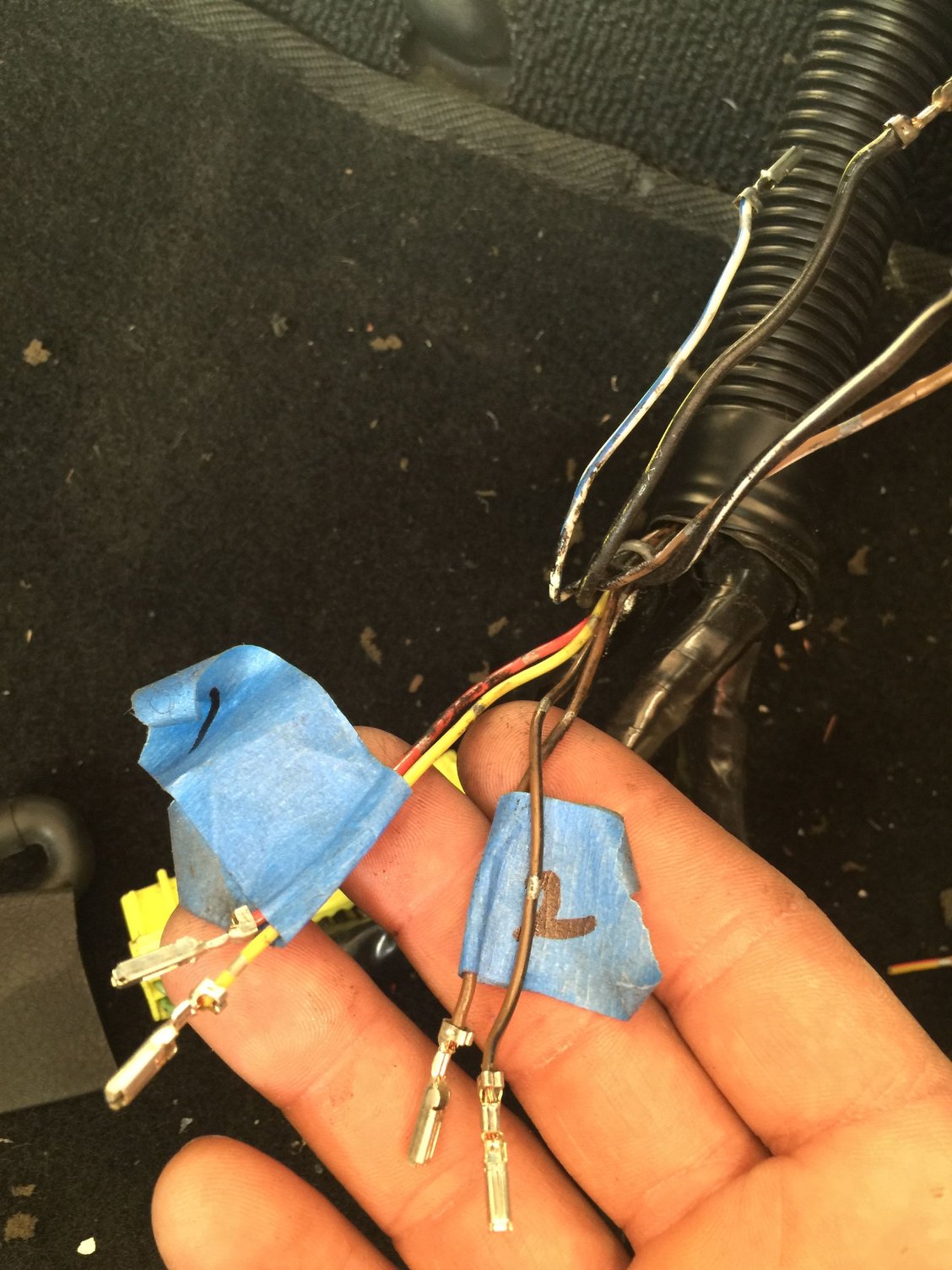

By the blue plug (x-05 connector)
Yellow, red, brown/black stripe, brown

Were do I plug them????





Can anybody help??



Which plug were these wires originally from (post is a bit confusing to me)?



First thing first


COLOUR ----------- CODE

Blue------------------L
Black-----------------B
Brown----------------BR
Dark Blue------------DL
Dark Green----------DG
Green----------------G
Grey -----------------GY
Light Blue------------LB
Light Green-----------LG
Natural---------------N
Orange----------------O
Pink------------------P
Red ------------------R
Purple---------------PU
Tan-------------------T
White-----------------W
Yellow ----------------Y
Violet -----------------V



Did you changed the front harness ( fender to fender ?)





Thanks for the reply
For some reason the pictures are blurry.. Can you repost them?
And no I didn't change the fender harness just the engine harness.. I also eliminated the emission because am running a single turbo



Well if you keep the front harness from the auto , you will have to de-pin X-14 & X-05 , like you did .

Some people here did it ,but...save yourself some trouble , and simply get the Front Harness.

Forget about it , if you have RHD, like other said , impossible or pretty damn crazy hard..not
Worth the hassle.

If you have a LHD , it's doable , but homie.....just get a front harness.

Pm me a phone/email , I can send you more connectors pics.



Where are you at in the conversion?
Which parts did you get so far ?



I sent you my number
And here's my email again
