Track car build, not sure if there will be many fans...lol.
05-19-13, 09:27 AM
#76
Senior Member
Thread Starter

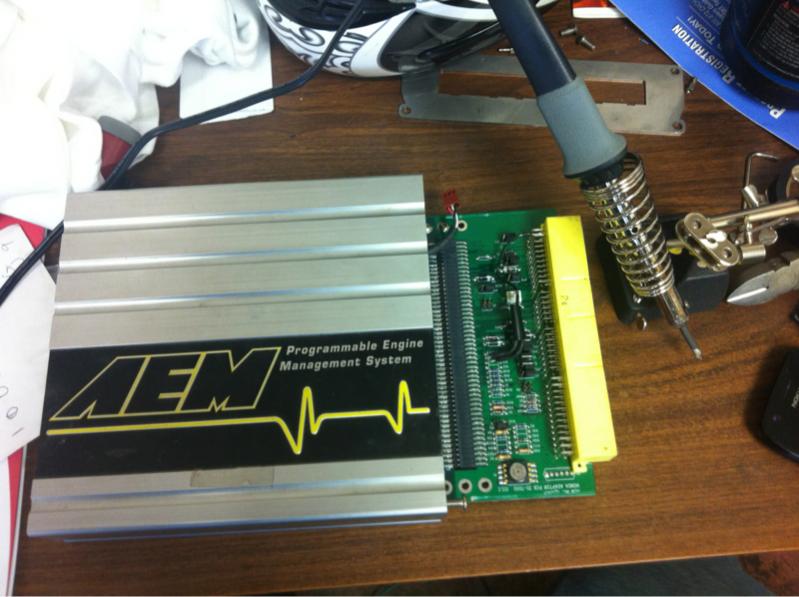

So, it's been a while since any updates. Little less time on the projects since business has picked up. The teg is all wired up, set up a base map on the AEM, started cranking, and whadda-you-know, can't get a cam/crank signal sync! Was worried for a while, did some research & realized that AEM has a hatred of honda distributors (very low signal, easy to lose with electrical noise, and pretty much needs to be a brand spanking new OEM one. So we said screw that, time to go Coil-On-Plug. Hot the AEM EPM to replace the dizzy. Had to mod a couple fuses on the board to be compatible with the hall-effect AEM EPM. Got the MegaSquirt QuadSpark coil driver because it appears to be much better built that the easy-to-overheat tiny AEM one. Using CBR600RR coils (luckily, we had spares from the race bike). Spark plugs coming on monday. Hopefully she starts next week!
05-19-13, 01:08 PM
#79
Well it had non-resistor plugs which was making the crank signal go all fugly. Swapped in resistor plugs and bam car worked properly. Took a bit to figure out since I thought it was the actual CAS itself and the shoddy wiring work but eventually looked at the plugs and facepalm lol. It also made the radios work better too lol.
thewird
thewird
05-19-13, 02:58 PM
#80
Senior Member
Thread Starter
Crazy what electrical noise can do huh? Who woulda thunk it? Hope we meet up at the track! Would love to see & hear that 20b rippin' up the track. Makes me so anxious to get my 12a Turbo setup going...too bad I gotta concentrate on the race car & the van for now. We are getting the rear lexan & front windshield soon also though! So close, and getting so impatient, lol. Sadly we won't be making the CSCS season opener, especially since it's all sold out.
05-20-13, 12:34 PM
#81
Displacement Replacement
iTrader: (5)
Join Date: Apr 2007
Location: St. Thomas
Posts: 1,502
Likes: 0
Received 0 Likes
on
0 Posts
Crazy what electrical noise can do huh? Who woulda thunk it? Hope we meet up at the track! Would love to see & hear that 20b rippin' up the track. Makes me so anxious to get my 12a Turbo setup going...too bad I gotta concentrate on the race car & the van for now. We are getting the rear lexan & front windshield soon also though! So close, and getting so impatient, lol. Sadly we won't be making the CSCS season opener, especially since it's all sold out.
once this beast is done we should hit up grandbend with justin. its only $50 for wednesday night lapping . my FC and FD are pretty much good to go hopefully get my track car finished off sometime this summer
05-20-13, 01:04 PM
#82
Rotary Enthusiast
iTrader: (8)
Join Date: Mar 2004
Location: Ontario
Posts: 1,036
Likes: 0
Received 0 Likes
on
0 Posts
Great job, its crazy the stuff you find wrong with a car when u start pulling the paint off.
haha i was thinking the same thing (im only 30) but man a week with puss in my yes cumming out in clumps each 20seconds, i leaned my lesson FAST!!
Looks like a great project! Regardless of the car, it's always nice to see people putting their own time and effort into a car - especially if it will end up being on the track. Enjoy the process!
I can't believe I'm about to say this (I feel so old!) but looking at the pic below: Put on some safety goggles! I've seen what grinding metal can do to unprotected eyes, and it's not pretty.
I can't believe I'm about to say this (I feel so old!) but looking at the pic below: Put on some safety goggles! I've seen what grinding metal can do to unprotected eyes, and it's not pretty.
05-20-13, 03:52 PM
#83
Senior Member
Thread Starter
Immanuel, that's friggin gross, haha. And that's just reading it. I'll keep that in mind.
FC3SDrift, I'm still waiting for a visit, lol. Wanna see those rotary beasts! And trust me, I've already spoken to Justin, haha. Maybe next week with the Odyssey? It's no race car, but it'll be fun! Haha. 5-spd high revving motor in anything is fun, lol. Are you going to brampton this weekend for that stretch & poke show? A bunch of us are going down.
FC3SDrift, I'm still waiting for a visit, lol. Wanna see those rotary beasts! And trust me, I've already spoken to Justin, haha. Maybe next week with the Odyssey? It's no race car, but it'll be fun! Haha. 5-spd high revving motor in anything is fun, lol. Are you going to brampton this weekend for that stretch & poke show? A bunch of us are going down.
05-21-13, 12:37 AM
#85
Senior Member
Thread Starter
So I missed a bunch of stuff in the update...so...let me re-update...lol

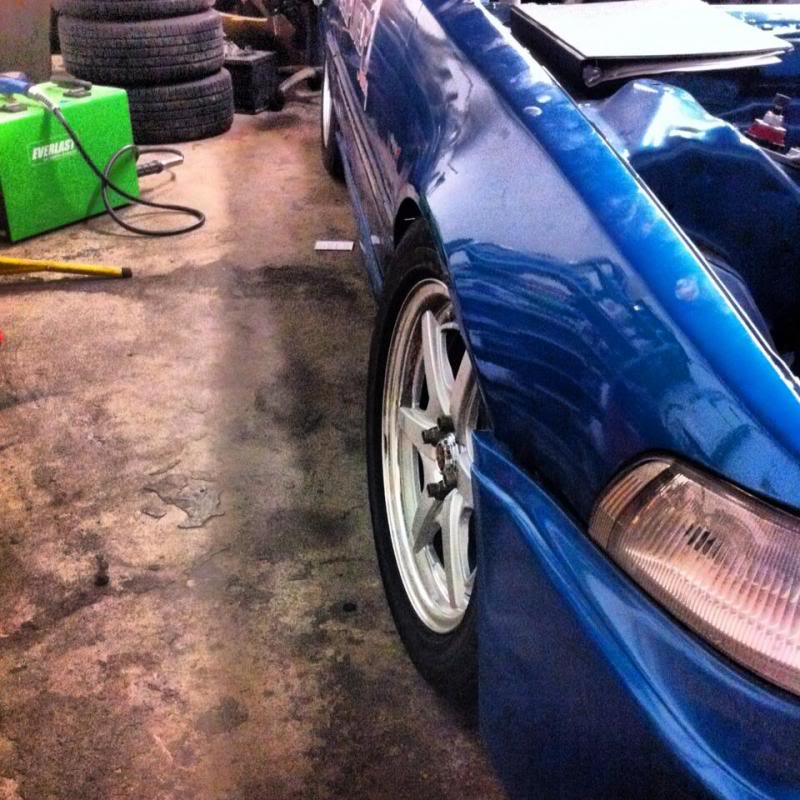

Couldn't even turn the wheels that much without rubbing the fender.
Had to roll the fenders and do a slight pull to clear the wheels :P

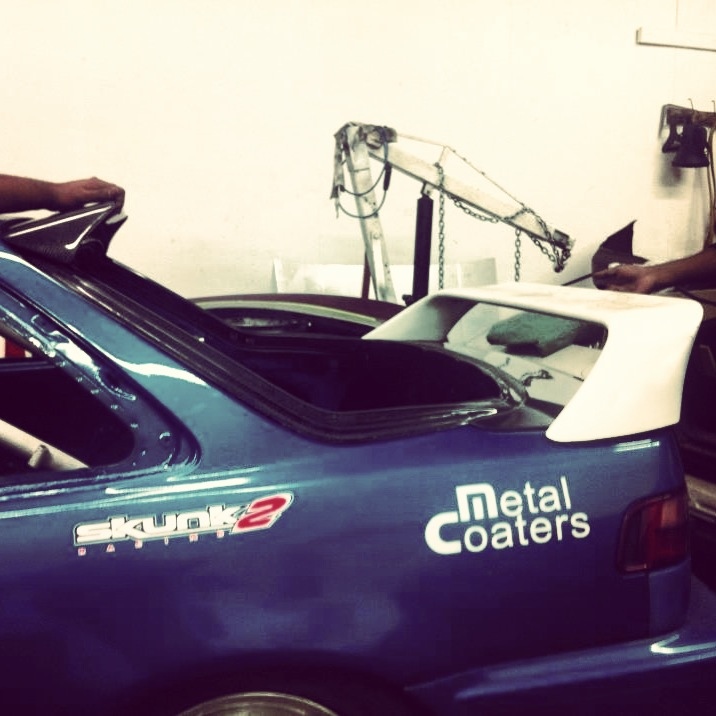

Anddddd with both wings :o
Couldn't even turn the wheels that much without rubbing the fender.
Had to roll the fenders and do a slight pull to clear the wheels :P
Anddddd with both wings :o
05-21-13, 12:39 AM
#86
Senior Member
Thread Starter

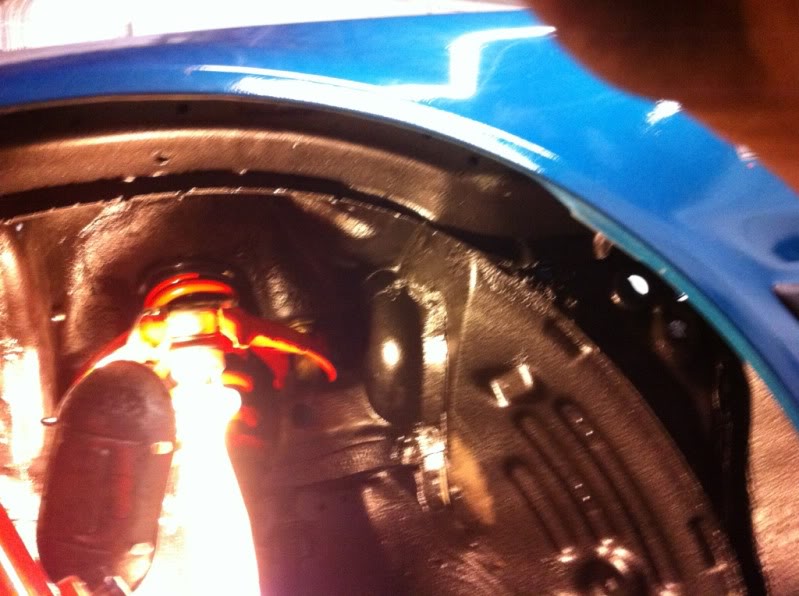

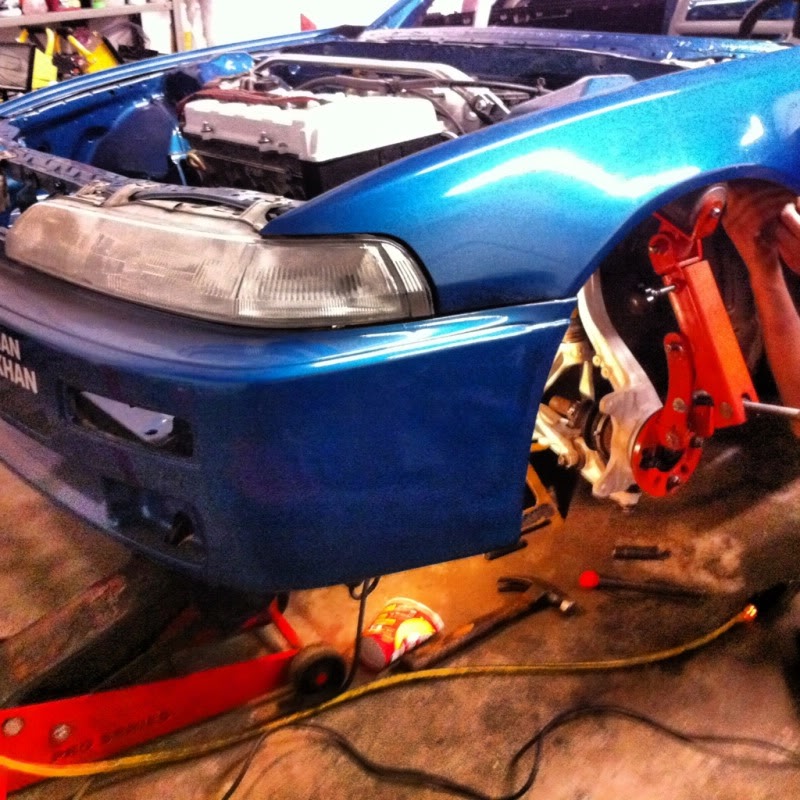

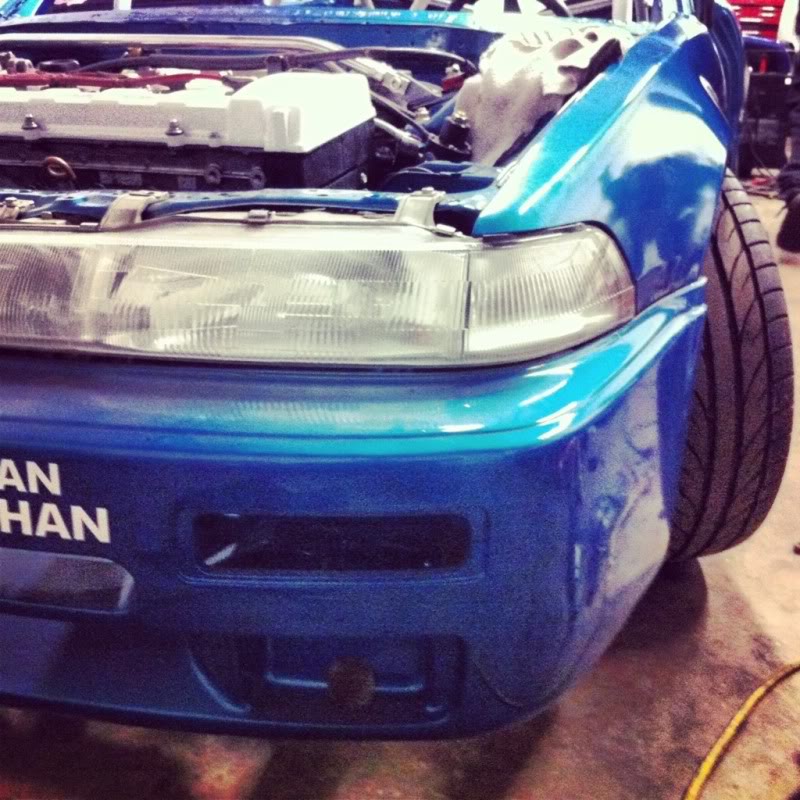

I finally got around to rolling/pulling the other fender... not too bad for my first go.

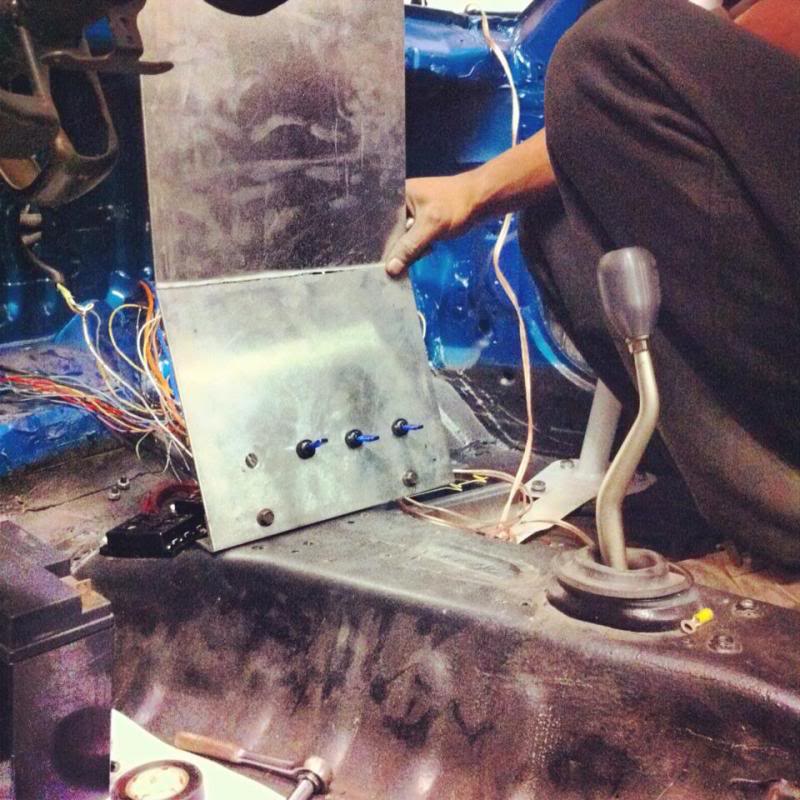

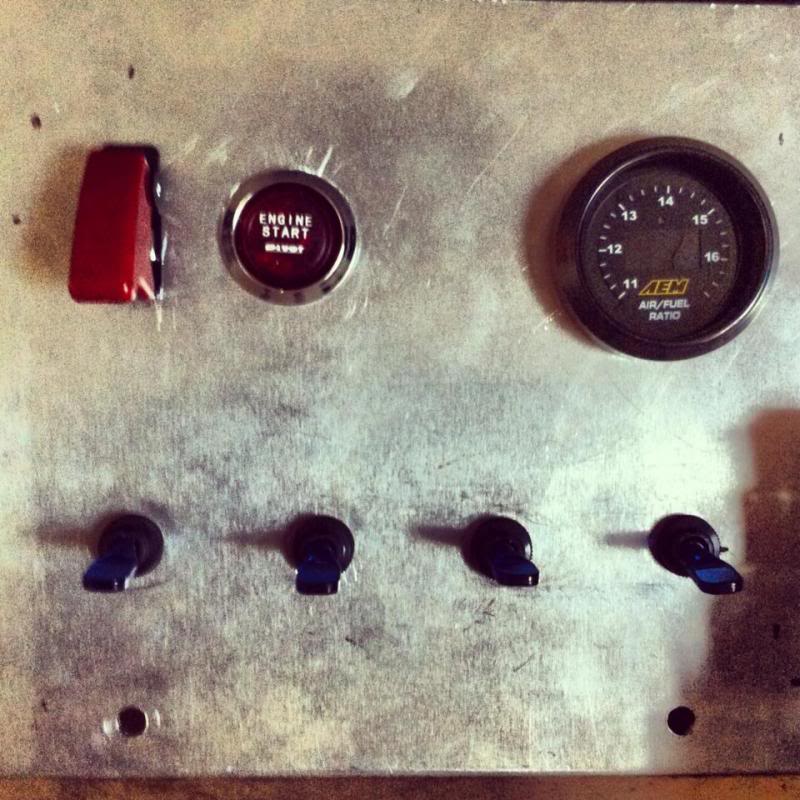

Also, started assembling my switch panel
... Because Race Car!
Also, started assembling my switch panel
... Because Race Car!
05-21-13, 12:41 AM
#88
Senior Member
Thread Starter

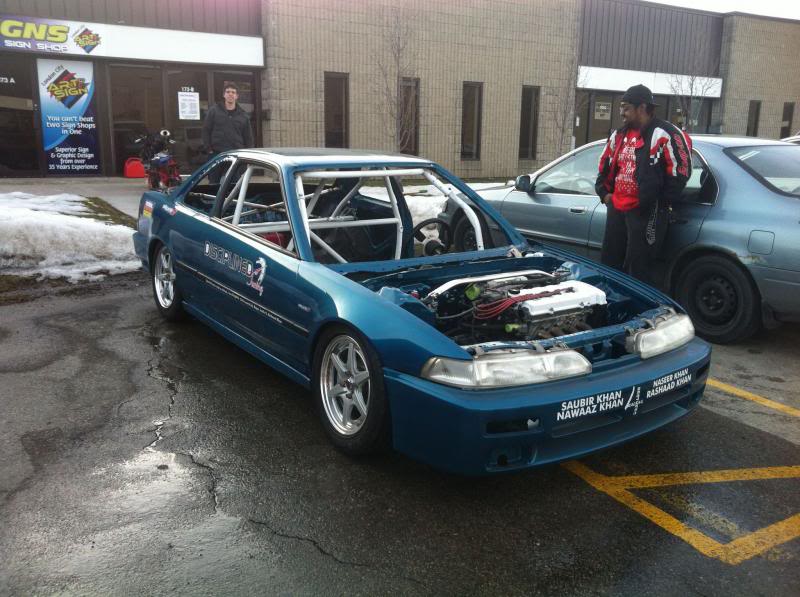

A friend swung by with his new car...

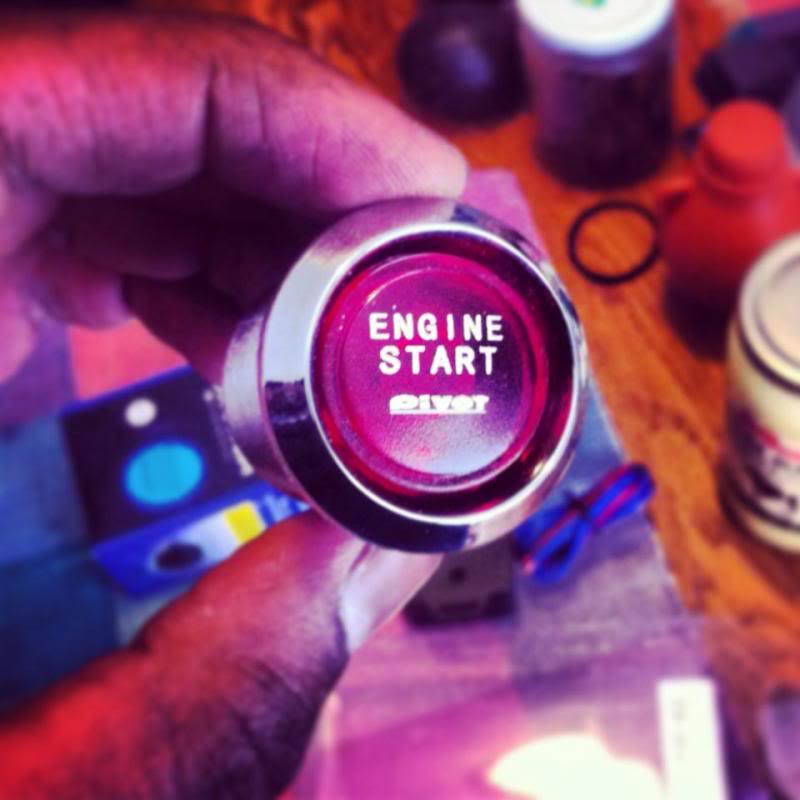

Thennnn... Engine Start Button finally came in
Installed it beside the main power switch... (I love flicking the main power switch... so much fun lol)
Then, Had to install the AEM Wideband gauge, came out pretty sweet
Finished the harness, mostly, we just have to wrap everything, we fueled it up, started setting up the basemap on the EMS, and hopefully get to hear her roar tomorrow
And finally, a shot of my 2 beasts.... I love CF as you can see lol
Thennnn... Engine Start Button finally came in
Installed it beside the main power switch... (I love flicking the main power switch... so much fun lol)
Then, Had to install the AEM Wideband gauge, came out pretty sweet
Finished the harness, mostly, we just have to wrap everything, we fueled it up, started setting up the basemap on the EMS, and hopefully get to hear her roar tomorrow
And finally, a shot of my 2 beasts.... I love CF as you can see lol
05-21-13, 12:42 AM
#89
Senior Member
Thread Starter

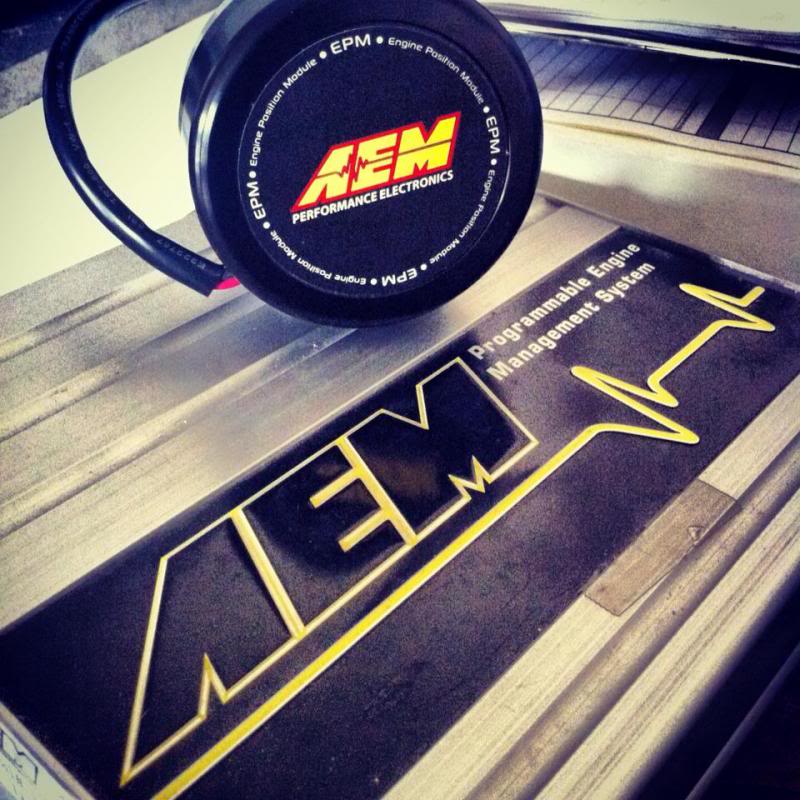

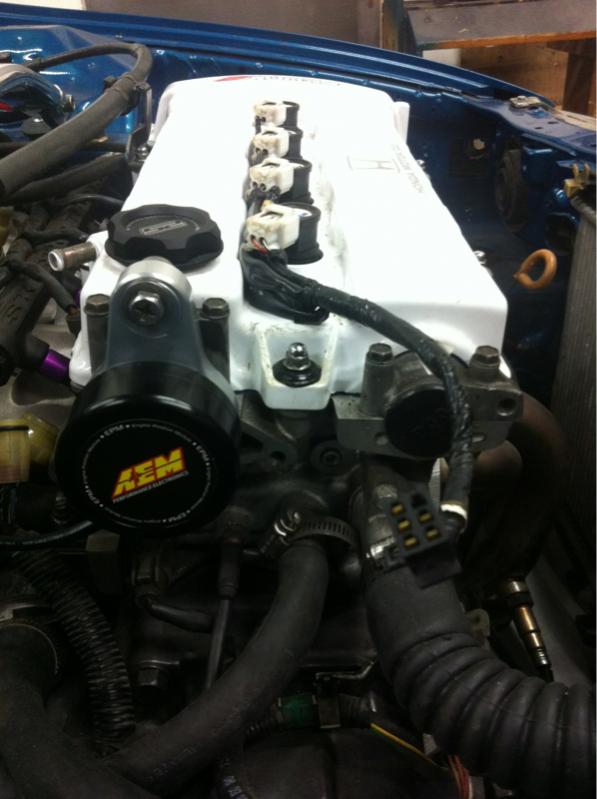

AEM EPM is in
Installed with 600RR Coils

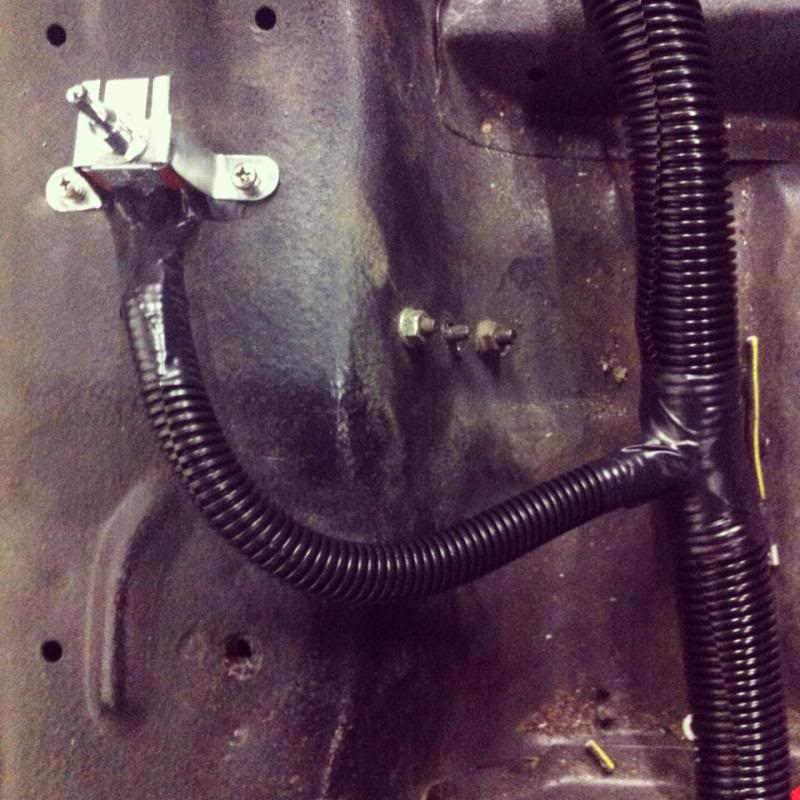

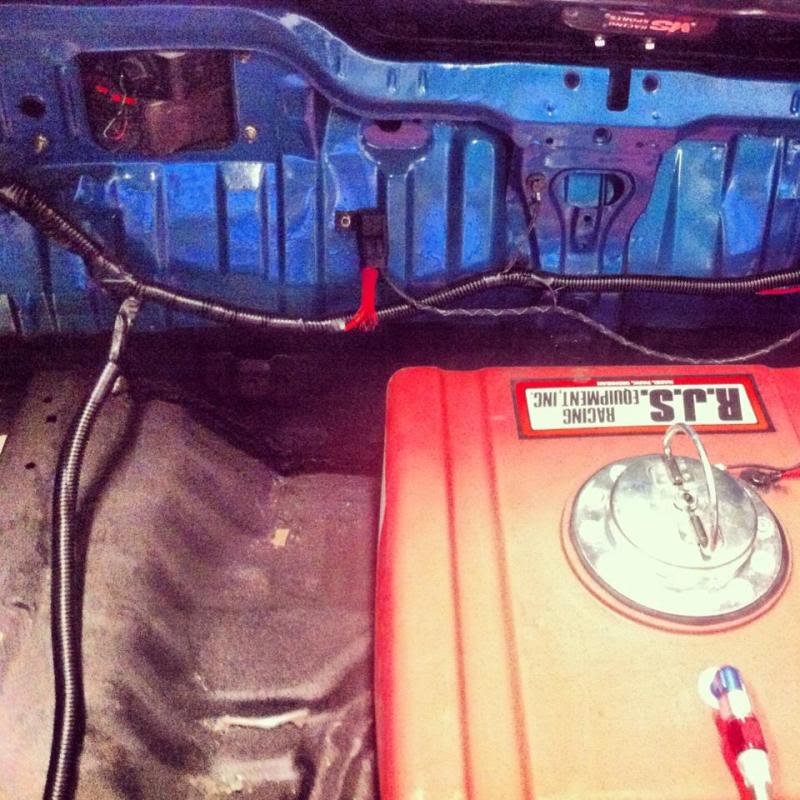

Started looming all the wiring... will be braided sleeving next winter when we pull the motor and harness again.

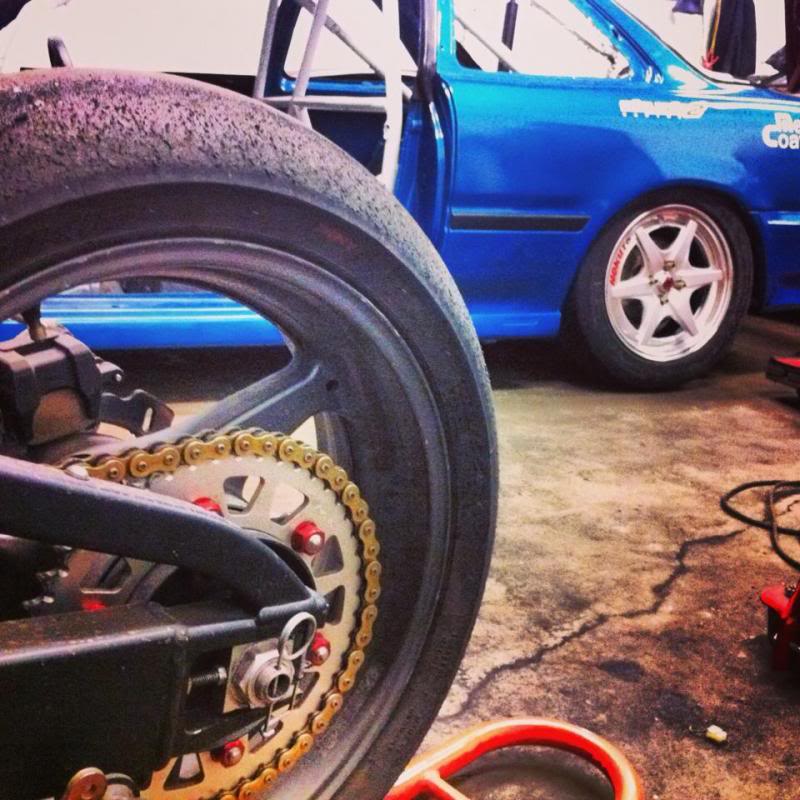

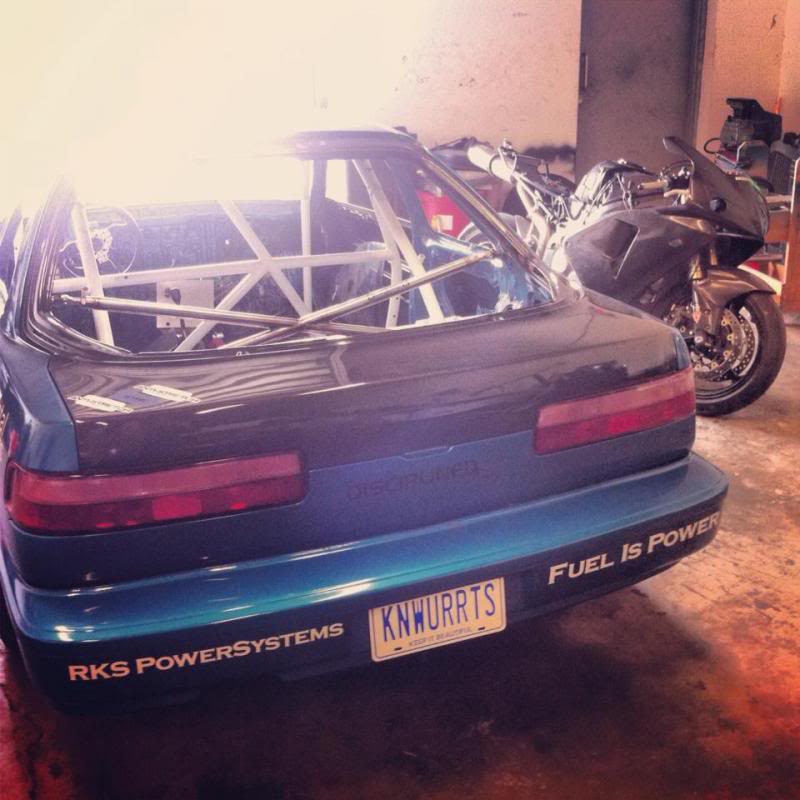

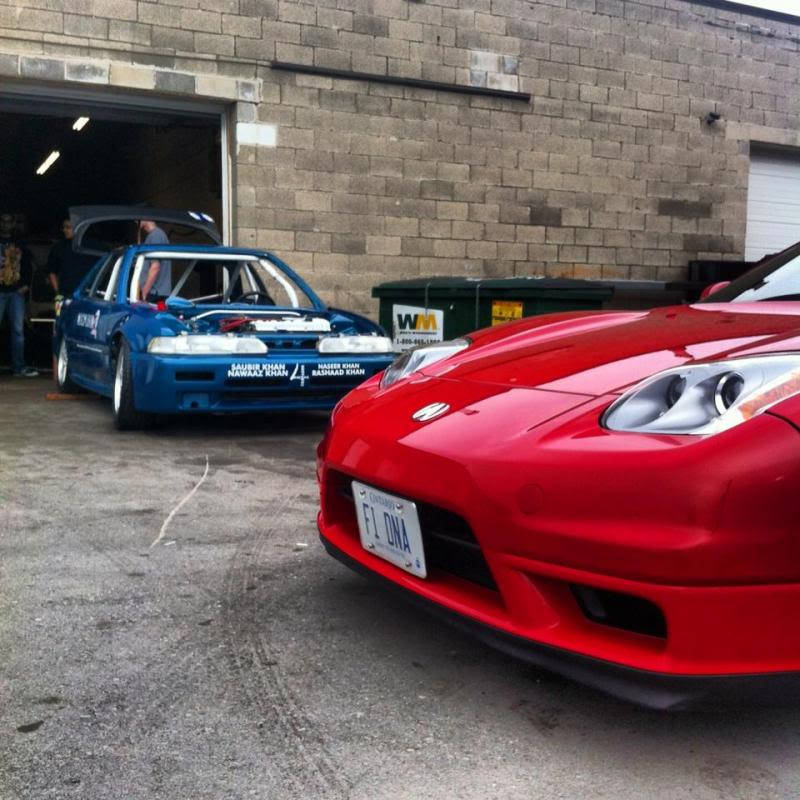

And these two will be seeing some track time this year together
Installed with 600RR Coils
Started looming all the wiring... will be braided sleeving next winter when we pull the motor and harness again.
And these two will be seeing some track time this year together
05-26-13, 10:17 AM
#90
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

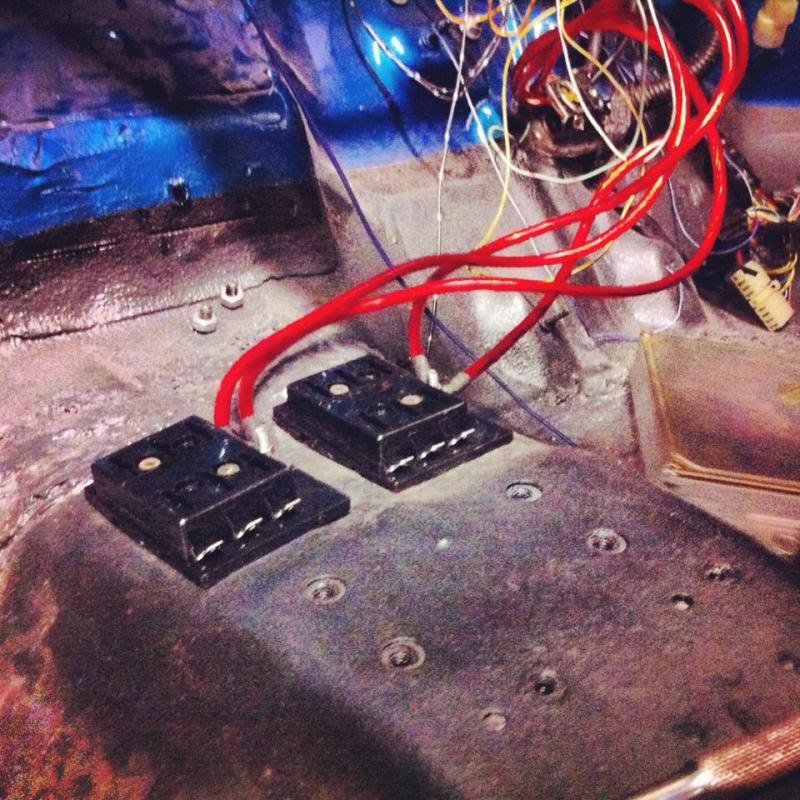

Are those Princess Auto fuse panels? If so, be very careful with them. I've seen the contacts become intermittent on several occasions. I don't think they make the contacts with spring steel so they relax over time.
07-12-13, 12:02 AM
#92
Senior Member
Thread Starter

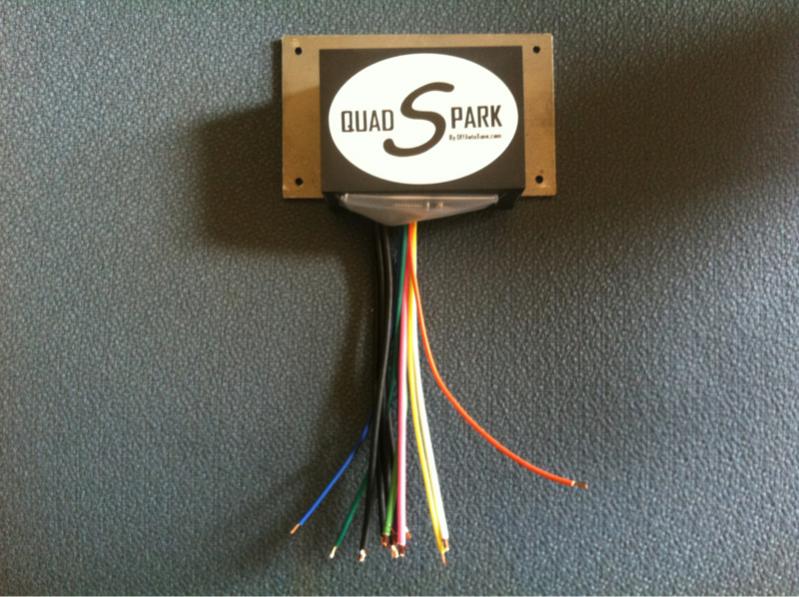

Well, not much progress on the teg for the past while since we didn't realize that the DIYAutoTune module is transistorized and not CDI, which didn't go across very well with the CBR coils, so we popped a coil (sorta cool yet sorta scary :S, lol). Anyway, since then, we have spoken to AEM and are being sponsored by them now, so we are waiting on the paperwork to be finalized so we can get the TwinFire & the AEM Smart Coils, then we should HOPEFULLY finally get her running.
I'll post pics as soon as I get the caliper brackets & accord front calipers mounted on the rear & few other little things...in the mean time, here's something to entertain you guys, once again unsure how many will like it, lol, but here's our H22 powered 5-spd '95 Odyssey:
I don't know if you can see it in the pictures too well but we tried wrinkling a white base and then put some teal in the clear over top. We are getting some mixed reviews on it but that is why it is so bumpy looking.
Before
Surgery
Tear Drop In the Making
Rear Custom Bushings
CB9 Cluster - doesnt fit the greatest because the framing hits the plugs at the bottom so we plan on changing soon
[/QUOTE]
I'll post pics as soon as I get the caliper brackets & accord front calipers mounted on the rear & few other little things...in the mean time, here's something to entertain you guys, once again unsure how many will like it, lol, but here's our H22 powered 5-spd '95 Odyssey:
I don't know if you can see it in the pictures too well but we tried wrinkling a white base and then put some teal in the clear over top. We are getting some mixed reviews on it but that is why it is so bumpy looking.
Before
Surgery
Tear Drop In the Making
Rear Custom Bushings
CB9 Cluster - doesnt fit the greatest because the framing hits the plugs at the bottom so we plan on changing soon
[/QUOTE]
07-12-13, 12:05 AM
#93
Senior Member
Thread Starter
The Interior will be black with all gun metal accents.
The result thus far... still needs a few more coats of clear, but we are going to place the decals first before finishing the paint.
The result thus far... still needs a few more coats of clear, but we are going to place the decals first before finishing the paint.
07-12-13, 12:09 AM
#94
Senior Member
Thread Starter
Another full shot of it
And a shot by AutoMotoFoto

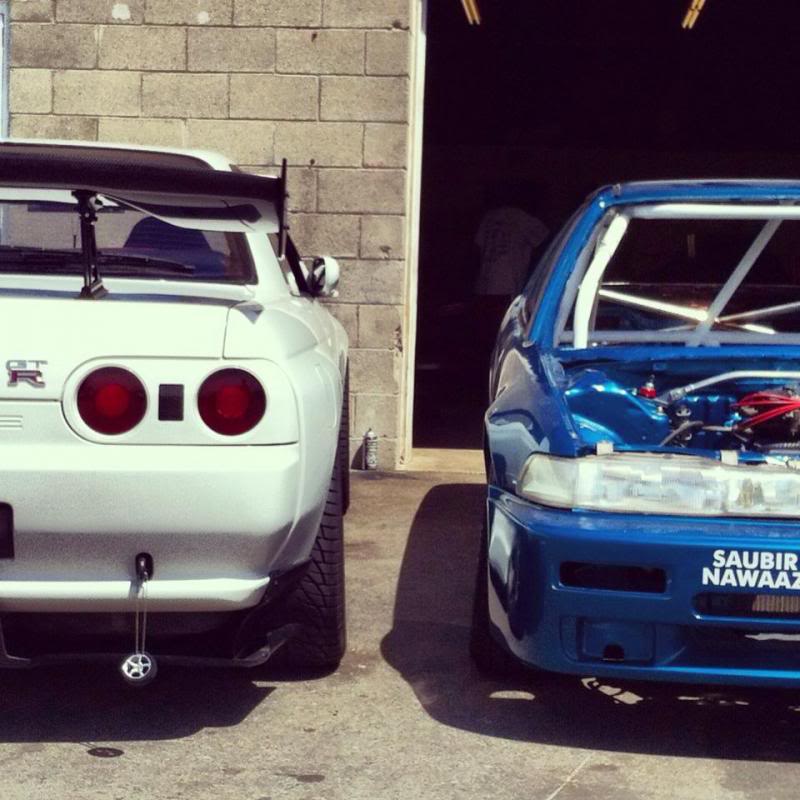

Canada Day Shot with the DT R32 GT-R
New Valve Cover for the H22
Re-wrapped headliner & interior panels being re-painted black and installed. She's slowly coming back together inside
And a shot by AutoMotoFoto
Canada Day Shot with the DT R32 GT-R
New Valve Cover for the H22
Re-wrapped headliner & interior panels being re-painted black and installed. She's slowly coming back together inside
07-12-13, 12:00 PM
#97
Senior Member
Thread Starter
Thanks!
And the paint seems to be a love it or hate it sorta deal. I think we have decided to re-paint it though. Not sure on a colour yet. I'll hopefully be making a turbo manifold for it over the winter to use with a stock R32 GT-R turbo (probably top mount). Stock internals, so that turbo should be more than sufficient.
And the paint seems to be a love it or hate it sorta deal. I think we have decided to re-paint it though. Not sure on a colour yet. I'll hopefully be making a turbo manifold for it over the winter to use with a stock R32 GT-R turbo (probably top mount). Stock internals, so that turbo should be more than sufficient.
07-13-13, 10:21 AM
#98
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Dwell set correctly? I'm not familiar with the coils but typically popping coils would indicate too much dwell. Unless those coils are CDI only with a VERY low primary resistance, which they very well could be.
07-13-13, 09:20 PM
#99
Senior Member
Thread Starter
Yea they are CDI, and as far as I know the dwell is fine, set according to AEM standards. Let's just say after finnicking around a bunch with the wiring and settings & speaking to DIYAutoTune, I learned a decent bit more about coils, lol. Apparently some CBR coils are transistorized, but there's no way of telling...lol, too bad I didnt have those.
It's all good though, everything happens for a reason. know a lot more about coils now & now we're getting a TwinFire & Smart Coils, can't argue with that
.
It's all good though, everything happens for a reason. know a lot more about coils now & now we're getting a TwinFire & Smart Coils, can't argue with that
.
08-13-13, 03:04 AM
#100
Senior Member
Thread Starter

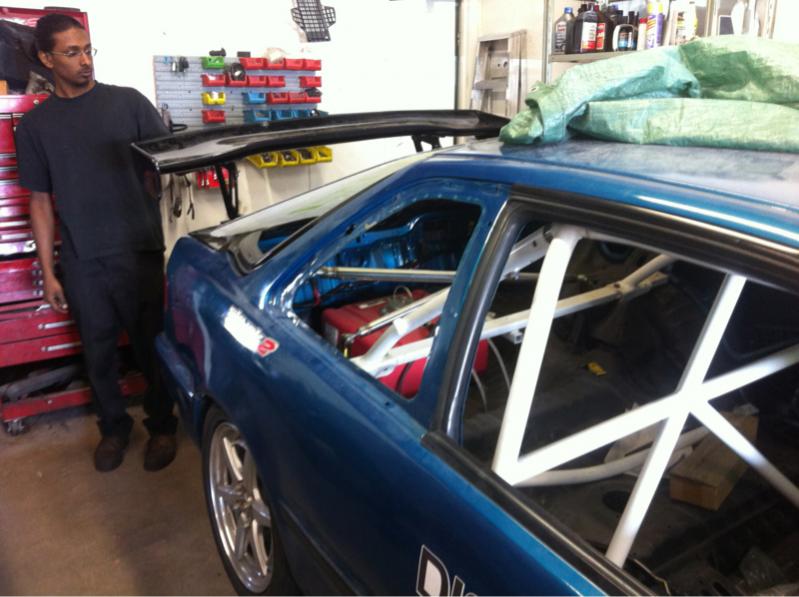

So we should be getting this GT Wing for the race car...pretty excited. We're currently making a mounting plate for the Smart Coils & making the looms for the Twinfire & Smart Coils.

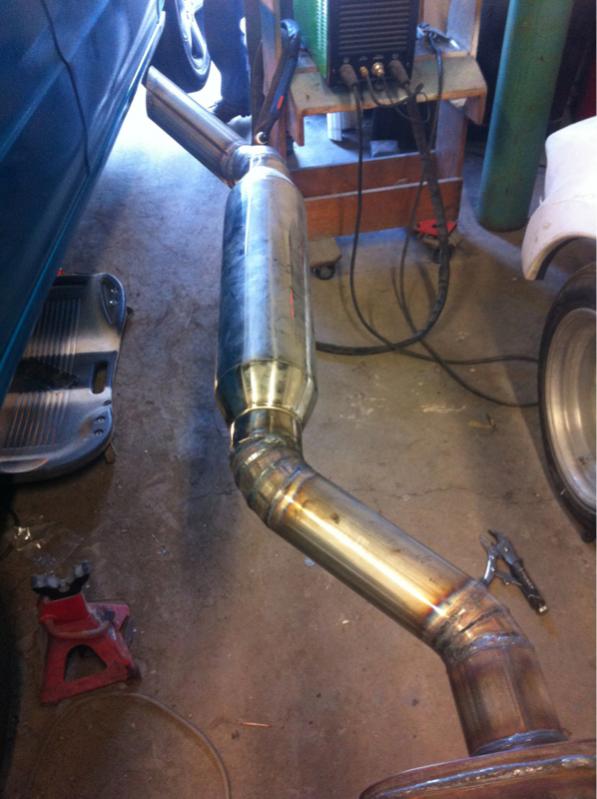

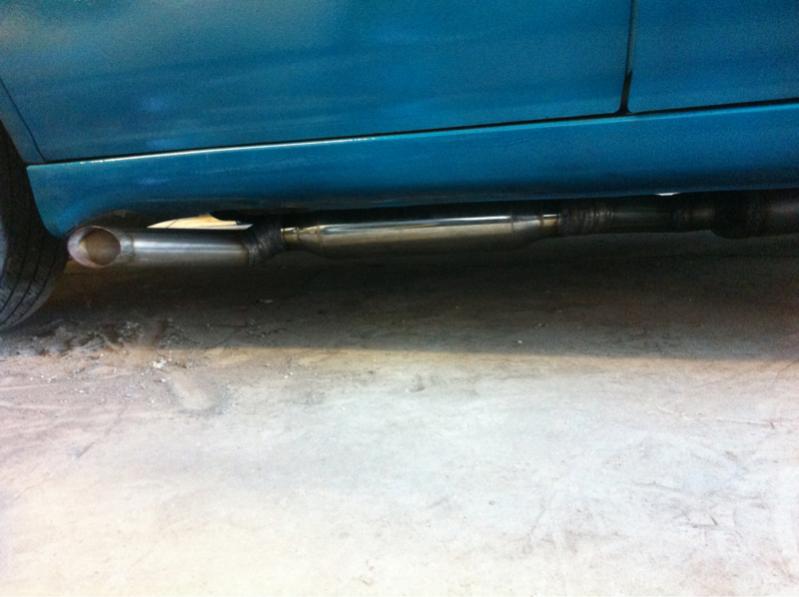

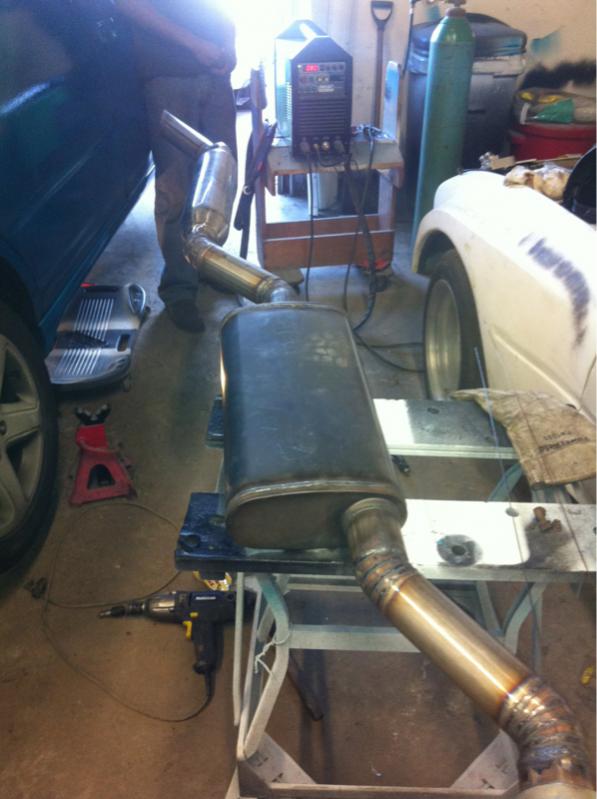

Made a 2.5" S.S. catback for the Odyssey
Vibrant Resonator.

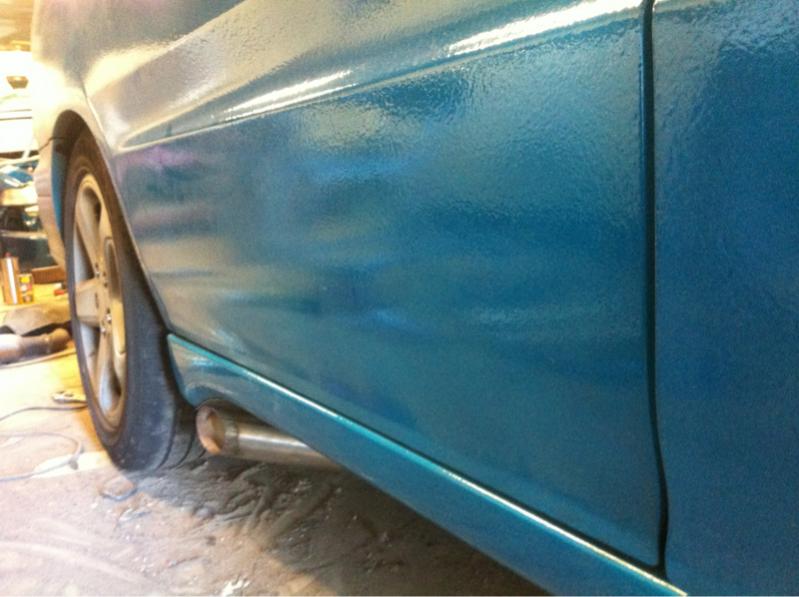

Side exit anyone?
Side view.
