Do you have any approx. idea of when you'll be able to assemble the engine and possible start up?

I check this thread often, every update amazes me, keep up the amazing work!!



this thread is beyond amazing!!!! wow you have been blessed with quite the skill set!! keep up the good work, subscribed !!!!



thanks alot man, keep up the good work, can't wait to see it running.



great work



awesome thread!!



Excellent job!!!!!



I do hope the thin wall exhaust will withstand the heat generated by de engine on high rpms (or tuning on the dyno with different settings as you are going to do).
Why did you use such thin wall pipes?
Rotaries are known for their hot exhaust temps, but I assume you know that, that's why I ask!

Grtz Dee.



looking killer man, i love seeing updates on this

what program did you use to do your airflow simulation?

-sean



Solidworks Simulation

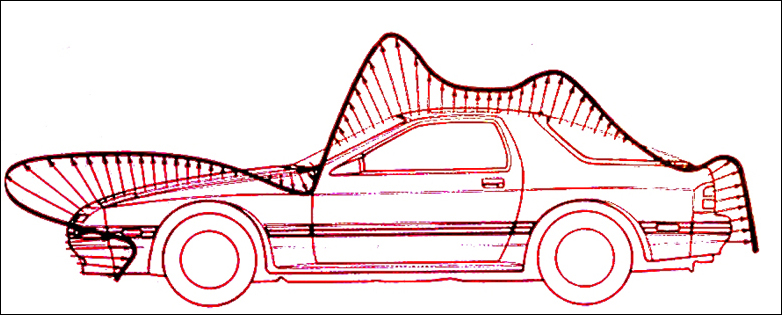

Obviously Mazda didn't have the CFD software we have now when this was published, but still a cool visual and relevant to your tests



Wow do you have that also for the SA/FB?



I can never get enough of this build! It is freaking EPIC! Nice job mate!!



I could also use an airflow diagram for an SA/FB.



Yes, with and without retracted headlamps!



Good Luck on this build. This looks beast!!!



Would you care to scan and post them both?

Thanks,
Dick Getty



The required wall thickness depends on more things other than just being a rotary engine. n/a or turbo matters a lot, and the used material is also very important. For this application with the material I used this thickness shouldn't be a problem.


I know I actually used that picture to make the fc model in solidworks.



Progress on the car is pretty slow at the moment. I'm currently fabricating the hood latches since I can't use the stock one anymore which is pretty time consuming.
Also ran into a problem with balancing the 4-rotor e-shaft which also needs a bit of attention.
I'll see if I can post some pictures tomorrow.



this is by far the best build thread i have ever seen! it actually saddens me that i am unable to do this very think from lack of talent, money and machinery..... :'(



That's just silly.
Be happy that someone with the talent and means is willing to share the journey with us.



I agree. I've been following this build from its inception and it has inspired me to learn a couple new skills. So that maybe I will not have to rely on anyone other than myself for fabrication.

Thanks John.



This thing is going to be a beast when your done man. How much HP do you think she will put down when your done?



^ Exactly 421.73 RWHP.



I'm thinking more like 600's considering that's where most PP 4rotors sit



awesome cant wait to ess this started up ,should sound awesome.....



Update

Did some more work on the car, first thing I did was finish the hood locks. I couldn't use the stock one because of the hood vent. I could've fixed it really easy by making external hood pins that sit on top of the hood, but I don't like the way that looks and I want to be able to lock the hood from the inside of the car since it's going to be used on the streets.
I made 2 hooks that hook onto pins that extrude from the hood, one of those 2 hooks is unlocked from the inside of the car, the other one from inside of the hood vent. Works just as well as stock, took me over a day to make though.

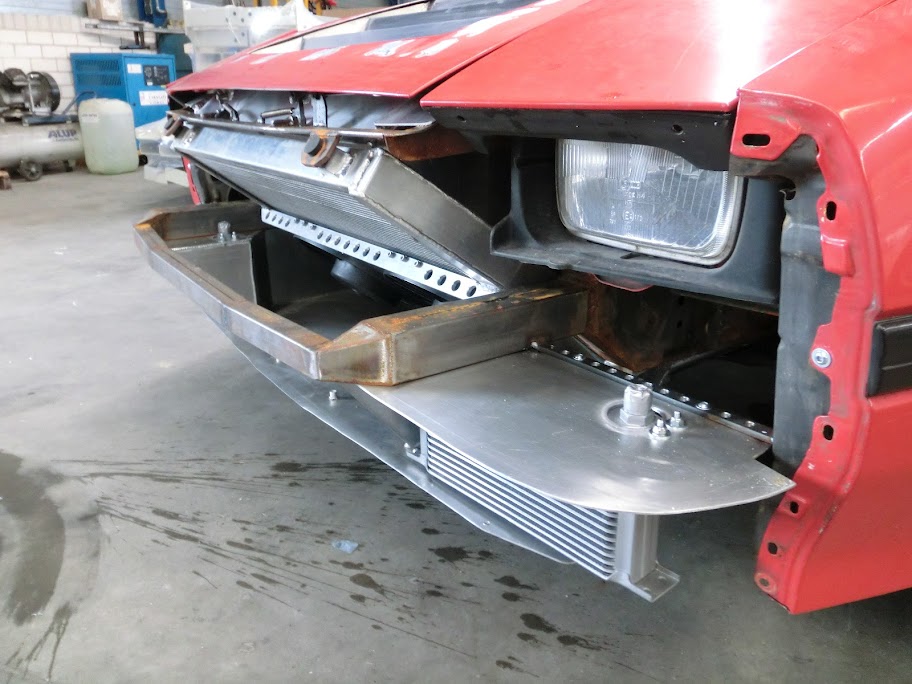

Also mounted 2 19 row oil coolers








For some reason the stock bumper has a few blocked off holes, so I opened those up to get some more air to the oil coolers




Also got some more coils that I can try out, these are inductive coil on plug coils from a motorbike. These should work well, and they were cheap.




Next up is the swirl pot / coolant overflow can / windscreen wiper reservoir / catch can tank.
