The Last Bombshell for a While
  • Transmission Selection: Tremec T56 Magnum 6060 w/ 2.66 1st, 0.63 6th Gear Ratios
  • Clutch: (Same) Ogura Racing ORC 559D
  • Ogura Racing ORC Center Hub Cam for T56 Spline Input Shaft

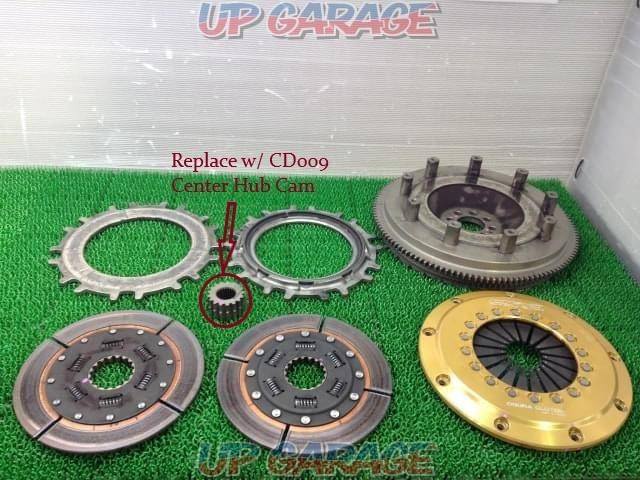

Just made this pic for a Facebook thread, but replace CD009 w/ T56 Spline and it's golden...
  • Starter: (OEM) Turbo II
  • Bola De Homo Racing 13BT to T56 Adapter Plate


Works with Manual Rear Iron. I'm in!
  • Sikky 4" Shifter Relocation Kit
  • 3.25" CF Driveshaft Shop Shaft
  • Minor Tunnel Clearancing
  • 225/45-17 Front w/ Caster Reduction to fit a 25" tall tire
  • 255/40-17 or 255/45-17 Rear to properly fill out factory fender
  • All The Boost...
