My 83 e-85/bridgeport/nitrous Build
#1
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
My 83 e-85/bridgeport/nitrous Build
so i have huge rotary guys near me, but id rather lurk on the forums and ask questions because im the only 12a action going on.
So, my build will consist of, bridge port, direct port nitrous, and going the racing beat carb upgrade kit + MSD everything.
Currently i have stage 1 exedy clutch
tokico blue shocks/rb springs
custom exhaust/pace setter header
Now what kind of whp can i expect without the nitrous setup on it + tune., im still going to put it on but im just curious what to expect, im coming from a 09 speed 3 so i come from a diff world, but ive been lurking around and learning on here and from my friends.
any tips are welcomed!
So, my build will consist of, bridge port, direct port nitrous, and going the racing beat carb upgrade kit + MSD everything.
Currently i have stage 1 exedy clutch
tokico blue shocks/rb springs
custom exhaust/pace setter header
Now what kind of whp can i expect without the nitrous setup on it + tune., im still going to put it on but im just curious what to expect, im coming from a 09 speed 3 so i come from a diff world, but ive been lurking around and learning on here and from my friends.
any tips are welcomed!
#6
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
thanks man, i try and take care of her, she only has 43k on it oem everything, it used to be red, and whole interior is re-done
yes with help
thanks upholstery guy did amazing job, thought about changing them for recaro's or bride seats
thanks, i am enjoying it very much as well!
yes with help
thanks upholstery guy did amazing job, thought about changing them for recaro's or bride seats
thanks, i am enjoying it very much as well!
#7
Junior Member
Join Date: May 2012
Location: Connecticut
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
so you said youre porting it, and im assuming its a 12a from what you said in the inital post. where do you find porting templates for the 12a? im hoping to do a bridgeport myself eventually
Trending Topics
#8
searching...
iTrader: (8)
RX7 1975-1985: Engine - Porting Tools: Porting Template - Bridge Intake Port 12A & 13B -
this is the template I used, I'm sure they are other ones out there too
this is the template I used, I'm sure they are other ones out there too
#9
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
yea you could use that one, my buddy made his own, pretty sick.
RX7 1975-1985: Engine - Porting Tools: Porting Template - Bridge Intake Port 12A & 13B -
this is the template I used, I'm sure they are other ones out there too
this is the template I used, I'm sure they are other ones out there too
^ that looks like good stuff!
#10
RAWR
iTrader: (3)
My suggestion: If you're not going with a turbo, don't waste your time with the E85. Your motor isn't high enough compression to take advantage of the E85. Combine that with it's lower energy density (~75k btu/gallon for E85 vs. 110k btu/gallon for Gasoline) and you stand to loose a LOT of power.
Otherwise, clean *** car. G'luck with the build.
Otherwise, clean *** car. G'luck with the build.
#11
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
My suggestion: If you're not going with a turbo, don't waste your time with the E85. Your motor isn't high enough compression to take advantage of the E85. Combine that with it's lower energy density (~75k btu/gallon for E85 vs. 110k btu/gallon for Gasoline) and you stand to loose a LOT of power.
Otherwise, clean *** car. G'luck with the build.
Otherwise, clean *** car. G'luck with the build.
im custom turbo kit. Parts should start showing up this week. i should start on the manifold prob this weekend , going to make a manifold to sit high up for easy maintenance, my custom ic kit im piecing together, and cleaner engine bay.
Thanks for the compliments!
#12
Junior Member
Join Date: May 2012
Location: Connecticut
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
RX7 1975-1985: Engine - Porting Tools: Porting Template - Bridge Intake Port 12A & 13B -
this is the template I used, I'm sure they are other ones out there too
this is the template I used, I'm sure they are other ones out there too
thanks man, appreciate that
#13
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
**08-28-2012*** update. Slowly but surely gathering parts together.

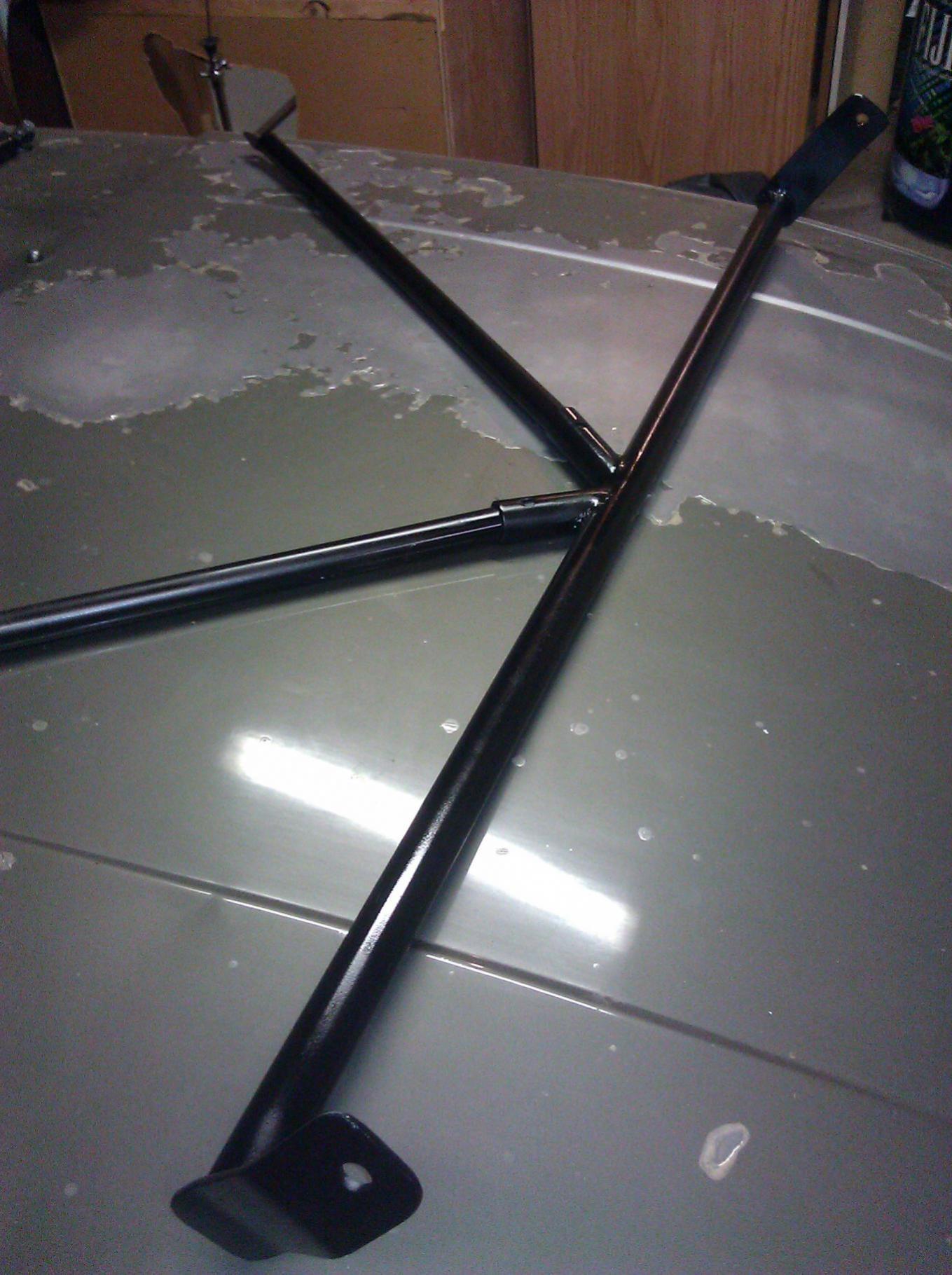

3 point harness bar

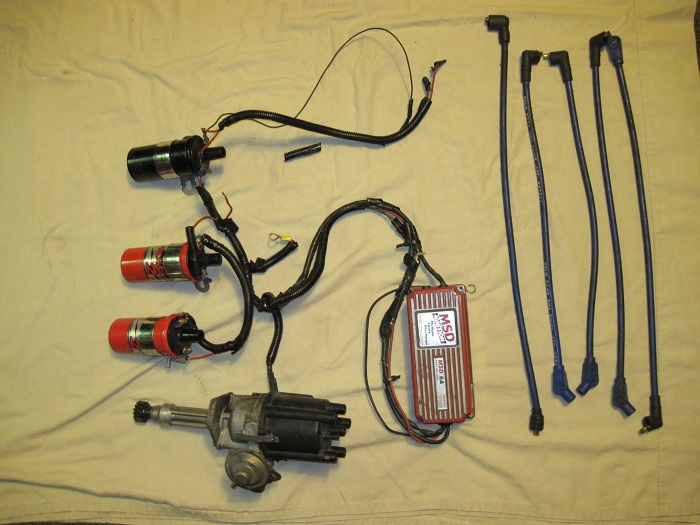

MSD ingition

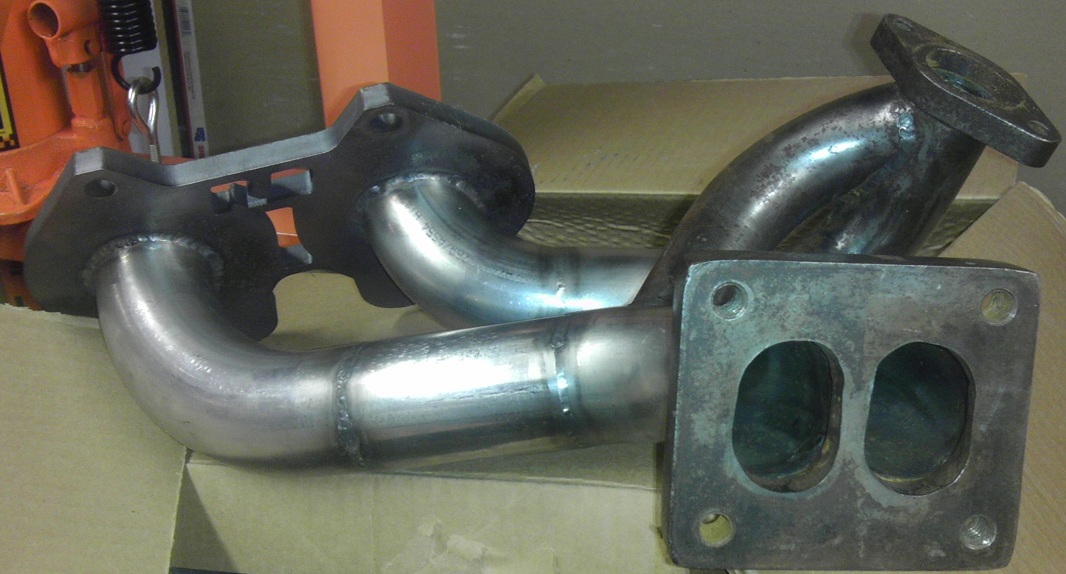

Custom 12a Turbo manifold.
me and @driftingmyfc are trying to get my mazda 3 back up and running so the 7 can say hewo to the boost/nitrous gods.
3 point harness bar
MSD ingition
Custom 12a Turbo manifold.
me and @driftingmyfc are trying to get my mazda 3 back up and running so the 7 can say hewo to the boost/nitrous gods.
#16
PSHH! PSHH! HEAR ME NOW?
iTrader: (3)
The oil pan is steel, but I wouldn't recommend putting your turbo oil return there. The oil in the pan sits very high and would impeed proper drainage. I would drill and tap the side of the front cover and route the turbo oil drain there. Just in the same location as the 13B TII.
#17
Sharp Claws
iTrader: (30)
My suggestion: If you're not going with a turbo, don't waste your time with the E85. Your motor isn't high enough compression to take advantage of the E85. Combine that with it's lower energy density (~75k btu/gallon for E85 vs. 110k btu/gallon for Gasoline) and you stand to loose a LOT of power.
Otherwise, clean *** car. G'luck with the build.
Otherwise, clean *** car. G'luck with the build.
Last edited by RotaryEvolution; 11-17-12 at 05:30 PM.
#18
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts

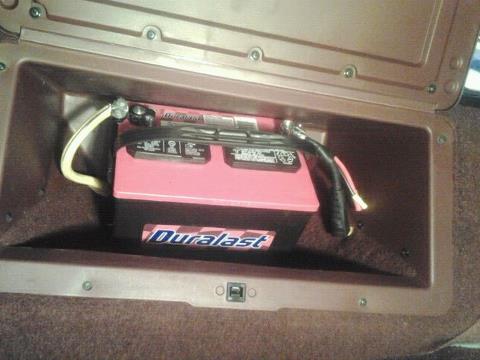

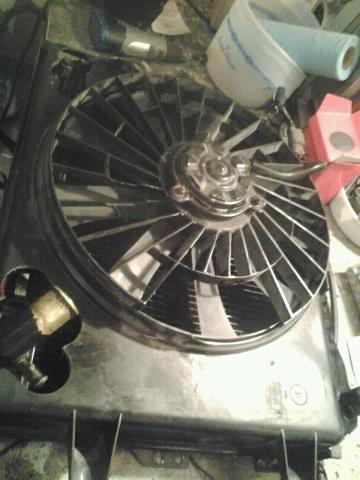

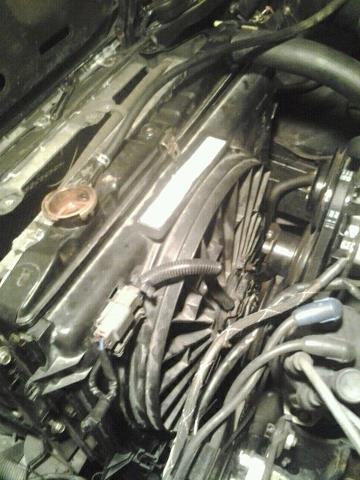

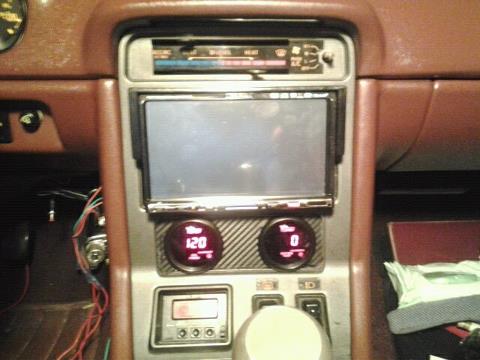

retrofitted my rally armor mud flaps on 7, looks great, also installed a town and country 2 speed electric fan on the 7, going to do logs tonight and compare to how my belt driven one did. installed water temp and oil pressure guage, installed sandwhich plate, for turbo feed, and guages. finishing harness bar fitment. installed flex innovation grounding kit. relocated battery to the rear basket.
Solid motor mounts are in as well.
almost ready to throw the turbo kit on her, just updating her meow.
Solid motor mounts are in as well.
almost ready to throw the turbo kit on her, just updating her meow.
Last edited by J-LISS; 11-27-12 at 10:10 AM.
#24
Full Member
Thread Starter
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
do you have more info on how you did your 12a?
i have a manifold and all.
I HAVE A QUESTION got a fc oil cooler and ordered my own -an steel/fittings, is there anway to make the FC oil cooler work NOT USING THE RB 10MM/16MM FITTINGS?
#25
1 bar boost
iTrader: (4)
From my experience using the stainless braided hose requires some sort of adapter for the threads of the oil cooler and engine block. AN fittings will not just thread into either without you somehow converting the threads to the correct size/pitch.
There is always the stock FC hose and banjo bolts method....
