Very tired FD resurrection
#1
Junior Member
Thread Starter
Very tired FD resurrection
Hello all, my name is Doug and I acquired my first FD about a month ago. I don't know any history on the car other than it has been sitting a very long time. Tires date stamp around 2001 (not pictured), found a flip phone and a calendar for 1995 (i think) inside the car.
I started off by seeing if the motor would turn over, it would/did but would not start (shocker). I couldn't hear the fuel pump priming so I rigged up an auxiliary 1-gal fuel jug with an inline walbro. Now with a good fuel supply.......nothing....

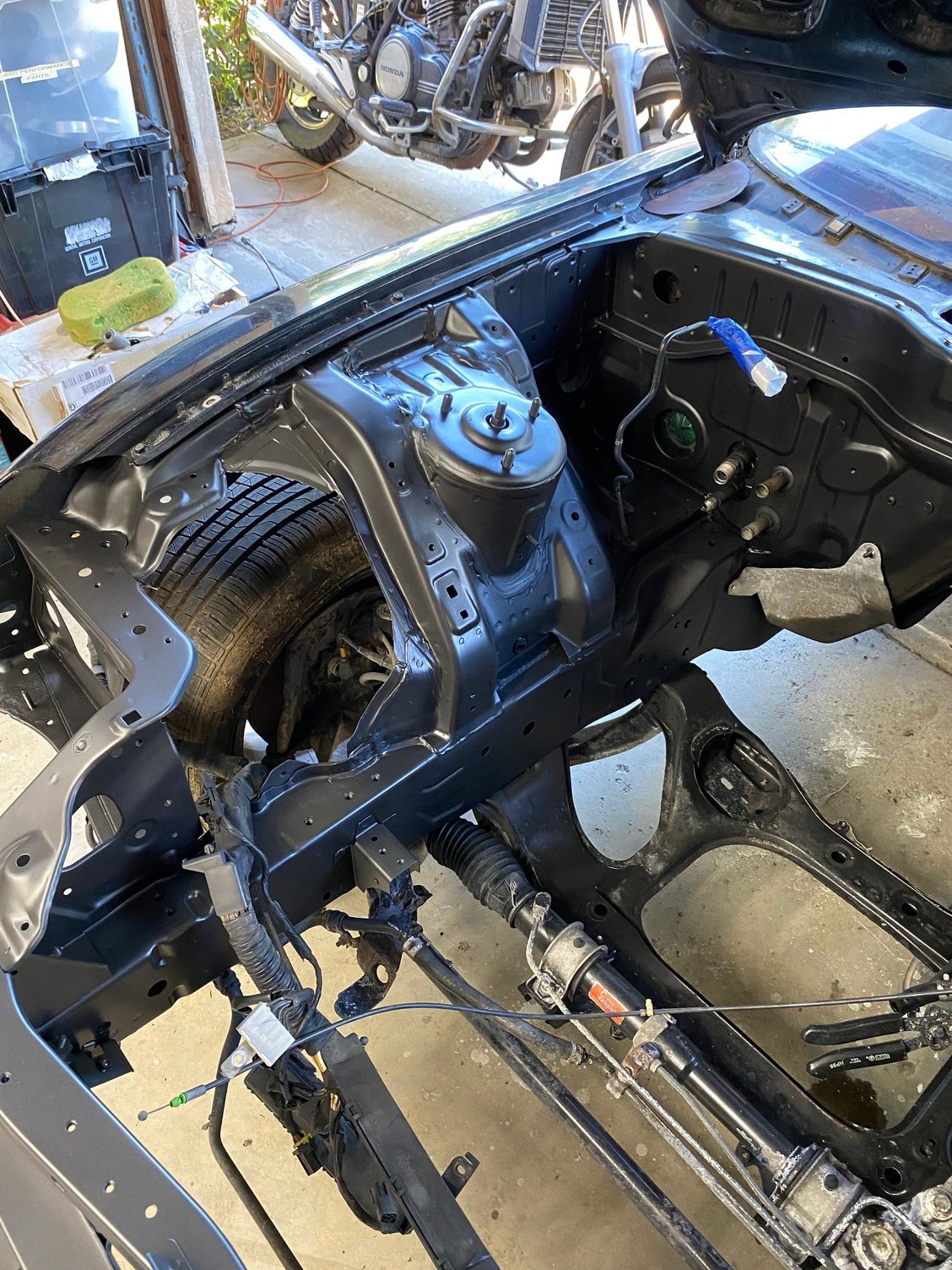

It was at this point I gave up as I knew I wanted to build a new motor anyways. After pressure washing and vacuuming about 10lbs of rat crap out of the engine bay I pulled the stock motor and trans. I then sanded the engine bay and painted it using a product called "STEEL-IT". Its a polyurethane embedded with 316L stainless flake. Its very popular in the off-road world due to its durability. I also think it looks great and levels out beautifully.

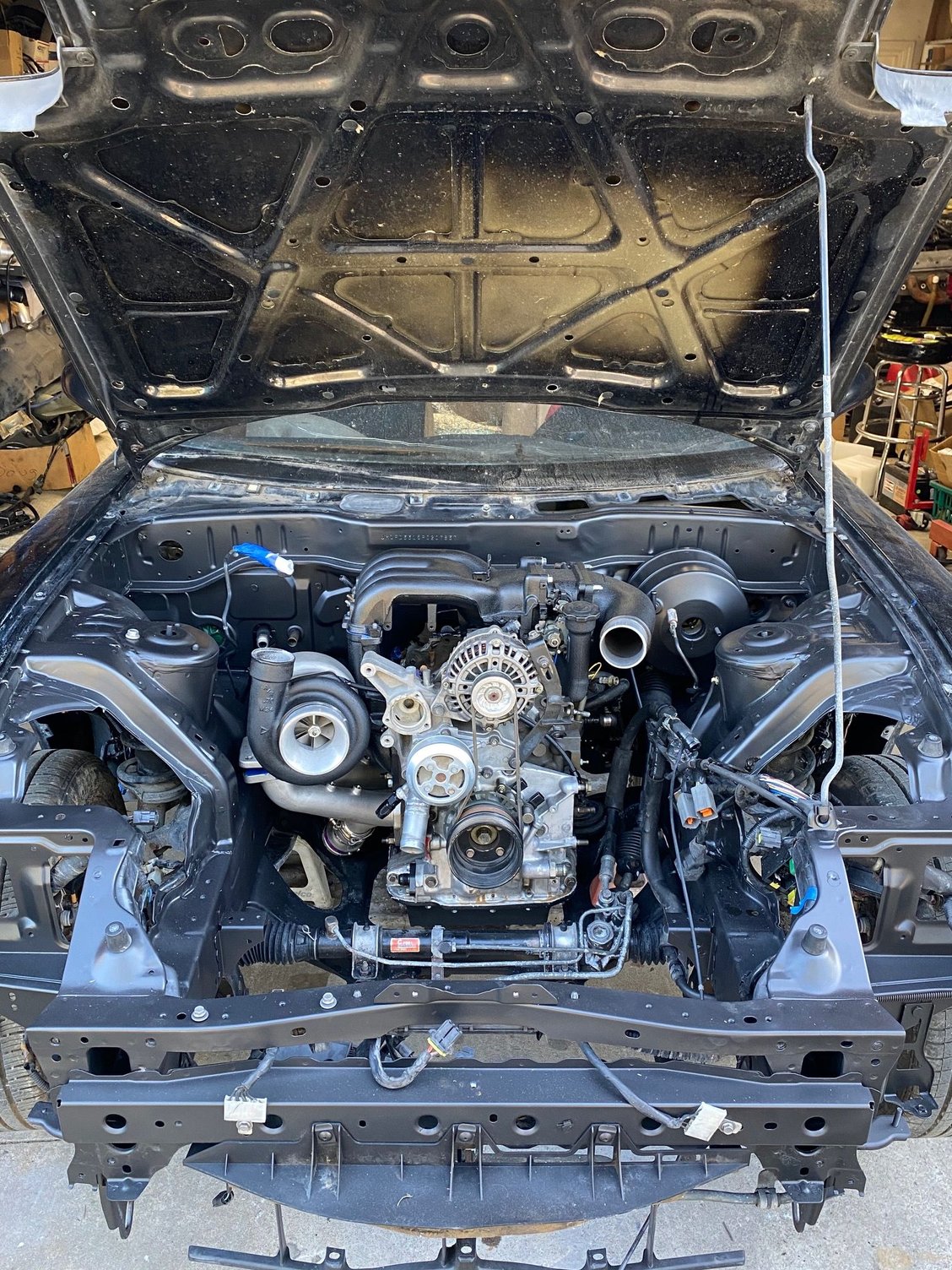

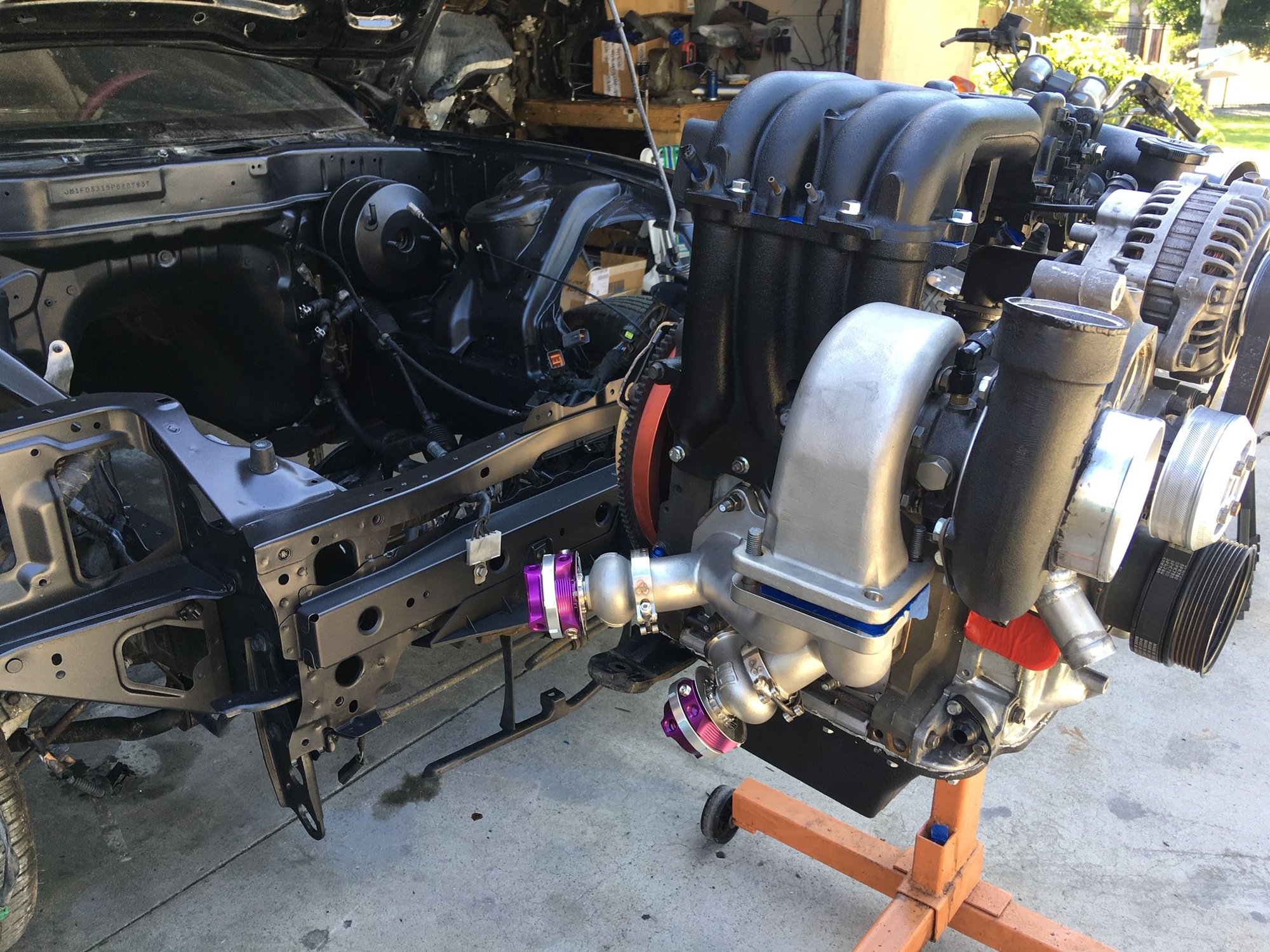

Next I slapped together a streetported 13b-rew in my garage. This brings us to the cars current condition. I am mostly collecting parts at the moment.
Basic rundown on the motor is as follows, also included is miscellaneous parts I have collected:
streetport
Xcessive LIM
Xcessive oil filler neck
Xcessive oil pan
Turblown manifold
Dual turbosmart gen v wastegates
Garrett GT3582r
CJM secondary rail with ID2000's
Ir Performance motor mounts (not installed yet)
Koyo rad
Not motor related:
Mazdaspeed powerplant frame
Stoptech big brake kit
I started off by seeing if the motor would turn over, it would/did but would not start (shocker). I couldn't hear the fuel pump priming so I rigged up an auxiliary 1-gal fuel jug with an inline walbro. Now with a good fuel supply.......nothing....
It was at this point I gave up as I knew I wanted to build a new motor anyways. After pressure washing and vacuuming about 10lbs of rat crap out of the engine bay I pulled the stock motor and trans. I then sanded the engine bay and painted it using a product called "STEEL-IT". Its a polyurethane embedded with 316L stainless flake. Its very popular in the off-road world due to its durability. I also think it looks great and levels out beautifully.
Next I slapped together a streetported 13b-rew in my garage. This brings us to the cars current condition. I am mostly collecting parts at the moment.
Basic rundown on the motor is as follows, also included is miscellaneous parts I have collected:
streetport
Xcessive LIM
Xcessive oil filler neck
Xcessive oil pan
Turblown manifold
Dual turbosmart gen v wastegates
Garrett GT3582r
CJM secondary rail with ID2000's
Ir Performance motor mounts (not installed yet)
Koyo rad
Not motor related:
Mazdaspeed powerplant frame
Stoptech big brake kit
The following users liked this post:
DaleClark (05-05-20)
#4
Junior Member
Thread Starter
This is what my last few days have consisted of, repairing rat eaten wiring and re-looming. I also had a very broken combo switch, both the wiper switch and the blinker switch were hanging off the column when i bought the car. The plastic had broken, I searched for the part number that is listed on the bare plastic "frame" and found one on eBay listed in Lithuania out of a Hyundai or something. I disassembled both switches completely and combined them, I now have a working combo switch for around $25.
Last picture is why the factory engine failed for those interested.
Last picture is why the factory engine failed for those interested.
#5
Junior Member
Thread Starter
Thanks guys! believe it or not that picture is after the first round of pressure washing. I cannot describe the amount of rodent damage. The rats had started eating the factory cooling fans.
I am going to route the wastegates into the exhaust. I want the car semi-quiet. I have other cars with open wastegates and I want the FD more discrete haha.
#7
Junior Member
Thread Starter
I haven’t started tackling the fuel system yet but I am not looking forward to it!
