Spic Racer GT40R
The following users liked this post:
Carlos Iglesias (09-18-19)
#304
RX-7 Bad Ass
iTrader: (55)
Lookin' good! that should be one heckuva machine when she fires back up!
Dale
Dale
#306
Polishing Fiend
iTrader: (139)
Looked around your site and the image of Gene's just last week. It's kind of remarkable how many old rotary sites are still around even when the cars are gone. Yours, Gene's, Max's, Brian Goble's, and Robinette's are all time. Steve Cirian's went down not too long ago which was is a bummer. That site was a chronology of RX-7 performance development. Keep going!
still have my hooptie. Still throwing stupid money at it. LOL
Crispy
The following 4 users liked this post by CrispyRX7:
#307
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
'Oooooo, those Full Function skinny fuel rails are cool. Definitely would look better than my old one-off one and should be a simple swap out. Too easy, "Hello, Aaron..." '
Four hour later after having to recreate all of the plumbing and the injector sub-harness, I can here Murphy's giggling in my head... that bastard!!
.
Four hour later after having to recreate all of the plumbing and the injector sub-harness, I can here Murphy's giggling in my head... that bastard!!
.
The following users liked this post:
RochX7 (08-25-21)
#312
F'n Newbie...
iTrader: (6)
Nice! I'm sure you'll enjoy the M1, I've been looking over some of the older tutorials from MoTeC AUS and the functionality in that box is just amazing! Are you doing DBW as well?
I'm just waiting for the shop my car is in to make final determinations then we'll be dropping an order as well
I'm just waiting for the shop my car is in to make final determinations then we'll be dropping an order as well
#313
Carlos,
Can you give an idea of what all is needed to setup the GPR M130?
M130
GPR-Rotary
Loom
Sensors
Trigger....
Do you have an estimate in cost you can share? I'm trying to decide what to do with my car in the next 1-2 months.
Thanks!
Can you give an idea of what all is needed to setup the GPR M130?
M130
GPR-Rotary
Loom
Sensors
Trigger....
Do you have an estimate in cost you can share? I'm trying to decide what to do with my car in the next 1-2 months.
Thanks!
#314
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
- NUMBERO UNO: pick and commit to a tuner... this is a Go/No-Go criteria for the installation and tuning.
- M130 w. Rotary GRP (no options) - $3300
- Loom (Motorsports grade) - $1000 - 2500
- Sensors & Integration - $1000-$3000
- Calibration and Tuning - $1000-$2500 (Motec pros)
BTW, at this level of motorsports professionalism, the supply curve is fairly steep, so 'discount' are more rare than an anorexic Cuban mothers.
Last edited by Carlos Iglesias; 12-07-19 at 05:45 PM.
#315
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
M130 setup task #337: Install dual Bosch knock sensors in stock position. Sounds easy enough... till you realize the housing mounting hole is M10 and the Bosch mounting through hole is M8. After preparing to cut and thread my own M10/M8 stud, Elite Rotary's Knock Sensor Studs to the rescue.
Last edited by Carlos Iglesias; 12-08-19 at 02:01 PM. Reason: add hyperlink
#316
F'n Newbie...
iTrader: (6)
This is a fairly complicated question give the vast configuration options available with any Motec M1. I'm still working through my final configuration. That said, ...
BTW, at this level of motorsports professionalism, the supply curve is fairly steep, so 'discount' are more rare than an anorexic Cuban mothers.
- NUMBERO UNO: pick and commit to a tuner... this is a Go/No-Go criteria for the installation and tuning.
- M130 w. Rotary GRP (no options) - $3300
- Loom (Motorsports grade) - $1000 - 2500
- Sensors & Integration - $1000-$3000
- Calibration and Tuning - $1000-$2500 (Motec pros)
BTW, at this level of motorsports professionalism, the supply curve is fairly steep, so 'discount' are more rare than an anorexic Cuban mothers.
I ended up opting to replace all my sensors with known quality/quantities. Milspecwiring.com and Racegrade.com are good sites to look through to get a pricing idea. My build has shot off the deep end, so I ended up going heavy on the sensors!!
When it comes to the engine loom, having a knowledgeable dealer provide input can be critical!! Apparently the ECUs can be particular about pinout arrangement. If the person designing your loom doesn't know these details it can cause issues that will cost you extra time, money, and frustration to isolate and correct. The dealer Carlos and I are going through told me straight up that he would have no part of the project if he couldn't be involved in the pinout design.
As for discounts, I saw an ad that indicates Motec will be having a sale on ECUs, PDM packages, Displays and display unlocks from the end of PRI until NYE this year. MoTeC USA hasn't confirmed this yet though.. if you plan on buying hardware and upgrades NOW is going to be the time!!! Hell, based on the ad I saw I'll save just under $1k on my M1 package, PDM package, and display. I'd save another $200-$300 on enabling codes..
Motec stuff is *not* in the cost range of budget builds, but you're getting a high end product that functions correctly from the start, tech support that is SUPER easy to communicate with, and industry leading analytics that makes the rest of the field look like they were made for etch-a-sketches.
After I lost a few motors due to inferior electronics I personally decided it was worth it to spend a bit more up front for a product that would be bulletproof!!
Last edited by fendamonky; 12-14-19 at 09:17 AM.
The following users liked this post:
Carlos Iglesias (01-03-20)
#317
Super Snuggles
The following users liked this post:
scotty305 (02-24-20)
#318
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
ECU Mounting Board
Social Distancing baby steps...

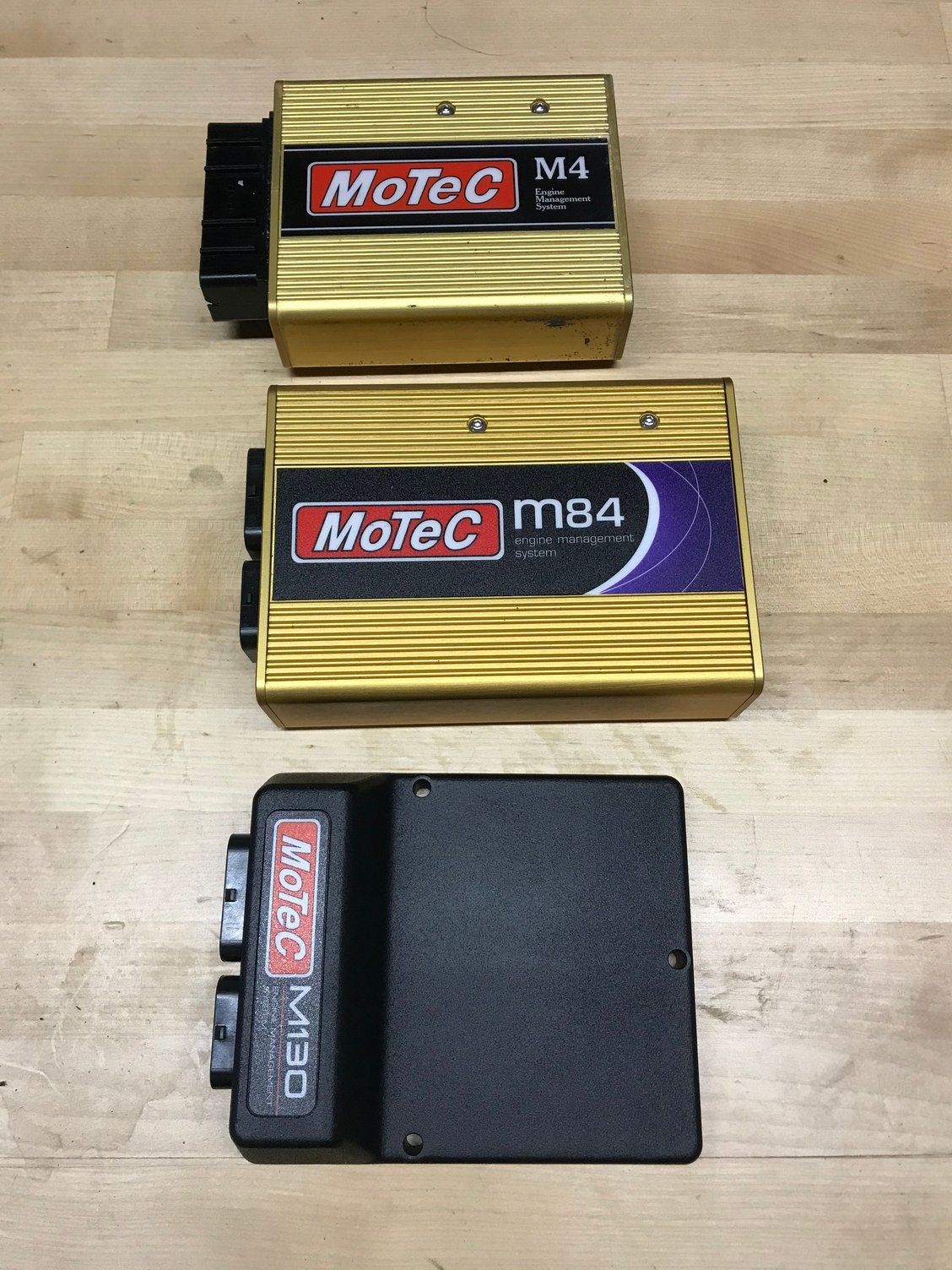

Motec M4 + 6 (total) control boxes...
+ "M126" - 5 (total) control boxes later =
Motec M130 + 1 (total) relay
Really hate it when boxes don't integrate mounting design: not sure how I'll finalize the mount for the relay. May have to fire up the mill and cut a mount. But for now, it's a low pri.
And yes, it's the original aluminum mounting plate with plenty of previous design 'character'. Makes it lighter!
Now to measurement hell in preparation for ordering the harnesses. Sure as **** ain't rigging it up myself again... especially with the Aussie dollar at these historic lows.
Motec M4 + 6 (total) control boxes...
+ "M126" - 5 (total) control boxes later =
Motec M130 + 1 (total) relay
Really hate it when boxes don't integrate mounting design: not sure how I'll finalize the mount for the relay. May have to fire up the mill and cut a mount. But for now, it's a low pri.
And yes, it's the original aluminum mounting plate with plenty of previous design 'character'. Makes it lighter!
Now to measurement hell in preparation for ordering the harnesses. Sure as **** ain't rigging it up myself again... especially with the Aussie dollar at these historic lows.
Last edited by Carlos Iglesias; 03-16-20 at 07:04 AM. Reason: Not funny enough
#320
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
M130 Punctuated Progress persist

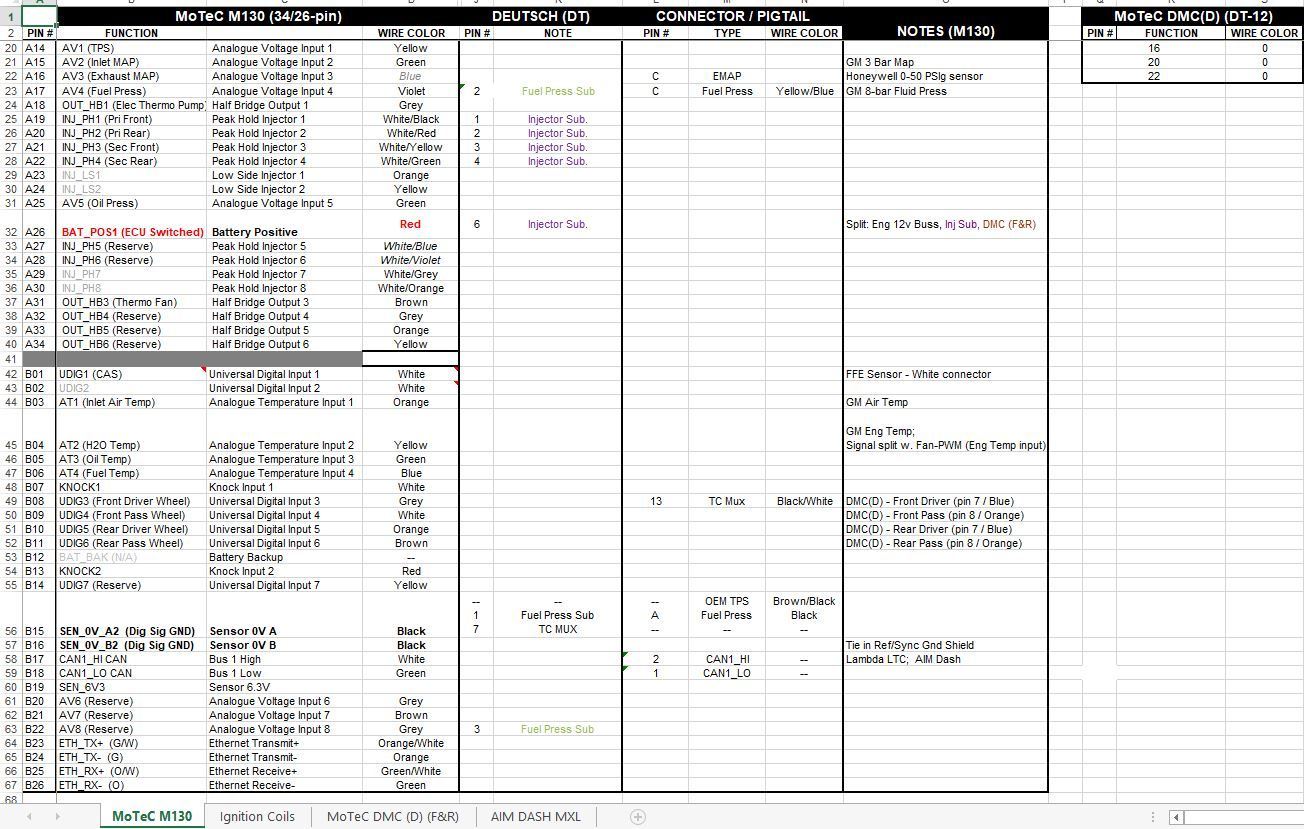

Final Motec M130 pinout... prerequisite to ordering the harnesses.
The new M1 brain is in, but lots of synaptic and nerve connection still to be made.
And yes, I still need to need to dry ice out the soundproofing on the deck.

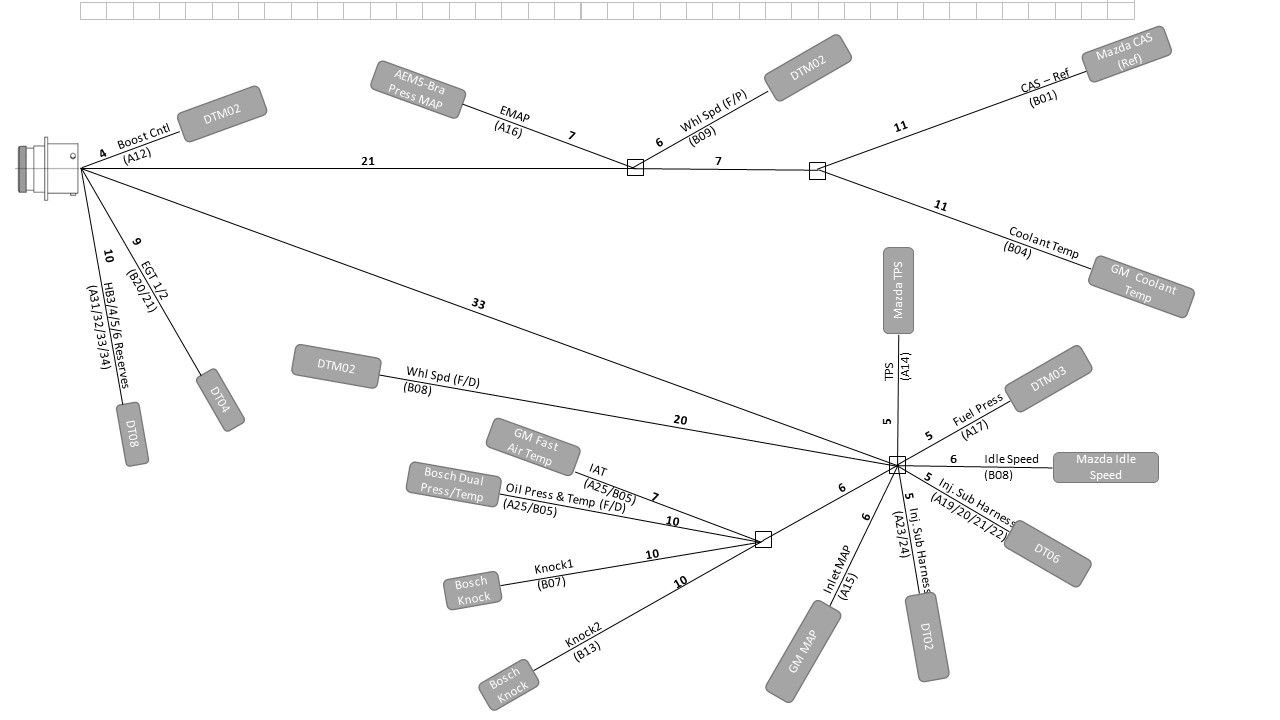

The in-cabin harness design is off to my man Down Under, Nathan Vlotis of Connexion Concepts. Tomorrow the engine harness design...
The new M1 brain is in, but lots of synaptic and nerve connection still to be made.
And yes, I still need to need to dry ice out the soundproofing on the deck.
The in-cabin harness design is off to my man Down Under, Nathan Vlotis of Connexion Concepts. Tomorrow the engine harness design...
Last edited by Carlos Iglesias; 07-17-20 at 09:22 PM.
The following 3 users liked this post by Carlos Iglesias:
#323
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
Dunk-o-meter Fuel Composition Sensor
Out with the old and in with the new...
Siemens / Ford sensor top Conti Sensor bottom
Not crazy about the location as I would have preferred to route is as close as possible to the rails, but it'll do for now. The 440 ltrs/hr at boost should help response a bit... well, at least that's how I'm rationalizing the compromise for now.
Conti Fuel Comp Sensor mounted
Next up, installing the ID Fuel Filter with some main fuel line rerouting...
Siemens / Ford sensor top Conti Sensor bottom
Not crazy about the location as I would have preferred to route is as close as possible to the rails, but it'll do for now. The 440 ltrs/hr at boost should help response a bit... well, at least that's how I'm rationalizing the compromise for now.
Conti Fuel Comp Sensor mounted
Next up, installing the ID Fuel Filter with some main fuel line rerouting...
The following 2 users liked this post by Carlos Iglesias:
DaleClark (08-03-20),
fendamonky (08-07-20)
#324
Corn-to-Noise Converter
Thread Starter
iTrader: (6)
Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes
on
154 Posts
Hmmm... this fuel hose has been pickling in moonshine... I should probably do something about it.
One potato,
two potato
Three potato more...
<cue the Benny Hill song>
One potato,
two potato
Three potato more...
<cue the Benny Hill song>
Last edited by Carlos Iglesias; 08-07-20 at 06:48 PM. Reason: ADD
