Awesome work, looking good!



Love the arms! Moving along nicely!



I think your filler neck came out VERY nice. Different design for different goals.


Your build is looking GREAT. The attention to detail is inspiring me.



Nice work. Looks like you've taken the exact same route as me with my 20B build...sprayed fender wells, powdercoated suspension with new bushings, new hubs with extended studs, coated subframe, converted rack, etc. You're a step ahead with the cage though. Looks good.



great build, keep up the good work!!!



Awesome build, attention to detail is inspiring.



Thanks for all the positive feedback guys... I'm FINALLY starting to see the light at the end of the tunnel!

Tom - Seriously, now I just need to get my hands on a 20B motor lol. Hey, what ever happened to your build thread?



I had to ditch my cf ducts, did you get yours from that groupbuy? they interfered the rotors.



My CF ducts are the original Crooked Willow's. Bought them used years back and they worked great on the track on my old FD. No interference but I did have to shim them with a couple washers to get them to sit flush with the rotor eye.



I just stop by to read a few build threads over here...don't really post anymore.

I have new build threads for both my FDs on "the other forum", but haven't updated them in recently.

Keep up the awesome work.



pandaz, can i buy this car from you when you're done? it's basically the perfect track car...



Yup, he's building it just for you! I mean isn't that half (or some percentage) the fun of driving these cars? Remembering every little detail you put into the car. The time you spent busting your knuckles on some stupid stud that was sticking out....Or punching yourself in the face when the wrench slipped? Besides you wouldn't give up that sweet new turbo setup

Love the updates as always!

-Dan



Ahh, the reps with the group buy on here a few years back I got were garbage. I got so frustrated with them I eventually just took a 5lb hammer to mine.



well said. and yes, i must admit i do love the new EFR setup!



What I love about your build thread Mike is that you're pretty much building a new FD from the ground up. I love the attention to detail, I'm paranoid about the underbody looking good and your build passes the test. Love it! Can't wait till this thing is on a track.



Nice build...!! Very impressive attention to details...

Am working on a road race FD here at the other side of the world, do you have a Plumbing / Wiring diagram for the Fuel Surge Tank with the stock fuel tank ??

Thanks.



Well you never know guys, building is definitely a big part of the fun...maybe I'll let this one go for the right price and build a new one with a 4 rotor.



Sucks to hear it didn't work...I would just build a new one out of aluminum if I were you, shouldn't be too hard.



What's up man! I'll definitely let you know when it's done so we can hit the track together.



Decided to have some fun today making this diagram for the plumbing on my surge tank with internal Bosch pump system. As for wiring, nothing special, both pumps will be powered by one big relay which is triggered by the ECU.



Have you thought about a returnless fuel setup?



No I have not, haven't done enough research on it honestly... at this point I'd rather keep the good 'ol return system then try something new.



Gotcha. Yeah, it's less of a headache when you can use something that has been proven reliable. PWM is a little tricky.



why both on one relay? that relay would need to be quite heavy duty... Why not dual relays with the coils wired in series if you are afraid of one failing and starving the other.

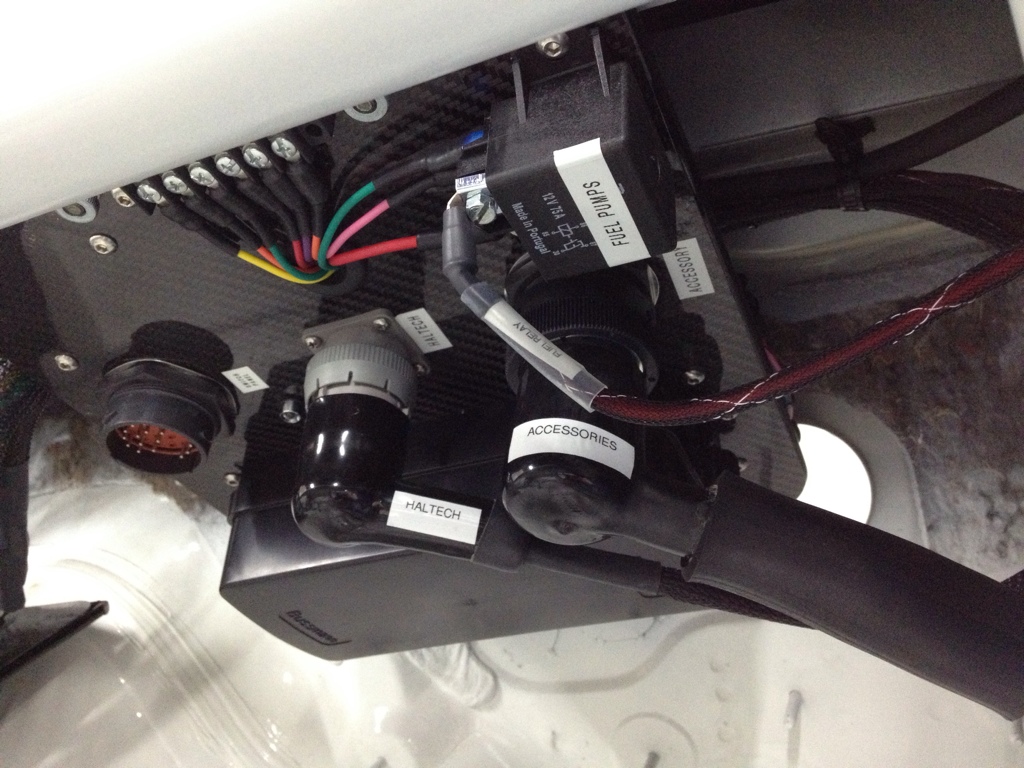

You're right it is a heavy duty 12V-75A relay.
