GARAGE BUILD IN Co.
This build started with my little brother saving this 93 from a V8 swap when i was in Germany. We got the car as a shell and then ordered a used 2001 motor and transmission for it. this part of the build i don't have any pics for so iam starting it off from when i went home to Ca. to pick it up. when i got there the car ran like crap and i did a lot of work trying to get the Power FC to run the car right for the ride home to Co. The biggest problem was the idle surging a lot of people have, this is what worked for me and is nothing new. i disconnected the idle speed control, adjusted the air bleed and adjusted the fuel map to be the same up to about 1700rpm. This worked out great for me. The plan for the car is to build a Solo II/ Time attack car.
Mods.
large street port
non- sequential mod
HKS twin power
Apexi PowerFC
Pettit Launch Kit, Track Pro
SS Exhaust Downpipe, no cat 3" back
Pettit AST
Koyo R1443N 53mm N-FLOW Aluminum Racing Radiator
Efini Y Pipe
Greddy Elbow
GReddy Intercooler Pipe
ARC air box
Bosch 044 Fuel Pump
AEM TRU-BOOST - Boost Controller Gauge
AEM DIGITAL WIDEBAND AIR / FUEL GAUGE
Powerflex steering rack bushings (Race black)
ABS delete

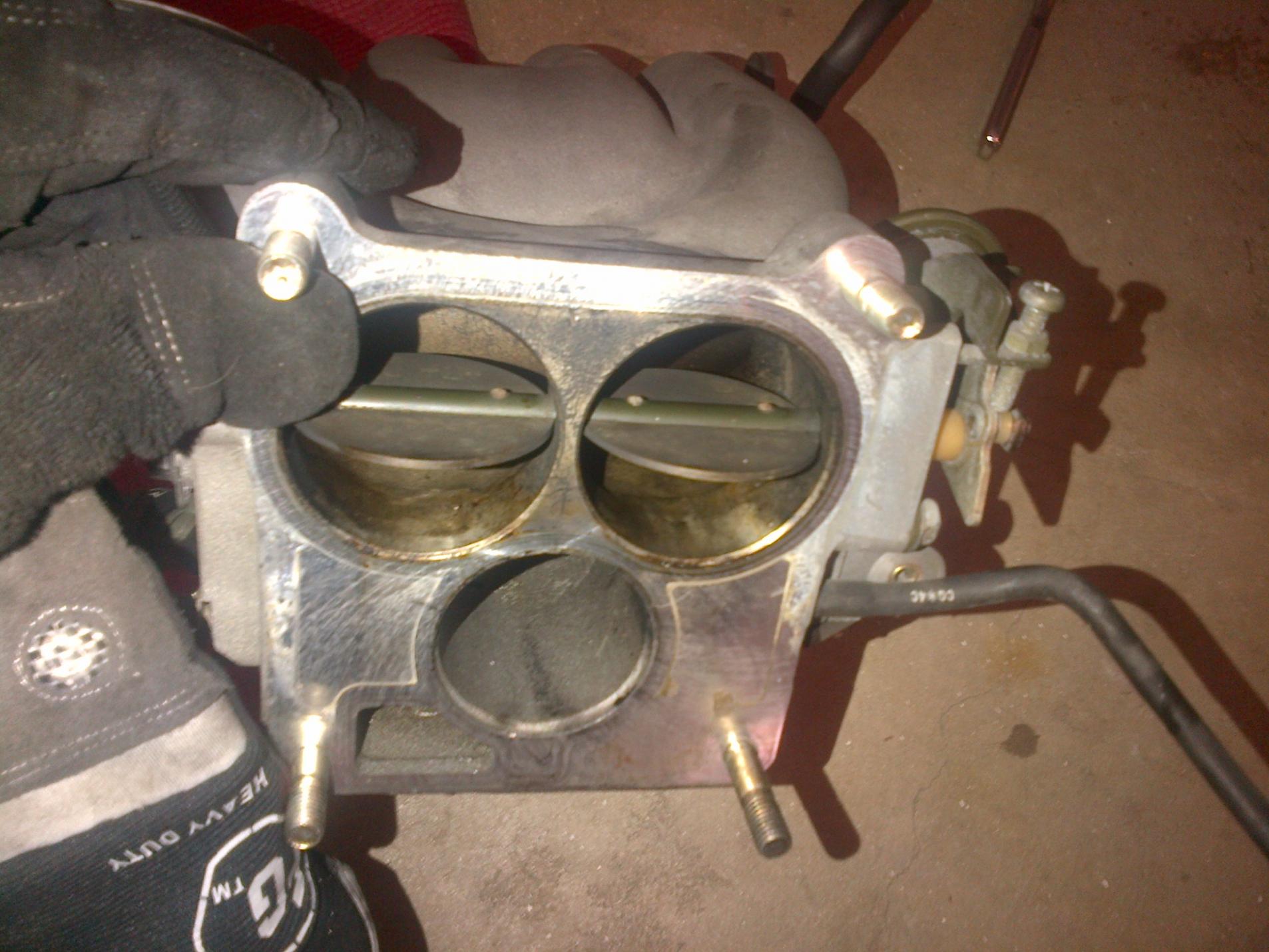

ISC delete
Thermo wax delete
ACV delete

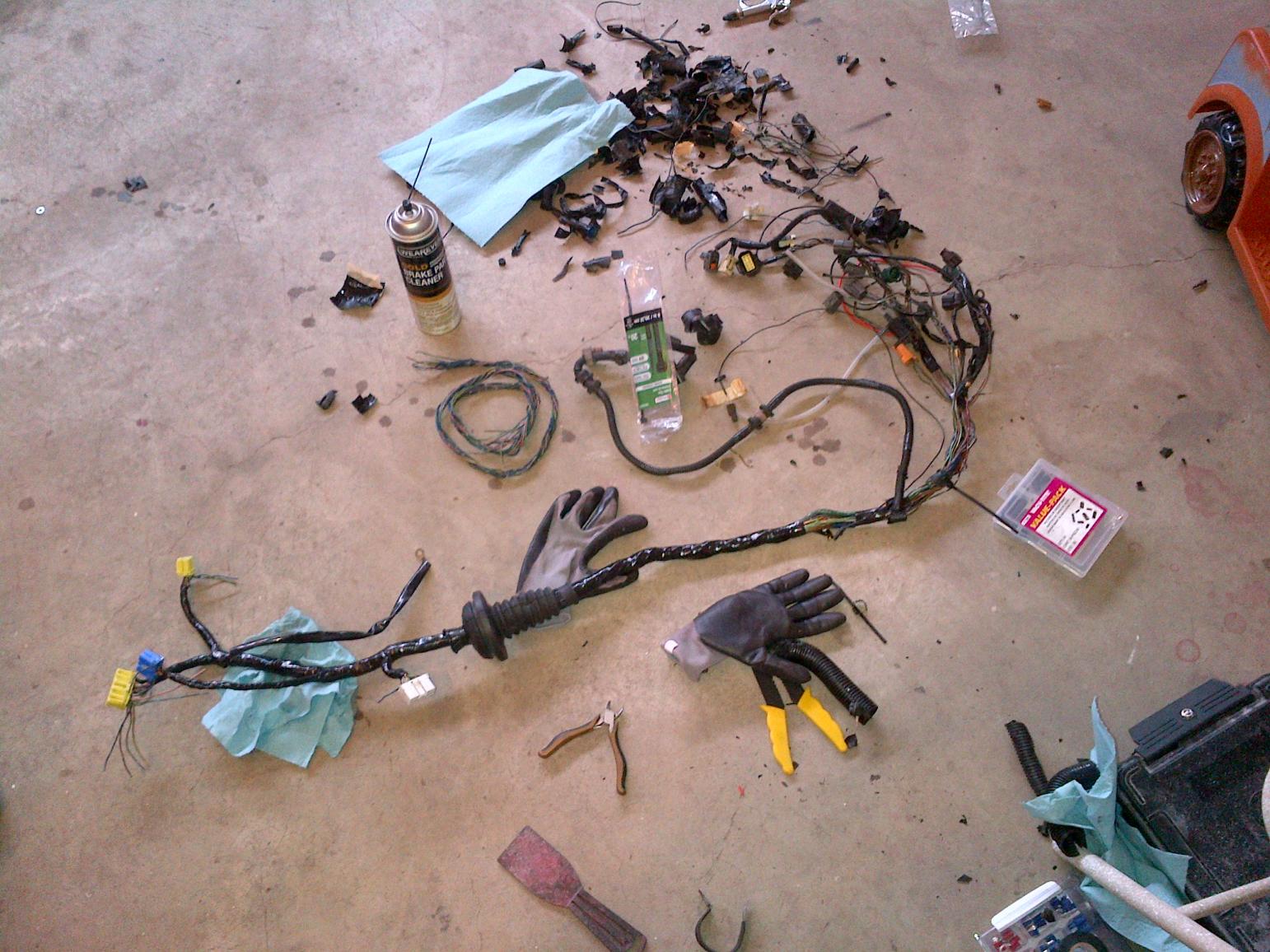

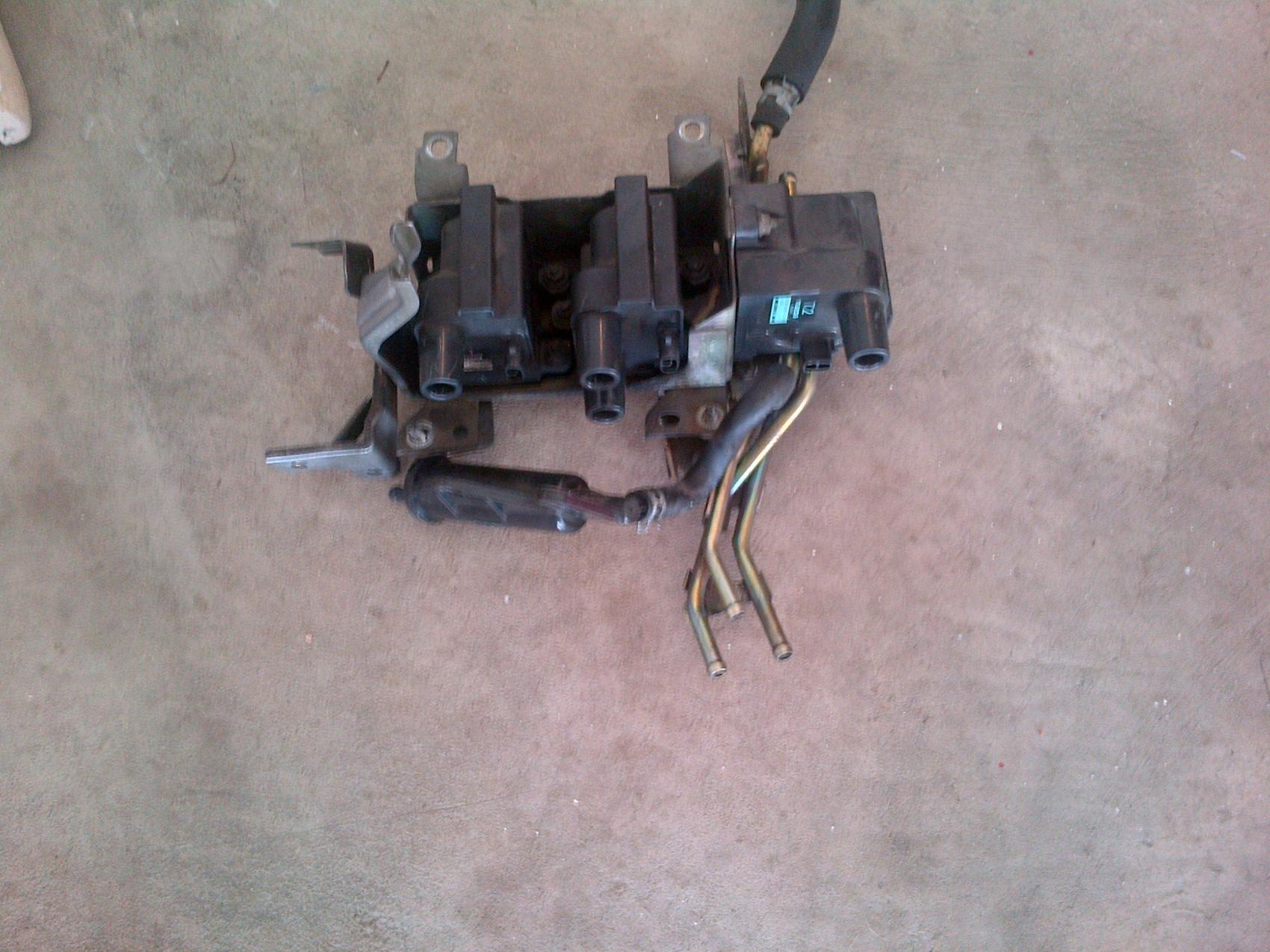

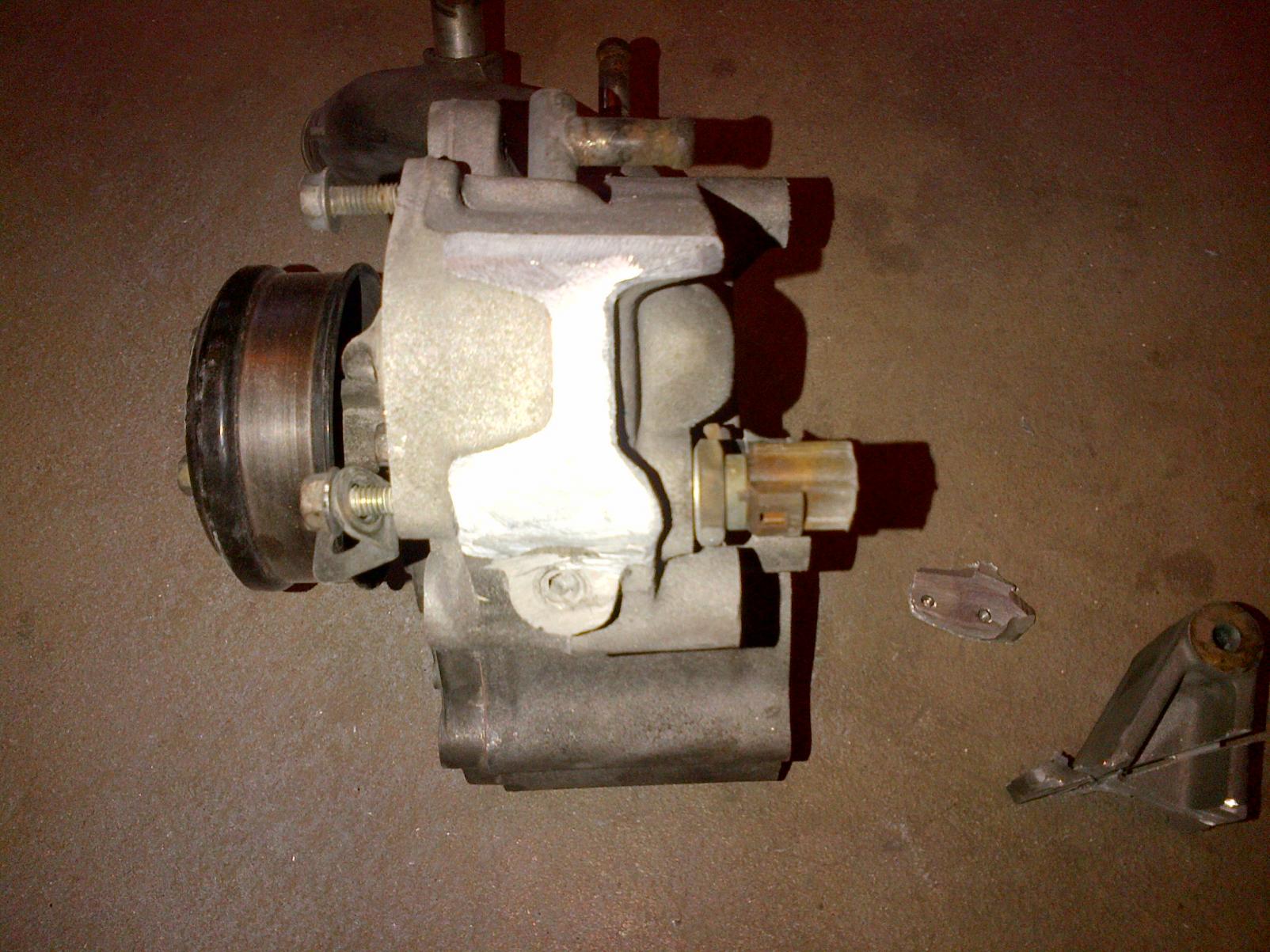

Rats nest delete
That's about what i have done as of to date.
Mods.
large street port
non- sequential mod
HKS twin power
Apexi PowerFC
Pettit Launch Kit, Track Pro
SS Exhaust Downpipe, no cat 3" back
Pettit AST
Koyo R1443N 53mm N-FLOW Aluminum Racing Radiator
Efini Y Pipe
Greddy Elbow
GReddy Intercooler Pipe
ARC air box
Bosch 044 Fuel Pump
AEM TRU-BOOST - Boost Controller Gauge
AEM DIGITAL WIDEBAND AIR / FUEL GAUGE
Powerflex steering rack bushings (Race black)
ABS delete
ISC delete
Thermo wax delete
ACV delete
Rats nest delete
That's about what i have done as of to date.
03-24-14, 12:07 PM
#2
15U
Thread Starter
iTrader: (-1)
Join Date: Oct 2013
Location: FT. Carson
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts

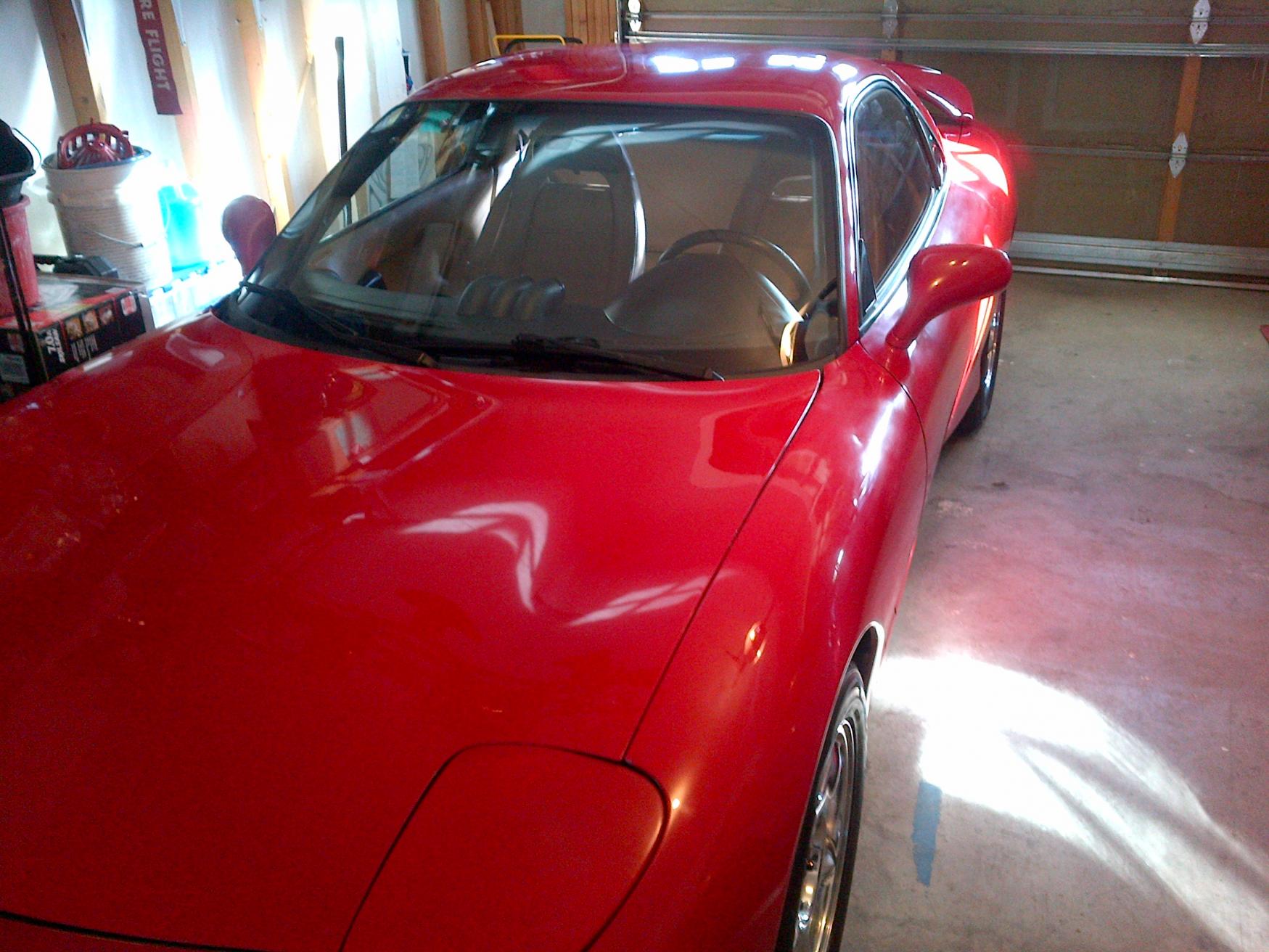

after i new window was put in while i was in Ca.
https://www.dropbox.com/sc/q2ctywvzmjvjjp5/_cSHp26IjL
https://www.dropbox.com/sc/q2ctywvzmjvjjp5/_cSHp26IjL
03-24-14, 12:43 PM
#6
15U
Thread Starter
iTrader: (-1)
Join Date: Oct 2013
Location: FT. Carson
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts

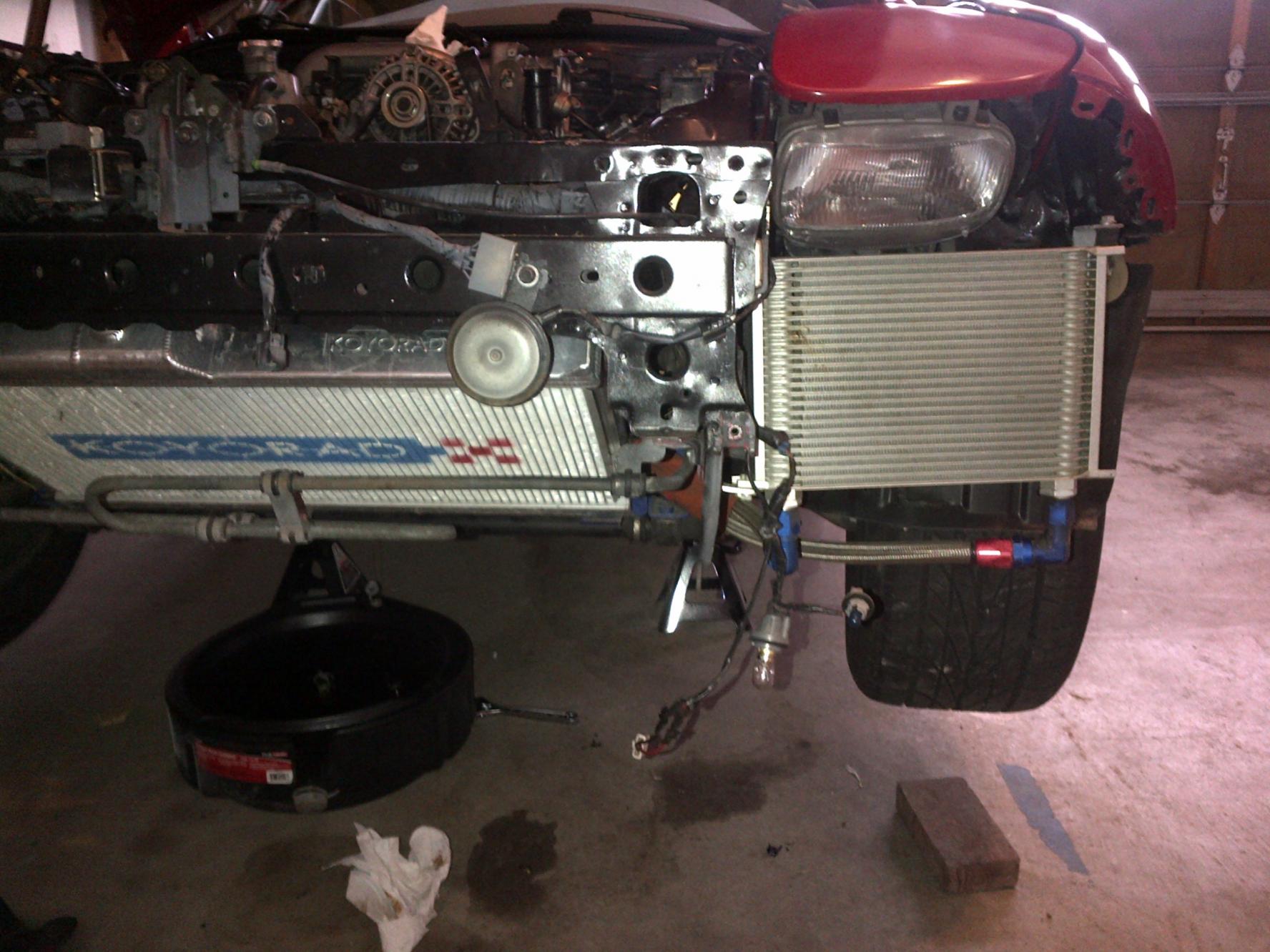

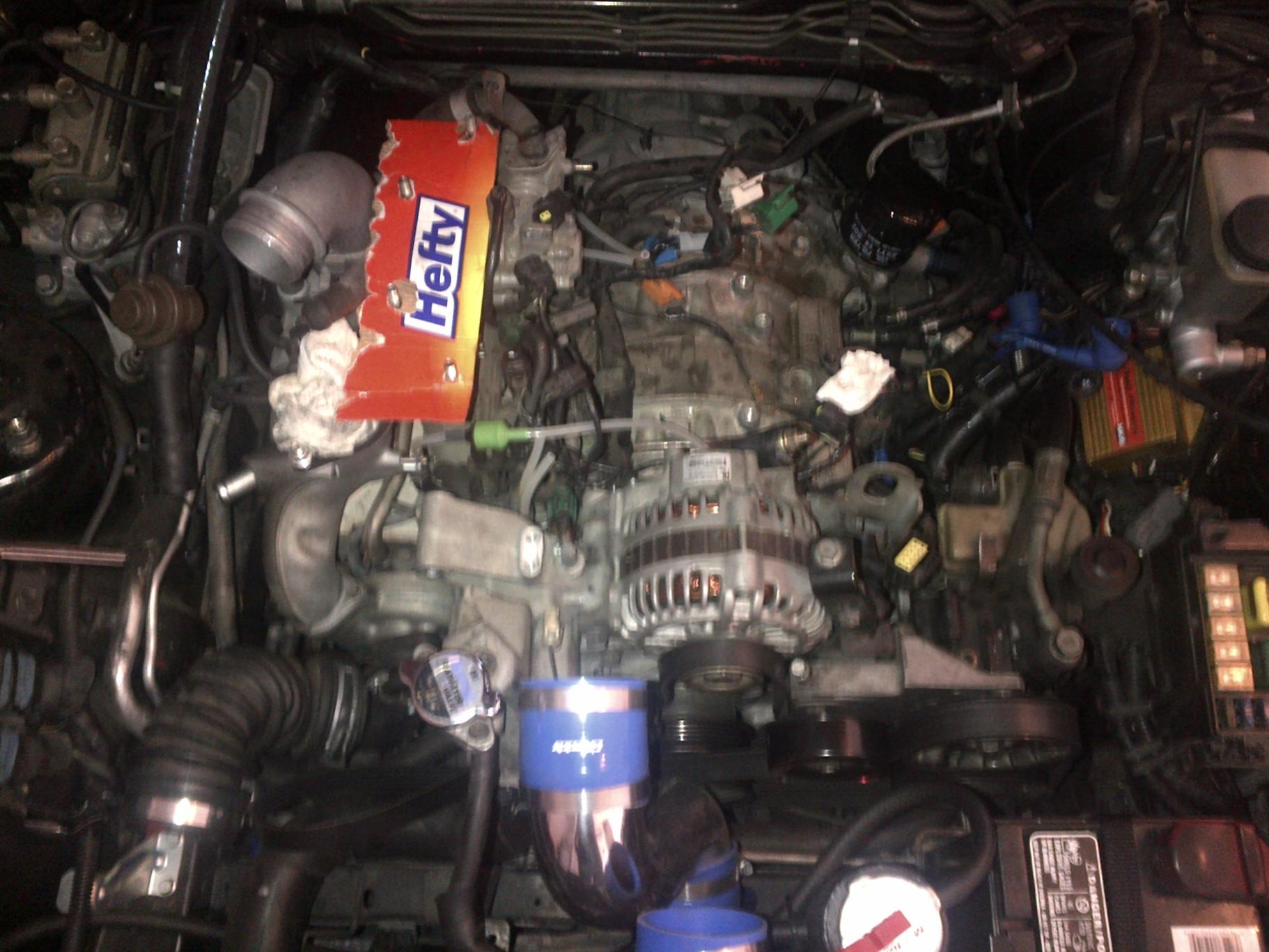

home at last, with a lot of work to do now that i have time to work on the car. the car did great on the drive home but would not transition to the secondary turbo thats why iam going with a simplistic lay out.
Trending Topics
03-24-14, 12:53 PM
#8
15U
Thread Starter
iTrader: (-1)
Join Date: Oct 2013
Location: FT. Carson
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts

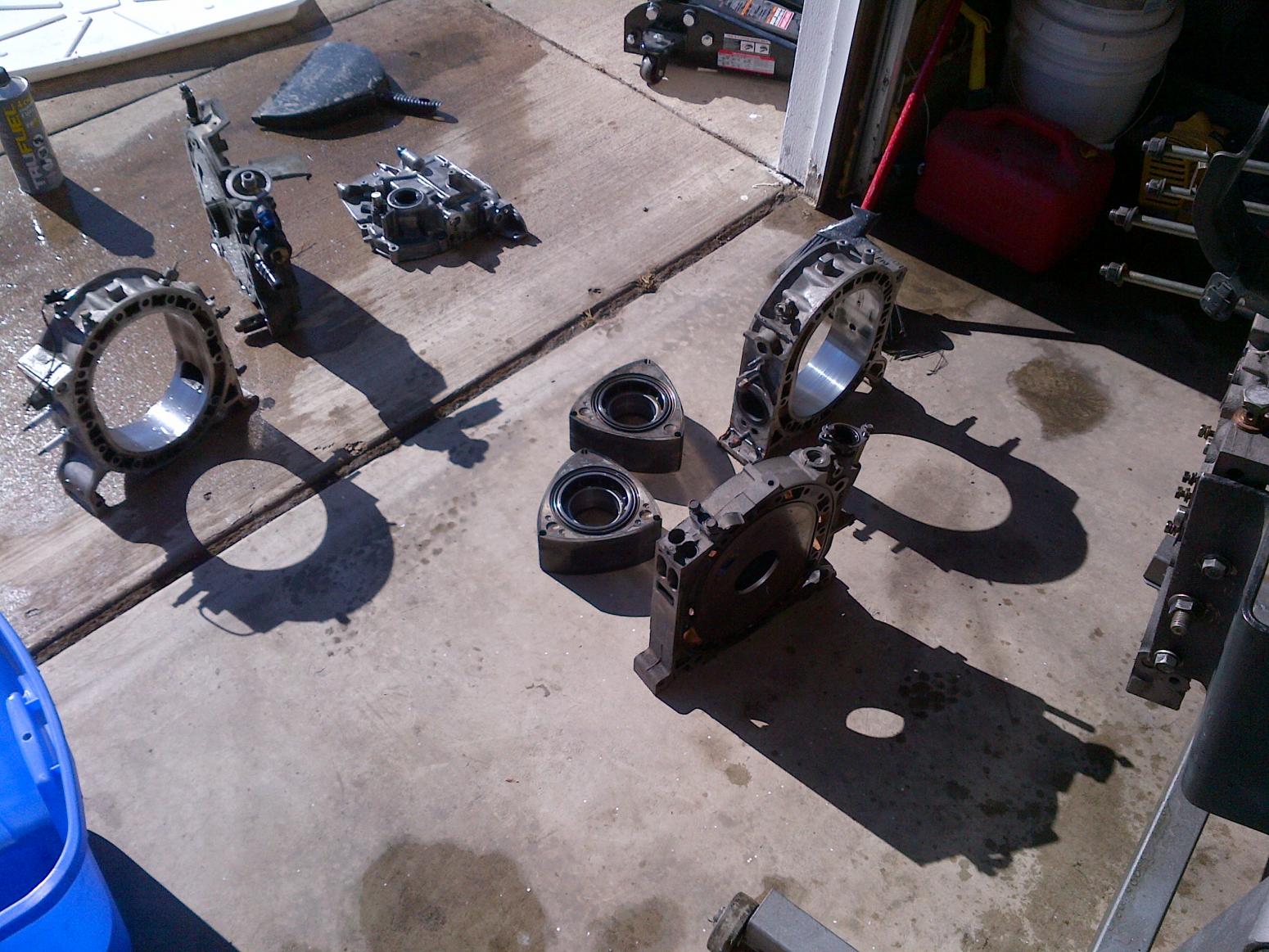

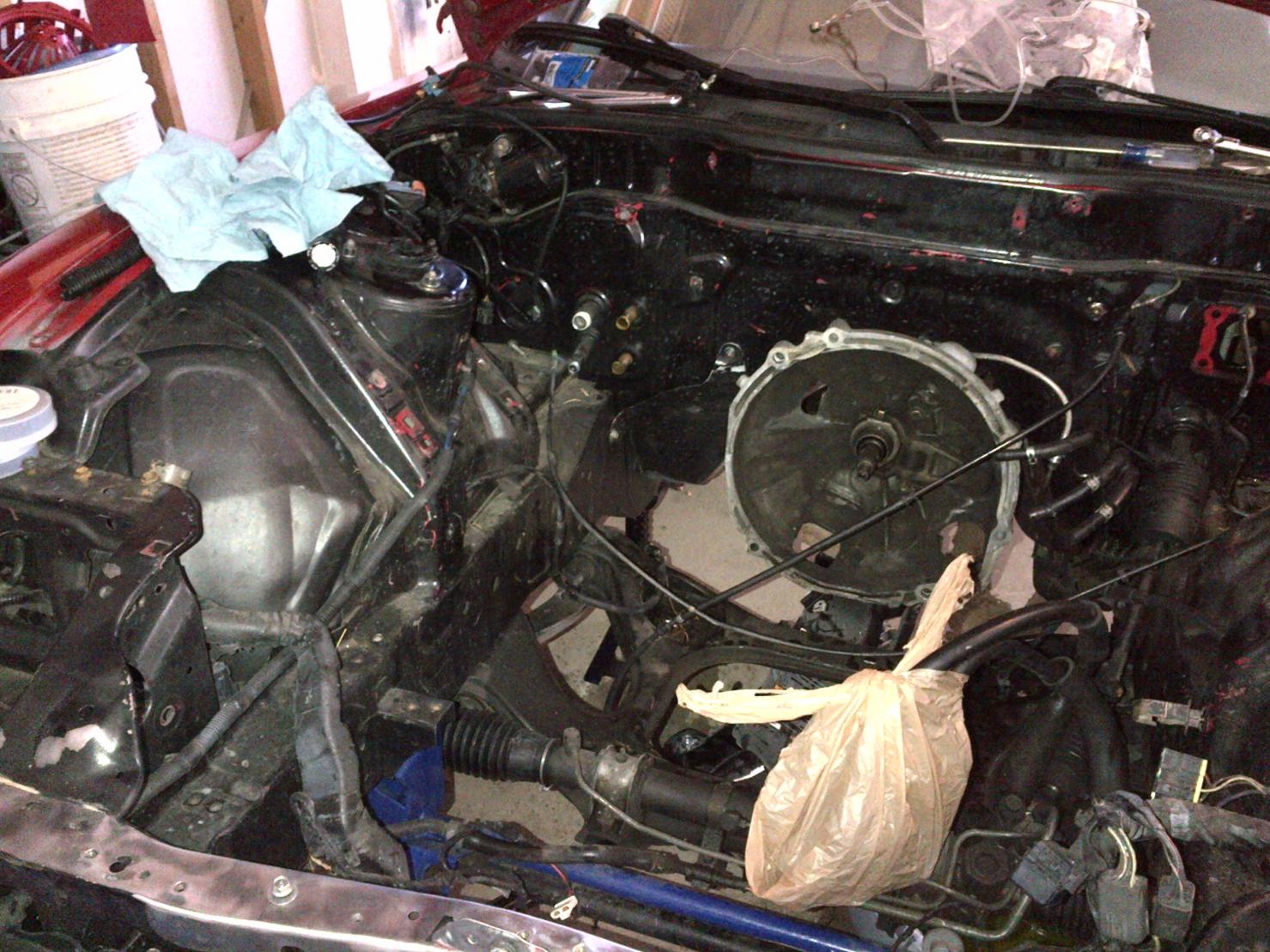

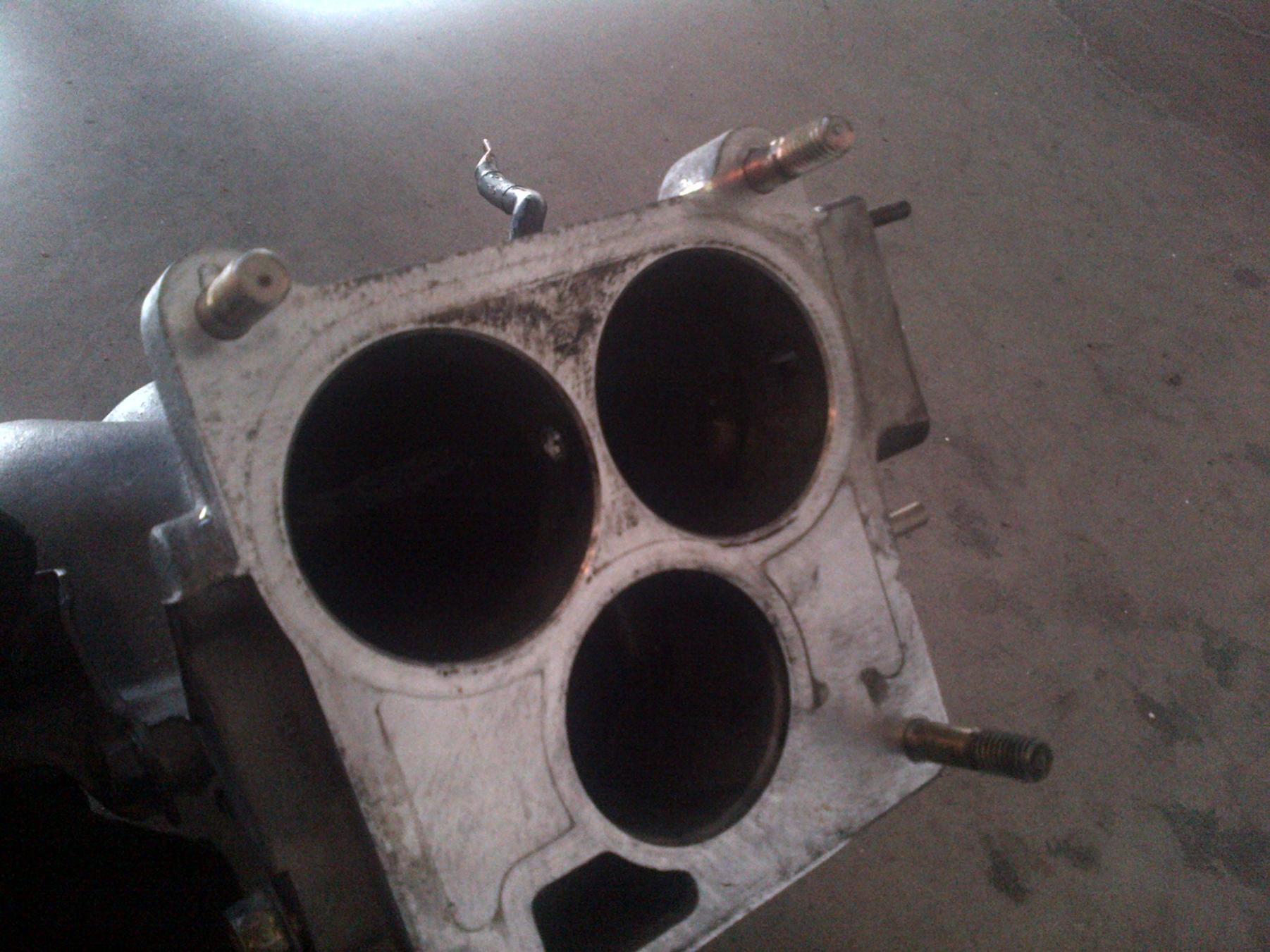

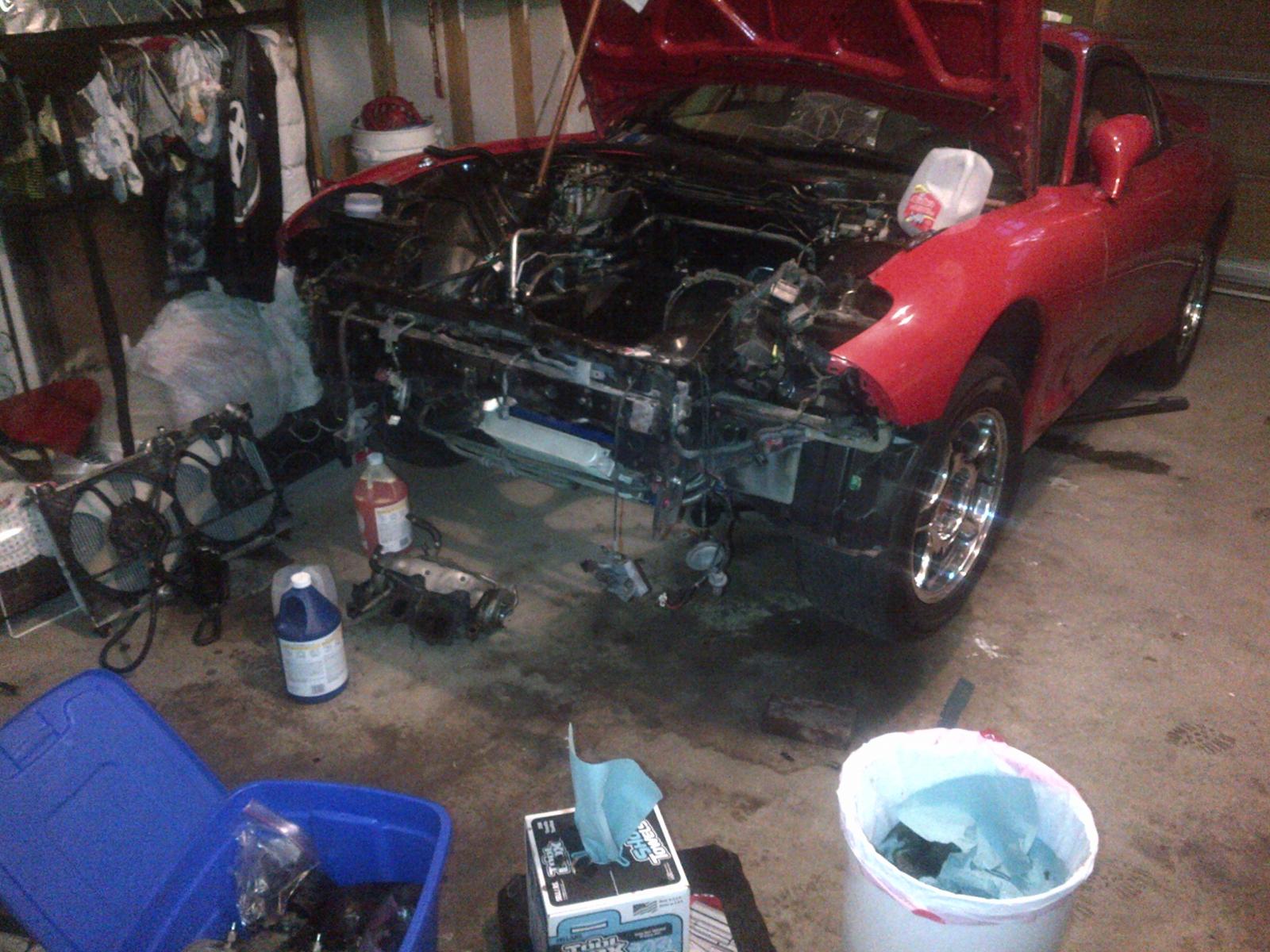

after doing the non-sequential mod i drove the car for two days and broke a rear apex seal. Now i can start all over and do thinks my way. this is why i like to do things my self and that's the only way you know what your getting. this will not be my first rotary rebuild as i started working on RX-7's when i was 10 years old so iam happy to be back in the game.
03-24-14, 01:24 PM
#17
15U
Thread Starter
iTrader: (-1)
Join Date: Oct 2013
Location: FT. Carson
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts

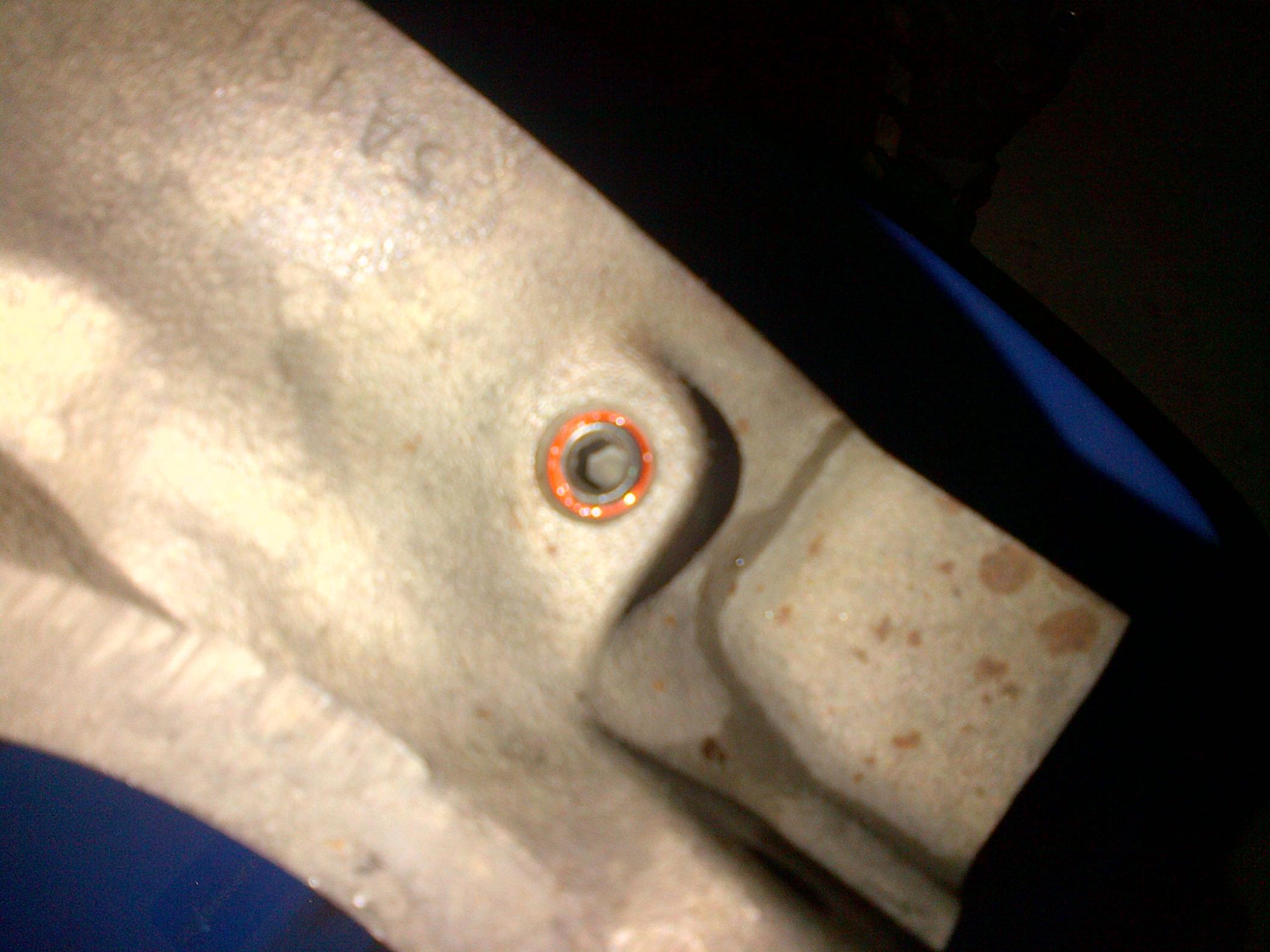

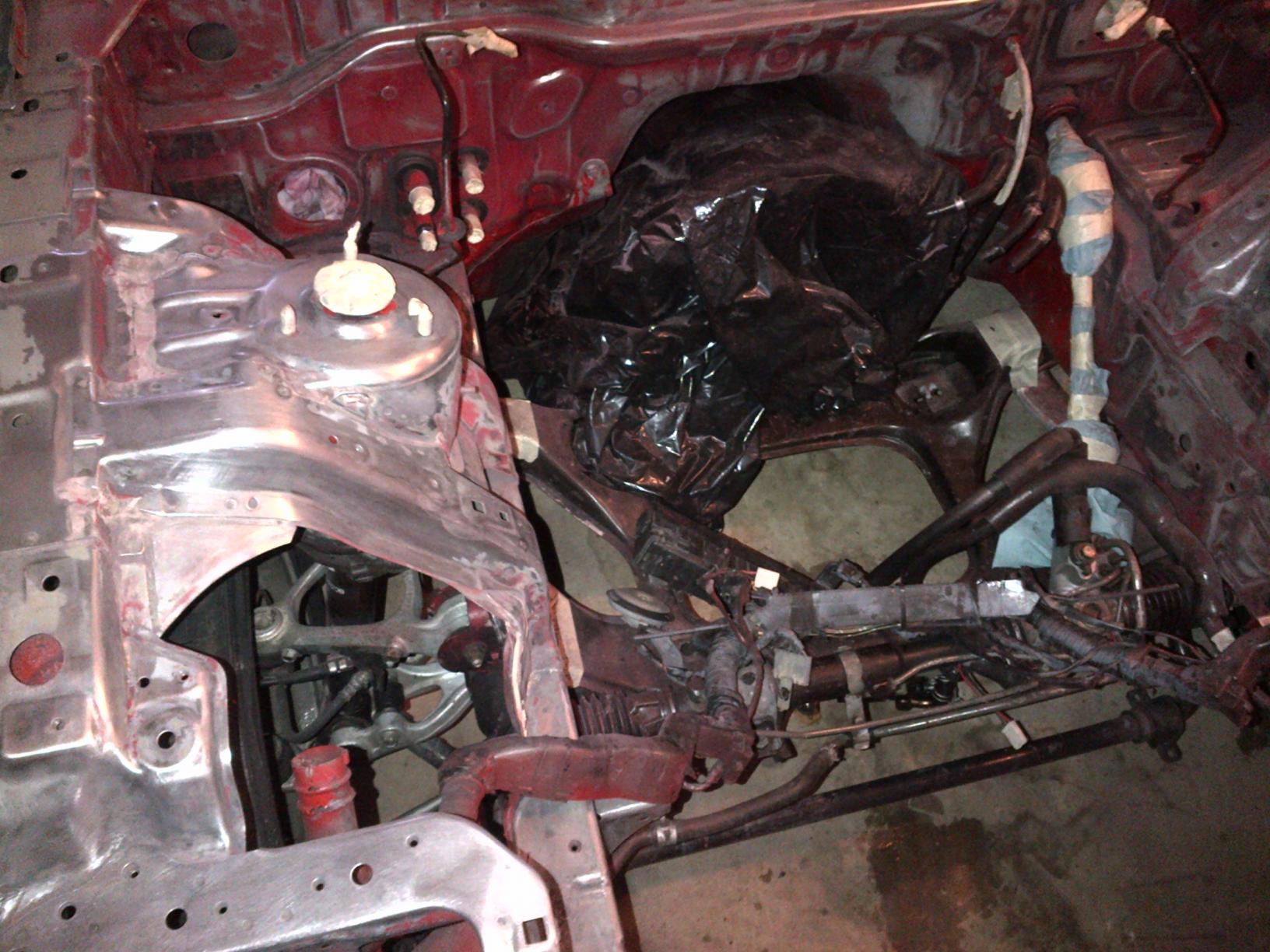

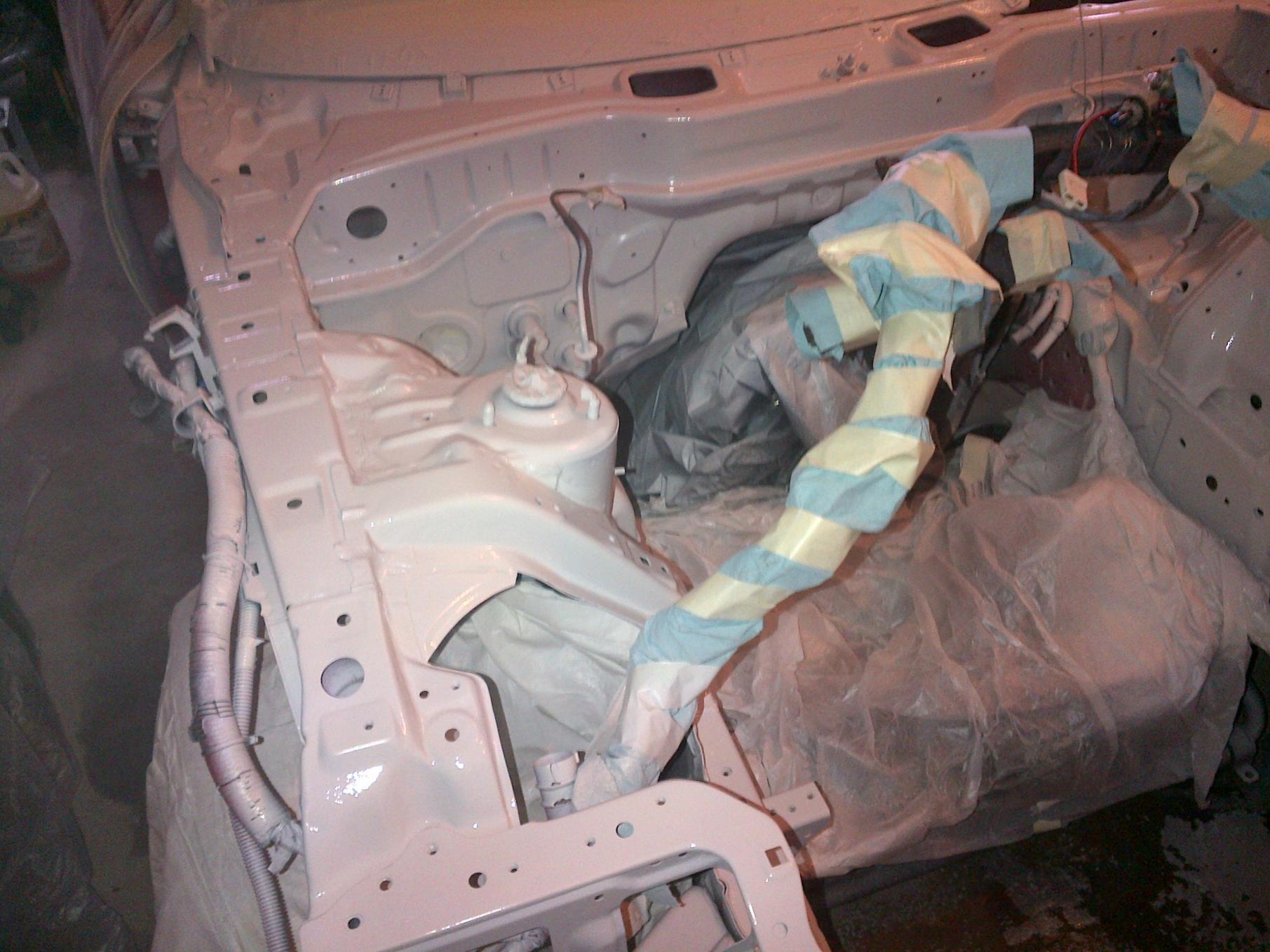

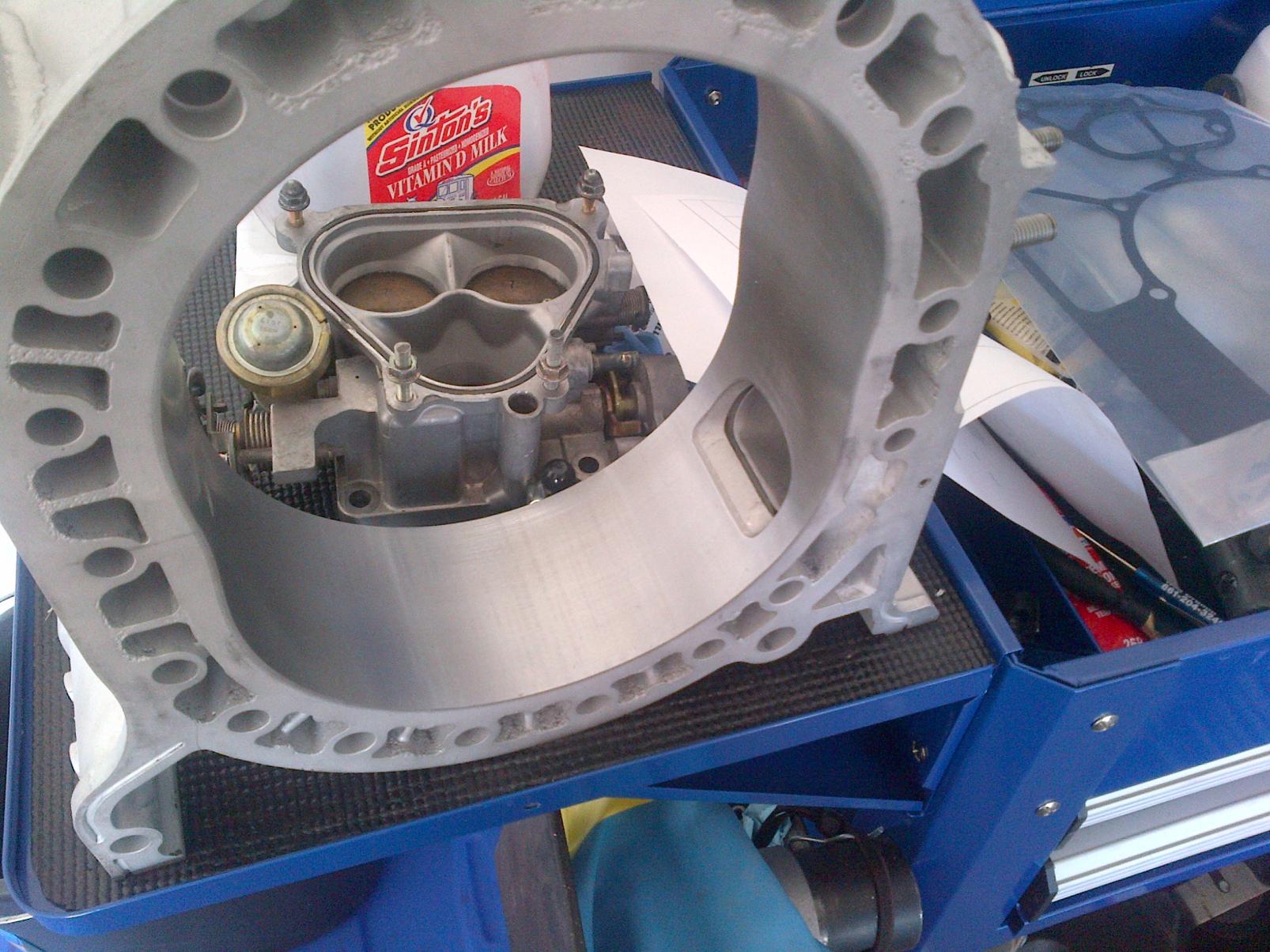

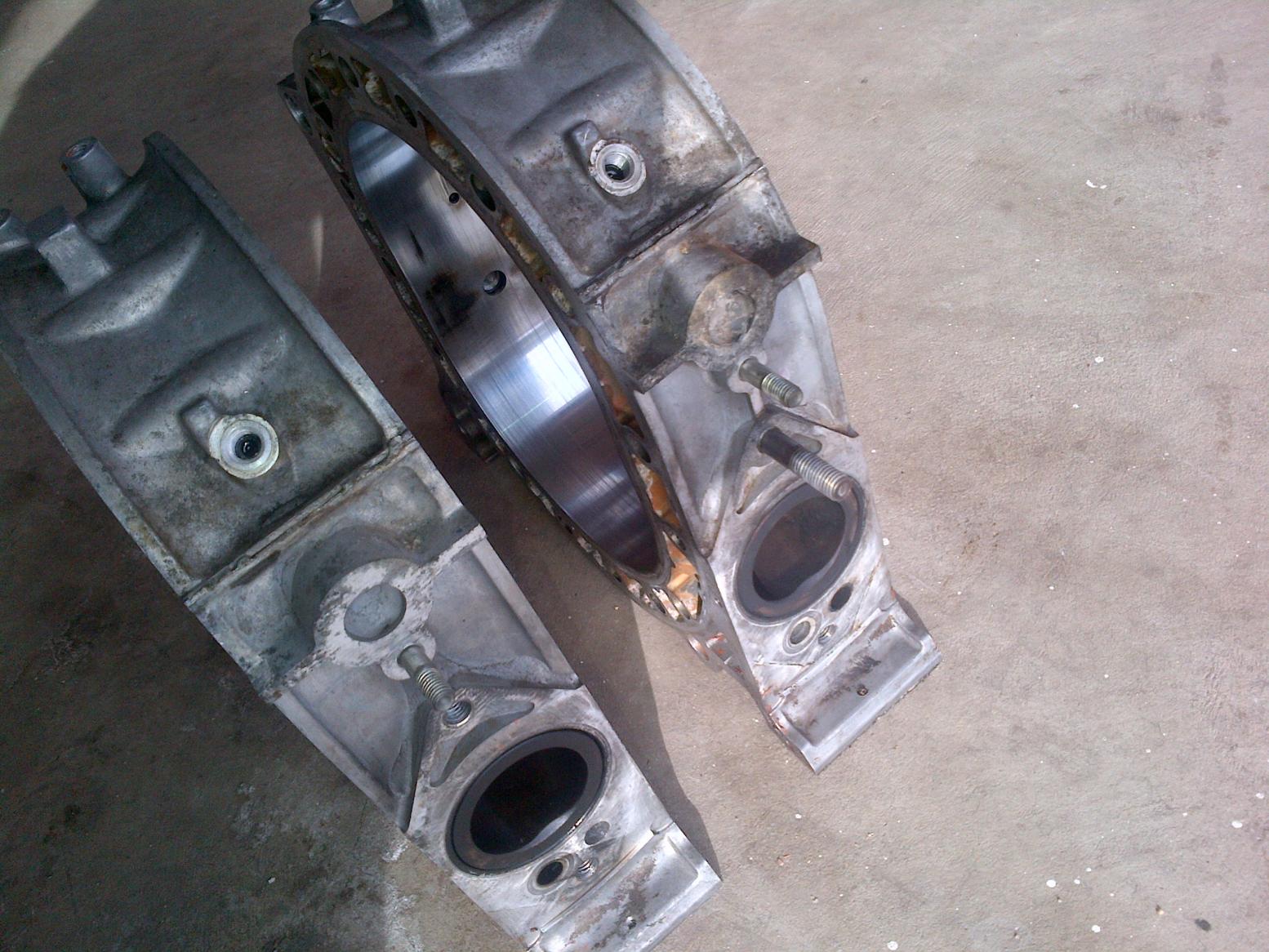

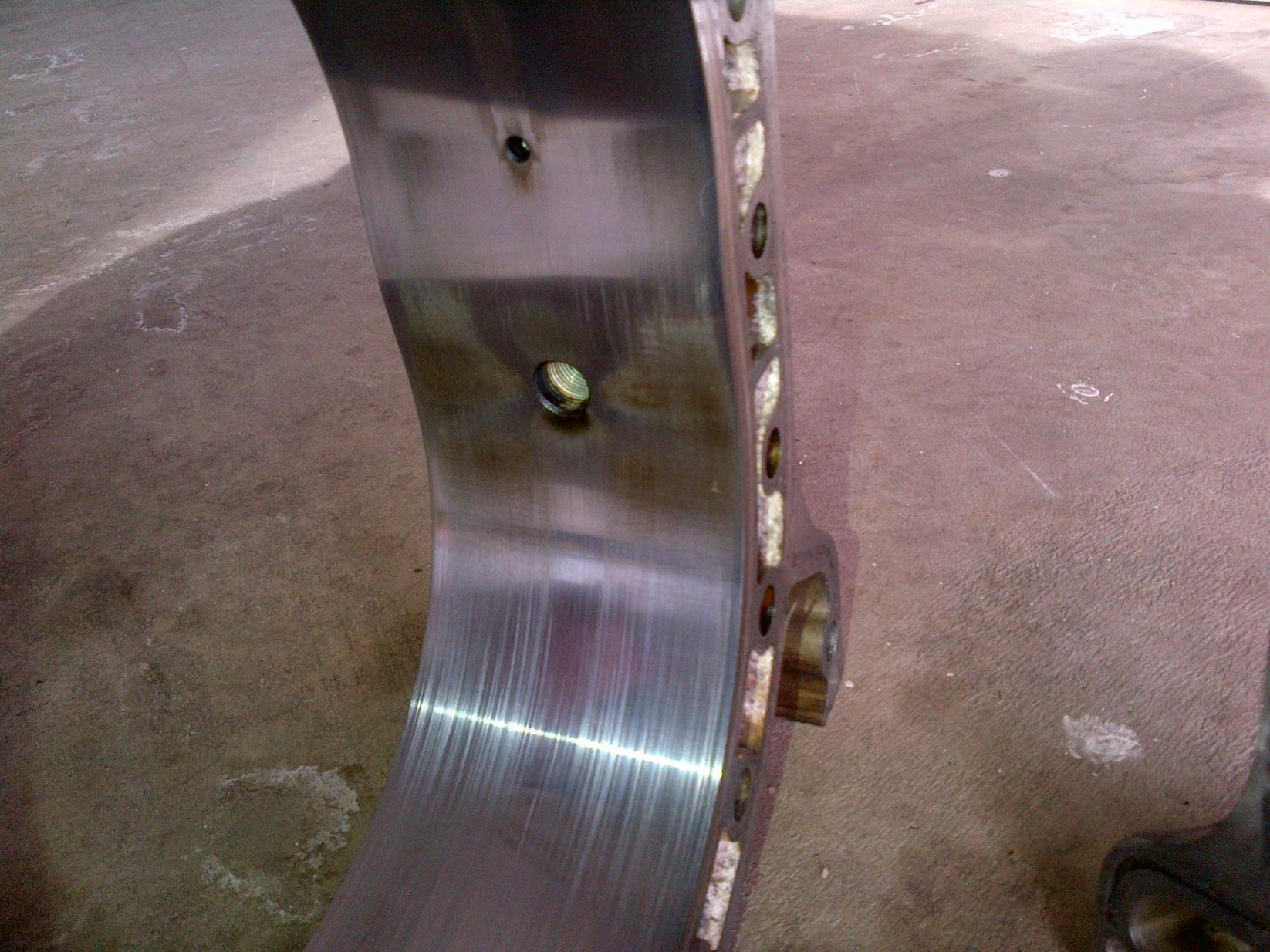

started to deep clean and found this on the center iron thank God for a Mazdaspeed account. Get one if you don't have one this is why Mazda is the best company in supporting its supporters.
03-24-14, 01:35 PM
#19
15U
Thread Starter
iTrader: (-1)
Join Date: Oct 2013
Location: FT. Carson
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts

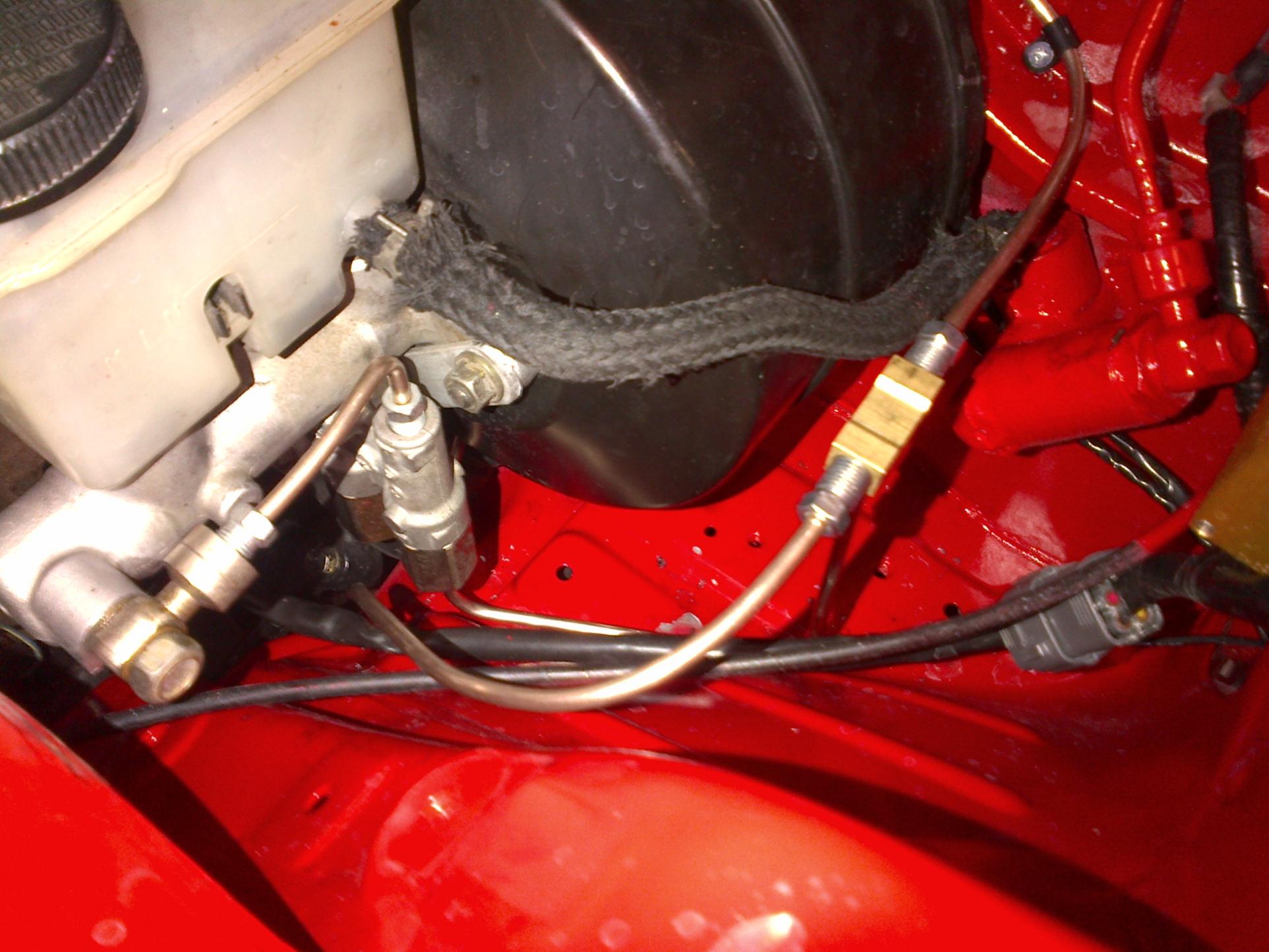

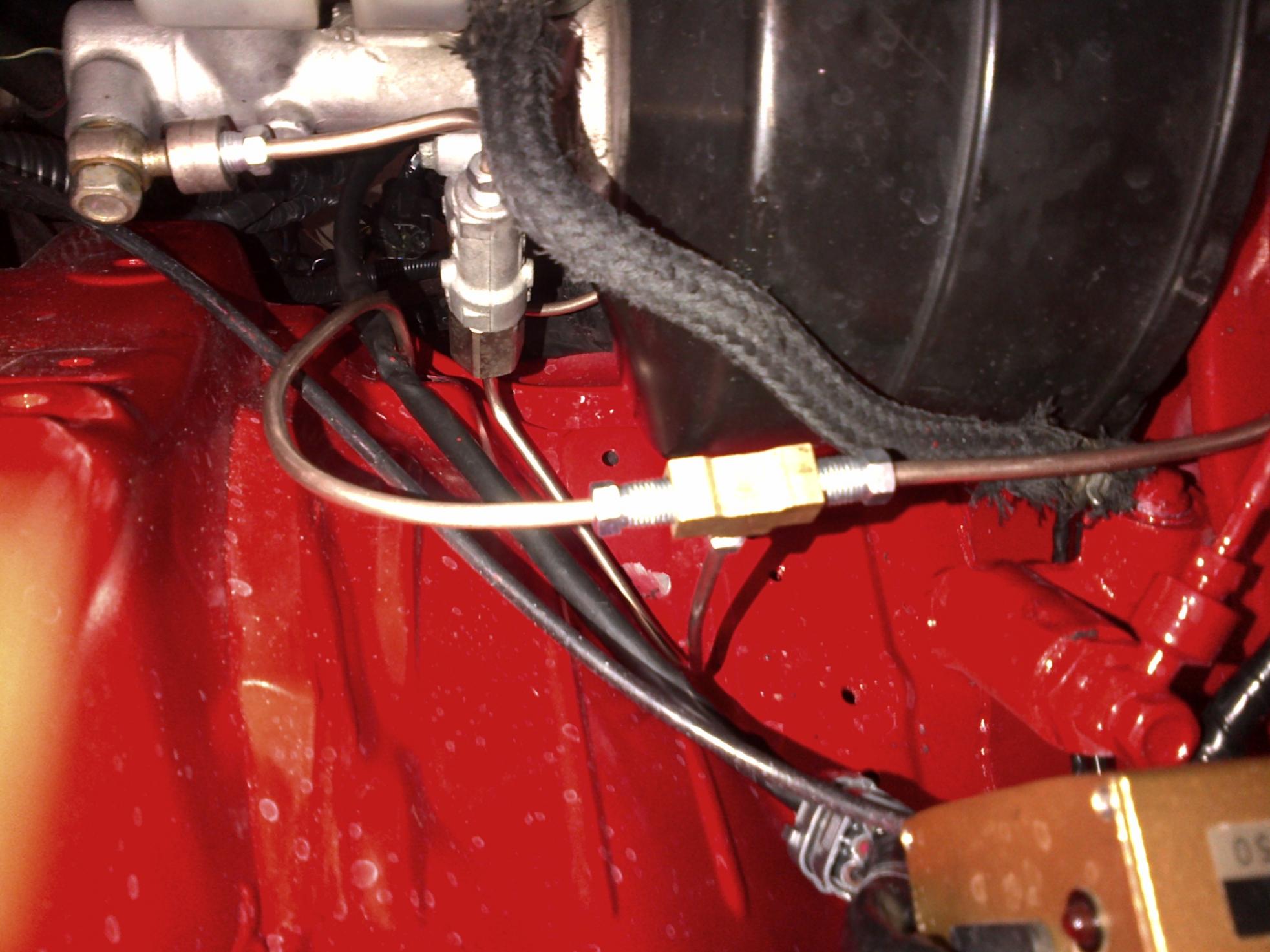

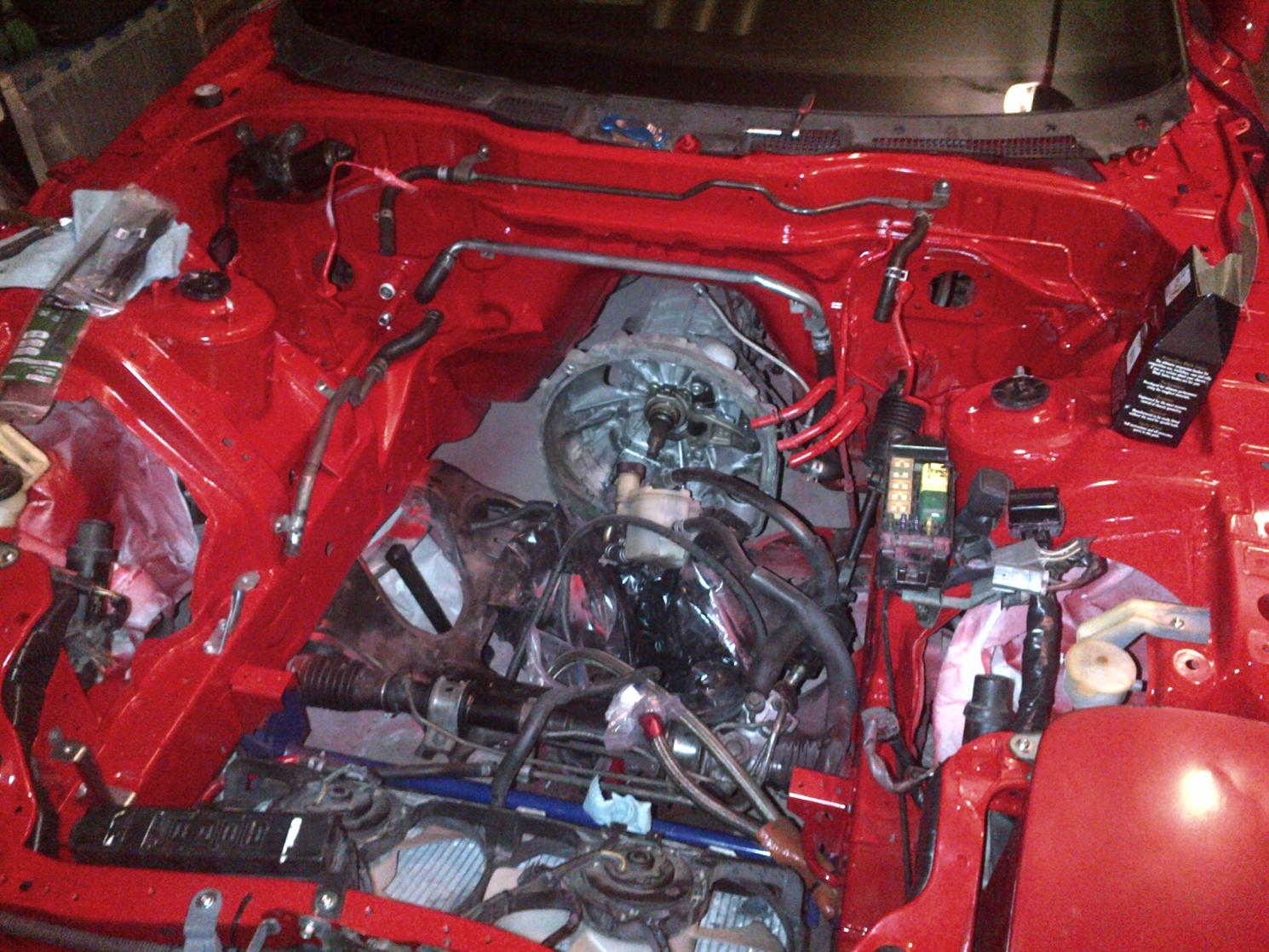

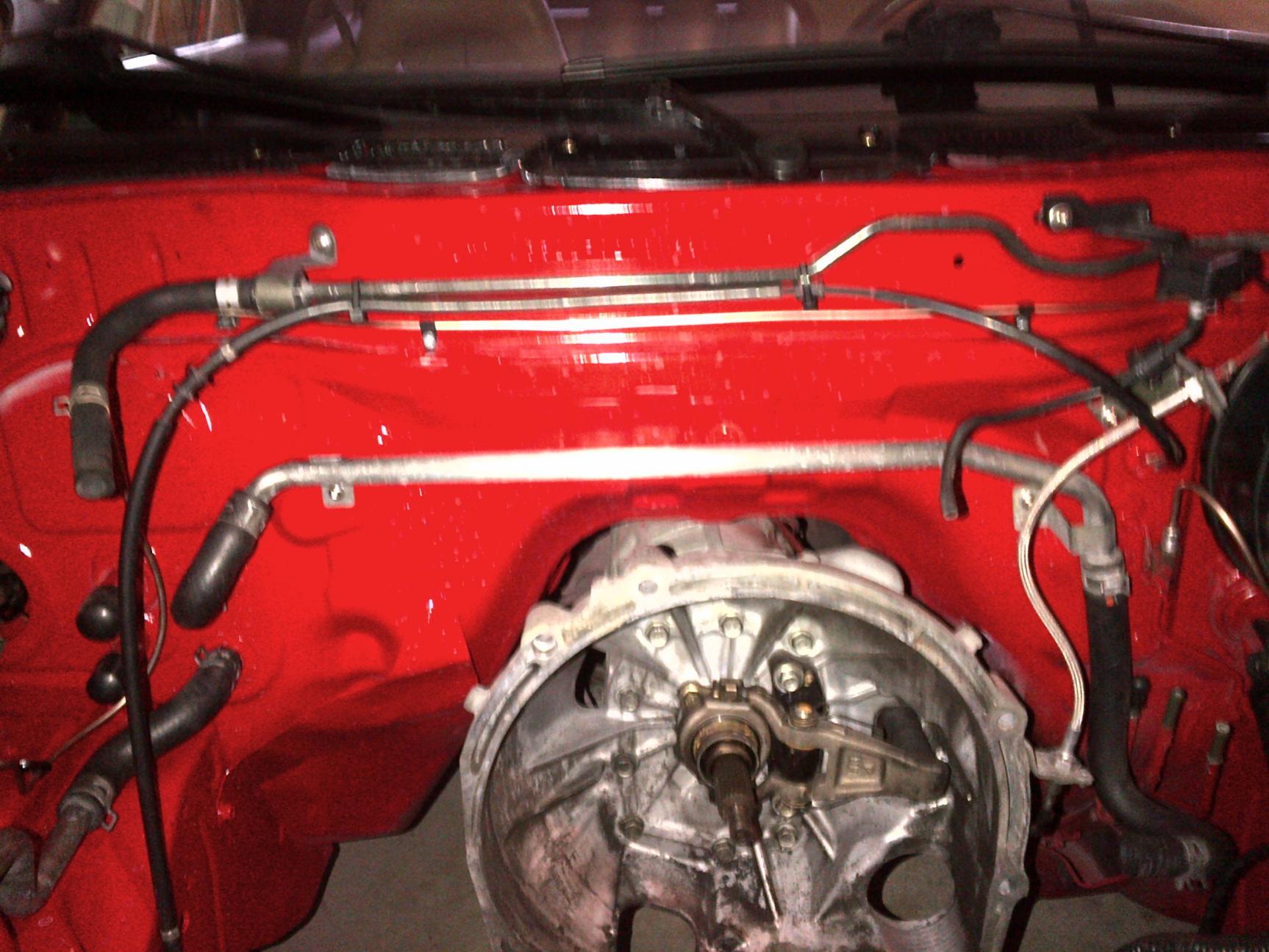

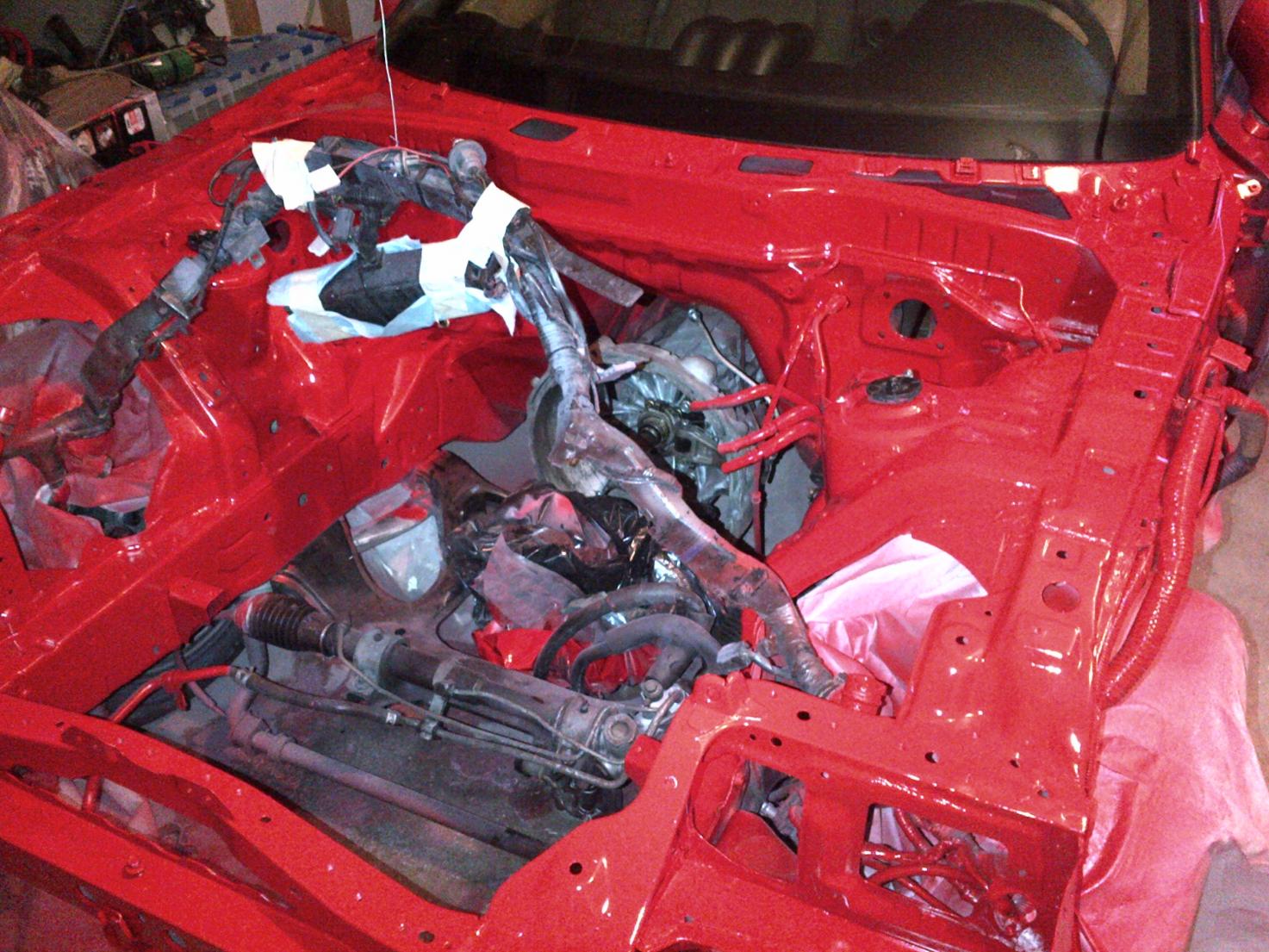

Working on ABS delete, i used 3/16th seamless copper tubing. being seamless and copper it wont rust and its easy to flare being seamless. FLY the fittings are 10x1mm. 25' cost about $45. this is just a dry fitting and i still might paint the lines but the copper on red doesn't look bad. I know iam missing the rubber grommets but iam trying to get the line center in the hole before i put the grommets in,
