I'm thinking of buying the AEM 1 gallon meth injection kit. I'm not sure where to mount the tank and was wondering if someone could post a picture of their install. I relocated my battery to the trunk so I don't have a whole bunch of space.

Thanks



I donjt have any pictures right now , But I put it in the storage bin behind the driver.

i had my battery in the passenger bin .



Maybe consider moving your battery to the storage bins and moving the meth tank to the trunk. It would be a lot more convenient in my opinion.



They battery I'm using won't fit in the bin, not to mention that I just finished relocating it. I'd hate to do it over again. Thanks for the suggestion though.



Which system do you have?



Look at XLR8 build thread has a pretty nice setup.

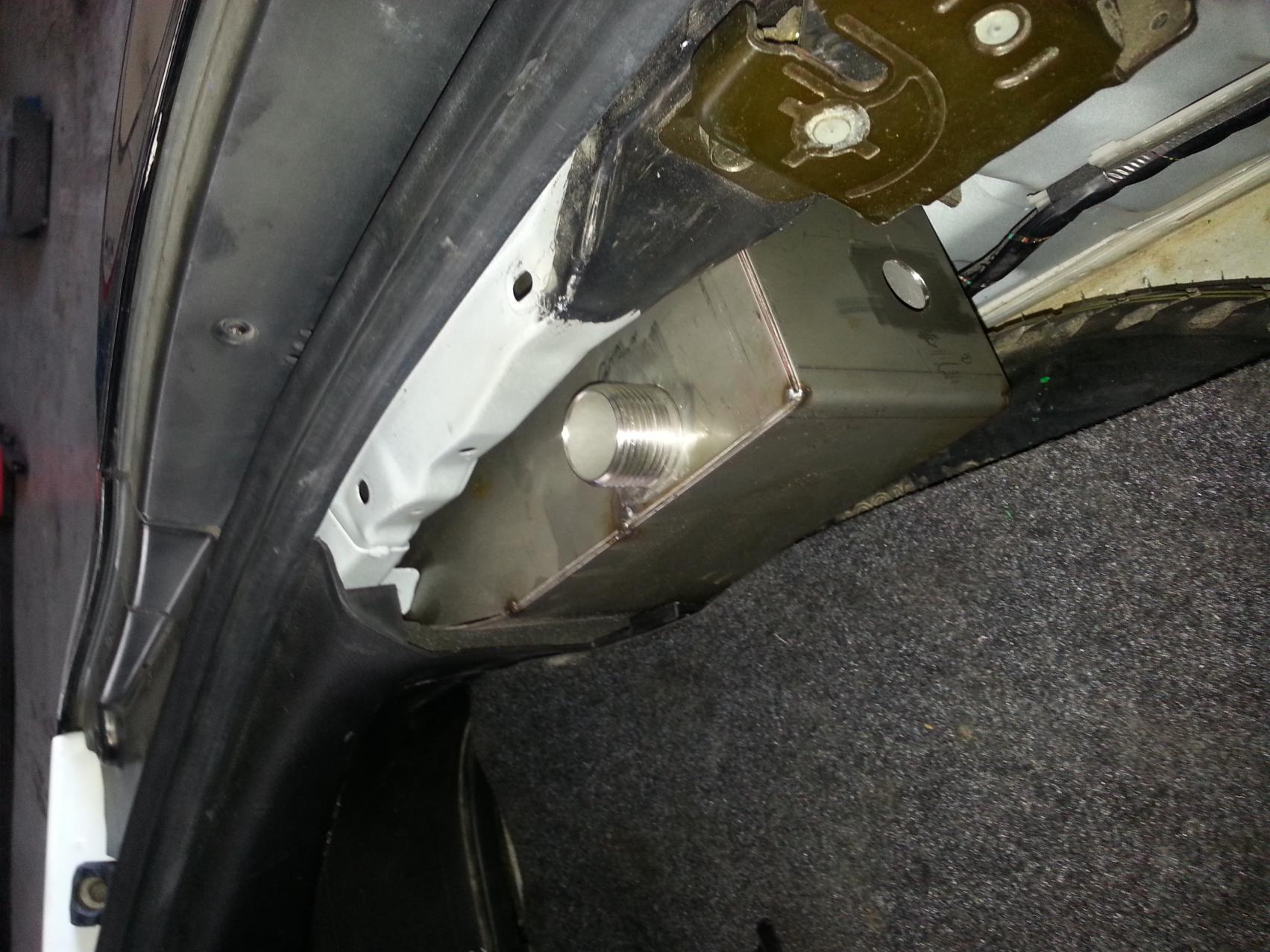

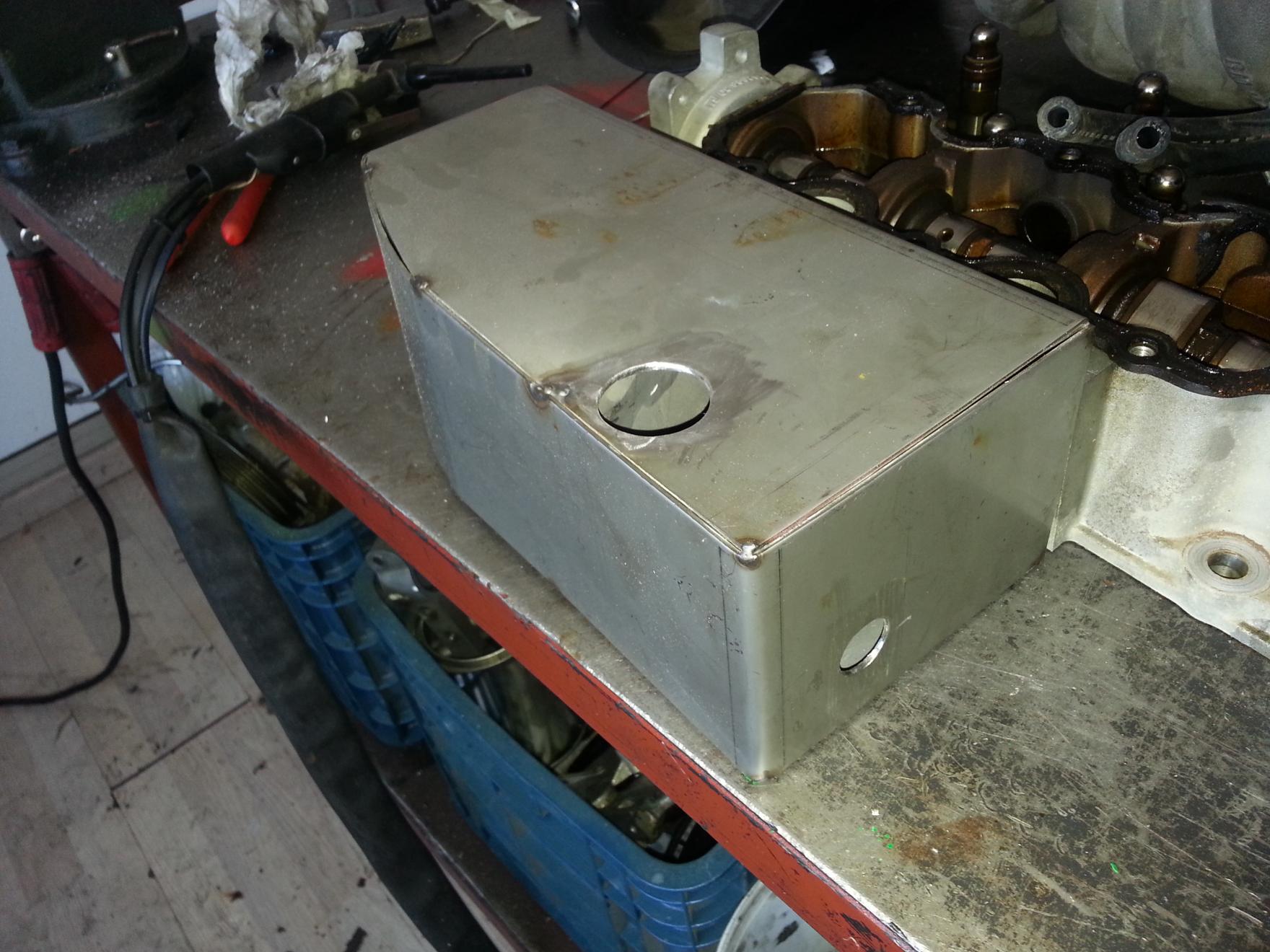

My custom SS tank in the rebar. No cutting, no drilling. It hold 4.4 liters (the filler neck it's not install on this pics)



Complete build here: https://www.rx7club.com/auxiliary-in...build-1001634/



I removed the spare tyre, mounted the tank and the pump/motor in there. Had a custom tray made so the carpet doesn't sink. It also gave me a chance to do extra insulation, for sound system, smell, heat, exhaust drone or whatever it helps with lol

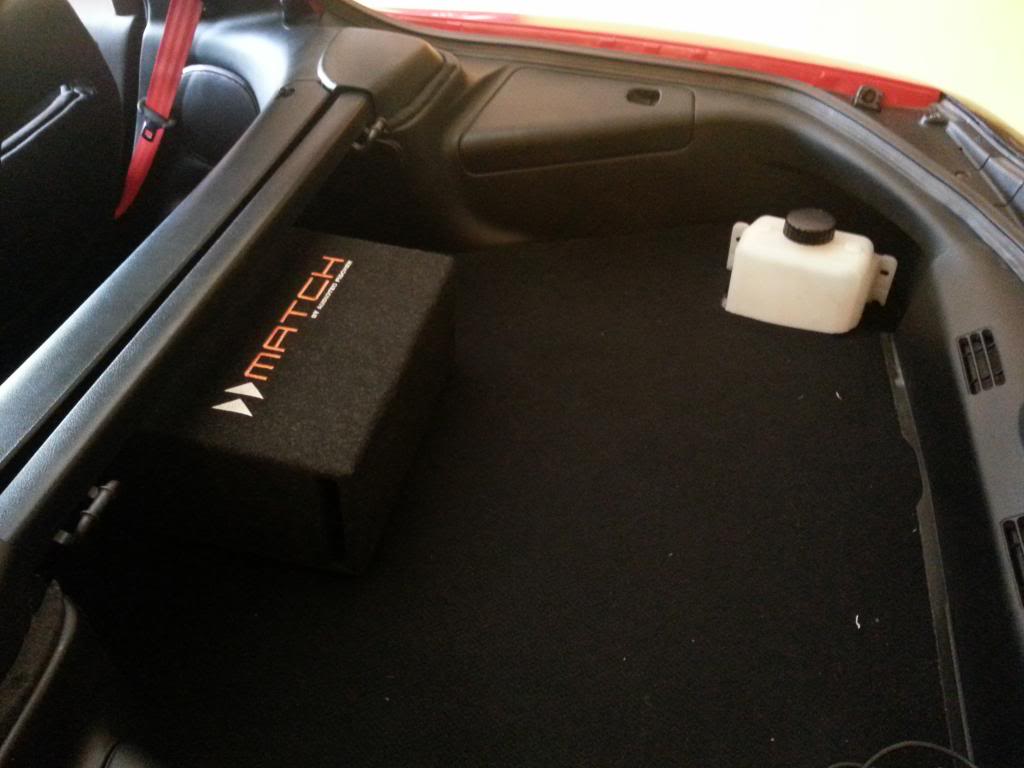

Fd's with rear wipers.had a rear wiper fluid tank. Pretty sneaky.



This is perfect - Thanks, Alpsta!



From the AI section.....
https://www.rx7club.com/auxiliary-in...n-fd3s-973573/
https://www.rx7club.com/auxiliary-in...ite-up-883642/



damn .. thats a good idea.. I never looked for that reservoir , as I have a R1 hatch , where did it used to go?



Thanks - I must have overlooked the AI section.



Heres mine. 100% stealth. Easy refill
