y-pipe revised 2.0

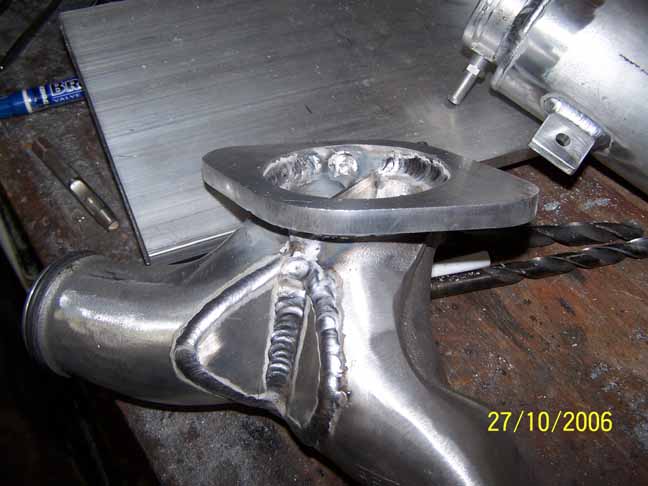

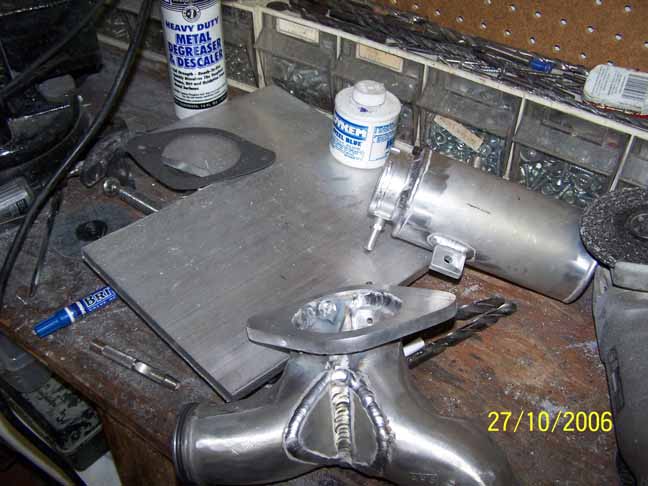

first mod was to put flanges instead of the coupling.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/modified-y-pipe-562651/

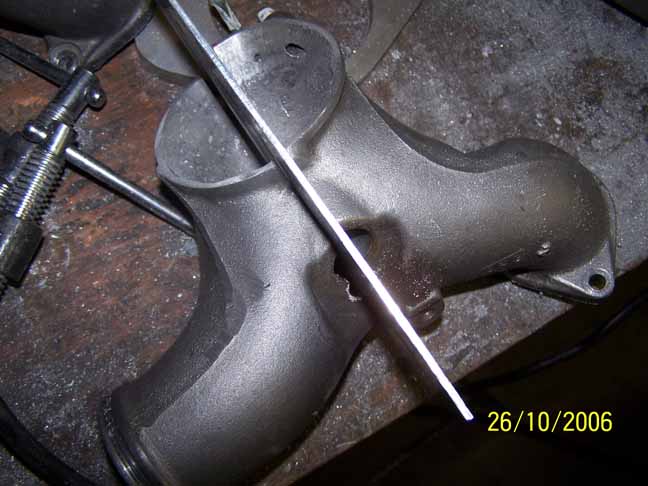

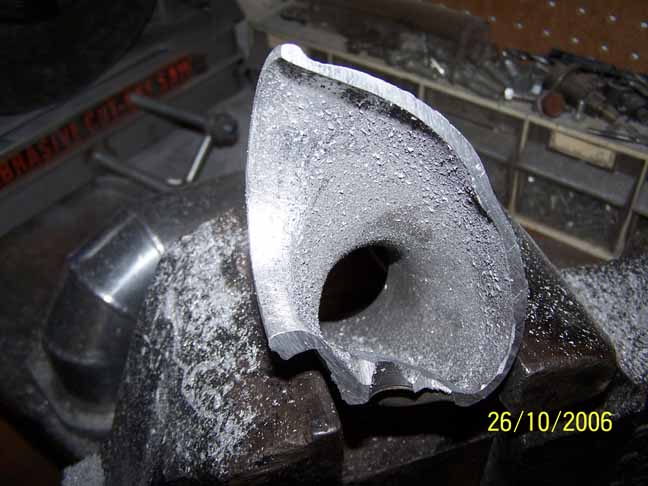

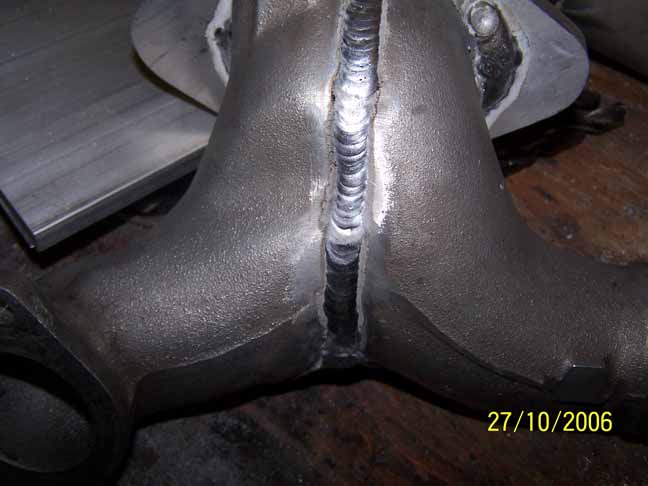

second mod was to add a divider in the middle of the y-pipe to help with flow.

the results is that the second turbo kicks a little harder and transition is a lot more quiet, just posting this in case someone else was interested about this mod that was seen in a old RX-7 magazine.




Attached Thumbnails y-pipe revised 2.0-1.jpg   y-pipe revised 2.0-2.jpg   y-pipe revised 2.0-3.jpg   y-pipe revised 2.0-4.jpg   y-pipe revised 2.0-5.jpg

Old 10-31-06, 10:41 PM
  #2
Rotary Enthusiast


telum01's Avatar

Join Date: Apr 2006
Location: Grovetown, Ga
Posts: 849
Likes: 0
Received 0 Likes on 0 Posts
daaamn that's wild. nice work!
Old 11-01-06, 12:45 AM
  #3
?????????????


EFS.O's Avatar

Join Date: Sep 2003
Location: Greece
Posts: 512
Likes: 0
Received 0 Likes on 0 Posts
I see lately at yahoo auctions jp modified y-pipes with the divider and i was thinking of doing the same.Can you give more detailed results?
Old 11-01-06, 01:30 AM
  #4
Rotary Enthusiast

iTrader: (5)

Maximum's Avatar

Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Nice welding, but why do you think a divider would improve flow? I'm not saying it doesn't, I would just like to hear your logic.
Old 11-01-06, 02:33 AM
  #5
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts

Attached Thumbnails y-pipe revised 2.0-first-done111111.gif   y-pipe revised 2.0-rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr.gif
Old 11-01-06, 05:34 AM
  #6
Rotary Freak


Speedworks's Avatar

Join Date: Jan 2004
Location: Belgium
Posts: 1,890
Received 4 Likes on 4 Posts
makes sense, but only for sequential turbo's right...
Old 11-01-06, 06:38 AM
  #7
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
yup.
Old 11-01-06, 07:18 AM
  #9
semper Fi


recon fd's Avatar

Join Date: Jul 2005
Location: LA
Posts: 1,478
Likes: 0
Received 1 Like on 1 Post
Great fab work, but doesn't air take the path of least resistance? If this is true what is stopping it from flowing right over the top of the divider and going toward the secondary just like before? Just wondering, and like I said GREAT work.

thanks,
-josh
Old 11-01-06, 07:38 AM
  #10
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
thanks^

"what is stopping it from flowing right over the top of the divider and going toward the secondary just like before?"

^ the only time that would happen is when you let off the gas and the TB closes.
Old 11-01-06, 09:49 AM
  #11
semper Fi


recon fd's Avatar

Join Date: Jul 2005
Location: LA
Posts: 1,478
Likes: 0
Received 1 Like on 1 Post
^ and then it really isn't a problem!!! Got ya buddy. Congrats on your great work and props on your welding work. Wish I could do that.

-josh
Old 11-01-06, 09:49 AM
  #12
Rotary Enthusiast

iTrader: (5)

Maximum's Avatar

Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
haha nice illustrations. I suspect that what you are showing above is a nearly instantaneous transient effect and once the pressure builds up slightly the difference is negligible, but it's an interesting idea. Cool that you seem to be getting better secondary response, but isn't the goal by what your showing above to improve primary response?
Old 11-01-06, 10:15 AM
  #13
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
recon fd - with aluminum i just fabricate tack weld and take to my friends shop the power at my house sucks the power breaker goes out when i use my mig welder on high power.

Maximum - its for both but primary response was not that noticeable and i got lazy on the animation.
Old 11-01-06, 10:42 AM
  #14
~17 MPG

iTrader: (2)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 3,298
Received 231 Likes on 154 Posts
Nice work, it's great to see people doing custom fabrication on these cars. By the way, your car was one of the only FD's at Sevenstock9 with the AST at the proper height.

-s-
Old 11-04-06, 05:01 AM
  #15
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
thanks, wich car was yours.
Old 11-04-06, 09:11 AM
  #16
Full Member

iTrader: (1)

pincusa's Avatar

Join Date: Sep 2004
Location: NY
Posts: 234
Likes: 0
Received 0 Likes on 0 Posts
Understand the idea, but have spent to much time working on a flow bench not to ask. Have you flowed the pipe before and after?

Very nice clean work. Clearly you know your way around a GTAW welder.
Old 11-04-06, 11:37 AM
  #17
Rotary Freak

iTrader: (9)

Mazdabation's Avatar

Join Date: Sep 2002
Location: Ancaster Ontario, Canada
Posts: 2,775
Received 5 Likes on 4 Posts
you do realize your going to have to let me send my pipe to you now so you can do mine. pretty please with a cherry on top HA HA
Old 11-05-06, 02:11 AM
  #18
NAN777


NAN777's Avatar

Join Date: Oct 2005
Location: Malaysia
Posts: 369
Likes: 0
Received 0 Likes on 0 Posts
personally thinking... that's a good idea. but think of it this way.. if the turbo start kicking in... the air will need to fill up the 1st chamber.. once they got to the top pipe... the air needs to be filled backwards toward to 2nd chamber and also the main pipe towards the IC.
due to the air travel, it need longer time to get to full boost...

if the Y pipe was not partitioned, it will immediately filled up the 1st chamber + 2nd chamber then the air flows toward the IC pipe and toward the IC....

between these 2, theorotically, partitioning it might delay the full boost by a few milli seconds... not noticeble. if you have a one way valve to block it from flowing towards the 2nd chamber... then it'll be faster... when the 2nd boost comes in.. it'll be instantaneous quick response...

just my 2 cents.
Old 08-12-07, 07:29 PM
  #19
Still got it.

iTrader: (2)

Prometheus's Avatar

Join Date: Jan 2007
Location: Seattle, Washington
Posts: 1,687
Received 3 Likes on 3 Posts
I'd like to know if anybody has anything they'd like to say about this modification.

Personal experience.

I understand it is for sequential setups.

Has anybody used this with BNR's?

Any flow sheets or dyno sheets to show results?
Old 08-12-07, 08:07 PM
  #20
17 second FD

iTrader: (11)

MADDSLOW's Avatar

Join Date: May 2006
Location: Poughkeepsie, New York
Posts: 2,436
Likes: 0
Received 1 Like on 1 Post
I'd have to agree with NAN777 on this one. The secondary area still has to be compressed to make boost, so how can a partition like that make a positive difference?
Old 08-13-07, 02:04 AM
  #21
Goodfalla Engine Complete

iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Kennewick, Washington
Posts: 3,238
Received 32 Likes on 25 Posts
the only way for that to work is if the secondary area is completely sealed off from primary boost.
Old 08-13-07, 02:32 AM
  #22
Glug Glug Glug Burp


jdhuegel1's Avatar

Join Date: Jan 2002
Location: Scott AFB, IL
Posts: 3,819
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by scotty305
Nice work, it's great to see people doing custom fabrication on these cars. By the way, your car was one of the only FD's at Sevenstock9 with the AST at the proper height.

-s-

It is great to see however, I like to think that the original engineers would have done similar had it really been necessary or beneficial.

Regardless, nice fab work. Next step should be testing it against a stock piece to prove the efforts' worth.
Old 08-13-07, 08:38 AM
  #23
Banned. I got OWNED!!!

GARCO MOTORWORKS's Avatar

Join Date: Jul 2004
Location: next to the polishing wheel!!!
Posts: 1,179
Likes: 0
Received 1 Like on 1 Post
I also put a flange on stock y pipes and I mod the late model ones.I put five bolts in them instead of two .No warping or leaks .I also remove the blowoff nipple and reshape that area .
Old 08-13-07, 09:32 AM
  #24
Cheap Bastard

iTrader: (2)

adam c's Avatar

Join Date: Sep 2002
Location: San Luis Obispo, Ca
Posts: 8,370
Received 50 Likes on 42 Posts
Since primary boost only happens at low rpm's, and no one expects to get any real performance there anyway, I don't really see how this modification improves performance.
Old 08-13-07, 10:11 AM
  #25
needs more track time

iTrader: (16)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 9,204
Received 513 Likes on 352 Posts
Since we are both in SD, I have a local friend who has a flow bench if you want to test and compare your mod.
