who is using the a-spec tranny brace?
07-07-05, 04:39 AM
#2
I won't let go
I've got it. Made me realize that I need motor mounts.
I think it really tightened up the drivetrain some. I have the diff brace too. I think the main benefit is to supplement the ppf. With this keeping things in line, I think it would really take some creative driving to crack it with this installed. The only bad think I can think of is if you drag (which I know you don't) you're going to give the diff that much more shock, which isn't a big deal in my book since those who do will probably be replacing the stick rear anyway.
I think it really tightened up the drivetrain some. I have the diff brace too. I think the main benefit is to supplement the ppf. With this keeping things in line, I think it would really take some creative driving to crack it with this installed. The only bad think I can think of is if you drag (which I know you don't) you're going to give the diff that much more shock, which isn't a big deal in my book since those who do will probably be replacing the stick rear anyway.
07-07-05, 09:08 AM
#6
Vagina Junction
Join Date: Mar 2001
Location: Seattle, WA
Posts: 1,838
Likes: 0
Received 0 Likes
on
0 Posts
I have one. Makes the drivetrain rock solid. They recommend putting a thin sheet of rubber on the mounting areas, but I didn't and it is LOUD Even louder since now I have both a tranny and UIM torque brace (no dampening).
edit: When installing it, many people complained that it doesn't fit. When I was putting mine on, at first I thought the same thing, but jacking up the car LEVEL fixed the alignment "issue" for installation. Still a tight fit, but that's what I was lookin' for!
Even louder since now I have both a tranny and UIM torque brace (no dampening).edit: When installing it, many people complained that it doesn't fit. When I was putting mine on, at first I thought the same thing, but jacking up the car LEVEL fixed the alignment "issue" for installation. Still a tight fit, but that's what I was lookin' for!
Last edited by Hyperite; 07-07-05 at 09:13 AM.
Trending Topics
07-07-05, 11:13 AM
#8
thanks for the notes guys, looks like I'll try one and see how it feels, I may use some thin bushing material as a dampener but really sound/vibration it not an issue since its on my track car that already vibrates all over the place and is silly loud.
07-07-05, 03:27 PM
#9
Rotary Poseur
Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
damian,
I'm running an A-Spec tranny brace (and a kgparts diff brace/jim's bushings/gotham engine mount/HPI ETB). I think every part i bought was made on Wednesday as nuthing fit right. We had to put the tranny brace on a press to flatten it out as the orig angle was pulling on the PPF causing the d/s to hit it. Anyhoo, here's a vid of my car idling (from my GT40R post). At the 44sec mark, my friend went inside the car and u can hear the rattling from all the vibration being transmitted inside the car.
I'm running an A-Spec tranny brace (and a kgparts diff brace/jim's bushings/gotham engine mount/HPI ETB). I think every part i bought was made on Wednesday as nuthing fit right. We had to put the tranny brace on a press to flatten it out as the orig angle was pulling on the PPF causing the d/s to hit it. Anyhoo, here's a vid of my car idling (from my GT40R post). At the 44sec mark, my friend went inside the car and u can hear the rattling from all the vibration being transmitted inside the car.
07-08-05, 12:04 PM
#12
Senior Member
Join Date: Oct 2003
Location: Lynnwood, WA
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
Damian, give us one of your great write-ups once you've installed and tested. I too am considering one so some educated words from you are always welcomed. Thanx
07-08-05, 12:45 PM
#15
I won't let go

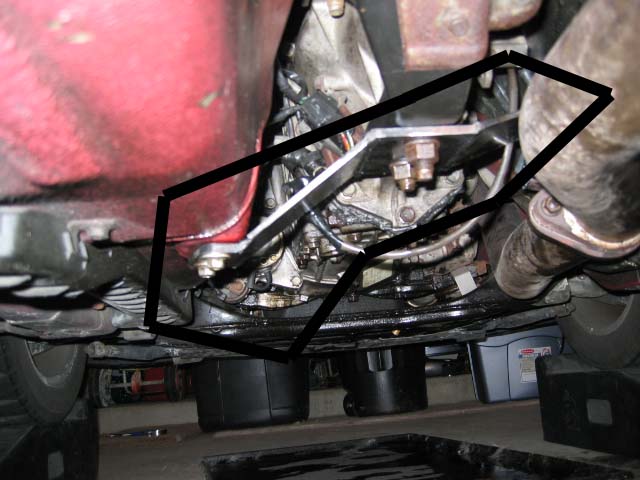

It's as simple as changing a spark plug. Remove old stock brace tied to the underbody. Remove the two lower 22mm nuts on the tranny housing. Place brace into position and replace nuts/bolts. Done. Like hyperite said, if you have alignment issues, you're probably not on a level surface.
07-08-05, 09:21 PM
#19
Senior Member
iTrader: (1)
Join Date: Dec 2001
Location: WA
Posts: 634
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by damian
but the tranny (shift ****) does bounce all over the place, that is what I want to tighten up.
I also have the a-spec trans brace i havnt installed it yet but im sure a local machine shop could do better job. I waited a month and half for mine and after i got it i personaly dont think that the quality is there for how much i paid and how long i waited. And it was my first expiernce with a-spec and it puts a doubt in my head if there will ever be another. But this is just my opinion nothing personal towards a-spec but im sure the peice will get the job done for you.
PS love your track car
